Electric Cooktop

Model # HCC3320AES Official Haier electric counter unit

Here are the diagrams and repair parts for Official Haier HCC3320AES electric counter unit, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forHCC3320AES Cooktops

  • Reflector 756300
    #LM24

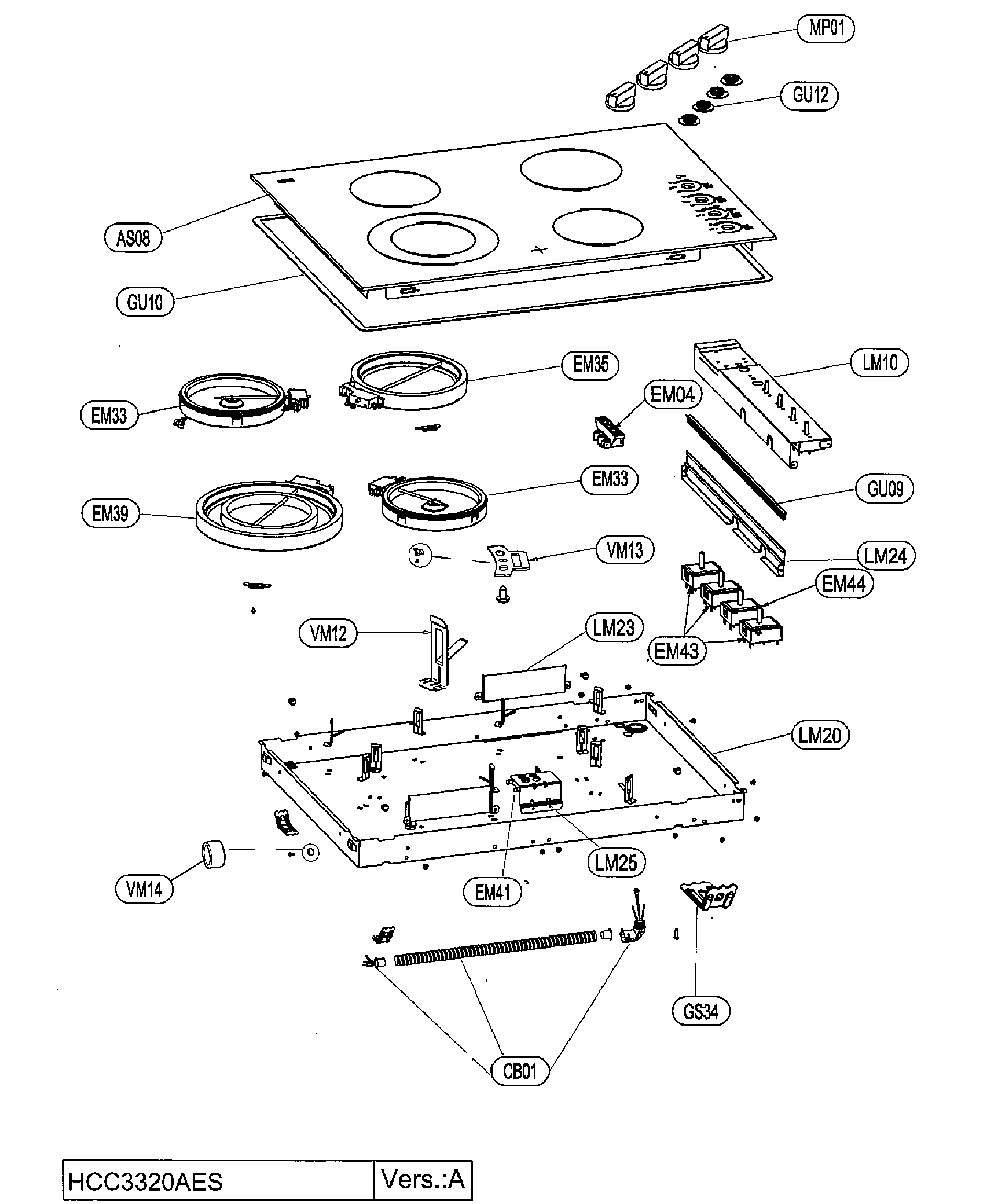

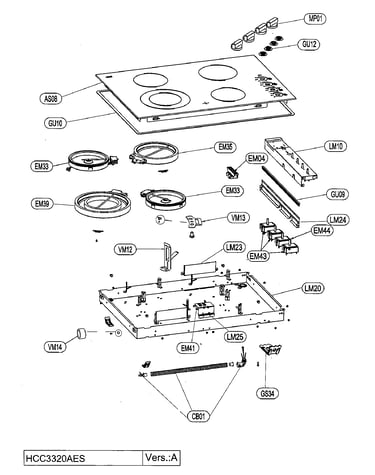

    Main asy diagram

    Reflector

    Part #756300

    In Stock
  • Haier Pwer Cable ASS41781002
    #CB01

    Main asy diagram

    Haier pwer cable

    Part #ASS41781002

    In Stock
  • Hook Locki 1690
    #VM13

    Main asy diagram

    Hook locki

    Part #1690

    In Stock
  • Spacer 755600
    #VM14

    Main asy diagram

    Spacer

    Part #755600

    In Stock
  • Seal /knob 803019
    #GU12

    Main asy diagram

    Seal /knob

    Part #803019

    In Stock
  • Haier Wiring M841802
    #NI

    Main asy diagram

    Haier wiring

    Part #M841802

    The manufacturer no longer makes this part, and there's no substitute part

  • Term Block 05EBFV273
    #EM04

    Main asy diagram

    Term block

    Part #05EBFV273

    In Stock
  • Heat Eleme 05XXERUL175L1C1
    #EM35

    Main asy diagram

    Heat eleme

    Part #05XXERUL175L1C1

    In Stock
  • Inst Manua I-HCC3320AES
    #NI

    Main asy diagram

    Inst manua

    Part #I-HCC3320AES

    In Stock
  • Box Suppor 728100
    #LM10

    Main asy diagram

    Box suppor

    Part #728100

    In Stock
