York
Heating & Cooling Combined Unit

Model # D3CG120N20025ME Official York heating & cooling unit

Here are the diagrams and repair parts for Official York D3CG120N20025ME heating & cooling unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

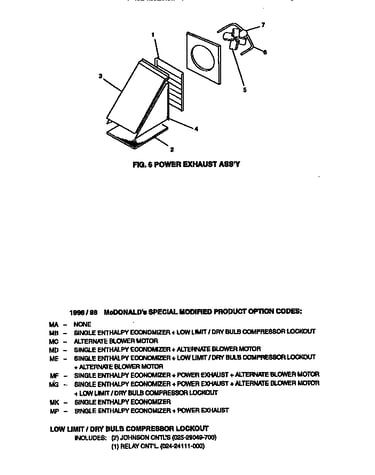

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 186 parts  |

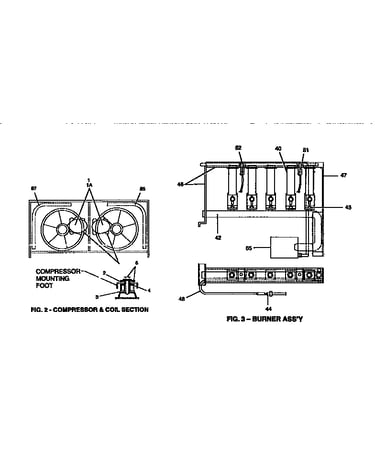

Igniter 025-29010-000

#51

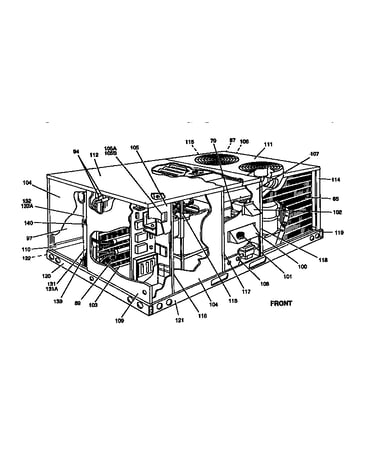

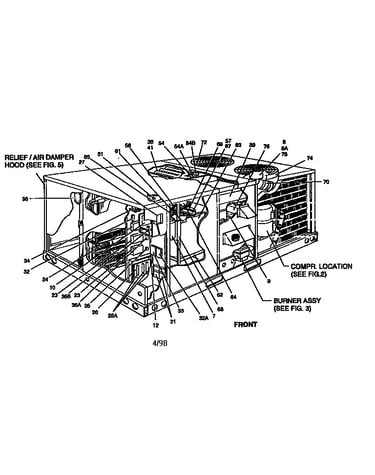

All parts diagram

Igniter

Part #025-29010-000

The manufacturer no longer makes this part, and there's no substitute part

Elec Cntrllr 025-20963-000

#18

All parts diagram

Elec cntrllr

Part #025-20963-000

$19.63
In Stock
Post Part 063-89973-002

#117

All parts diagram

Post part

Part #063-89973-002

The manufacturer no longer makes this part, and there's no substitute part

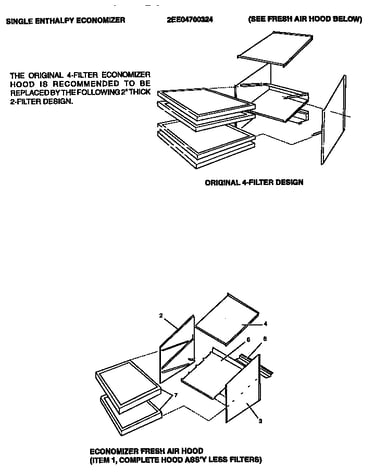

Air Filter 026-28050-724

#132

All parts diagram

Air filter

Part #026-28050-724

The manufacturer no longer makes this part, and there's no substitute part

Switch Limit (unit Style B-d) 025-26392-012

#53A

All parts diagram

Switch limit (unit style b-d)

Part #025-26392-012

The manufacturer no longer makes this part, and there's no substitute part

Cover, Disconnect 025-31977-000

#105AA

All parts diagram

Cover, disconnect

Part #025-31977-000

The manufacturer no longer makes this part, and there's no substitute part

Trap Condensate 028-12377-000

#138

All parts diagram

Trap condensate

Part #028-12377-000

The manufacturer no longer makes this part, and there's no substitute part

Grounding Lug, Electrical 025-18094-000

#31

All parts diagram

Grounding lug, electrical

Part #025-18094-000

The manufacturer no longer makes this part, and there's no substitute part

Bearing Ball (pillow Block) (2-req'd) 029-20424-700

#57

All parts diagram

Bearing ball (pillow block) (2-req'd)

Part #029-20424-700

The manufacturer no longer makes this part, and there's no substitute part

Valve Assembly, Distr (sys. #2) (contains Body, Orifice,distributor Tubes And Sleeving) 022-06844-039
Valve assembly, distr (sys. #2) (contains body, orifice,distributor tubes and sleeving)

Part #022-06844-039

The manufacturer no longer makes this part, and there's no substitute part
