Model # LGA90AL-PLGA90AL Official Amana dryer

Here are the diagrams and repair parts for Official Amana LGA90AL-PLGA90AL dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

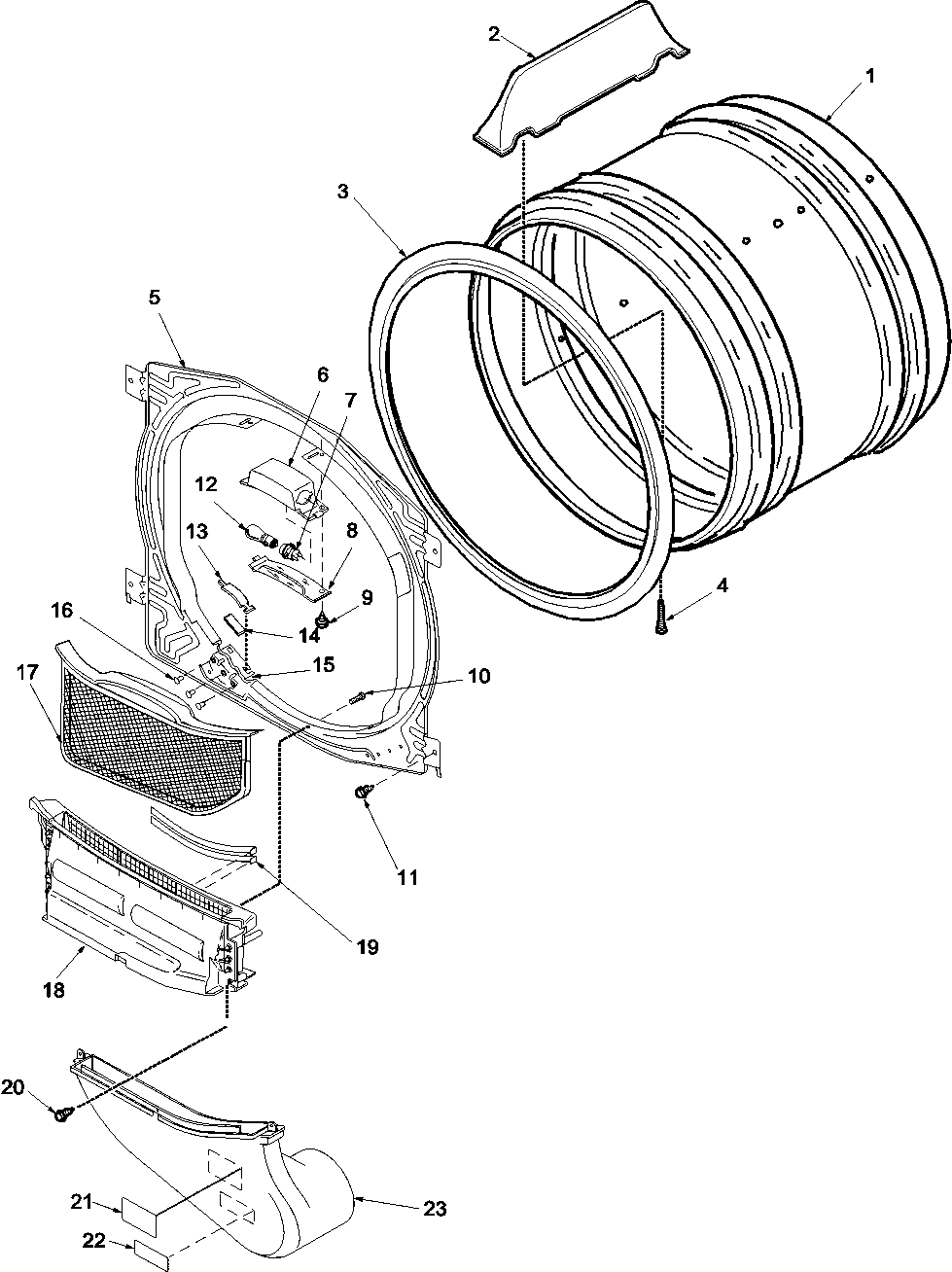

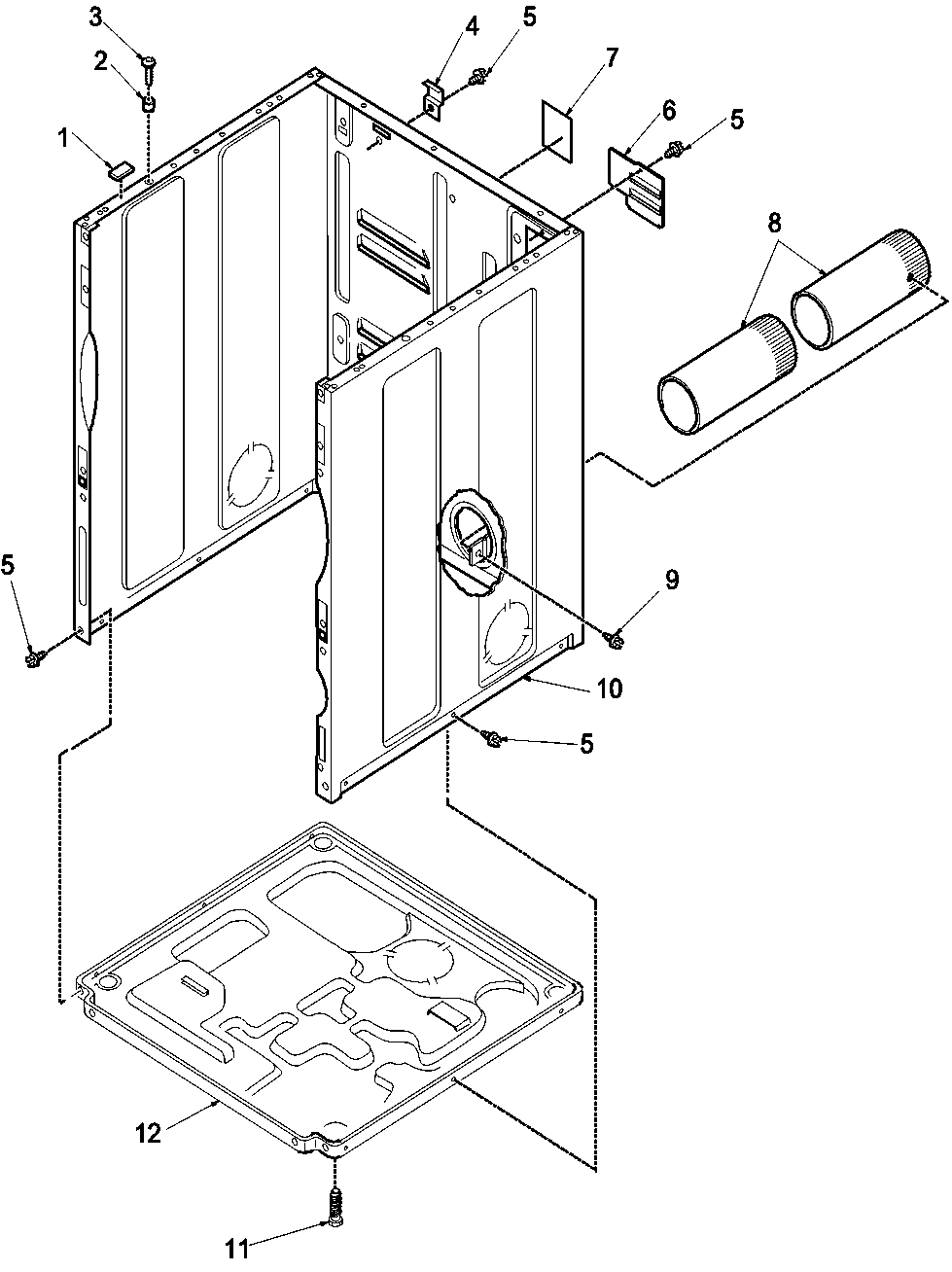

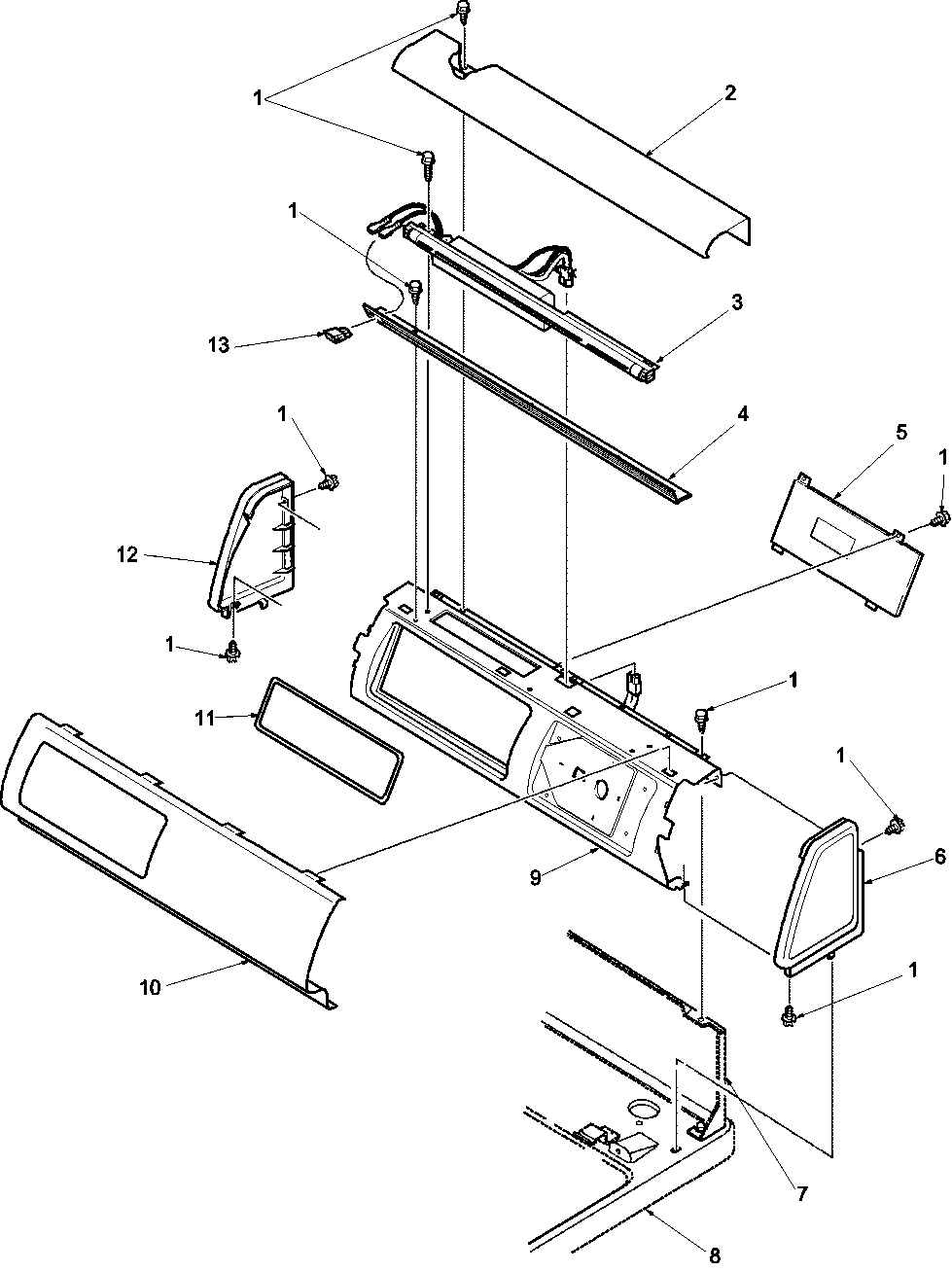

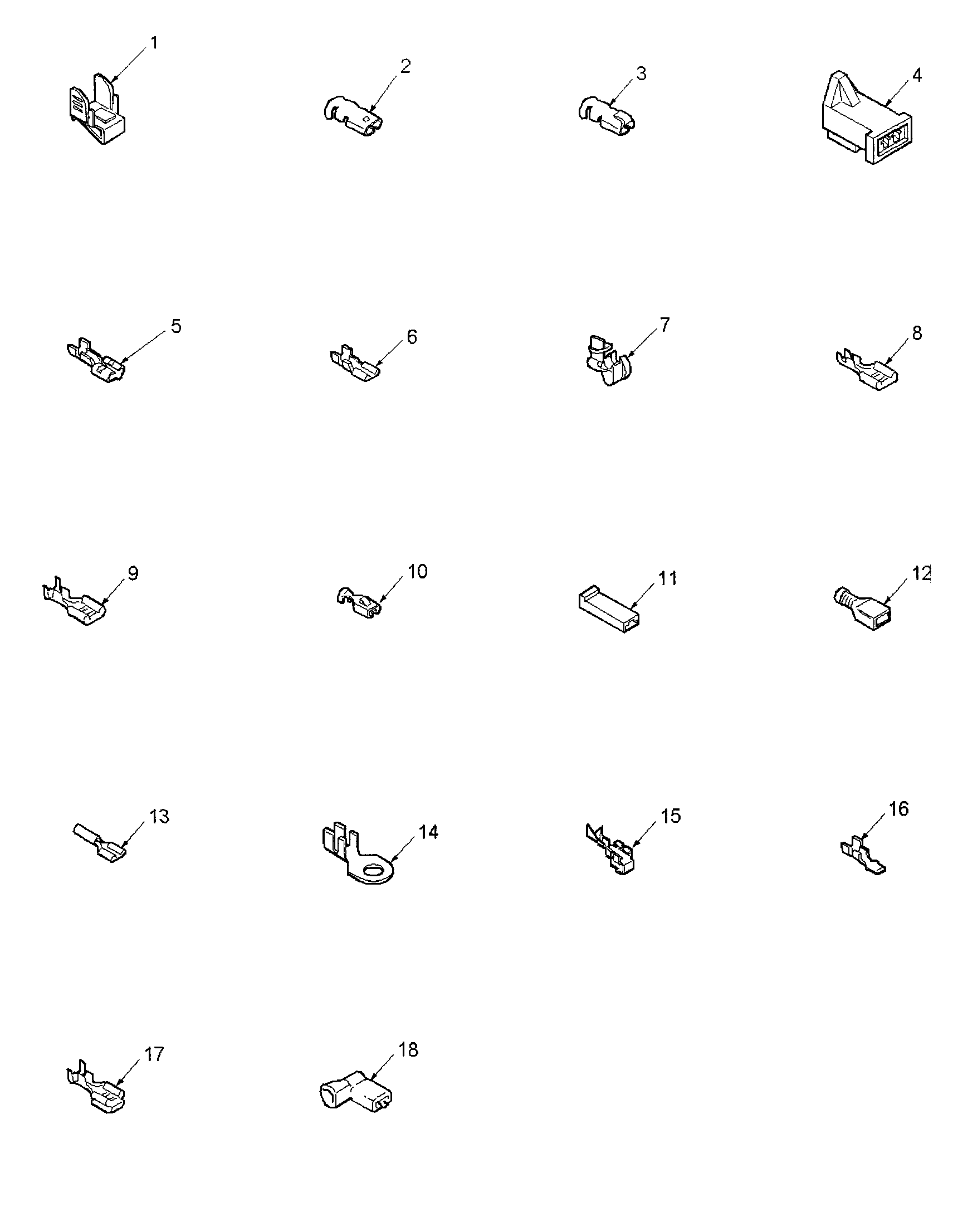

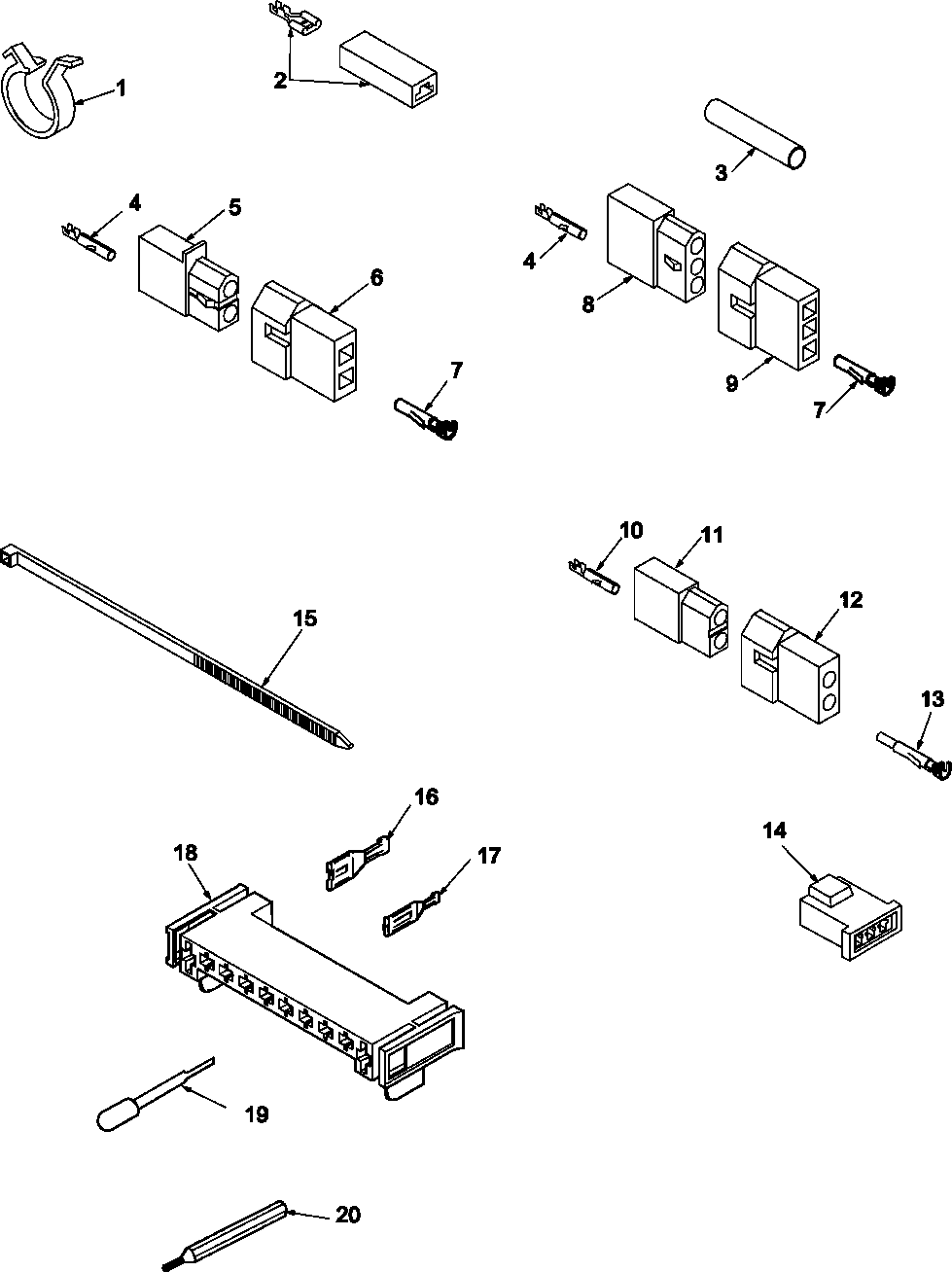

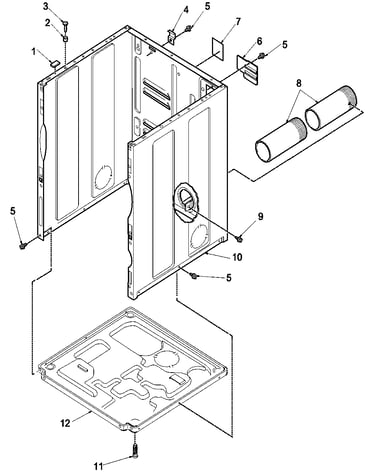

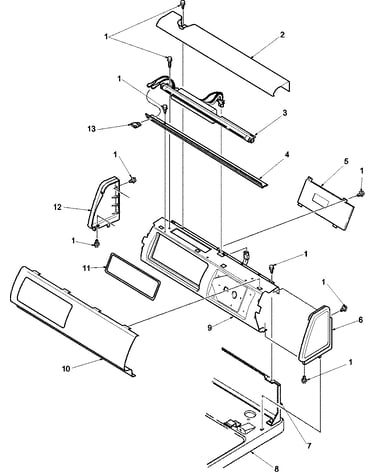

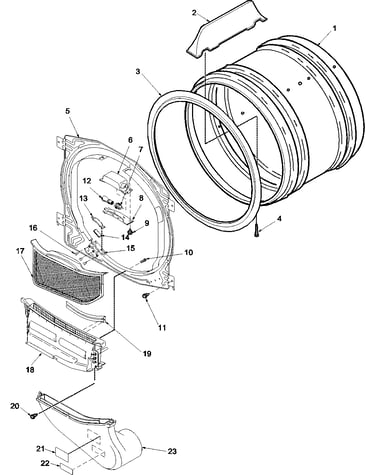

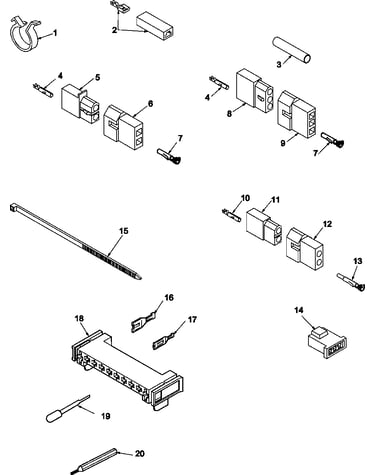

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 159 parts  |
Coil 58804A
#12

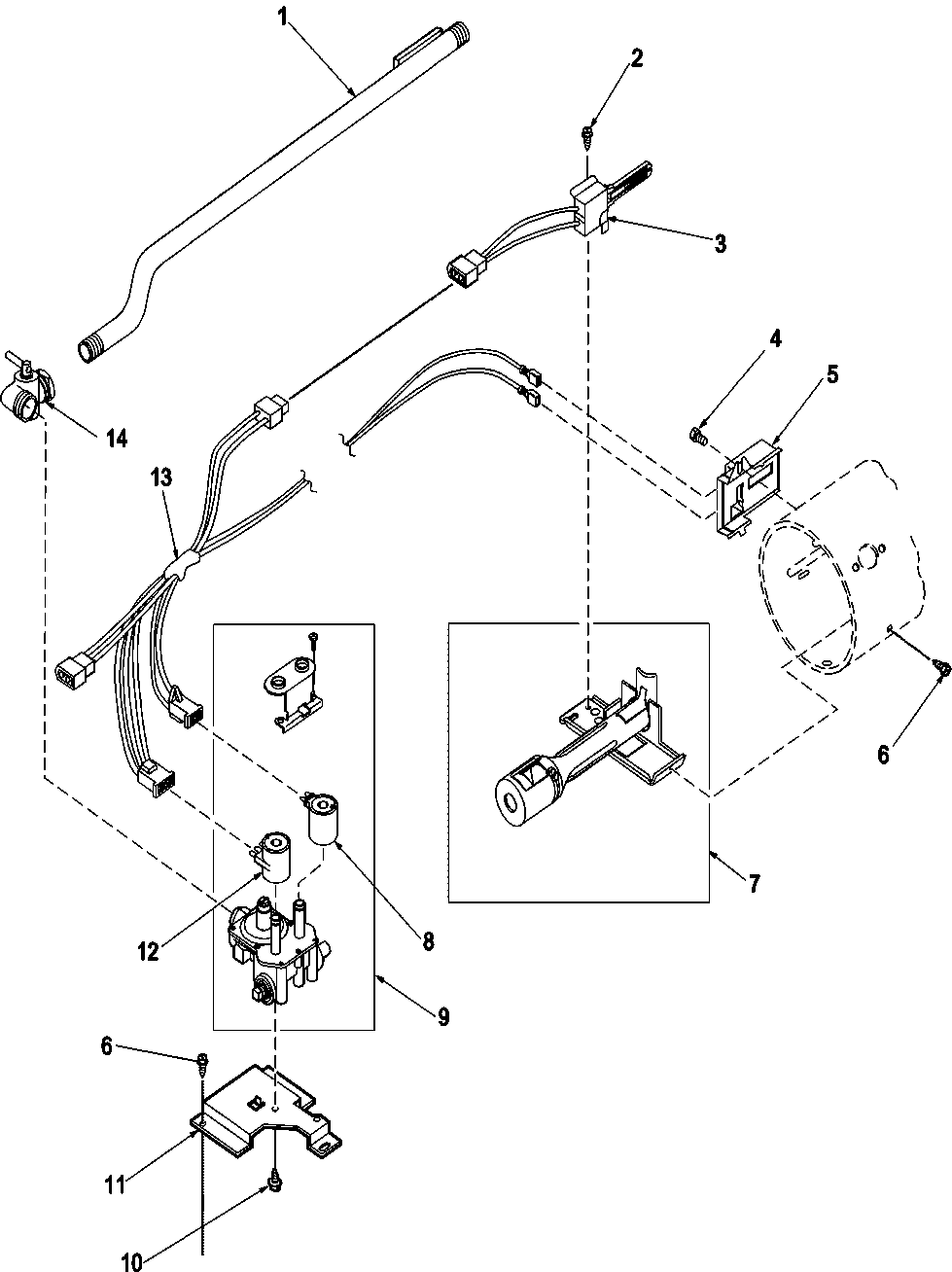

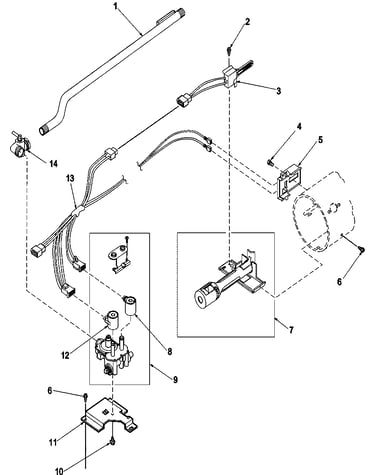

Gas valve, igniter and conversion kits diagram

Coil

Part #58804A

Replaced by #279834

?
Manufacturer substitution
This part replaces 58804A. Substitute parts can look different from the original.
BEST SELLER
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Second Coil 58804B
#8

Gas valve, igniter and conversion kits diagram

Second coil

Part #58804B

Replaced by #279834

?
Manufacturer substitution
This part replaces 58804B. Substitute parts can look different from the original.
BEST SELLER
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Flame Sensor 56231
#5

Gas valve, igniter and conversion kits diagram

Flame sensor

Part #56231

Replaced by #WP338906

?
Manufacturer substitution
This part replaces 56231. Substitute parts can look different from the original.
BEST SELLER
$38.79 |
13% OFF Phone Price : $44.79
In Stock
Assembly 500214
#16

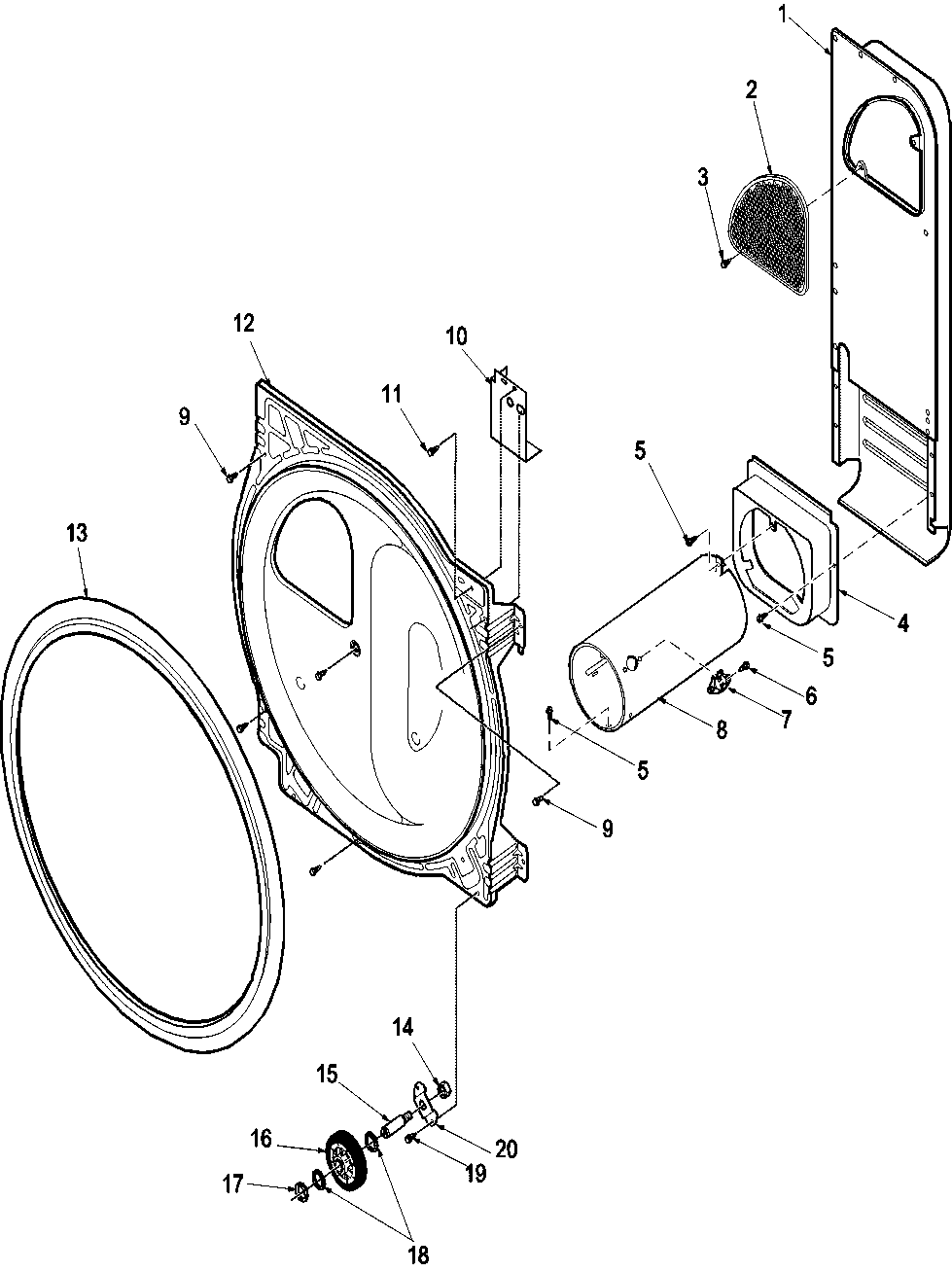

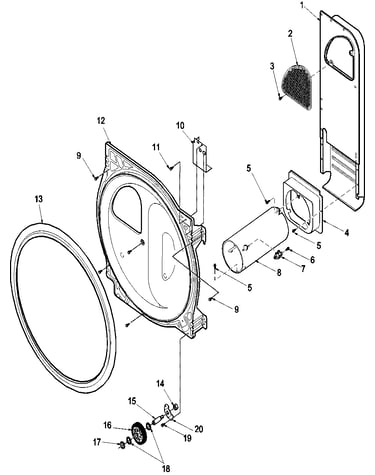

R bulkhead, seal, rollers, and air duct diagram

Assembly

Part #500214

Replaced by #WP37001042

?
Manufacturer substitution
This part replaces 500214. Substitute parts can look different from the original.
BEST SELLER
$16.20 |
11% OFF Phone Price : $18.20
In Stock
Motor 502368
#4

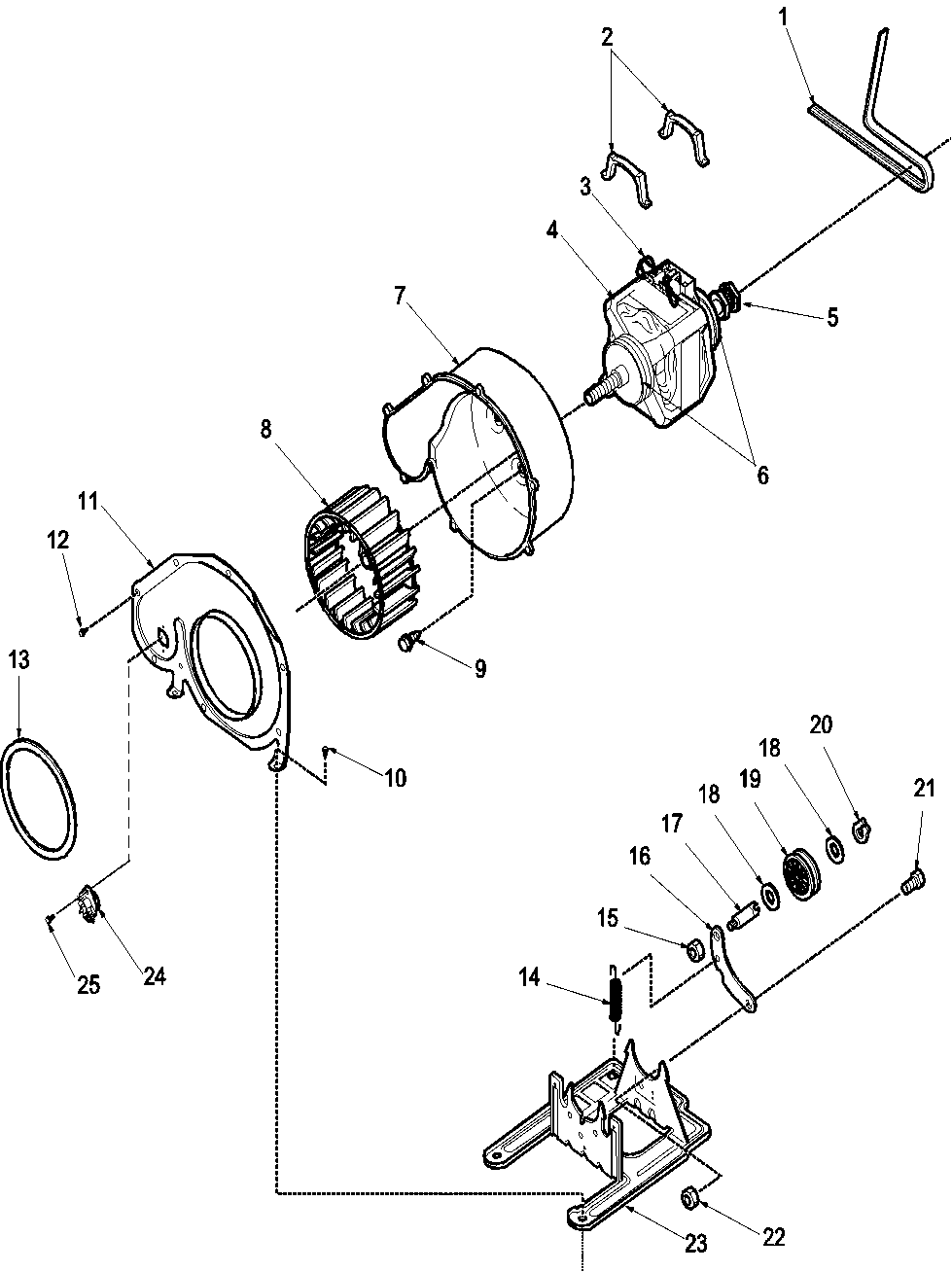

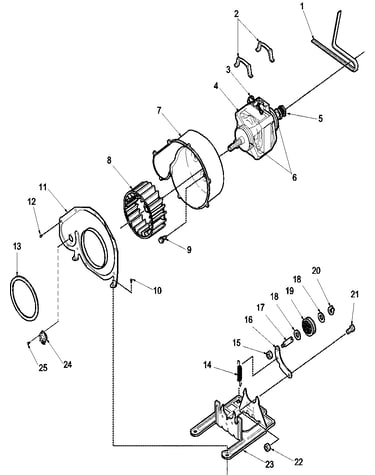

Motor and fan assemblies diagram

Motor

Part #502368

Replaced by #WP2200376

?
Manufacturer substitution
This part replaces 502368. Substitute parts can look different from the original.
BEST SELLER
$128.05 |
9% OFF Phone Price : $140.05
In Stock
Speed Queen Dryer Blower Wheel (replaces 510139p, 56000p) 56000
#8

Motor and fan assemblies diagram

Speed queen dryer blower wheel (replaces 510139p, 56000p)

Part #56000

BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
White Assm 54414
#19

Motor and fan assemblies diagram

White assm

Part #54414

Replaced by #WPY54414

?
Manufacturer substitution
This part replaces 54414. Substitute parts can look different from the original.
BEST SELLER
$18.57 |
10% OFF Phone Price : $20.57
In Stock
Drive Switch 504570
#12

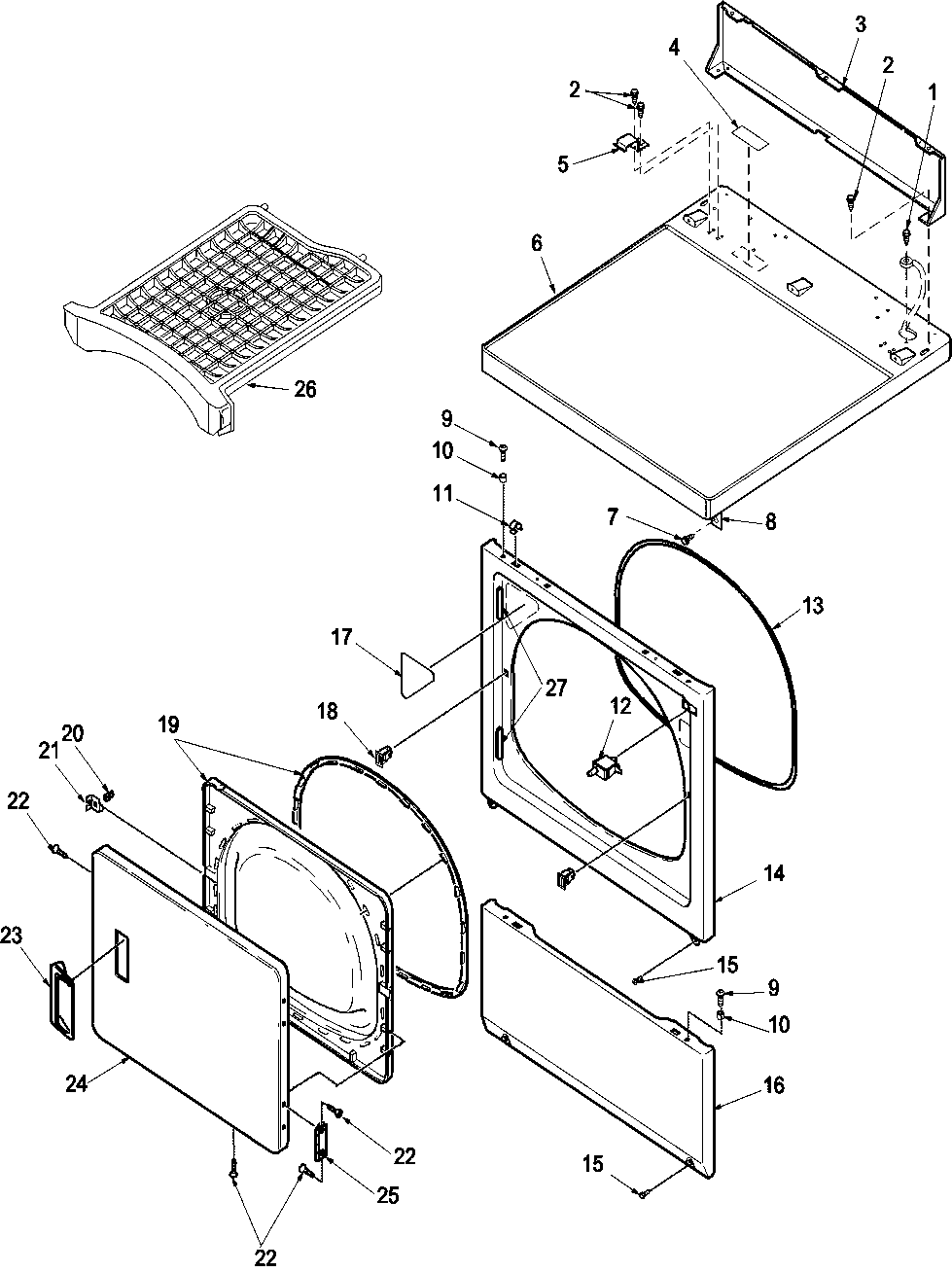

Door and front, access, and top panels diagram

Drive switch

Part #504570

Replaced by #W10169313

?
Manufacturer substitution
This part replaces 504570. Substitute parts can look different from the original.
BEST SELLER
$15.00 |
12% OFF Phone Price : $17.00
In Stock
Laundry Appliance Retaining Ring 23748
Laundry appliance retaining ring

Part #23748

Replaced by #WP23748

?
Manufacturer substitution
This part replaces 23748. Substitute parts can look different from the original.
This item is not returnable
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Idler Lever 500910
#16

Motor and fan assemblies diagram

Idler lever

Part #500910

Replaced by #WP37001144

?
Manufacturer substitution
This part replaces 500910. Substitute parts can look different from the original.
This item is not returnable
$25.93 |
19% OFF Phone Price : $31.93
In Stock
