Frigidaire
Electric Range

Model # CPLEF398DCL Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire CPLEF398DCL electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Universal/multiflex (frigidaire) Range Oven Temperature Sensor (replaces 316490003) 316490000
#37

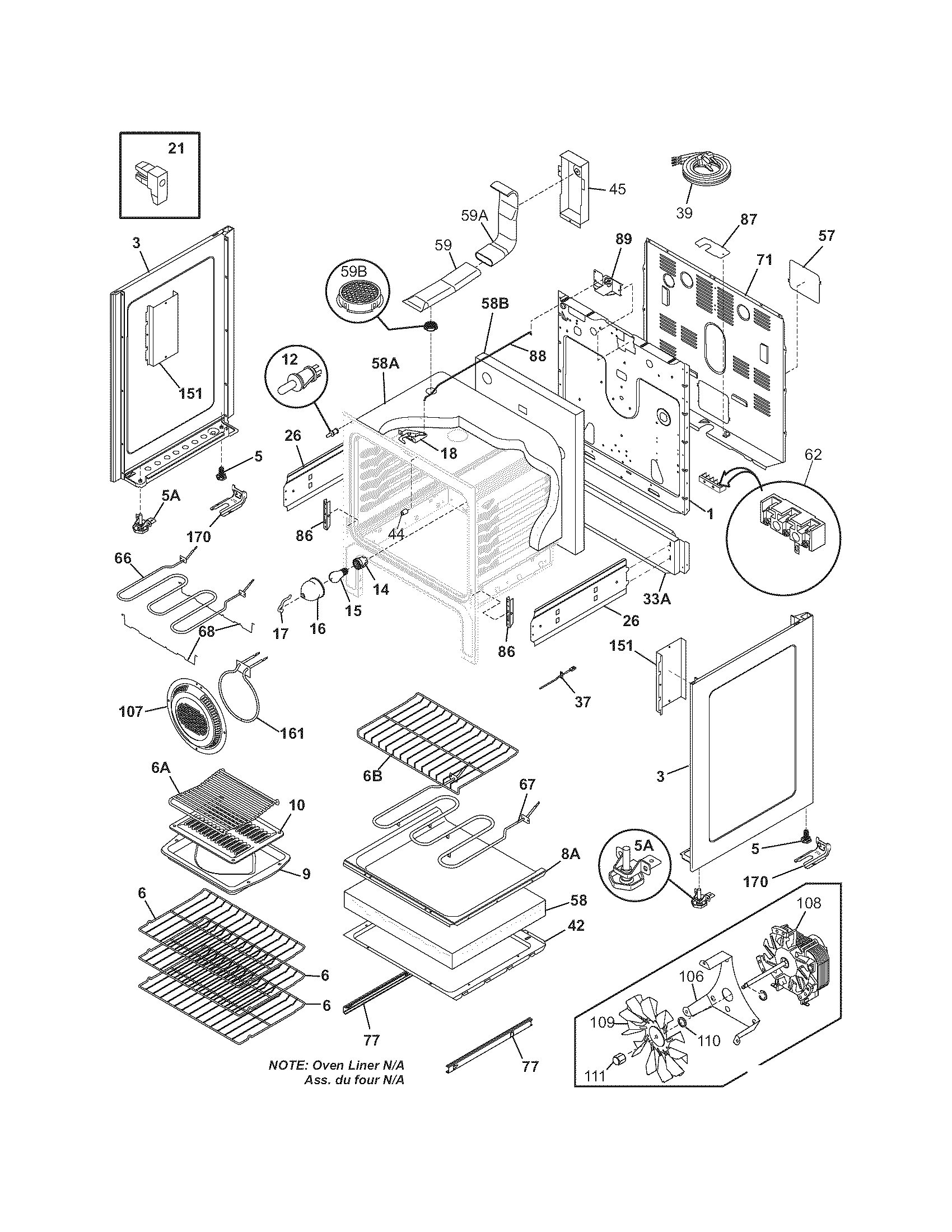

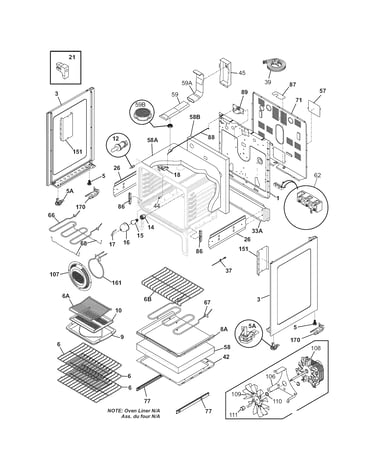

Body diagram

Universal/multiflex (frigidaire) range oven temperature sensor (replaces 316490003)

Part #316490000

BEST SELLER
$33.05 |
15% OFF Phone Price : $39.05
In Stock
Range Oven Light Bulb 5303013071
#15

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Dual Radiant Surface Element 316418401
#15

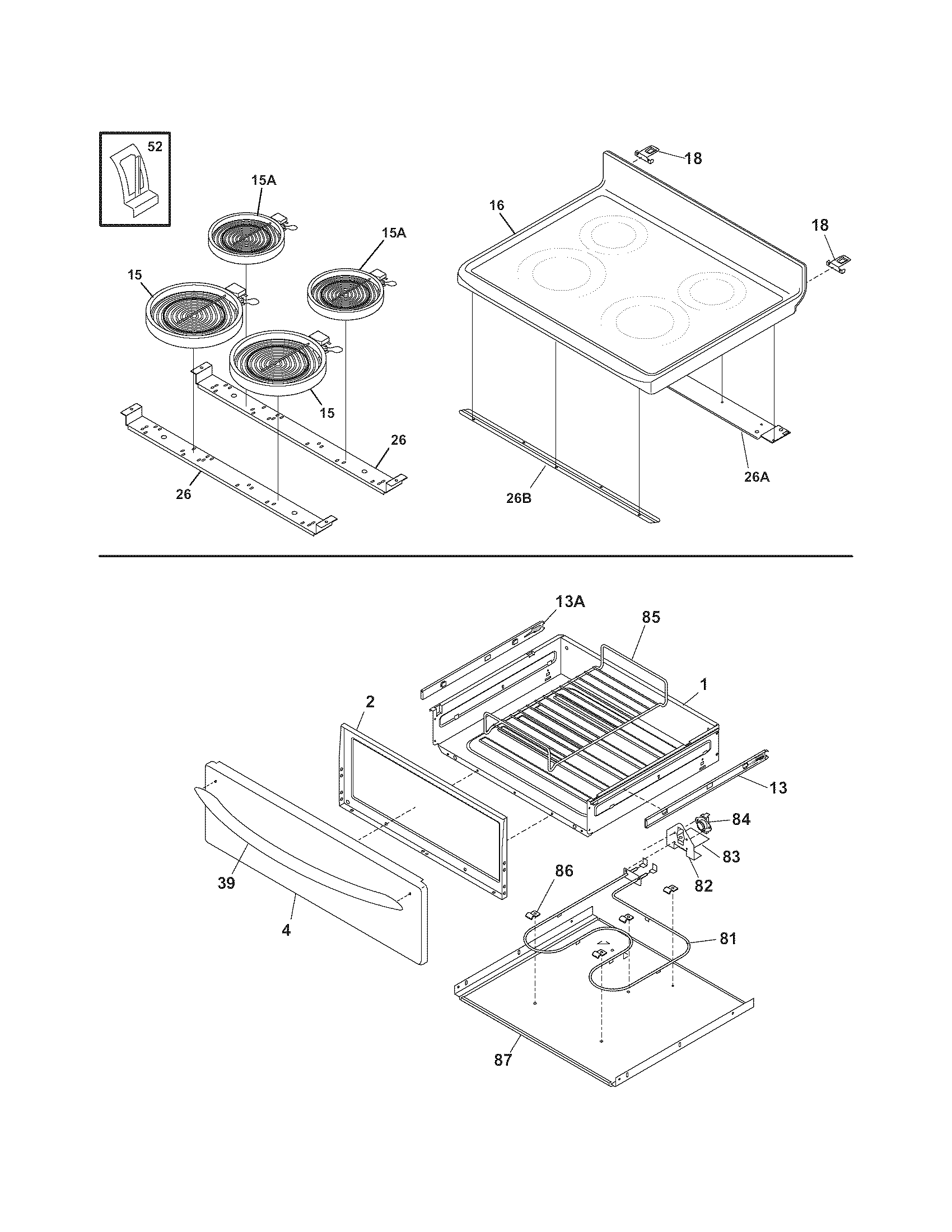

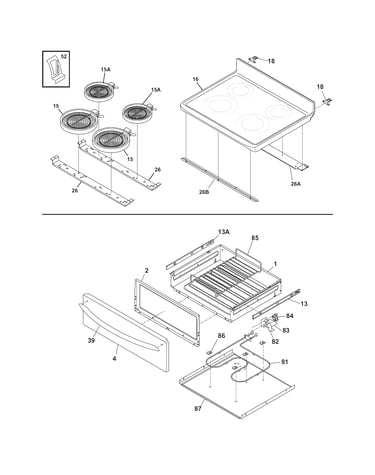

Top/drawer diagram

Range dual radiant surface element

Part #316418401

Replaced by #316555800

?
Manufacturer substitution
This part replaces 316418401. Substitute parts can look different from the original.
BEST SELLER
$159.22 |
7% OFF Phone Price : $171.22
In Stock
Range Oven Door Inner Glass 316117500
#8

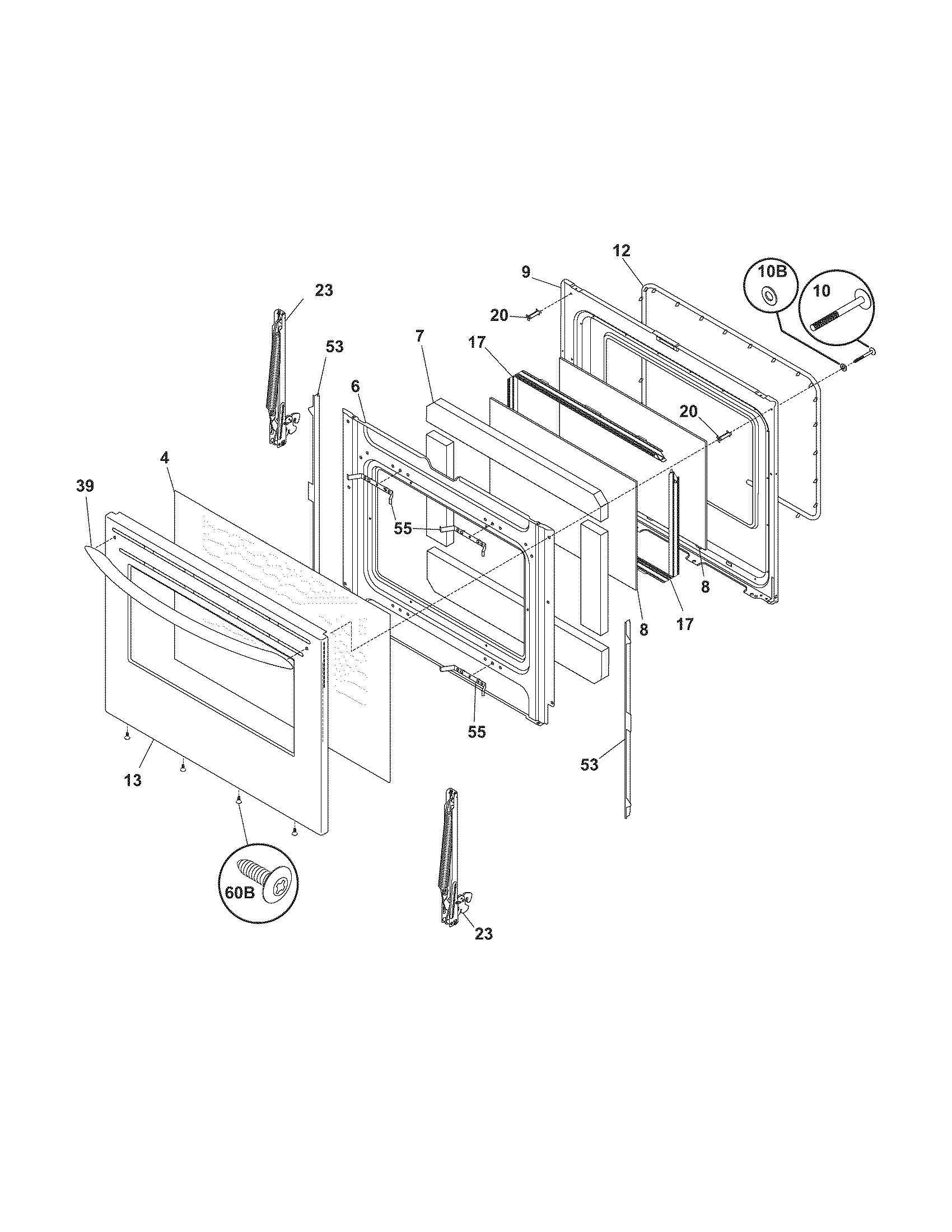

Door diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Terminal Block 5303935061
#62

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Indicator Light 316022500
#14A

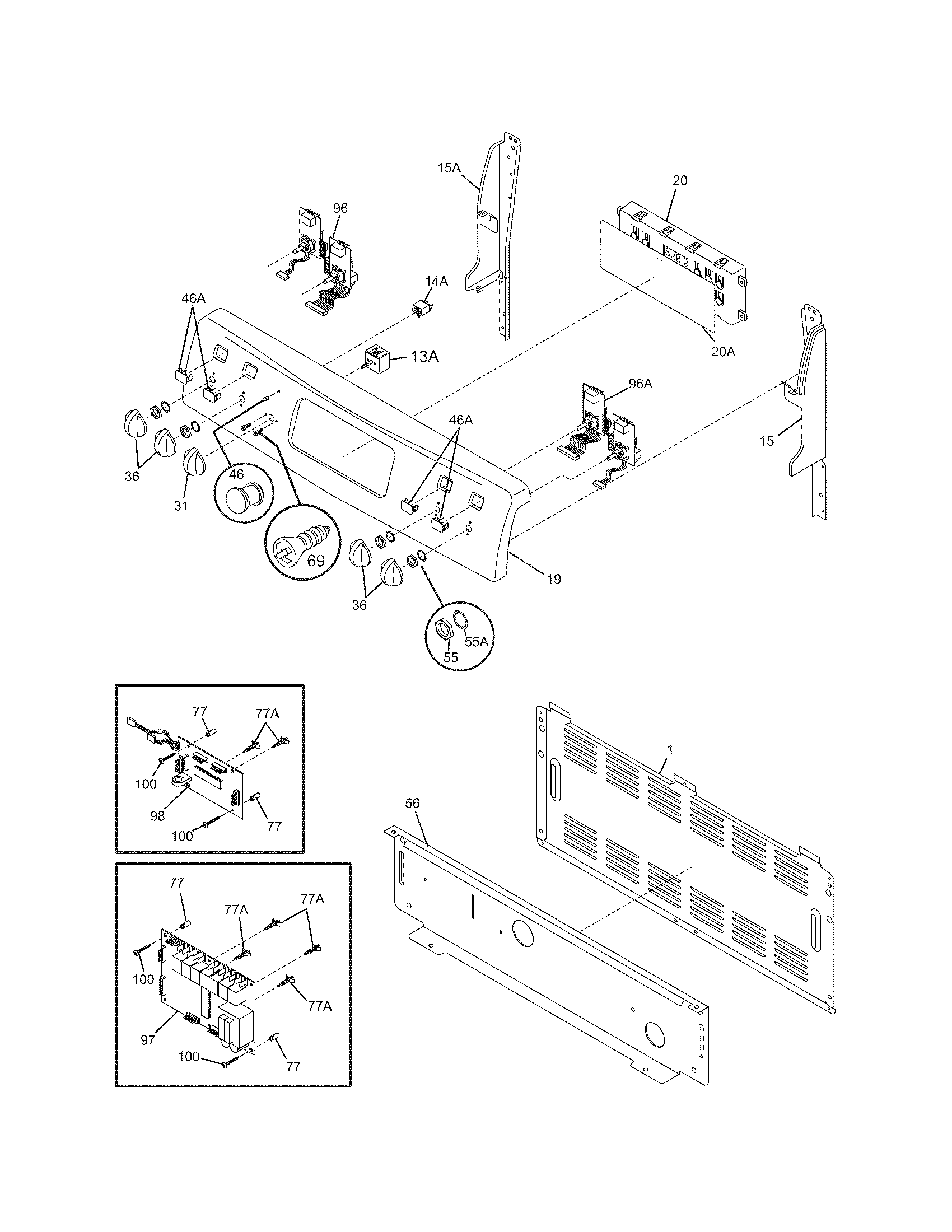

Backguard diagram

Range indicator light

Part #316022500

BEST SELLER
$40.21 |
13% OFF Phone Price : $46.21
In Stock
Universal/multiflex (frigidaire) Range Oven Door Seal (replaces 316405001) 316405000
#12

Door diagram

Universal/multiflex (frigidaire) range oven door seal (replaces 316405001)

Part #316405000

BEST SELLER
$121.62 |
9% OFF Phone Price : $133.62
In Stock
Rack 316404501
#6

Body diagram

Rack

Part #316404501

Replaced by #316496201

?
Manufacturer substitution
This part replaces 316404501. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$86.40 |
6% OFF Phone Price : $92.40
In Stock
Range Convection Fan Blade 316136400
#109

Body diagram

Range convection fan blade

Part #316136400

The manufacturer no longer makes this part, and there's no substitute part

Range Light Socket (replaces 5308011085) 316116400
#14

Body diagram

Range light socket (replaces 5308011085)

Part #316116400

BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
