Kenmore
Gas Range

Model # 79071343703 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 79071343703 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 142 parts  |
Universal/multiflex (frigidaire) Range Oven Temperature Sensor (replaces 316490003) 316490000
#37

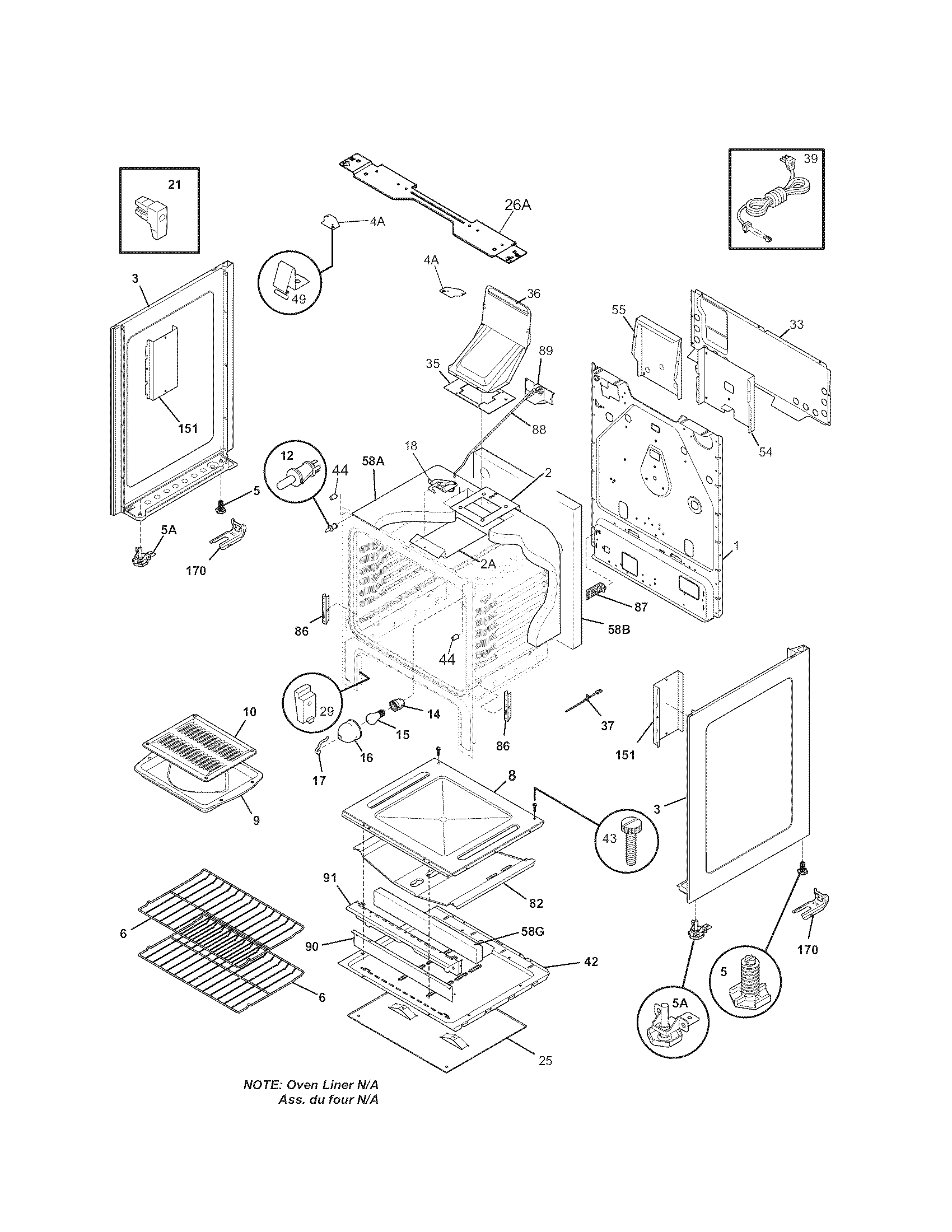

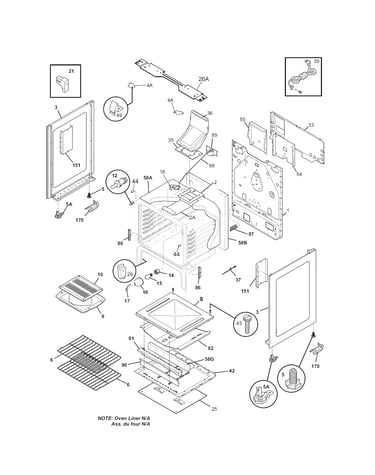

Body diagram

Universal/multiflex (frigidaire) range oven temperature sensor (replaces 316490003)

Part #316490000

BEST SELLER
$33.05 |
15% OFF Phone Price : $39.05
In Stock
Appliance Light Bulb, 40-watt 316538901
#15

Body diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock

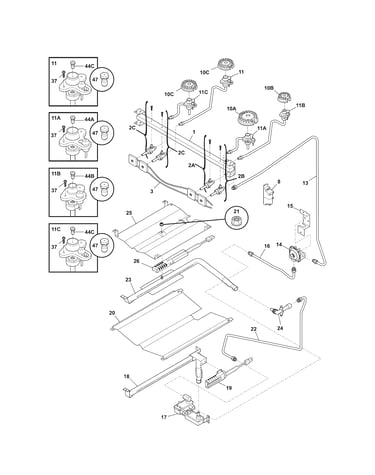

Range Bake Igniter (replaces 316428501, 5304462661, 7316489400) 316489400
#19

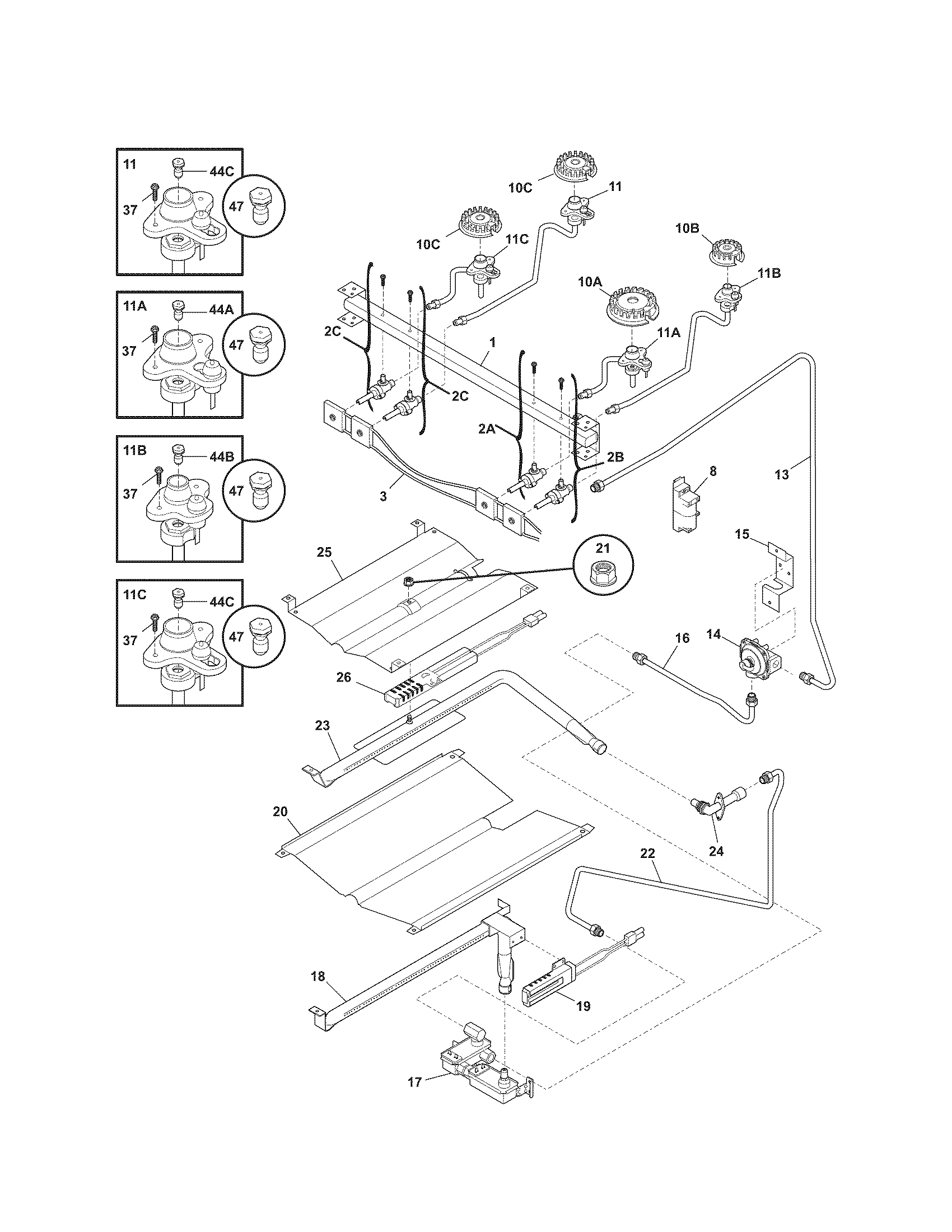

Burner diagram

Range bake igniter (replaces 316428501, 5304462661, 7316489400)

Part #316489400

BEST SELLER
$140.06 |
8% OFF Phone Price : $152.06
In Stock

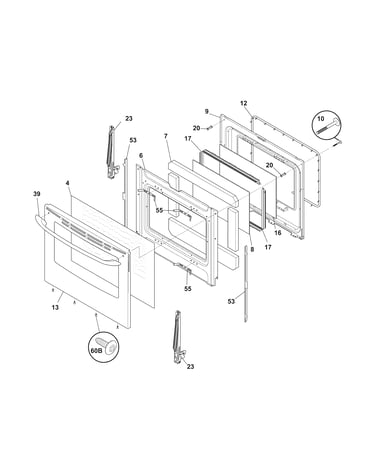

Range Oven Door Inner Glass 316117500
#8

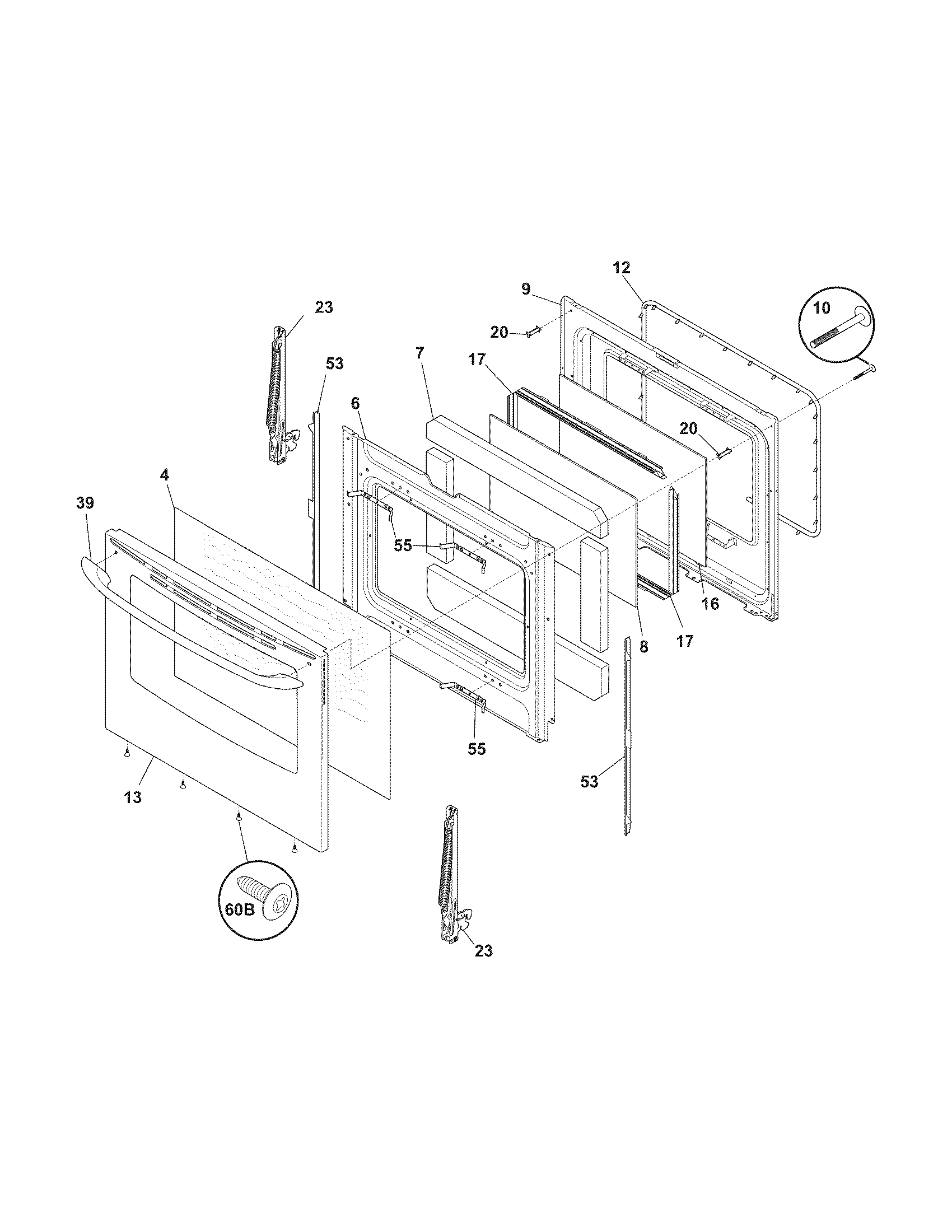

Door diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Universal/multiflex (frigidaire) Range Oven Door Handle Screw, 10-14 X 2-1/8-inch 316433300
#10

Door diagram

Universal/multiflex (frigidaire) range oven door handle screw, 10-14 x 2-1/8-inch

Part #316433300

BEST SELLER
$15.14 |
12% OFF Phone Price : $17.14
In Stock
Range Oven Door Lock Motor And Switch Assembly 316464300
#89

Body diagram

Range oven door lock motor and switch assembly

Part #316464300

Replaced by #5304528973

?
Manufacturer substitution
This part replaces 316464300. Substitute parts can look different from the original.
BEST SELLER
$41.22 |
13% OFF Phone Price : $47.22
In Stock
Range Surface Burner Head (replaces 7316212400) 316212400
#10C

Burner diagram

Range surface burner head (replaces 7316212400)

Part #316212400

BEST SELLER
$29.85 |
17% OFF Phone Price : $35.85
In Stock
Range Control Overlay 316419106
#20A

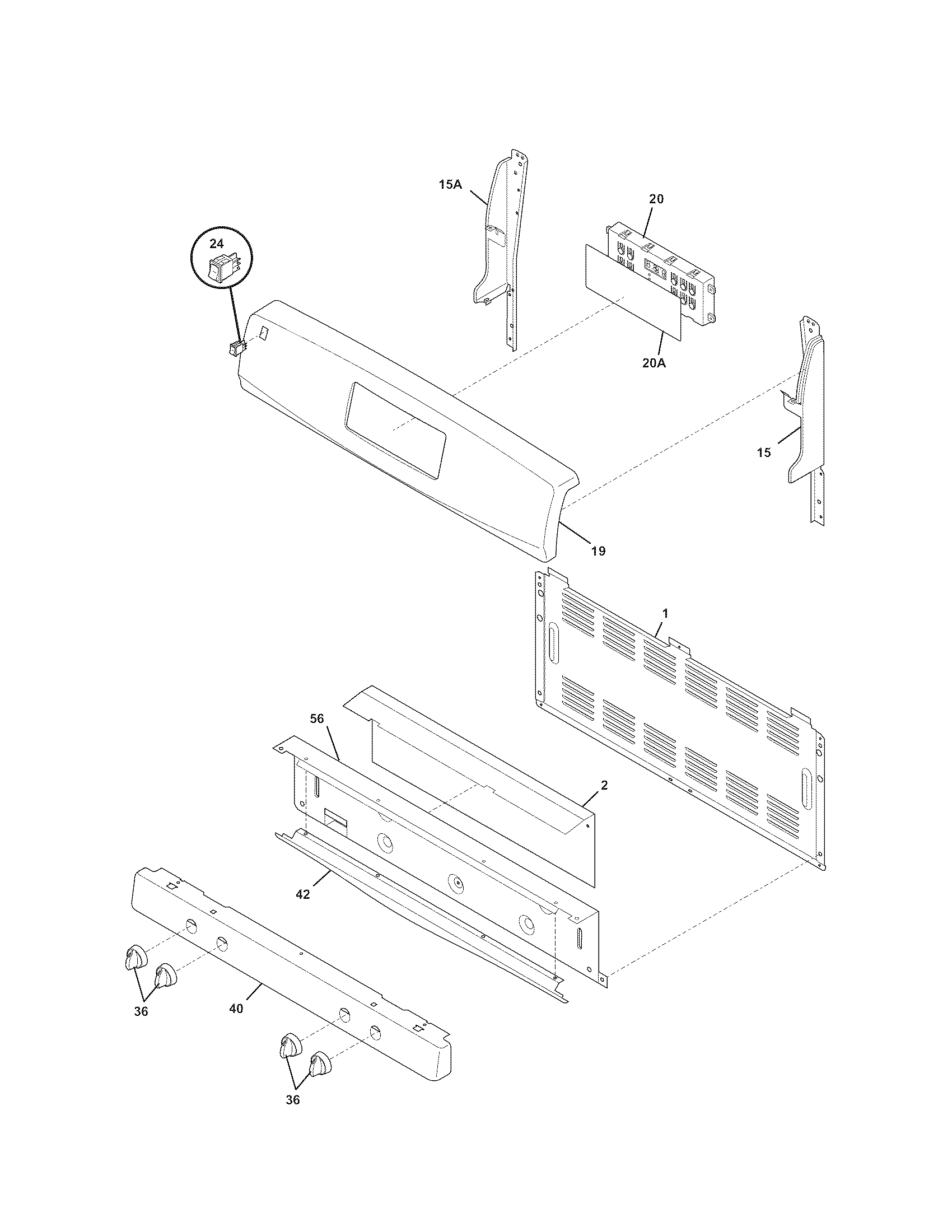

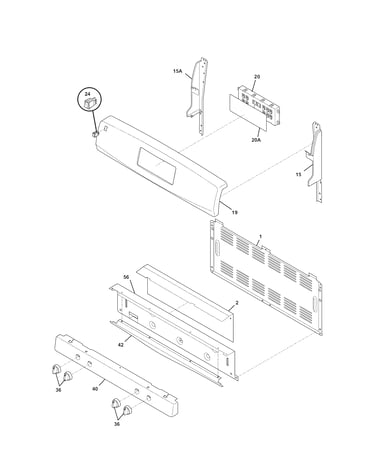

Backguard diagram

Range control overlay

Part #316419106

Replaced by #316419140

?
Manufacturer substitution
This part replaces 316419106. Substitute parts can look different from the original.
BEST SELLER
$34.64 |
15% OFF Phone Price : $40.64
In Stock
Range Pressure Regulator 316091706
#14

Burner diagram

Range pressure regulator

Part #316091706

Replaced by #5304521339

?
Manufacturer substitution
This part replaces 316091706. Substitute parts can look different from the original.
BEST SELLER
$66.32 |
8% OFF Phone Price : $72.32
In Stock
Range Bake Burner (replaces 7316404400) 316404400
#18

Burner diagram

Range bake burner (replaces 7316404400)

Part #316404400

BEST SELLER
$90.07 |
6% OFF Phone Price : $96.07
In Stock
