KitchenAid
Stand Mixer

Model # KSM55SXXXPL0 Official KitchenAid stand mixer

Here are the diagrams and repair parts for Official KitchenAid KSM55SXXXPL0 stand mixer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Pin-bowl 240185
#4

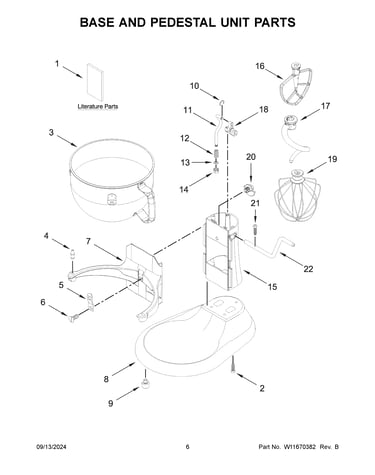

Base and pedestal unit parts diagram

Pin-bowl

Part #240185

Replaced by #WP240185

?
Manufacturer substitution
This part replaces 240185. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Screw 3400814
#9

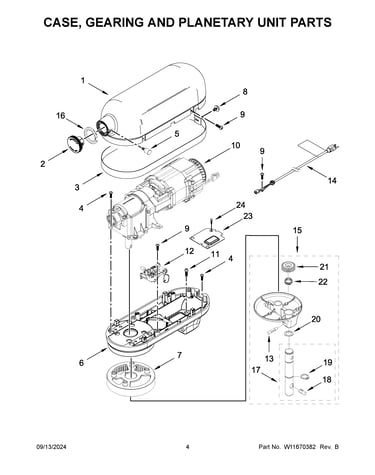

Case, gearing and planetary unit parts diagram

Screw

Part #3400814

Replaced by #WP3400814

?
Manufacturer substitution
This part replaces 3400814. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
Back Order
Lift Arm 9706885
#18

Base and pedestal unit parts diagram

Lift arm

Part #9706885

Replaced by #WP9706885

?
Manufacturer substitution
This part replaces 9706885. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Pin-groove W10234531
#13

Case, gearing and planetary unit parts diagram

Pin-groove

Part #W10234531

Replaced by #WPW10234531

?
Manufacturer substitution
This part replaces W10234531. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Clip W10504114
#5

Base and pedestal unit parts diagram

Clip

Part #W10504114

Replaced by #WPW10504114

?
Manufacturer substitution
This part replaces W10504114. Substitute parts can look different from the original.
This item is not returnable
$3.79
In Stock
Housing W10327951
#1B

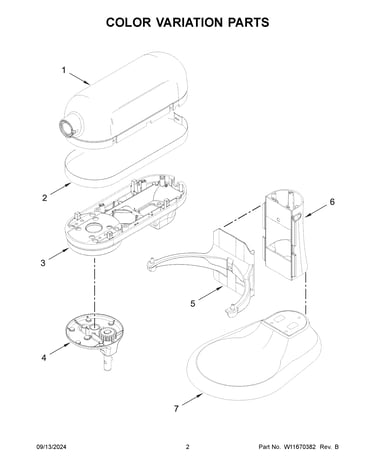

Color variation parts diagram

Housing

Part #W10327951

$46.73
In Stock
.516id .750o 8533910
#20

Case, gearing and planetary unit parts diagram

.516id .750o

Part #8533910

Replaced by #W10854966

?
Manufacturer substitution
This part replaces 8533910. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Screw 3400018
#6

Base and pedestal unit parts diagram

Screw

Part #3400018

Replaced by #W10861883

?
Manufacturer substitution
This part replaces 3400018. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Control Assembly, 120 Volt W11503693
#12

Case, gearing and planetary unit parts diagram

Control assembly, 120 volt

Part #W11503693

Replaced by #W11672012

?
Manufacturer substitution
This part replaces W11503693. Substitute parts can look different from the original.
$68.73
In Stock
Cord, Power (black) W11459236
#14

Case, gearing and planetary unit parts diagram

Cord, power (black)

Part #W11459236

Replaced by #W11677162

?
Manufacturer substitution
This part replaces W11459236. Substitute parts can look different from the original.
$23.69
In Stock
