Walk-Behind Mower

Model # 13188450 Official Craftsman self-propelled rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 13188450 self-propelled rotary lawn mower, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
13188450 Self-Propelled Rotary Lawn Mower
Lawn & Garden Equipment Washer 52784
#8

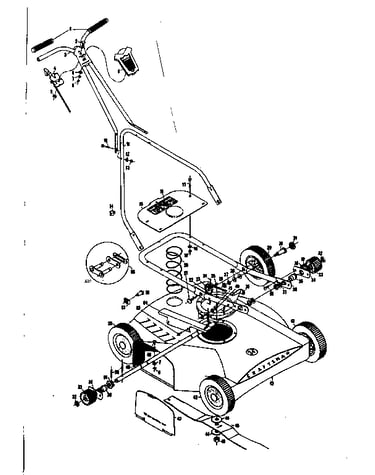

Replacement parts diagram

Lawn & garden equipment washer

Part #52784

Replaced by #819061216

?
Manufacturer substitution
This part replaces 52784. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.31 |
19% OFF Was : $5.31
In Stock
Nut 50675
#19

Replacement parts diagram

Nut

Part #50675

Replaced by #532050675

?
Manufacturer substitution
This part replaces 50675. Substitute parts can look different from the original.
This item is not returnable
$5.54
In Stock
Bolt 52246
#30

Replacement parts diagram

Bolt

Part #52246

Replaced by #532121117

?
Manufacturer substitution
This part replaces 52246. Substitute parts can look different from the original.
This item is not returnable
$8.64 |
10% OFF Phone Price : $9.64
In Stock
Sprocket 52827
#23

Replacement parts diagram

Sprocket

Part #52827

Replaced by #582002201

?
Manufacturer substitution
This part replaces 52827. Substitute parts can look different from the original.
$8.54
In Stock
Screw 52828
#24

Replacement parts diagram

Screw

Part #52828

The manufacturer no longer makes this part, and there's no substitute part

Washer 5080
#7

Replacement parts diagram

Washer

Part #5080

The manufacturer no longer makes this part, and there's no substitute part

Bolt 52824
#21

Replacement parts diagram

Bolt

Part #52824

The manufacturer no longer makes this part, and there's no substitute part

Nut 50962
#13

Replacement parts diagram

Nut

Part #50962

The manufacturer no longer makes this part, and there's no substitute part

Chain Guard 52980
#54

Replacement parts diagram

Chain guard

Part #52980

The manufacturer no longer makes this part, and there's no substitute part

Nut 12000
#6

Replacement parts diagram

Nut

Part #12000

The manufacturer no longer makes this part, and there's no substitute part
