Canon
Digital Camcorder

Model # ZR300A Official Canon digital video camera

Here are the diagrams and repair parts for Official Canon ZR300A digital video camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

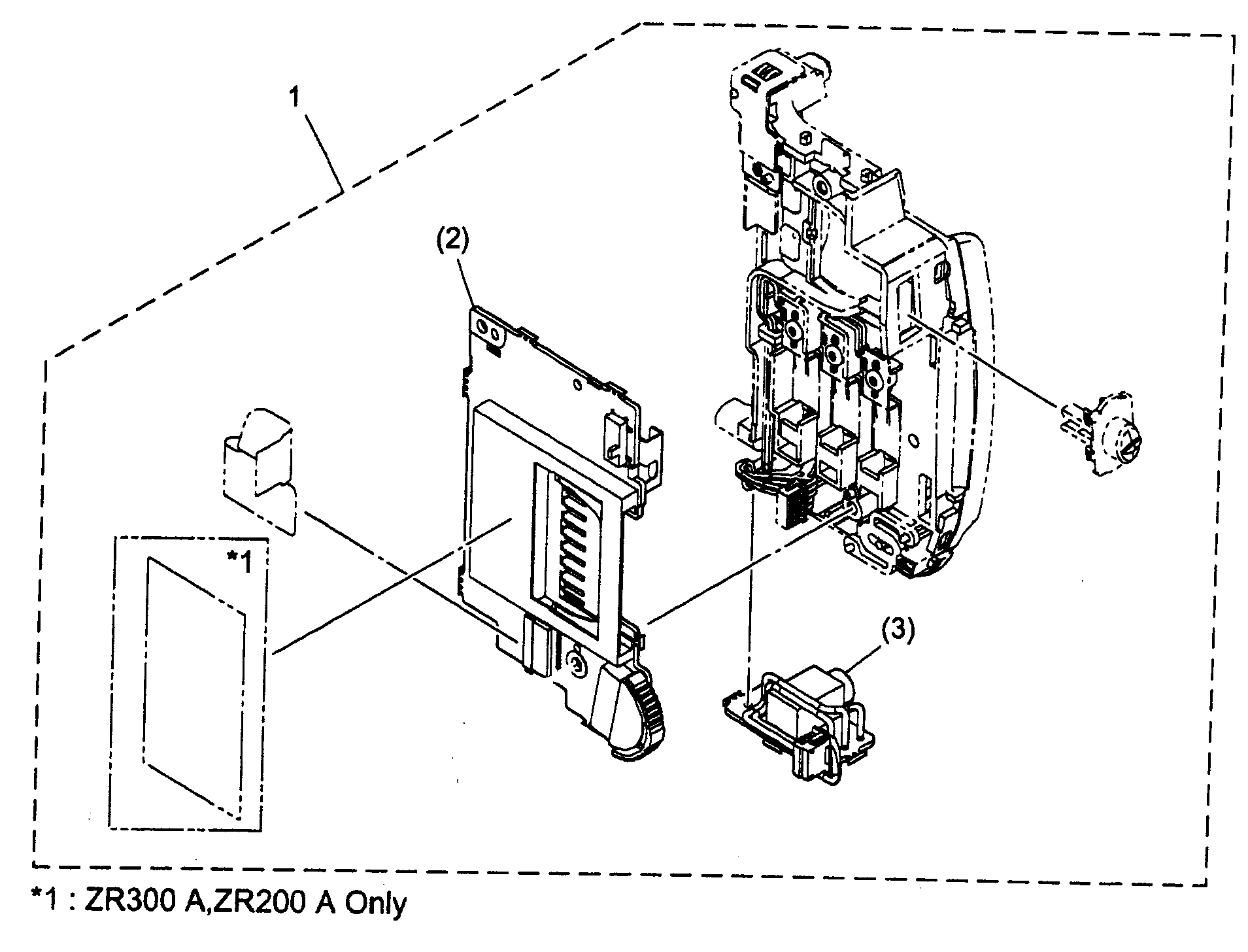

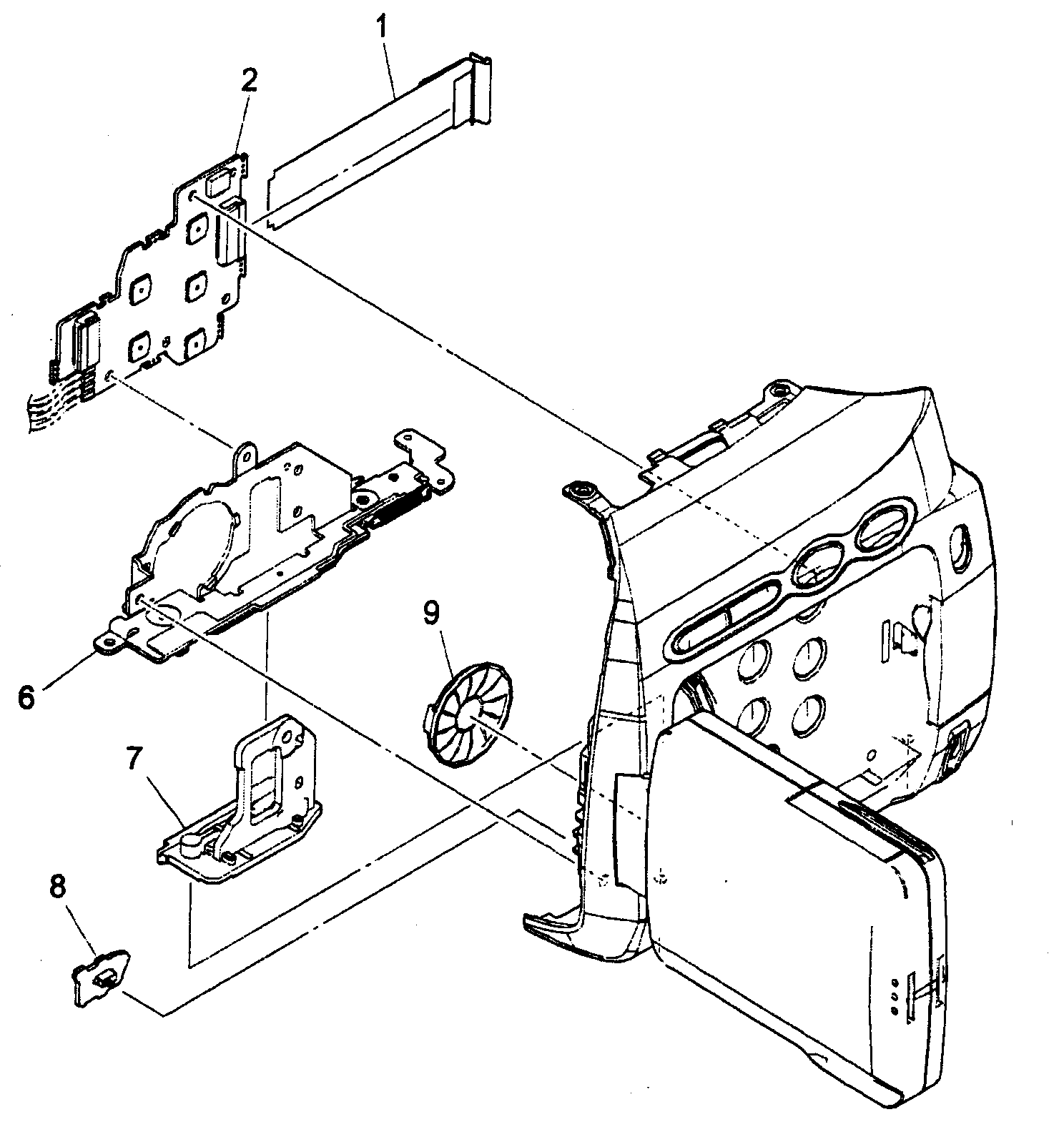

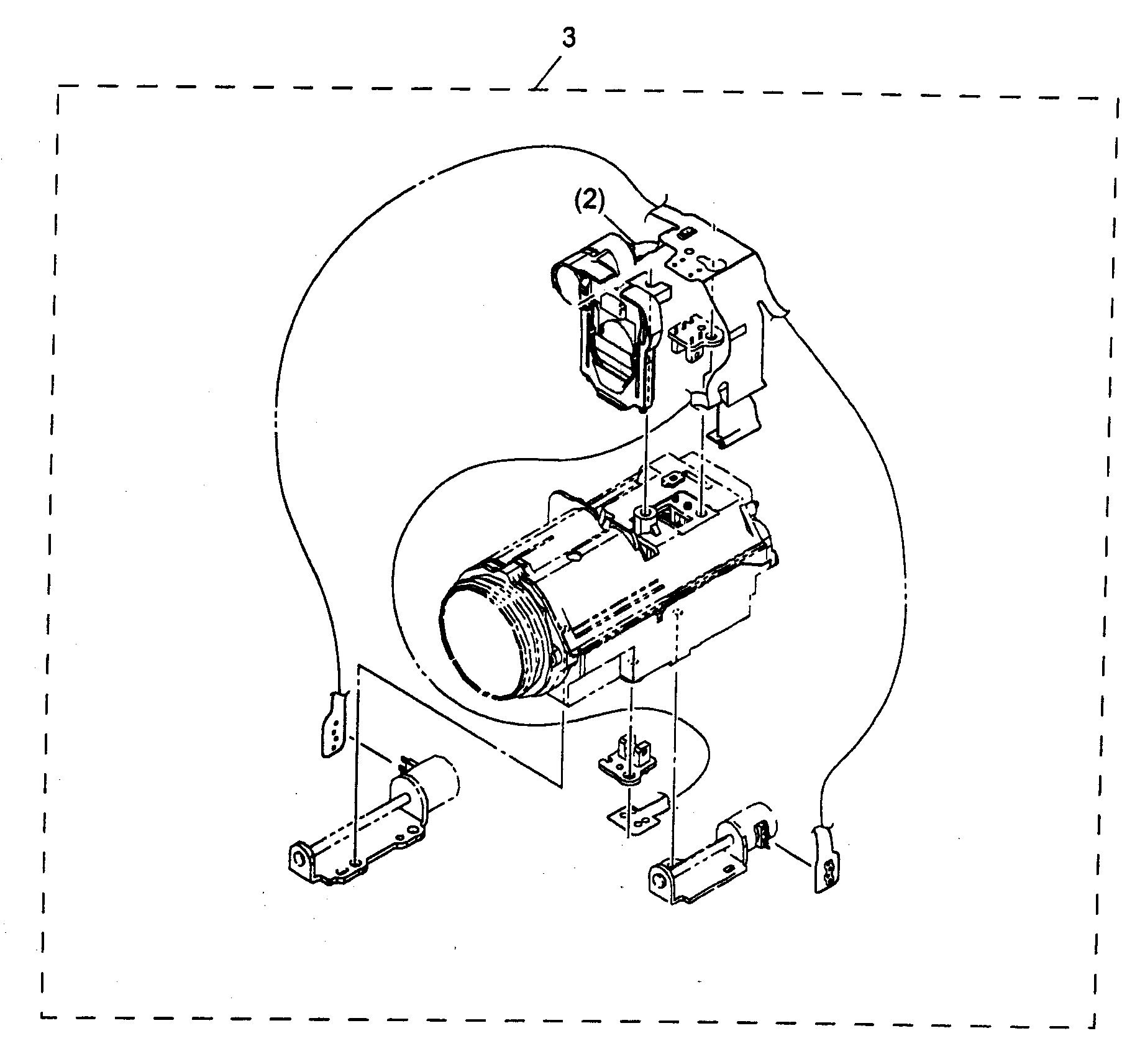

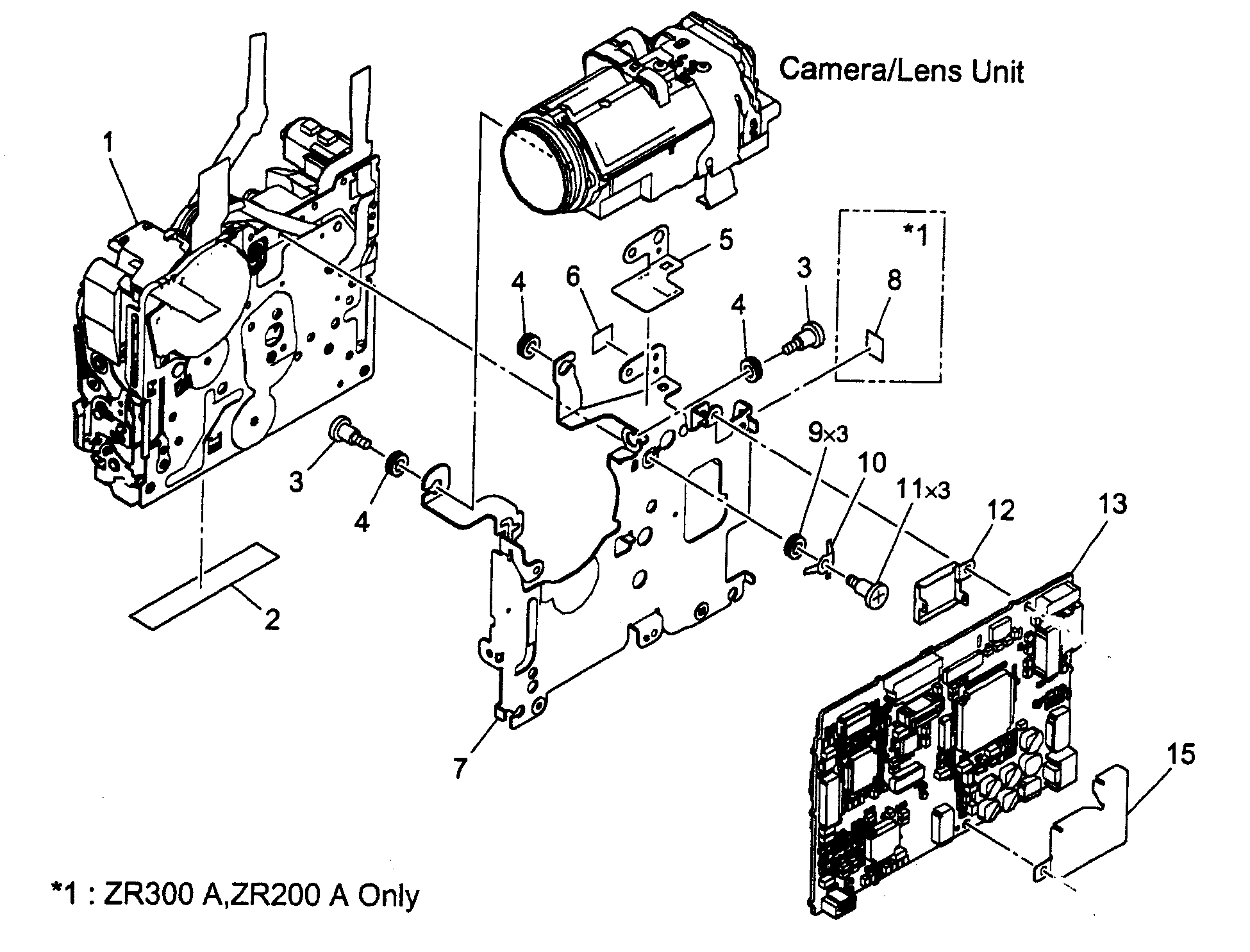

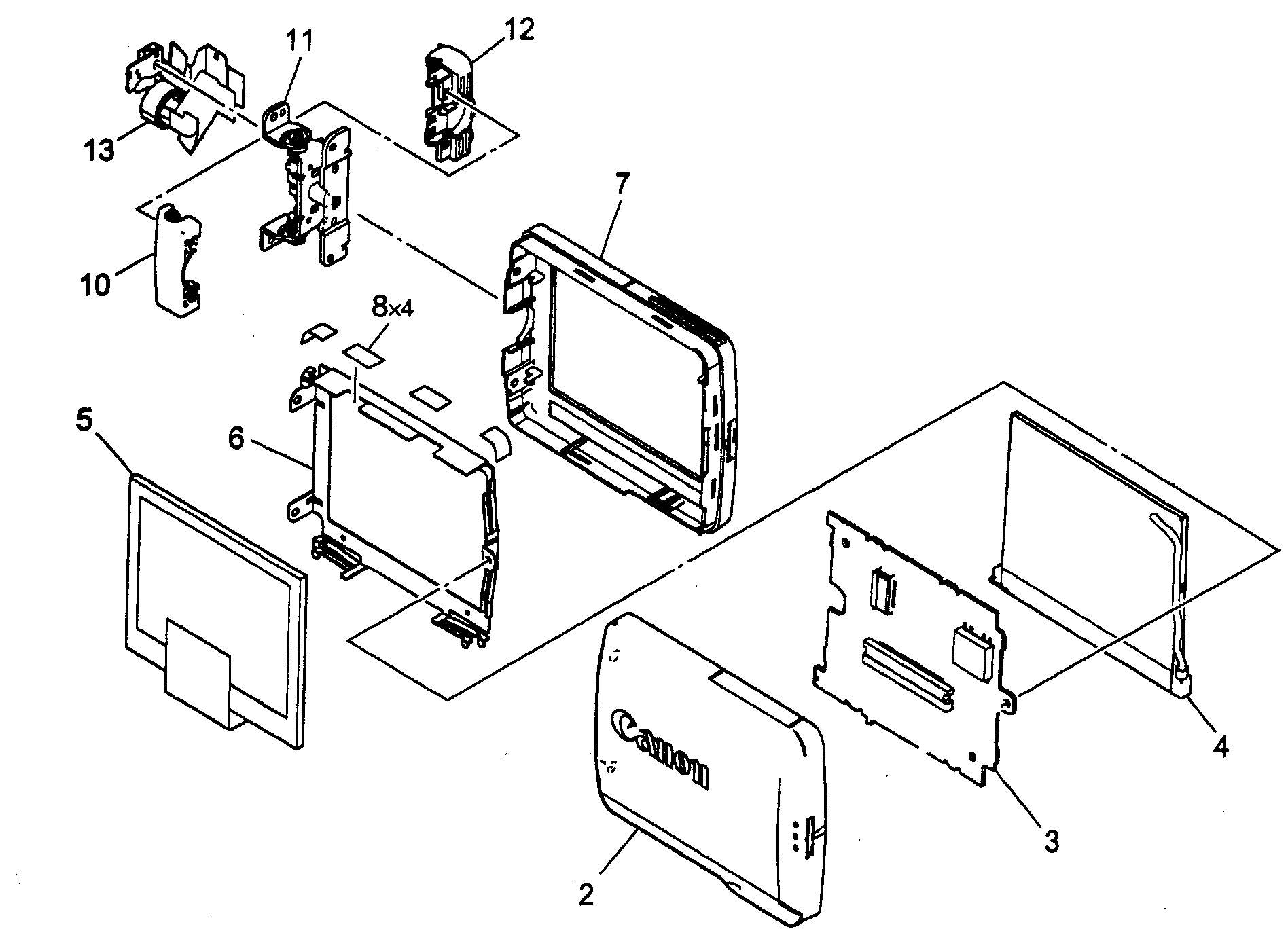

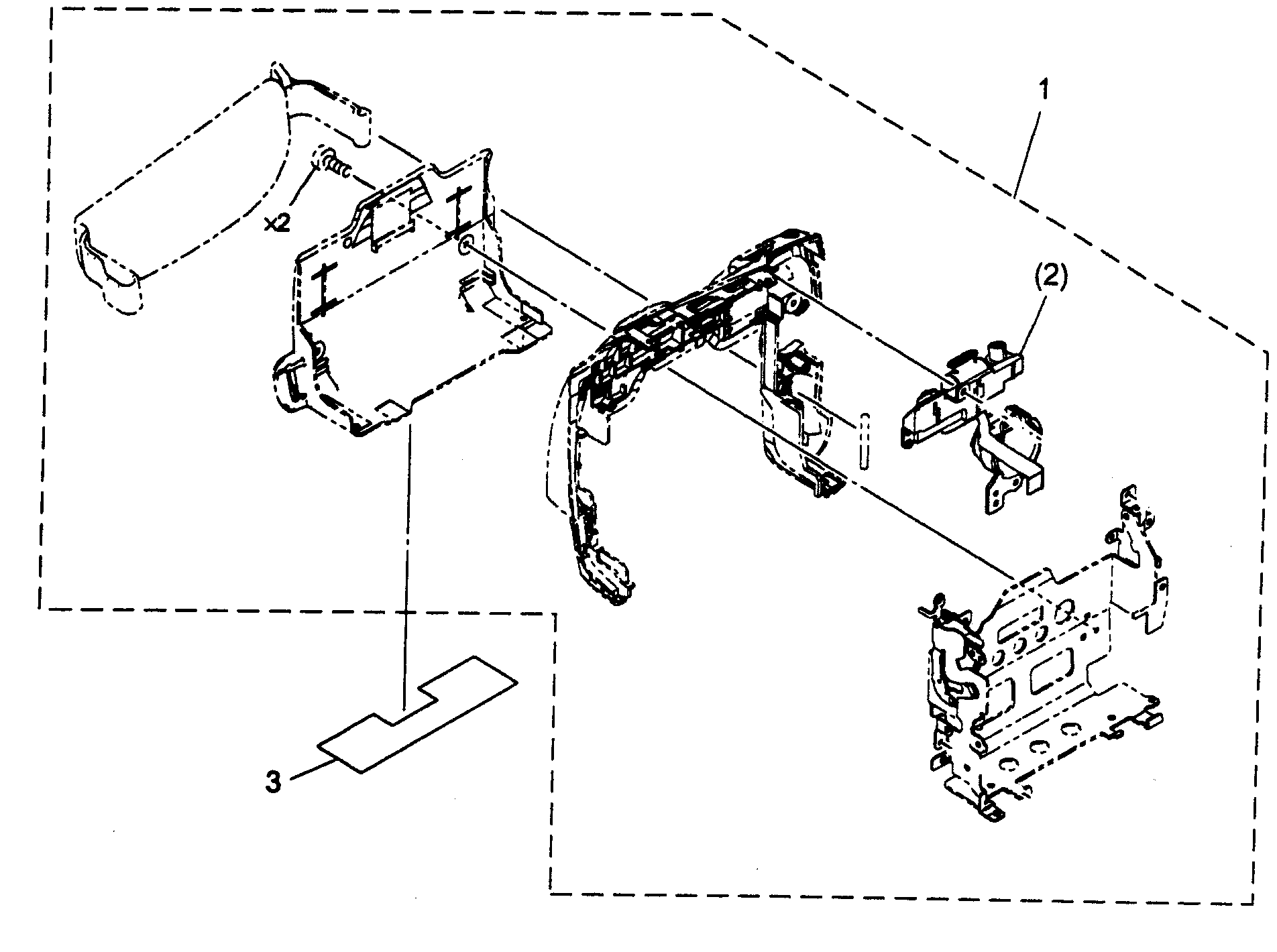

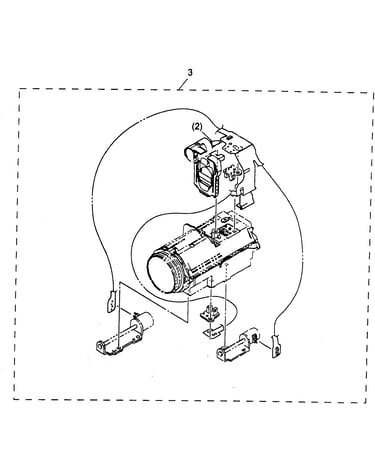

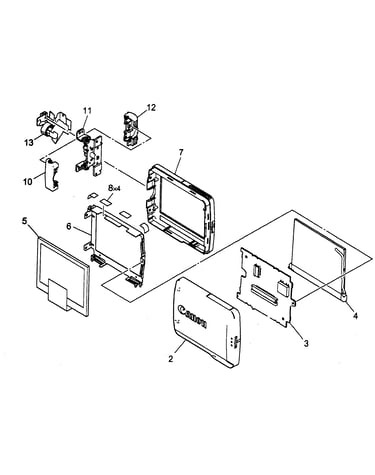

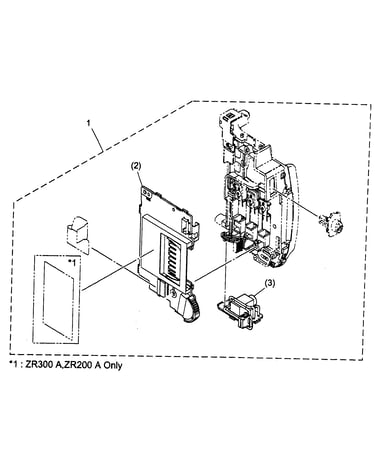

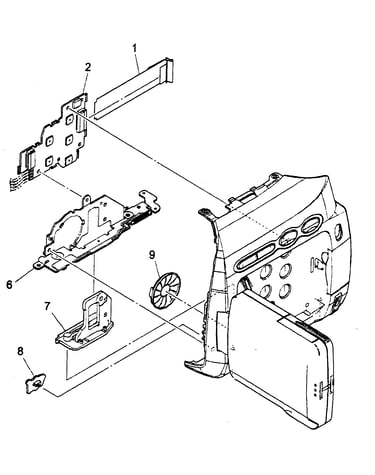

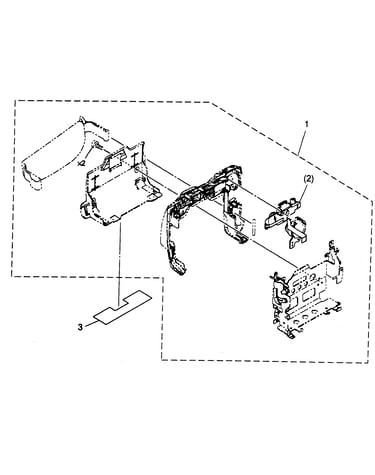

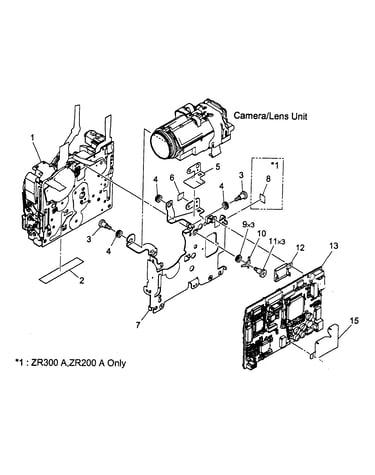

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Cover Camera View Finder DA3-2491-000
#11

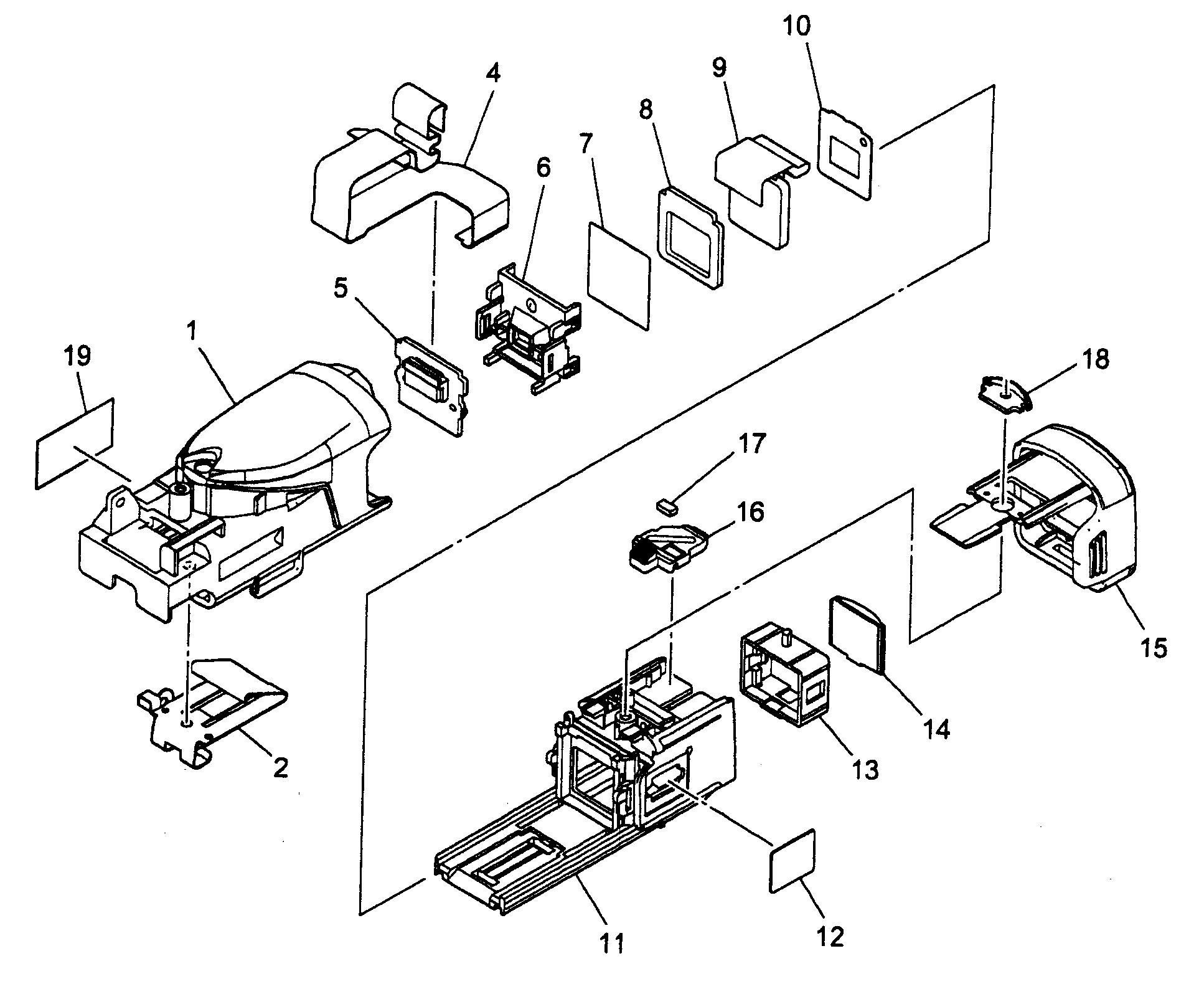

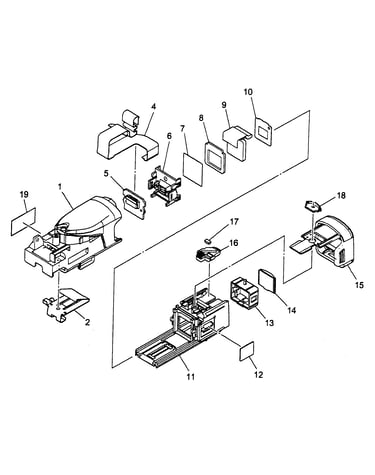

Cvf unit diagram

Cover camera view finder

Part #DA3-2491-000

The manufacturer no longer makes this part, and there's no substitute part

Fpc, Cvf DH2-5321-000
#4

Cvf unit diagram

Fpc, cvf

Part #DH2-5321-000

The manufacturer no longer makes this part, and there's no substitute part

Drum Assembly DY1-8500-000
#4

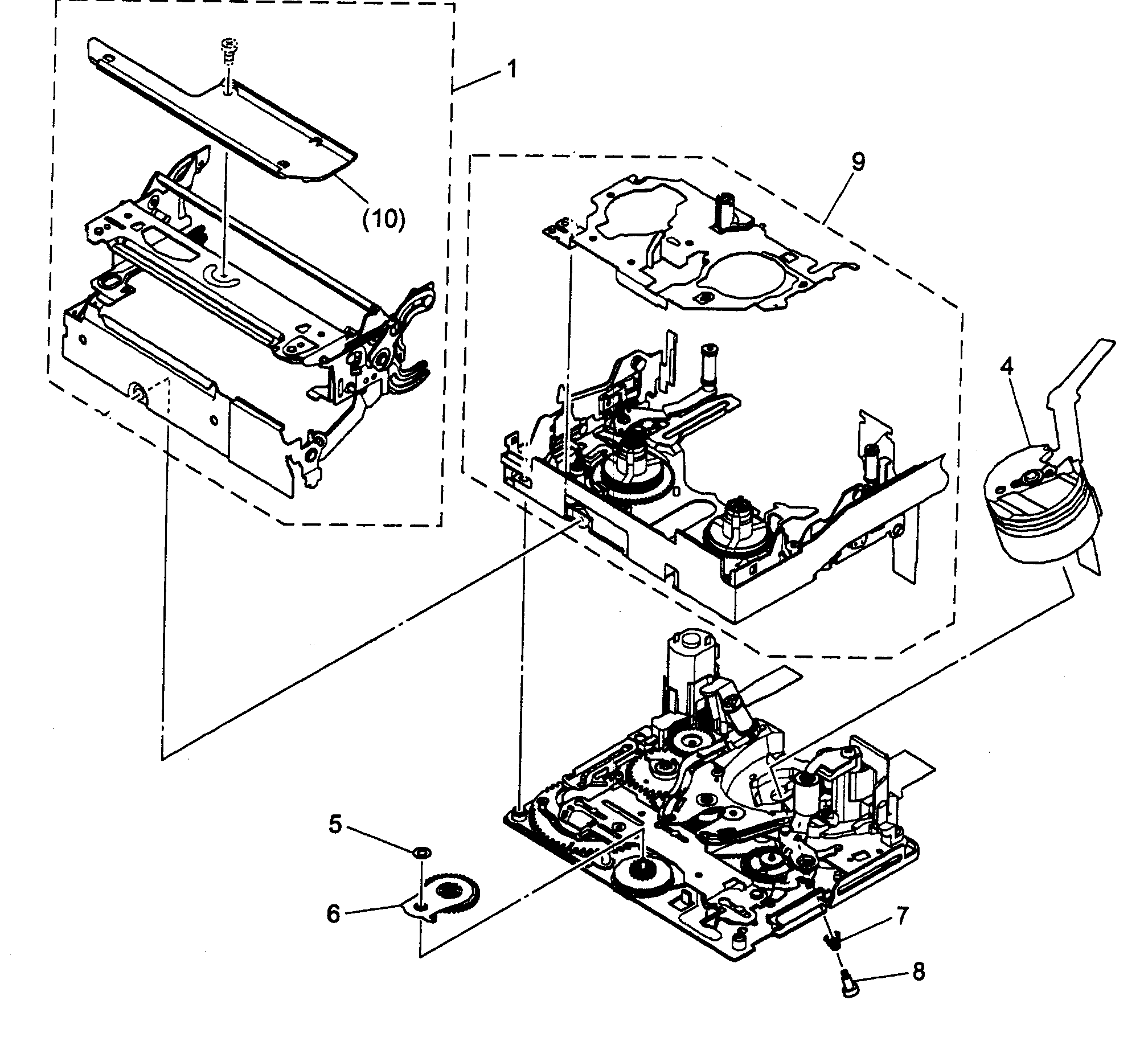

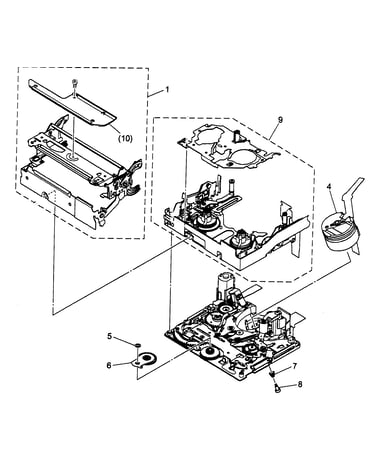

Mechanial chassis diagram

Drum assembly

Part #DY1-8500-000

The manufacturer no longer makes this part, and there's no substitute part

Camcorder Assembly DY1-8755-000
#4

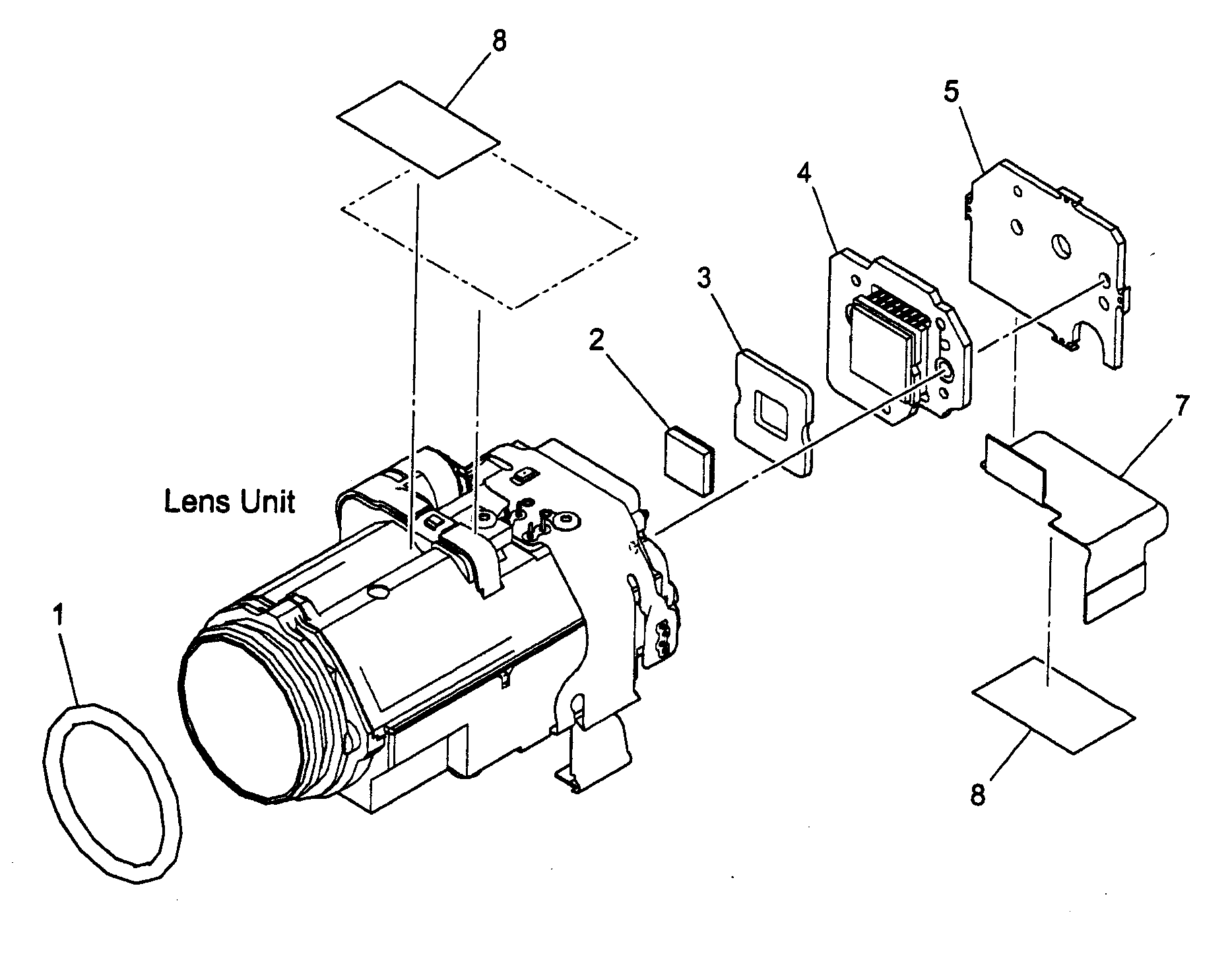

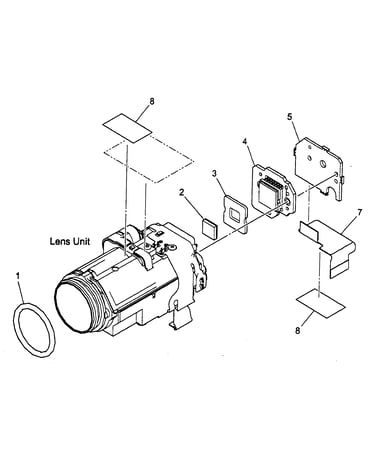

Camera unit diagram

Camcorder assembly

Part #DY1-8755-000

The manufacturer no longer makes this part, and there's no substitute part

Cover Camera View Finder DA3-2504-000
#18

Cvf unit diagram

Cover camera view finder

Part #DA3-2504-000

The manufacturer no longer makes this part, and there's no substitute part

Filter, Ir DH9-0851-000
#2

Camera unit diagram

Filter, ir

Part #DH9-0851-000

The manufacturer no longer makes this part, and there's no substitute part

Plate DA3-2426-000
#8

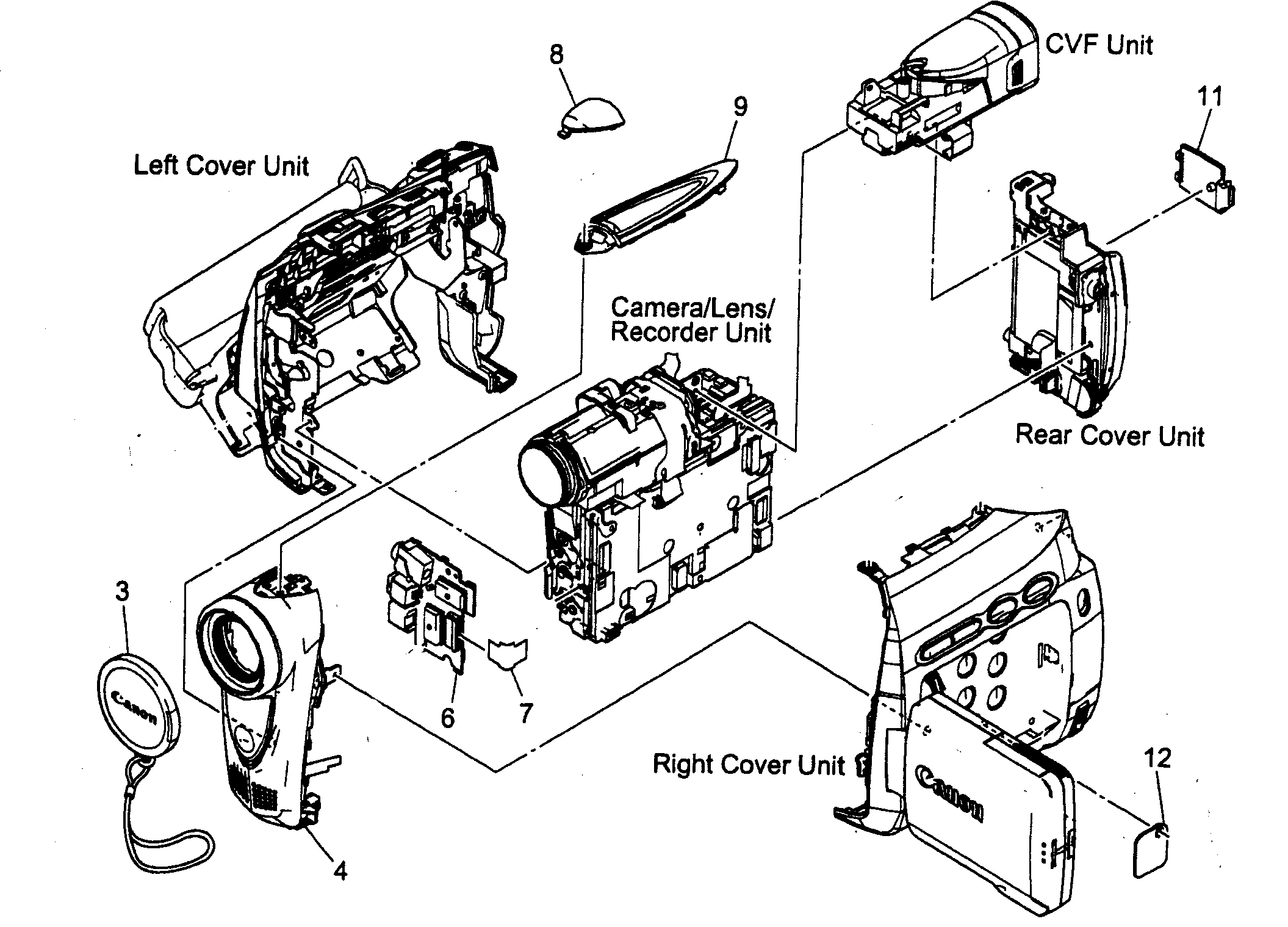

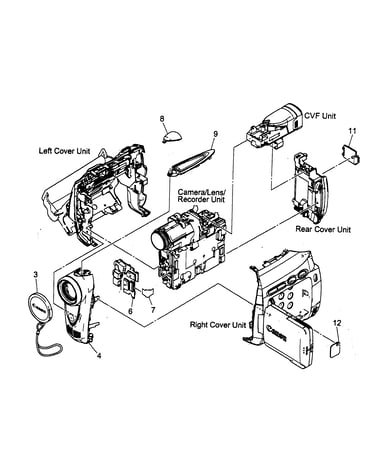

Casing parts diagram

Plate

Part #DA3-2426-000

The manufacturer no longer makes this part, and there's no substitute part

Shaft Lid DA3-2375-000
#12

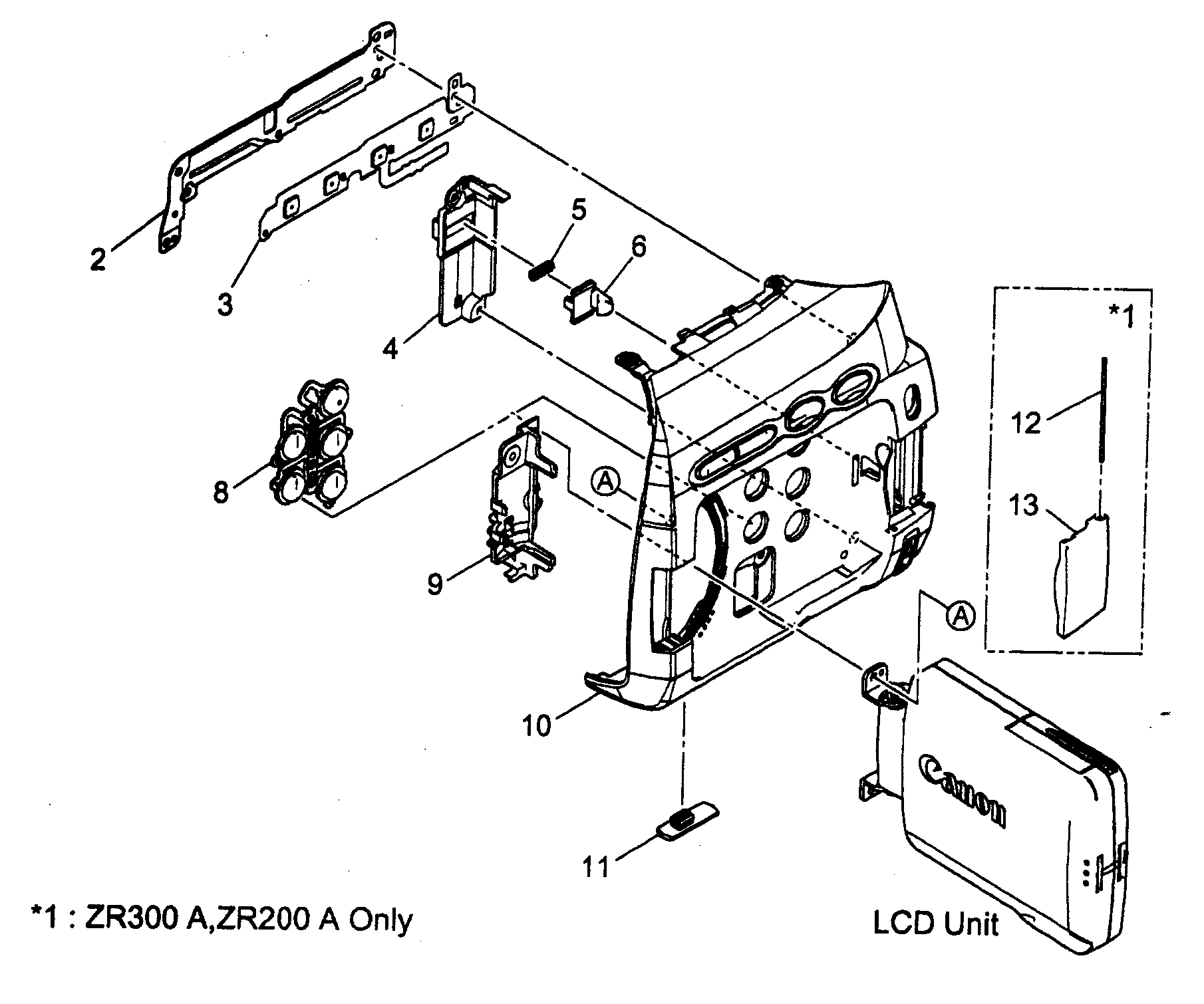

Right cover unit 2 diagram

Shaft lid

Part #DA3-2375-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Cover, R DY1-8770-000
#10

Right cover unit 2 diagram

Canon cover, r

Part #DY1-8770-000

The manufacturer no longer makes this part, and there's no substitute part

Hook Panel DA3-2374-000
#6

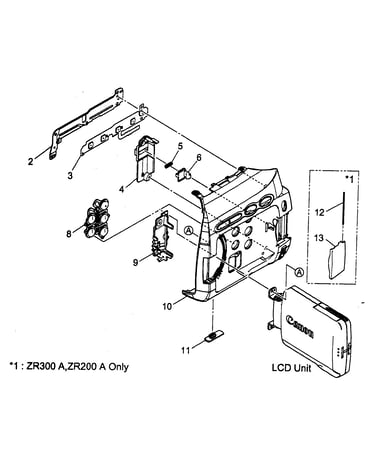

Right cover unit 2 diagram

Hook panel

Part #DA3-2374-000

The manufacturer no longer makes this part, and there's no substitute part
