Model # JUCFP242HL11 Official Jenn-Air refrigerator drawer

Here are the diagrams and repair parts for Official Jenn-Air JUCFP242HL11 refrigerator drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

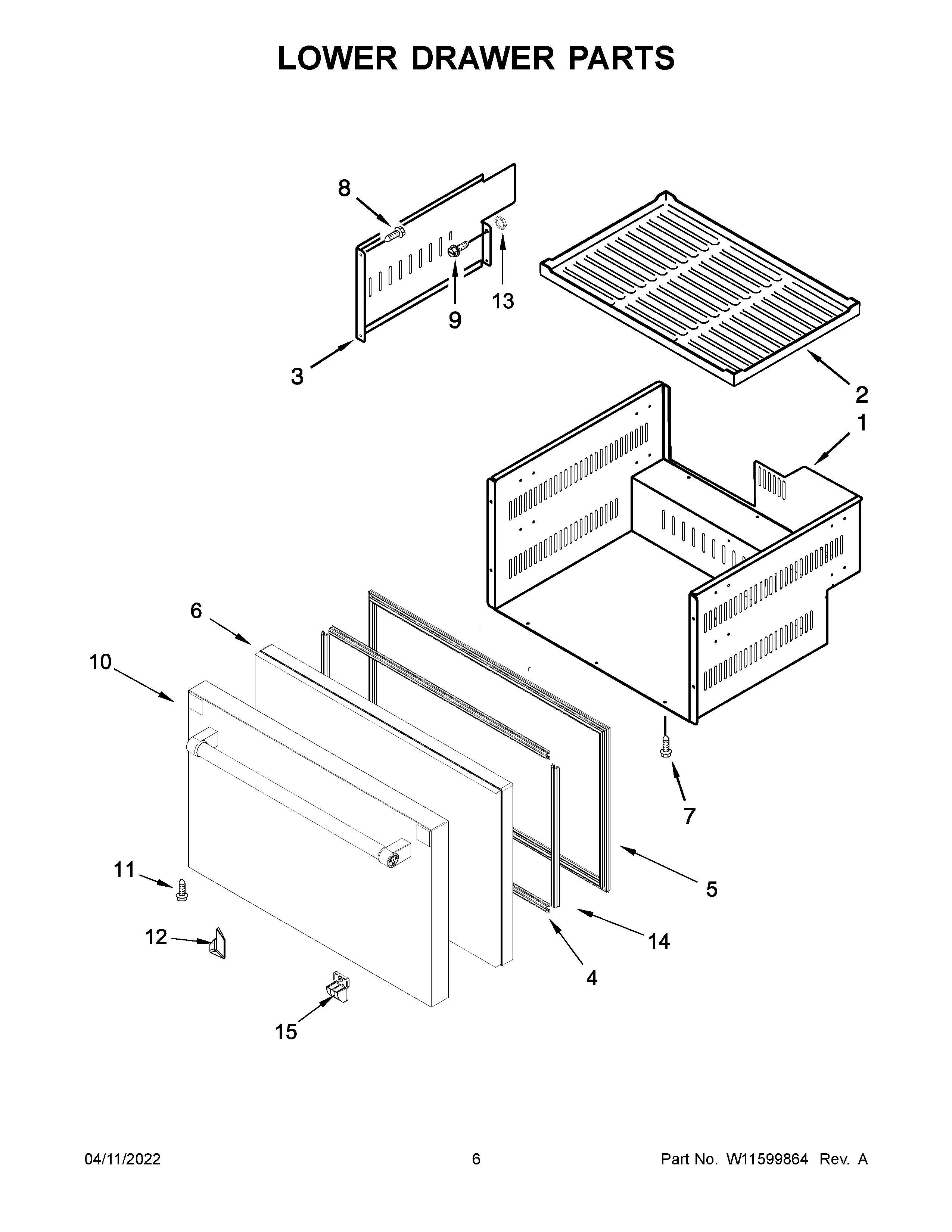

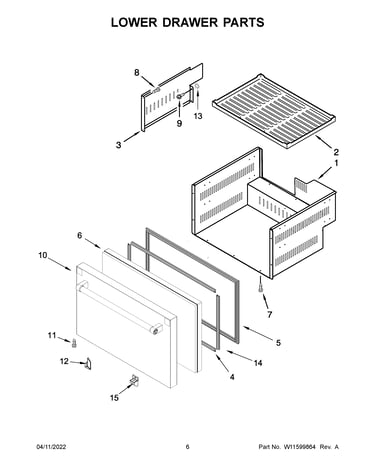

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Drier Tube W10805035
#11

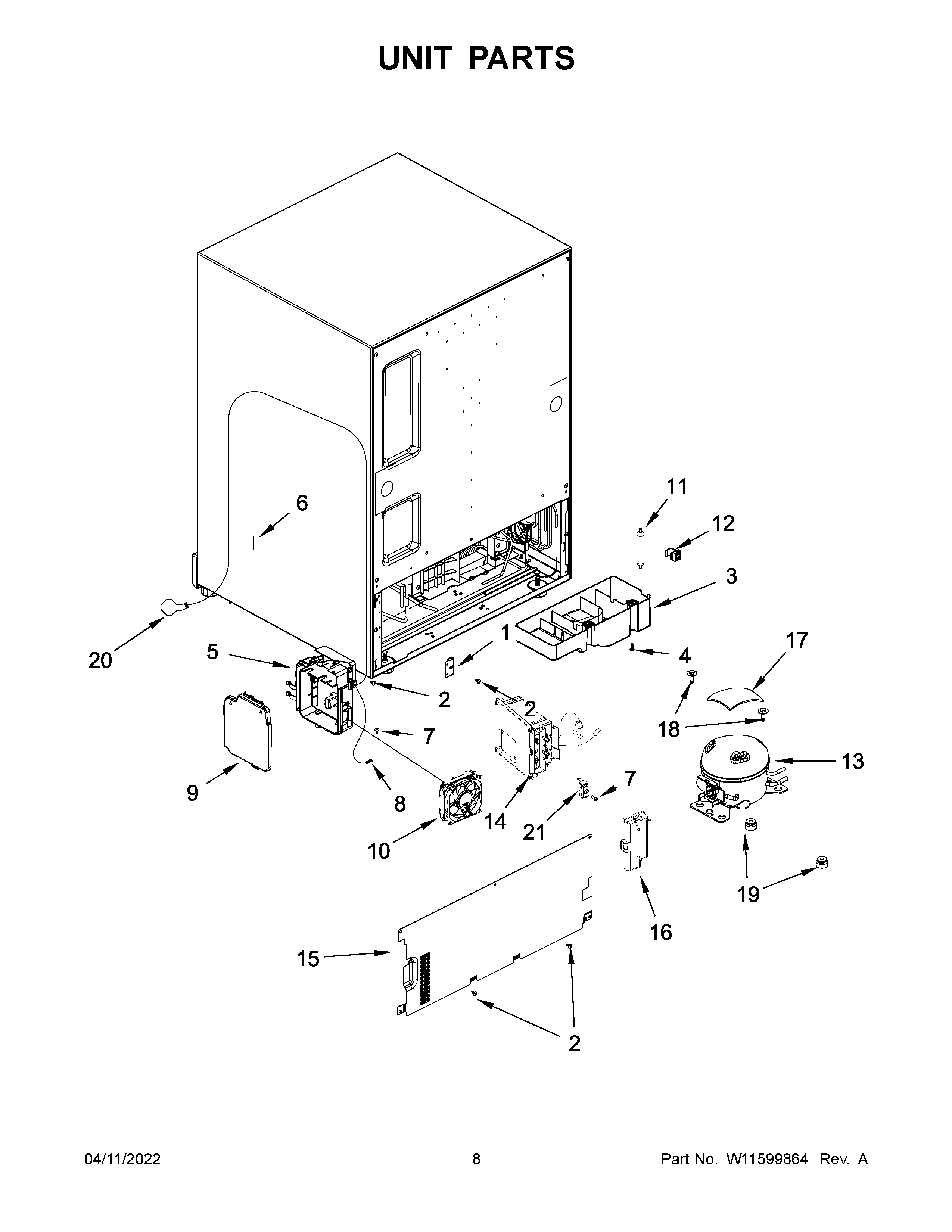

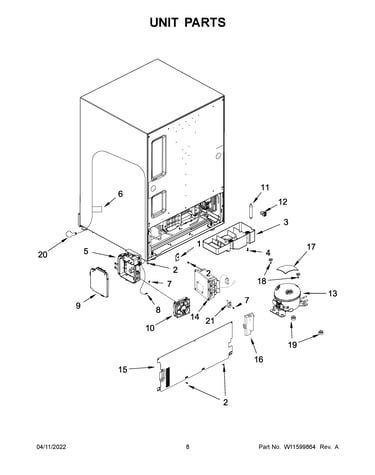

Unit parts diagram

Drier tube

Part #W10805035

Replaced by #W11109499

?
Manufacturer substitution
This part replaces W10805035. Substitute parts can look different from the original.
BEST SELLER
$24.38 |
20% OFF Phone Price : $30.38
In Stock
Sash Gasket W11360665
Sash gasket

Part #W11360665

$121.47
In Stock
Screw W10204808
#18

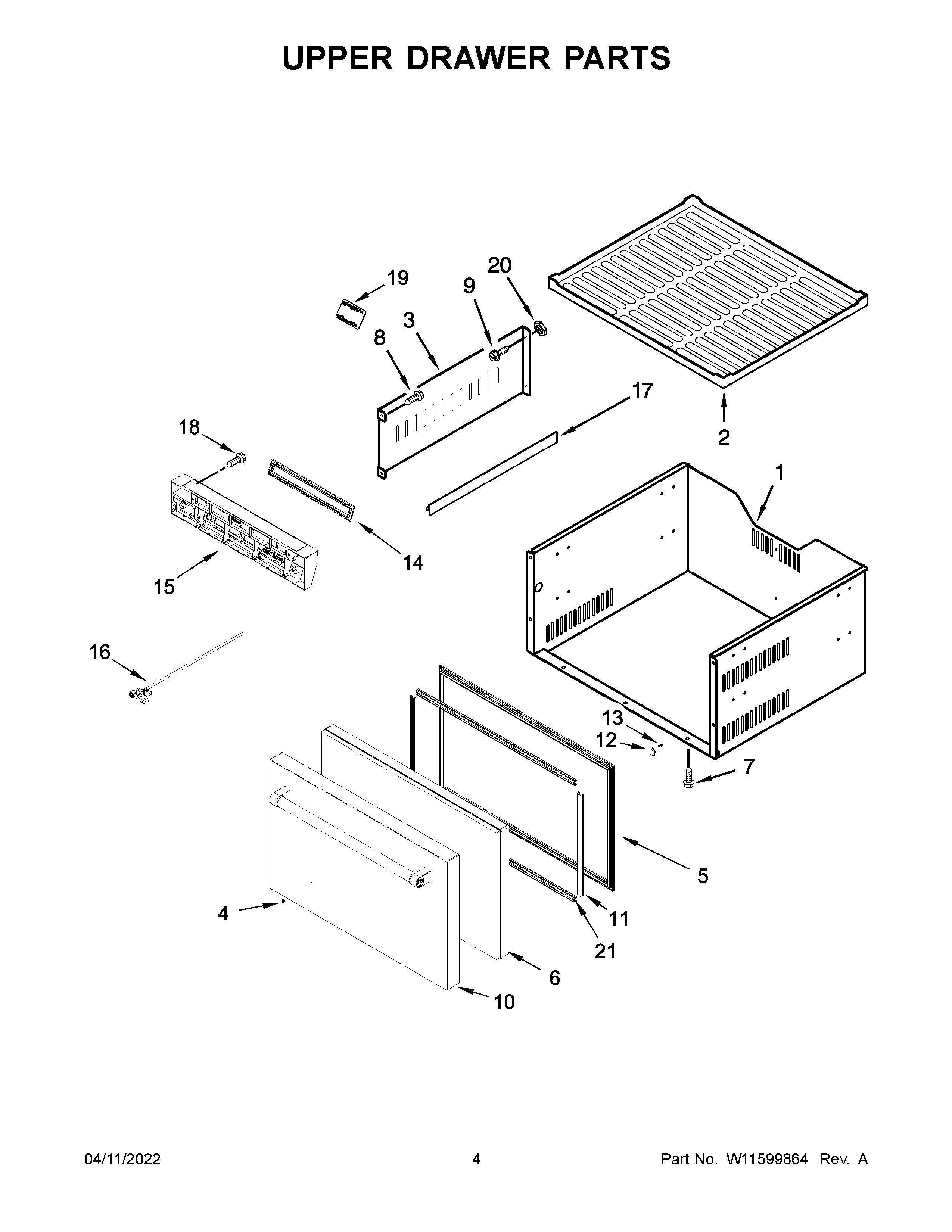

Upper drawer parts diagram

Screw

Part #W10204808

$29.89
In Stock
Screw W11371345
#12

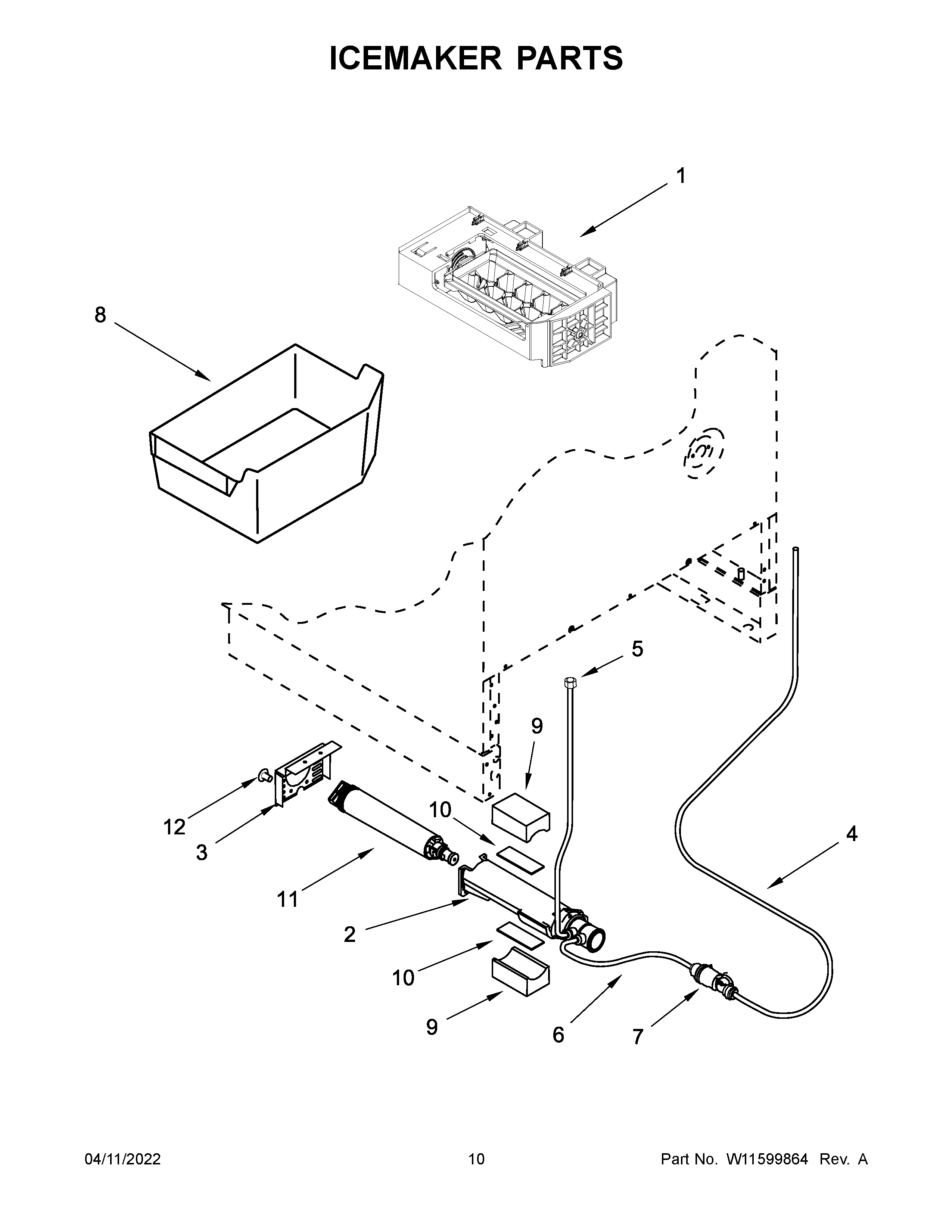

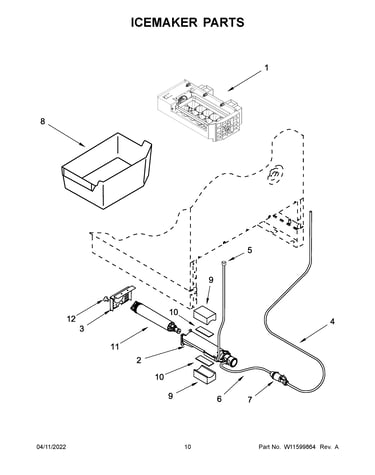

Icemaker parts diagram

Screw

Part #W11371345

$9.82
In Stock
Screw W10774183
#2

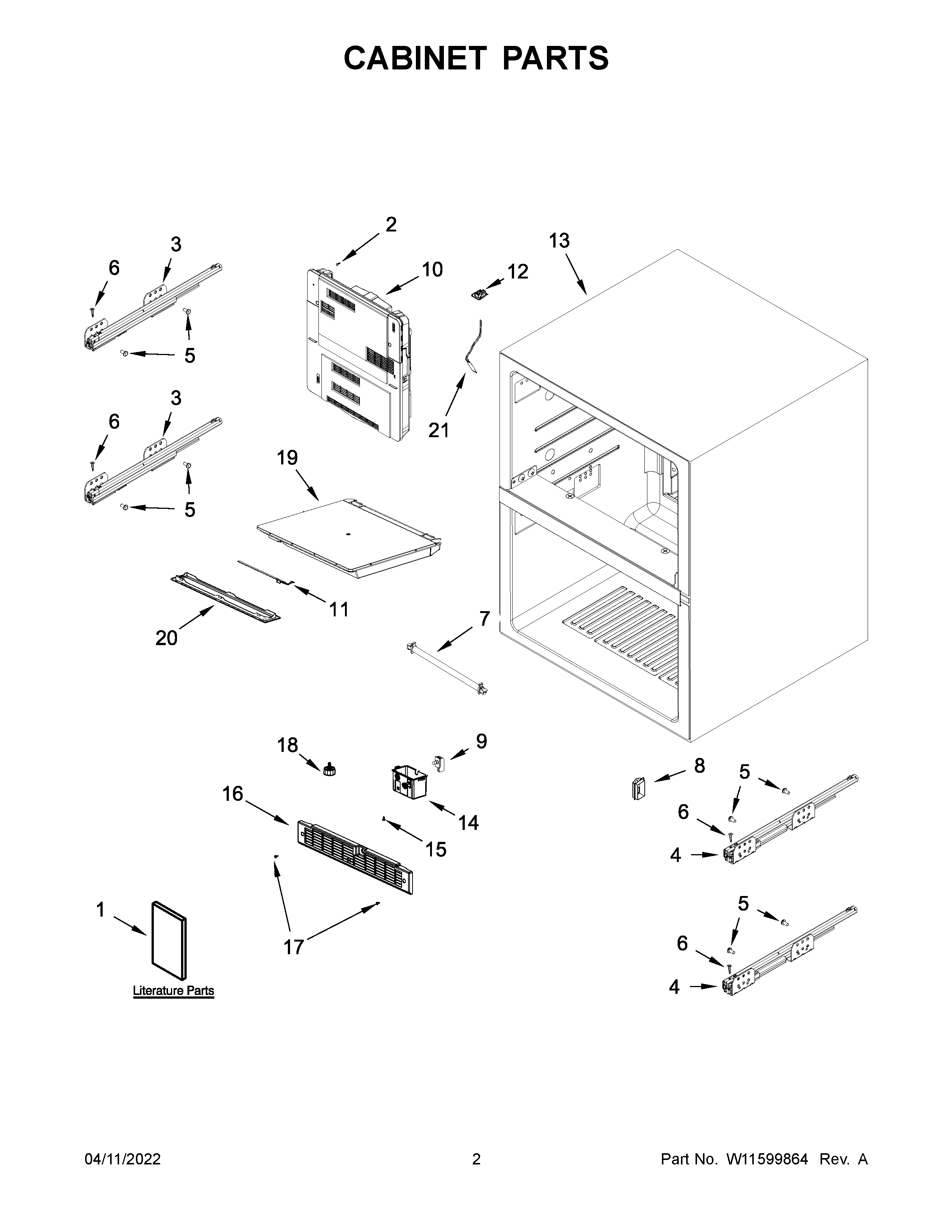

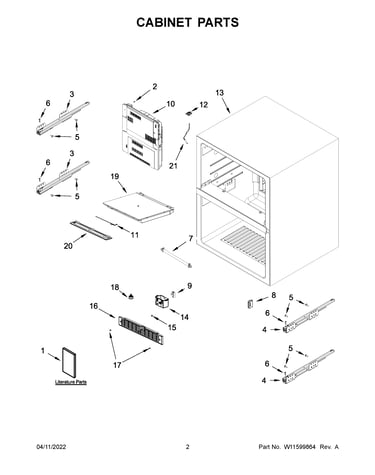

Cabinet parts diagram

Screw

Part #W10774183

$32.42
In Stock
Rail Assembly, Right Hand W11599890
#4

Cabinet parts diagram

Rail assembly, right hand

Part #W11599890

$99.53
In Stock
Cover Assembly, Evaporator W11580229
#10

Cabinet parts diagram

Cover assembly, evaporator

Part #W11580229

$260.24
In Stock
Rail Assembly, Left Hand W11599889
#3

Cabinet parts diagram

Rail assembly, left hand

Part #W11599889

$99.53
In Stock
Lens-light W11312450
Lens-light

Part #W11312450

$39.80
In Stock
Defrost Holder And Heater W11580231
#7

Cabinet parts diagram

Defrost holder and heater

Part #W11580231

$111.10
In Stock
