GE
Top-Mount Refrigerator

Model # GTN18CBEERWW Official GE refrigerator

Here are the diagrams and repair parts for Official GE GTN18CBEERWW refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Appliance Light Bulb, 40-watt (replaces 40a15-2pk, 60a, 60a15rvl, Std398091, Wr02x12328, Wx12x1510) 40A15
#435

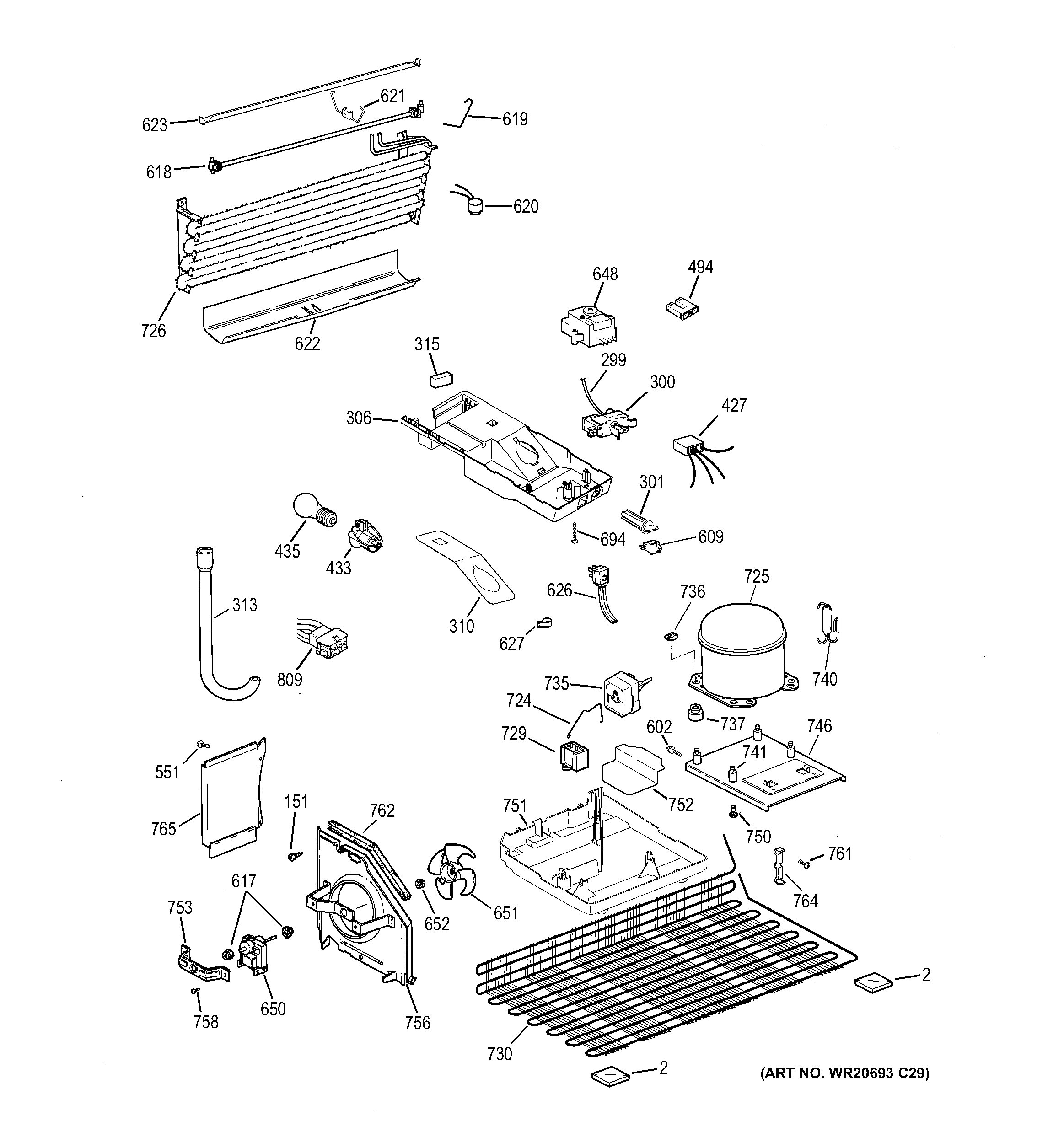

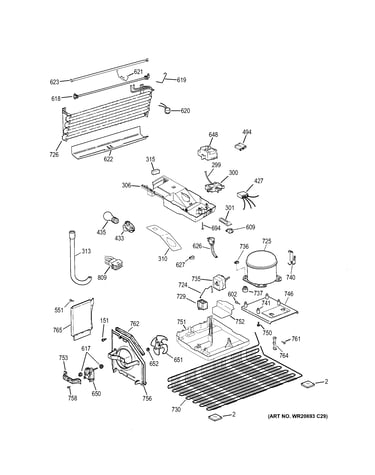

Unit parts diagram

Appliance light bulb, 40-watt (replaces 40a15-2pk, 60a, 60a15rvl, std398091, wr02x12328, wx12x1510)

Part #40A15

BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Refrigerator Evaporator Fan Motor WR60X10141
#610

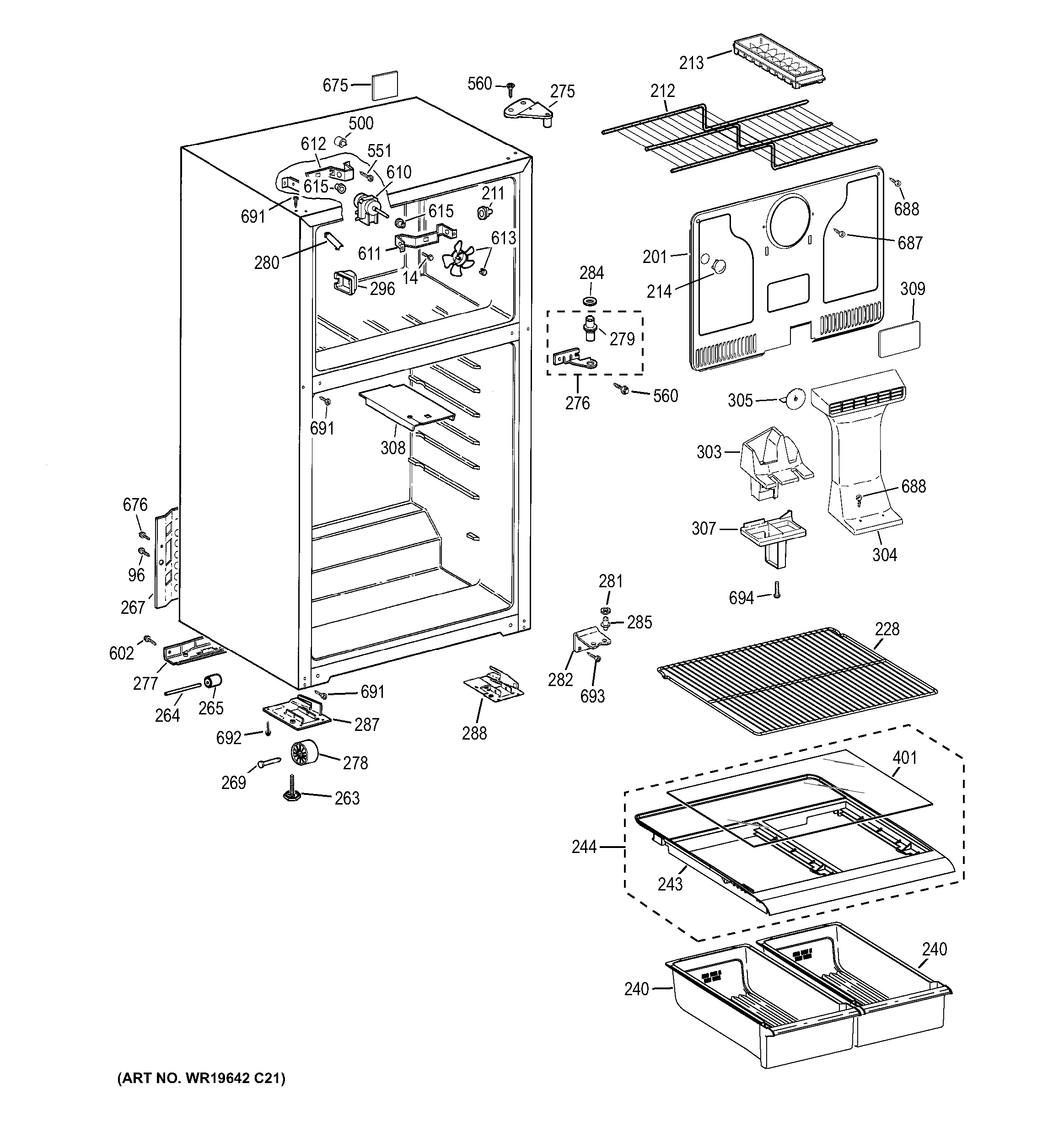

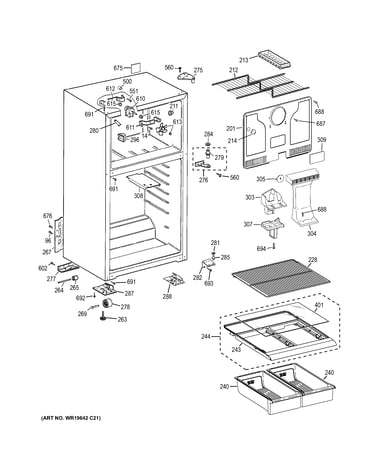

Cabinet diagram

Refrigerator evaporator fan motor

Part #WR60X10141

Replaced by #WR60X31522

?
Manufacturer substitution
This part replaces WR60X10141. Substitute parts can look different from the original.
BEST SELLER
$66.69 |
8% OFF Phone Price : $72.69
In Stock
Capacitor WR62X0079
#729

Unit parts diagram

Capacitor

Part #WR62X0079

Replaced by #WR55X24064

?
Manufacturer substitution
This part replaces WR62X0079. Substitute parts can look different from the original.
BEST SELLER
$41.95 |
13% OFF Phone Price : $47.95
In Stock
Compressor Replacement WR87X10240
#725

Unit parts diagram

Compressor replacement

Part #WR87X10240

Replaced by #WR87X10224

?
Manufacturer substitution
This part replaces WR87X10240. Substitute parts can look different from the original.
BEST SELLER
$583.23 |
$12.00 OFF Phone Price : $595.23
In Stock
Refrigerator Evaporator Fan Blade (replaces Wr60x10047, Wr60x10188) WR60X10204
#613

Cabinet diagram

Refrigerator evaporator fan blade (replaces wr60x10047, wr60x10188)

Part #WR60X10204

BEST SELLER
$12.47 |
14% OFF Phone Price : $14.47
In Stock
Refrigerator Fixed Shelf WR17X12916
#19

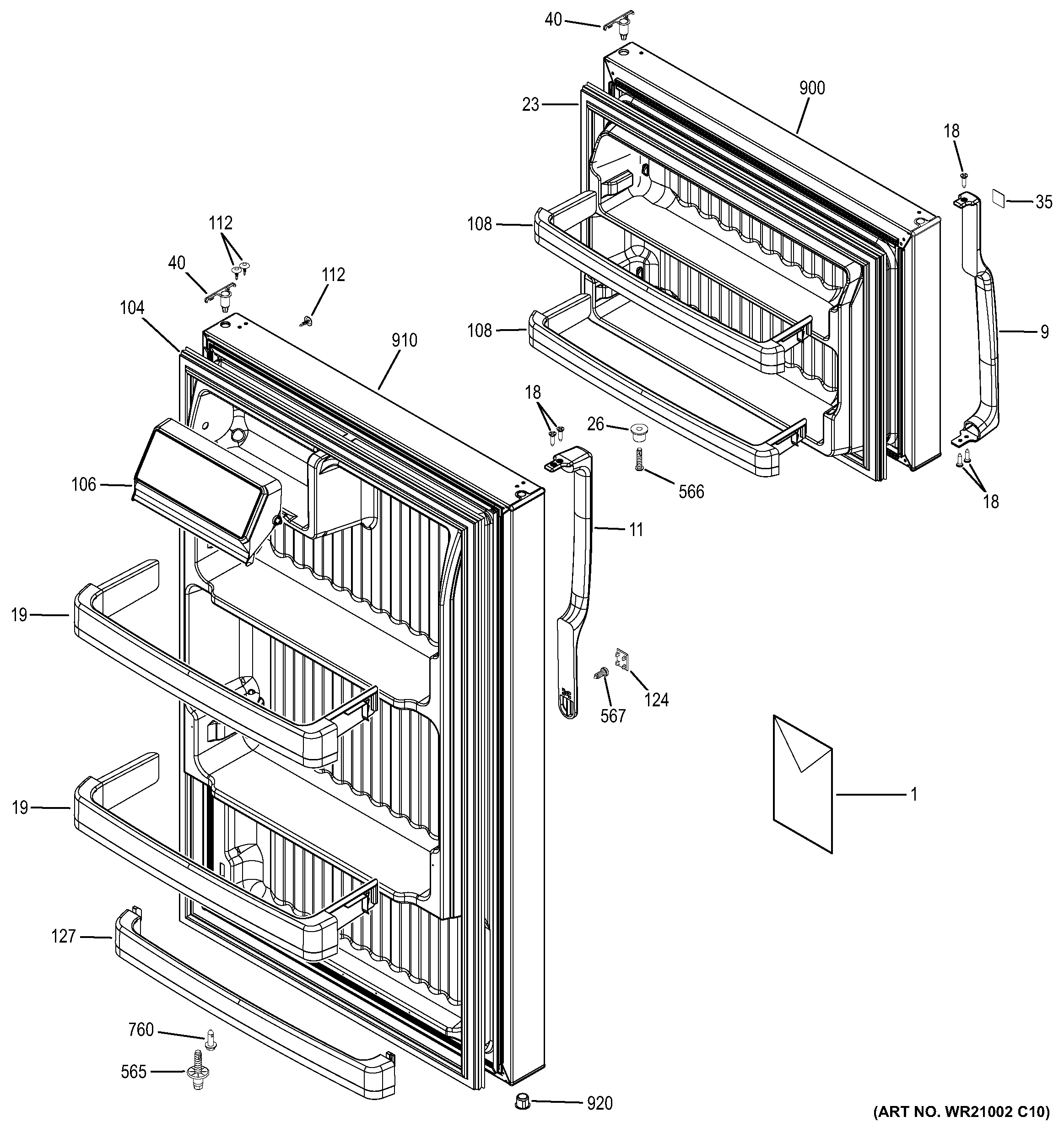

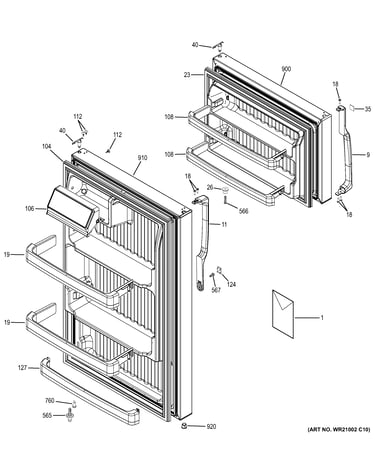

Doors diagram

Refrigerator fixed shelf

Part #WR17X12916

Replaced by #WR17X11889

?
Manufacturer substitution
This part replaces WR17X12916. Substitute parts can look different from the original.
BEST SELLER
$27.26 |
18% OFF Phone Price : $33.26
In Stock
Refrigerator Temperature Control WR09X10042
#300

Unit parts diagram

Refrigerator temperature control

Part #WR09X10042

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Freezer Door Gasket (replaces Wr24x10050, Wr24x524) WR24X10228
#23

Doors diagram

Refrigerator freezer door gasket (replaces wr24x10050, wr24x524)

Part #WR24X10228

$68.92 |
8% OFF Phone Price : $74.92
In Stock
Refrigerator Fan Blade Retainer Ring (replaces Wr02x10509, Wr02x10581) WR02X12149
#652

Unit parts diagram

Refrigerator fan blade retainer ring (replaces wr02x10509, wr02x10581)

Part #WR02X12149

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Door Gasket (white) (replaces Wr24x10052, Wr78x10336) WR24X10236
#104

Doors diagram

Refrigerator door gasket (white) (replaces wr24x10052, wr78x10336)

Part #WR24X10236

$74.22 |
7% OFF Phone Price : $80.22
In Stock
