Model # 1162643083 Official Kenmore vacuum cleaner hose & attachment parts

Here are the diagrams and repair parts for Official Kenmore 1162643083 vacuum cleaner hose & attachment parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Contact Pin 4150715
#6

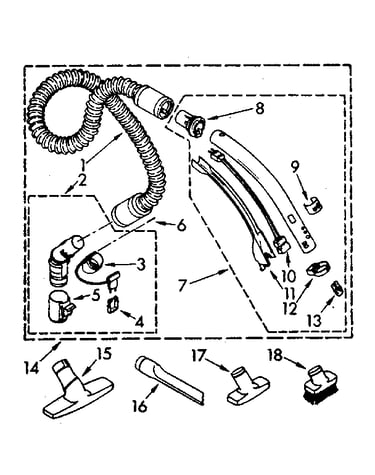

Hose and attachment diagram

Contact pin

Part #4150715

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Receptacle Assembly 4147243
#24

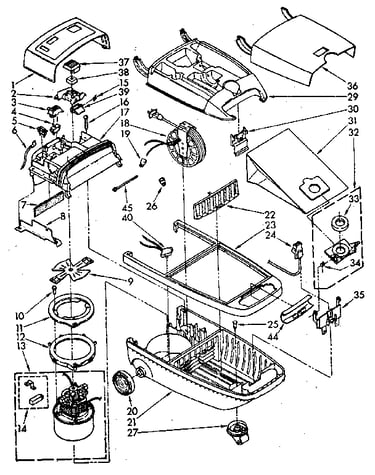

Vacuum cleaner diagram

Vacuum receptacle assembly

Part #4147243

The manufacturer no longer makes this part, and there's no substitute part

Motor 705314
#13

Vacuum cleaner diagram

Motor

Part #705314

The manufacturer no longer makes this part, and there's no substitute part

Suction Control 4147140
#9

Hose and attachment diagram

Suction control

Part #4147140

The manufacturer no longer makes this part, and there's no substitute part

Adapter 4147144
#8

Hose and attachment diagram

Adapter

Part #4147144

The manufacturer no longer makes this part, and there's no substitute part

Strike (gray) 4147967
#35

Vacuum cleaner diagram

Strike (gray)

Part #4147967

The manufacturer no longer makes this part, and there's no substitute part

Hose 4150575
#1

Hose and attachment diagram

Hose

Part #4150575

The manufacturer no longer makes this part, and there's no substitute part

Wiring Diagram LIT4148578

#NI

All parts diagram

Wiring diagram

Part #LIT4148578

The manufacturer no longer makes this part, and there's no substitute part

Lock Cord 748005
#39

Vacuum cleaner diagram

Lock cord

Part #748005

The manufacturer no longer makes this part, and there's no substitute part

Link 4147149
#3

Hose and attachment diagram

Link

Part #4147149

The manufacturer no longer makes this part, and there's no substitute part
