Model # 693358350 Official Kenmore gas wall furnace

Here are the diagrams and repair parts for Official Kenmore 693358350 gas wall furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Thermostat 109417-G2
#60

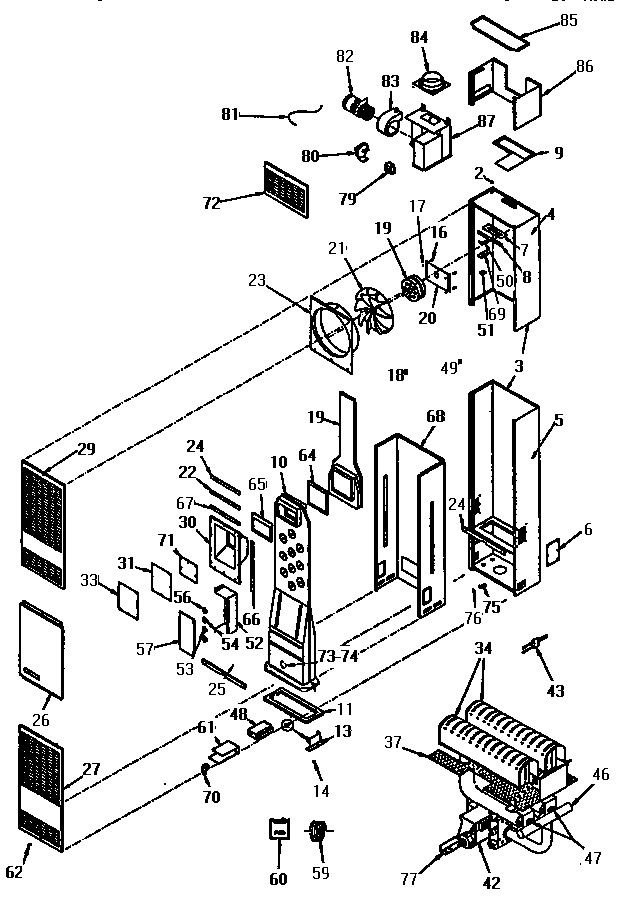

Functional replacement parts diagram

Thermostat

Part #109417-G2

The manufacturer no longer makes this part, and there's no substitute part

Igniter 108803-G1
#43

Functional replacement parts diagram

Igniter

Part #108803-G1

The manufacturer no longer makes this part, and there's no substitute part

Motor 120099-G1
#19

Functional replacement parts diagram

Motor

Part #120099-G1

The manufacturer no longer makes this part, and there's no substitute part

Furnace Blower Fan 120100-G1-1
#21

Functional replacement parts diagram

Furnace blower fan

Part #120100-G1-1

The manufacturer no longer makes this part, and there's no substitute part

Switch Box 120386-G1
#52

Functional replacement parts diagram

Switch box

Part #120386-G1

The manufacturer no longer makes this part, and there's no substitute part

Power Vent Gasket 120633-G1
#9

Functional replacement parts diagram

Power vent gasket

Part #120633-G1

The manufacturer no longer makes this part, and there's no substitute part

Power Vt Asy 120629-G1
#87

Functional replacement parts diagram

Power vt asy

Part #120629-G1

The manufacturer no longer makes this part, and there's no substitute part

Heat Excha 120488-G1
#10

Functional replacement parts diagram

Heat excha

Part #120488-G1

The manufacturer no longer makes this part, and there's no substitute part

Switch Box Cover 12034-G1
#57

Functional replacement parts diagram

Switch box cover

Part #12034-G1

The manufacturer no longer makes this part, and there's no substitute part

Cabinet 120084-G4-3
#5

Functional replacement parts diagram

Cabinet

Part #120084-G4-3

The manufacturer no longer makes this part, and there's no substitute part
