Model # PTDS650EM2WT Official GE electric dryer

Here are the diagrams and repair parts for Official GE PTDS650EM2WT electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

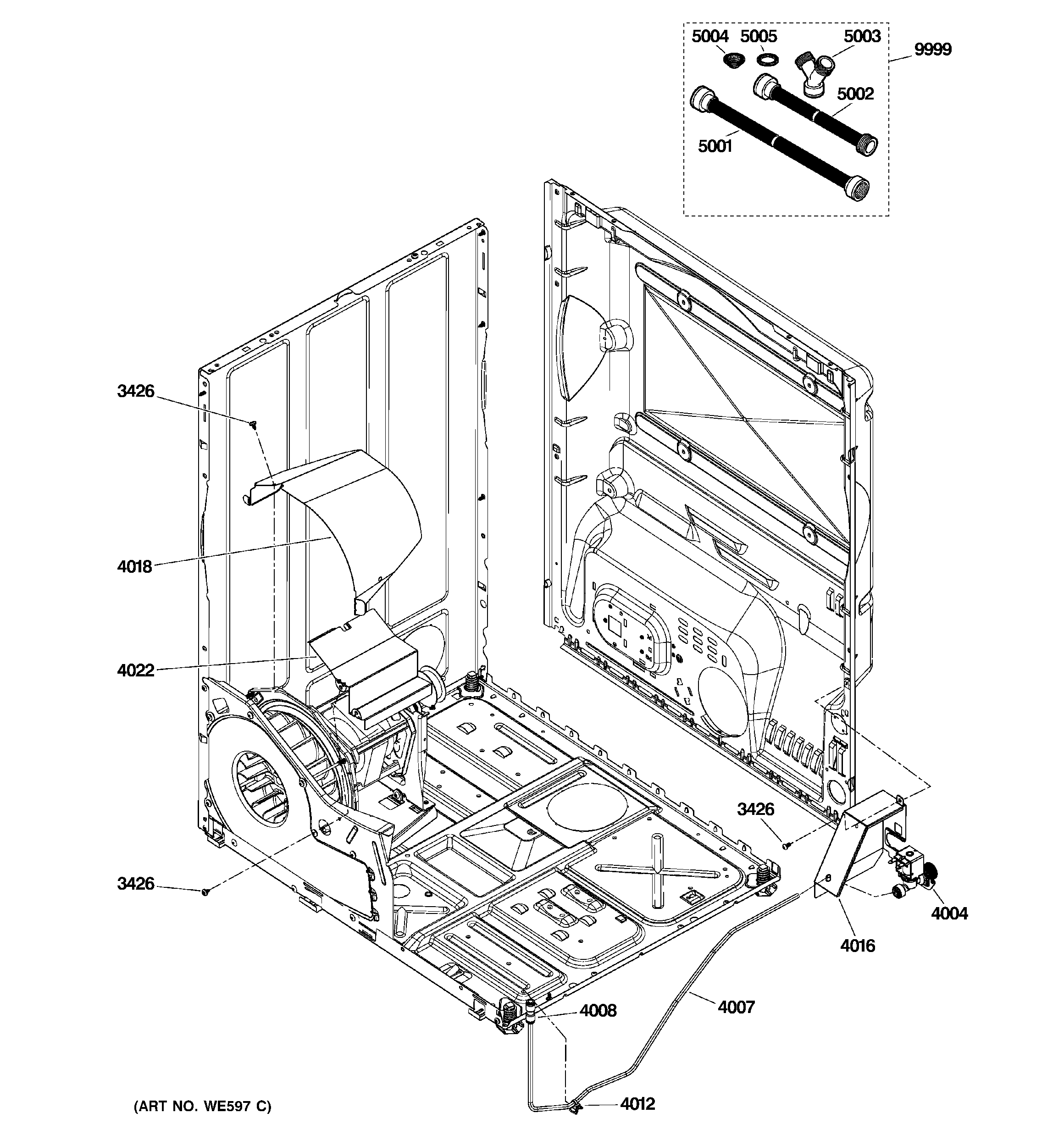

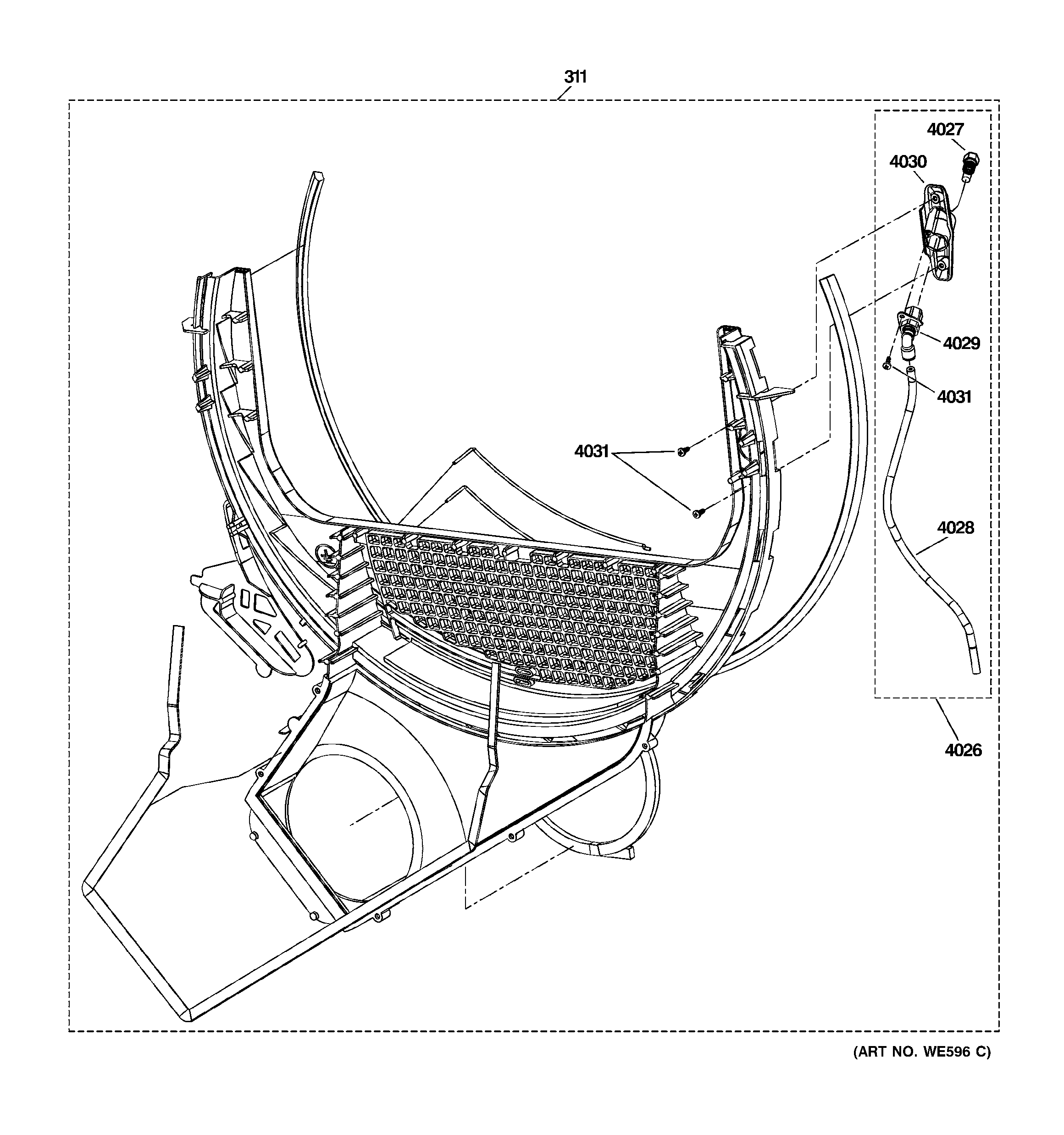

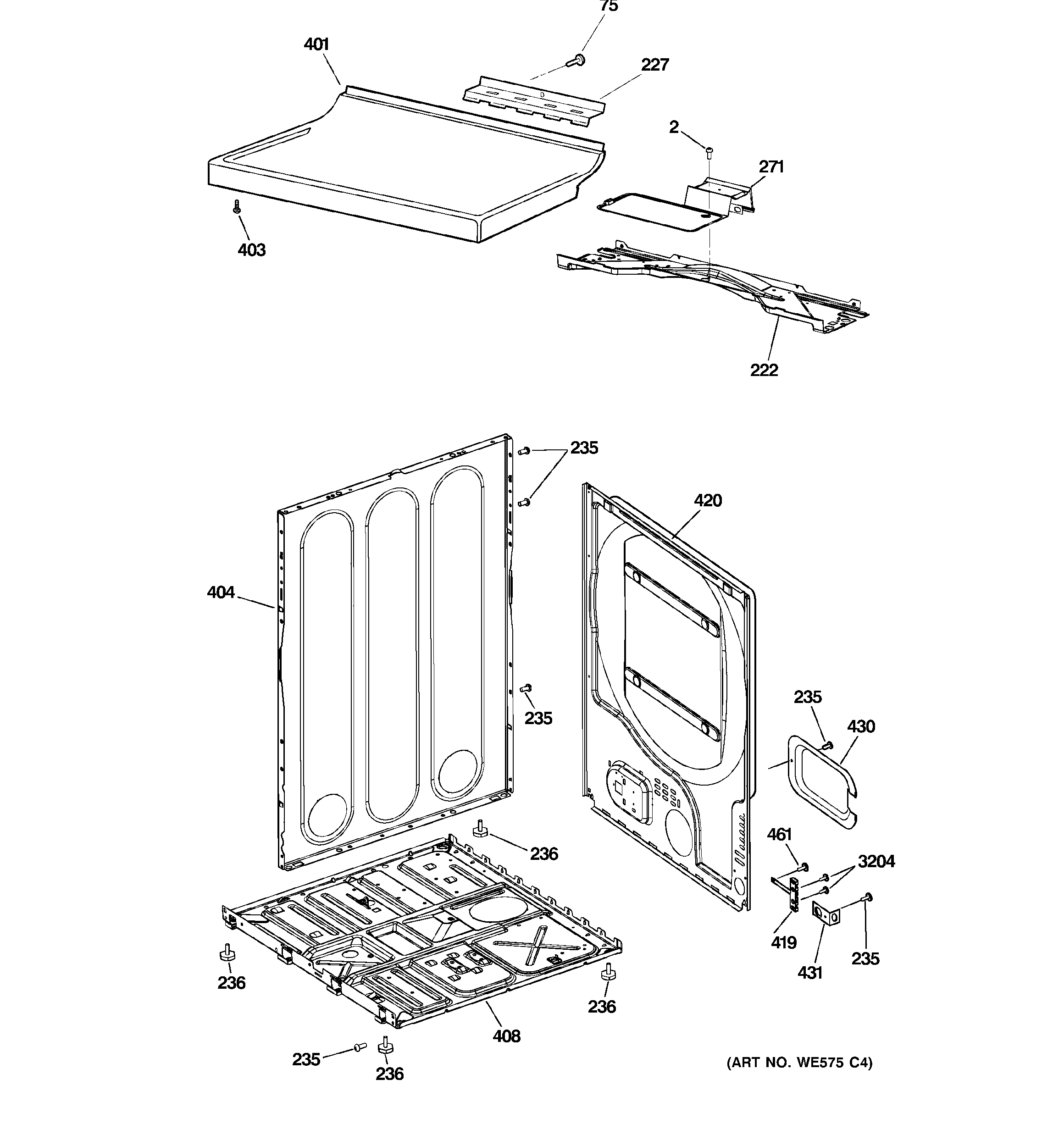

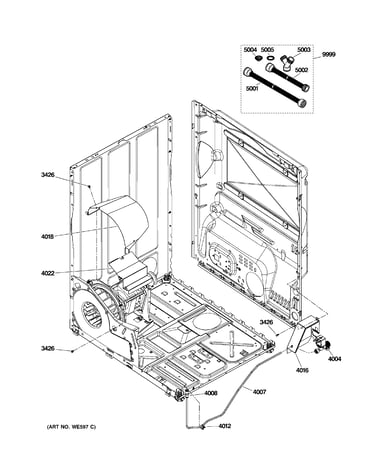

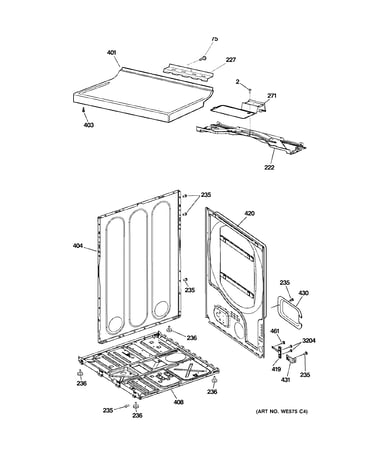

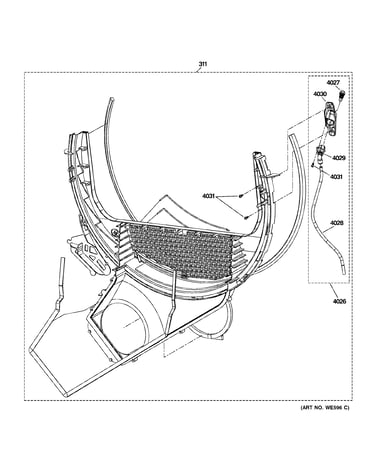

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Dryer Drum Belt WE12M29
#213

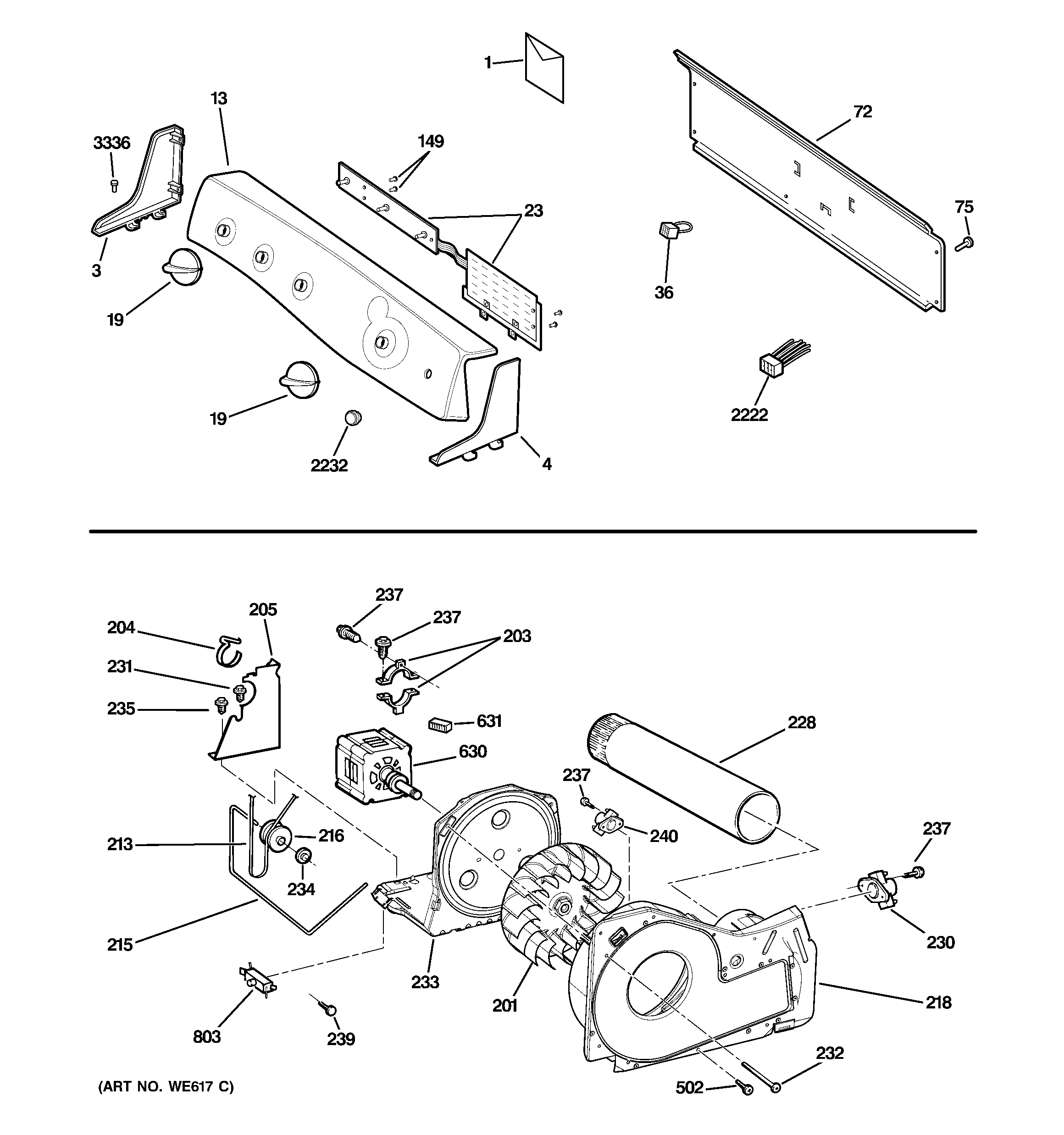

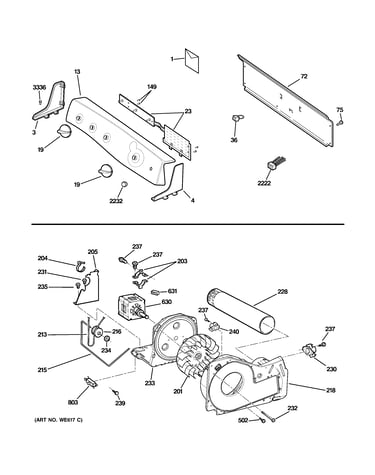

Backsplash, blower & motor assembly diagram

Dryer drum belt

Part #WE12M29

BEST SELLER
$28.15 |
18% OFF Phone Price : $34.15
In Stock
Dryer Drum Bearing, Front (replaces We03m0026, We3m20) WE3M26
#313

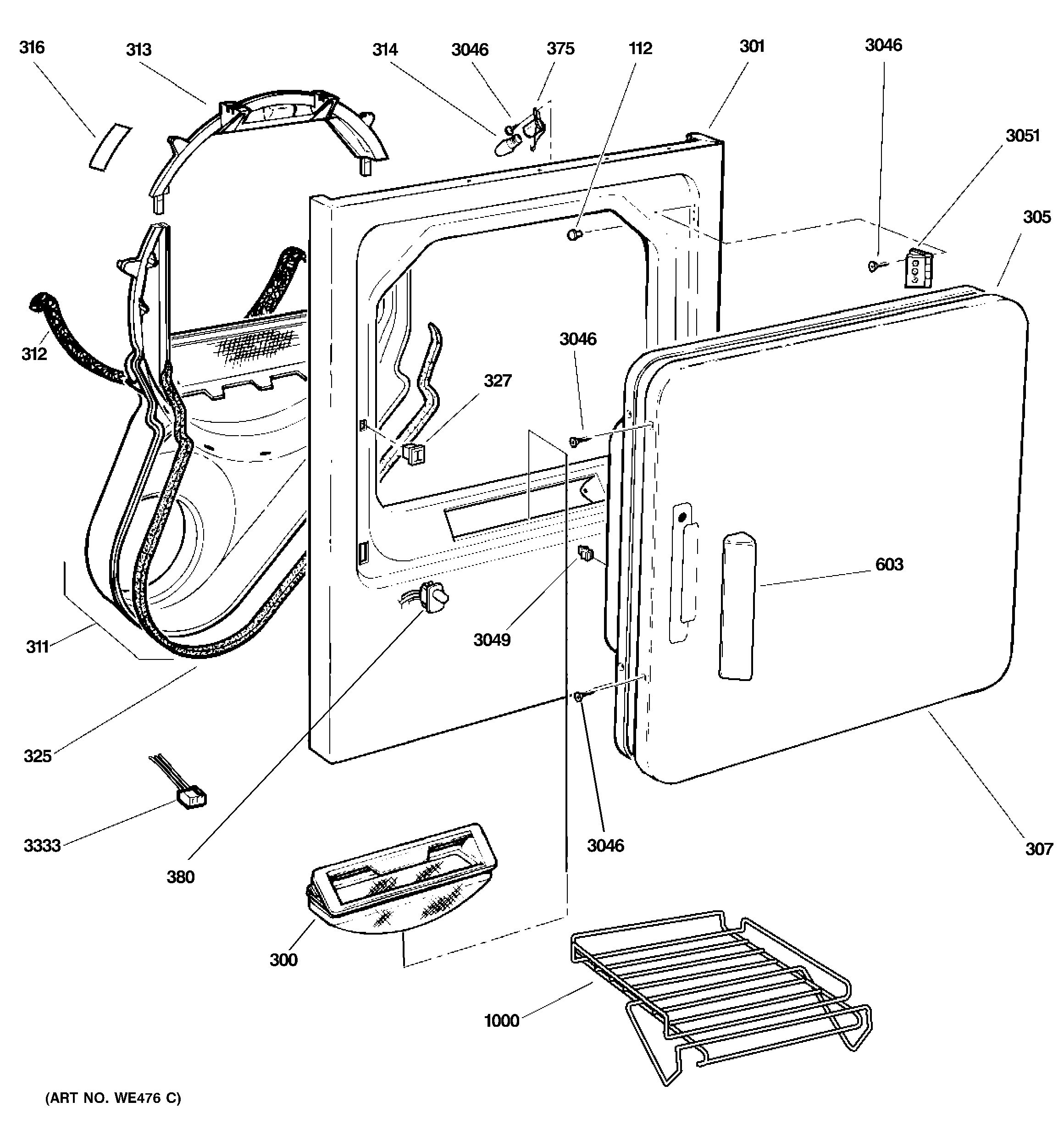

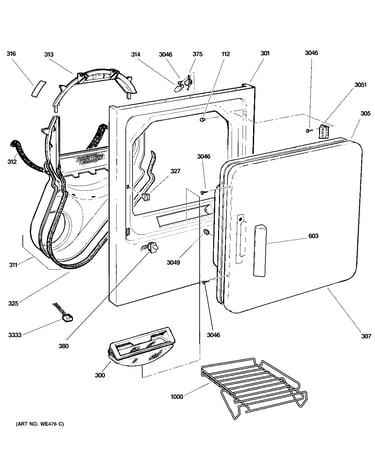

Front panel & door diagram

Dryer drum bearing, front (replaces we03m0026, we3m20)

Part #WE3M26

BEST SELLER
$31.04 |
16% OFF Phone Price : $37.04
In Stock
Inlet Control WE4M333
#506

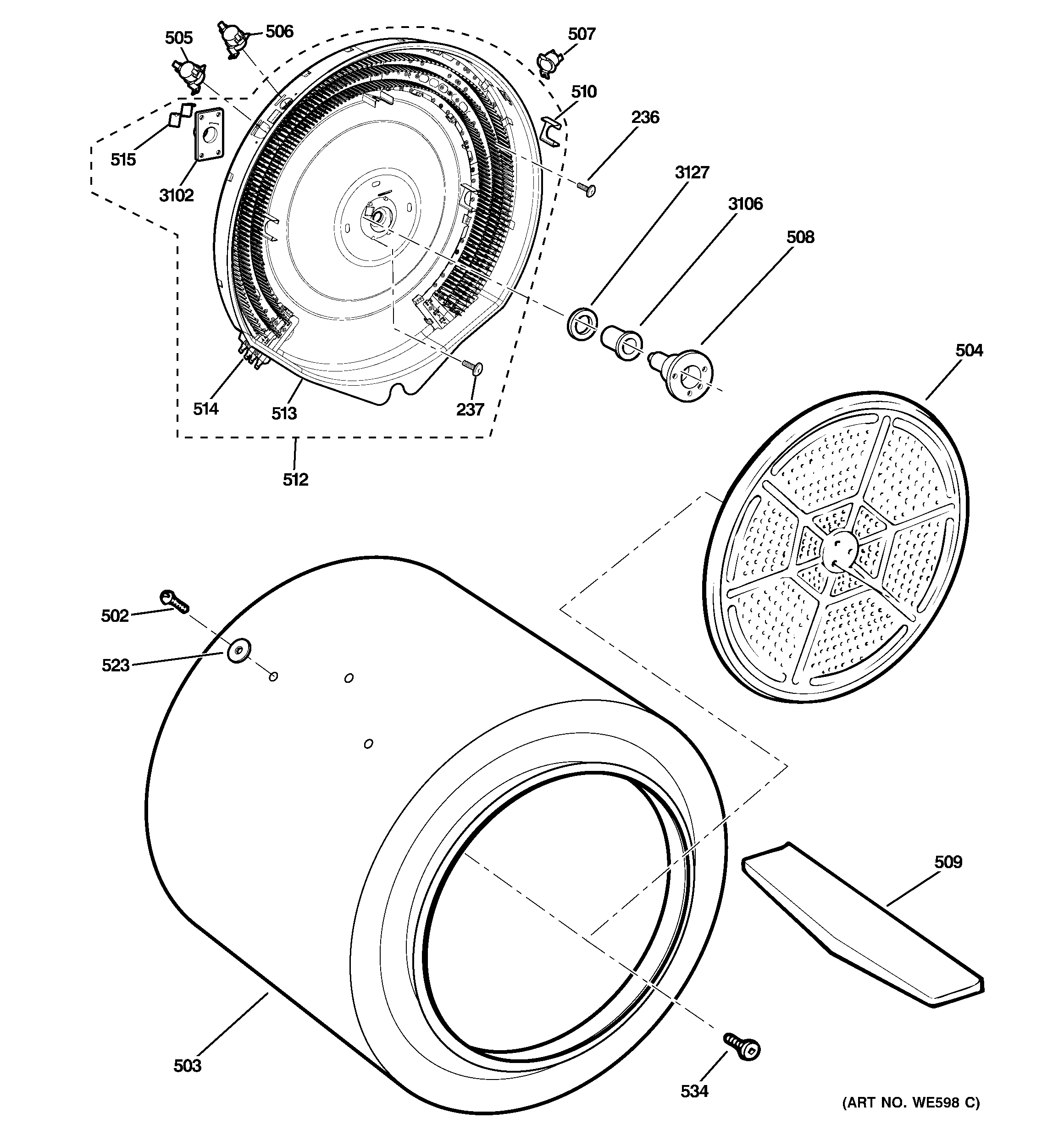

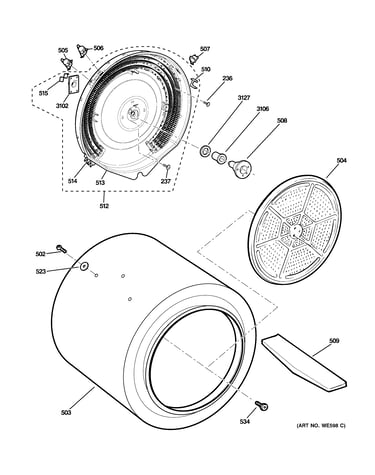

Drum diagram

Inlet control

Part #WE4M333

Replaced by #WE4M398

?
Manufacturer substitution
This part replaces WE4M333. Substitute parts can look different from the original.
BEST SELLER
$32.91 |
15% OFF Phone Price : $38.91
In Stock
Std High Lmt WE4M457
#507

Drum diagram

Std high lmt

Part #WE4M457

Replaced by #WE4M137

?
Manufacturer substitution
This part replaces WE4M457. Substitute parts can look different from the original.
BEST SELLER
$78.01 |
7% OFF Phone Price : $84.01
In Stock
Shft-brkt WE3X39
#508

Drum diagram

Shft-brkt

Part #WE3X39

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE3X39. Substitute parts can look different from the original.
BEST SELLER
$71.61 |
8% OFF Phone Price : $77.61
In Stock
Kenmore Dryer Rear Bearing O-ring WE1M461
#3127

Drum diagram

Kenmore dryer rear bearing o-ring

Part #WE1M461

BEST SELLER
$7.63 |
12% OFF Phone Price : $8.63
In Stock
Dryer Drum Bearing Bracket (replaces We01m0300) WE1M300
#3102

Drum diagram

Dryer drum bearing bracket (replaces we01m0300)

Part #WE1M300

BEST SELLER
$15.97 |
11% OFF Phone Price : $17.97
In Stock
Interlock Switch WD21X0557
#803

Backsplash, blower & motor assembly diagram

Interlock switch

Part #WD21X0557

Replaced by #WD21X10261

?
Manufacturer substitution
This part replaces WD21X0557. Substitute parts can look different from the original.
BEST SELLER
$21.69 |
22% OFF Phone Price : $27.69
In Stock
Dryer Door Seal (replaces We01m0825, We01x10217, We1m376) WE1M825
#325

Front panel & door diagram

Dryer door seal (replaces we01m0825, we01x10217, we1m376)

Part #WE1M825

BEST SELLER
This item is not returnable
$6.96 |
13% OFF Phone Price : $7.96
In Stock
Filter ( Whi WE18M25
#300

Front panel & door diagram

Filter ( whi

Part #WE18M25

Replaced by #WE18X25100

?
Manufacturer substitution
This part replaces WE18M25. Substitute parts can look different from the original.
BEST SELLER
$57.69 |
9% OFF Phone Price : $63.69
In Stock
