Model # ZICP360SLBSS Official GE bottom-mount refrigerator
Here are the diagrams and repair parts for Official GE ZICP360SLBSS bottom-mount refrigerator, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

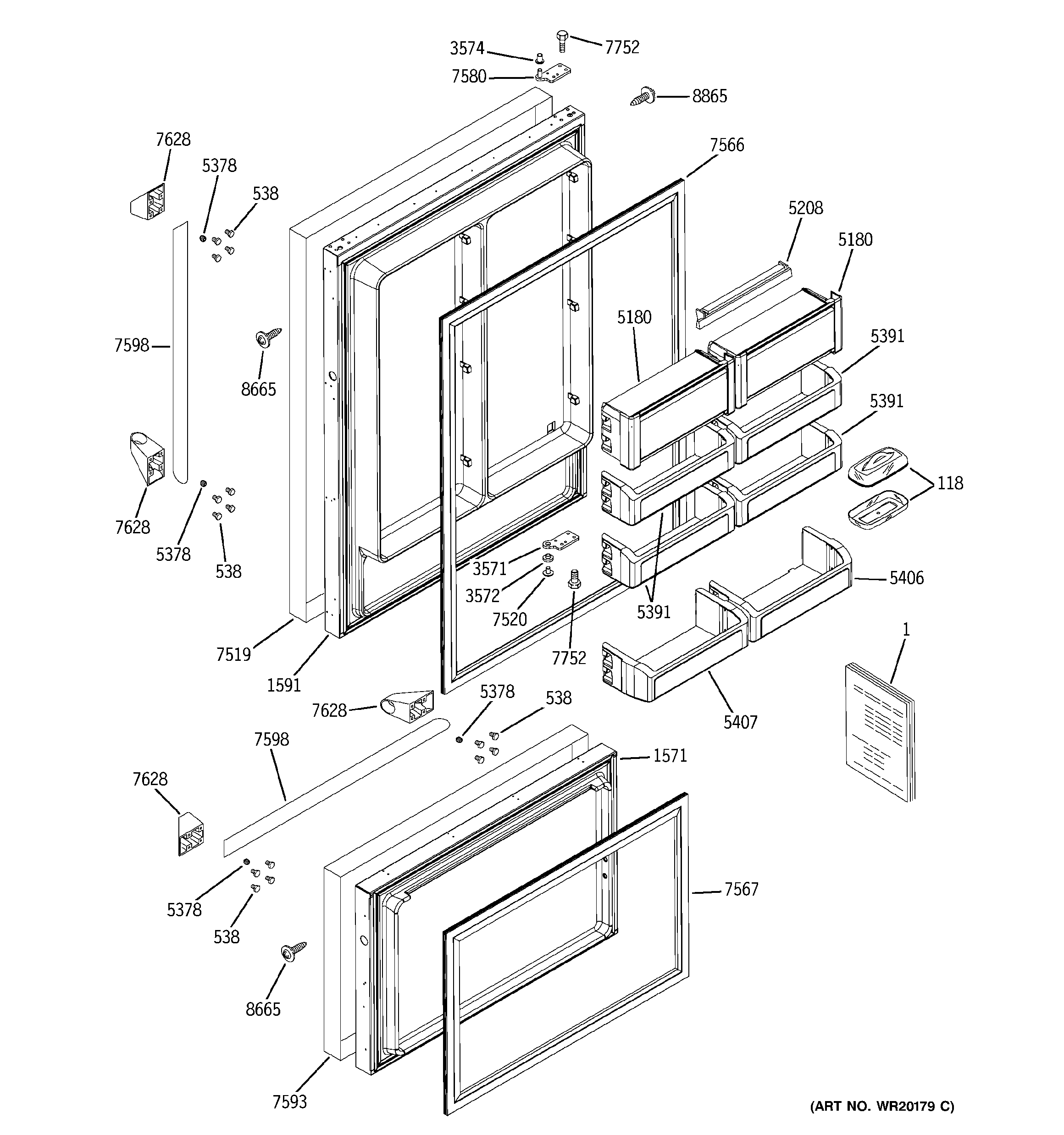

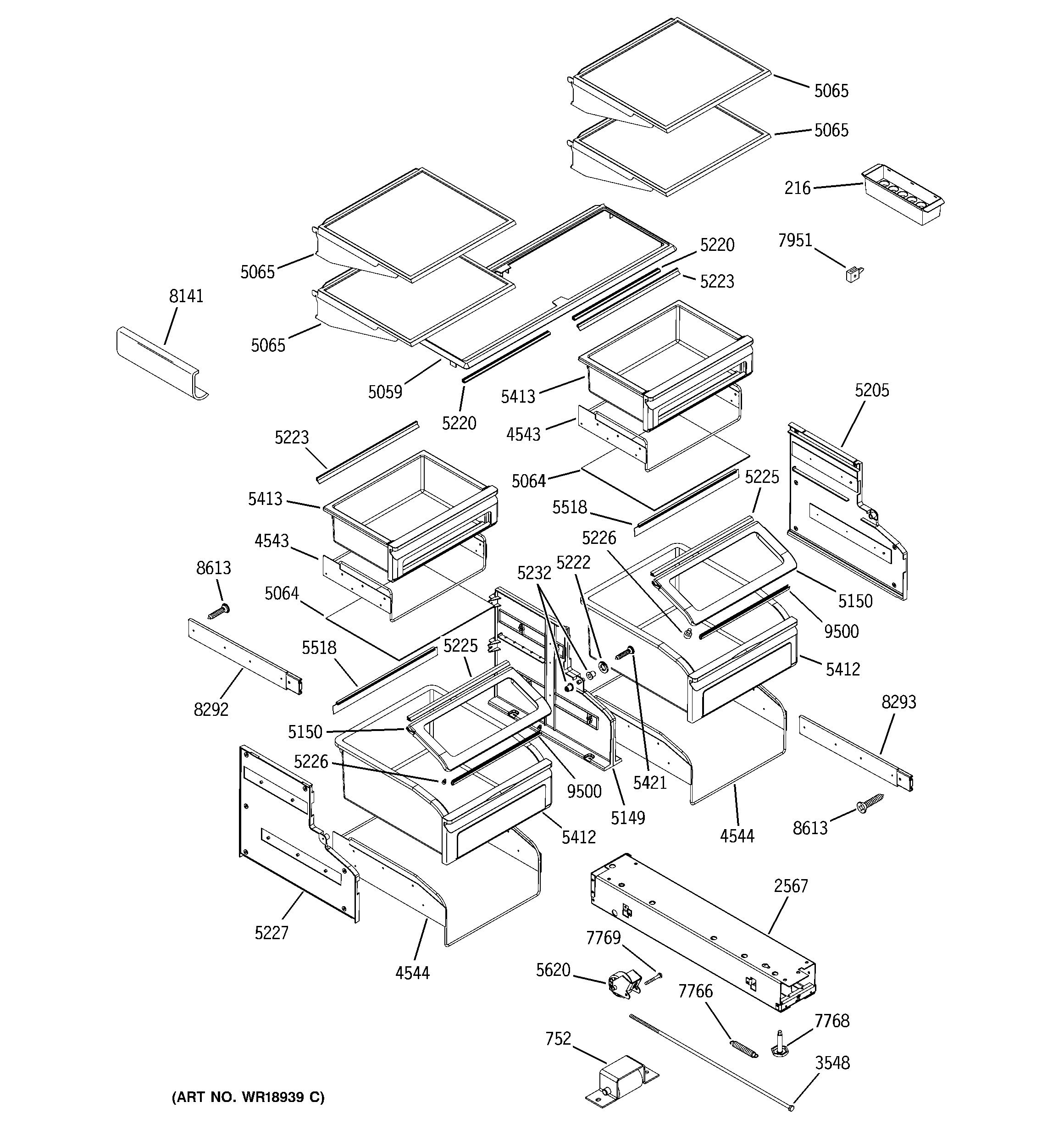

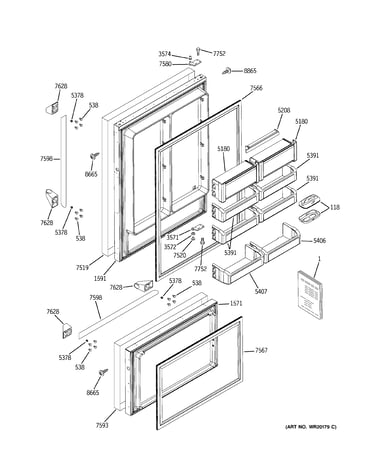

SELECT DIAGRAM
Browse Parts forZICP360SLBSS Refrigerators
- #820

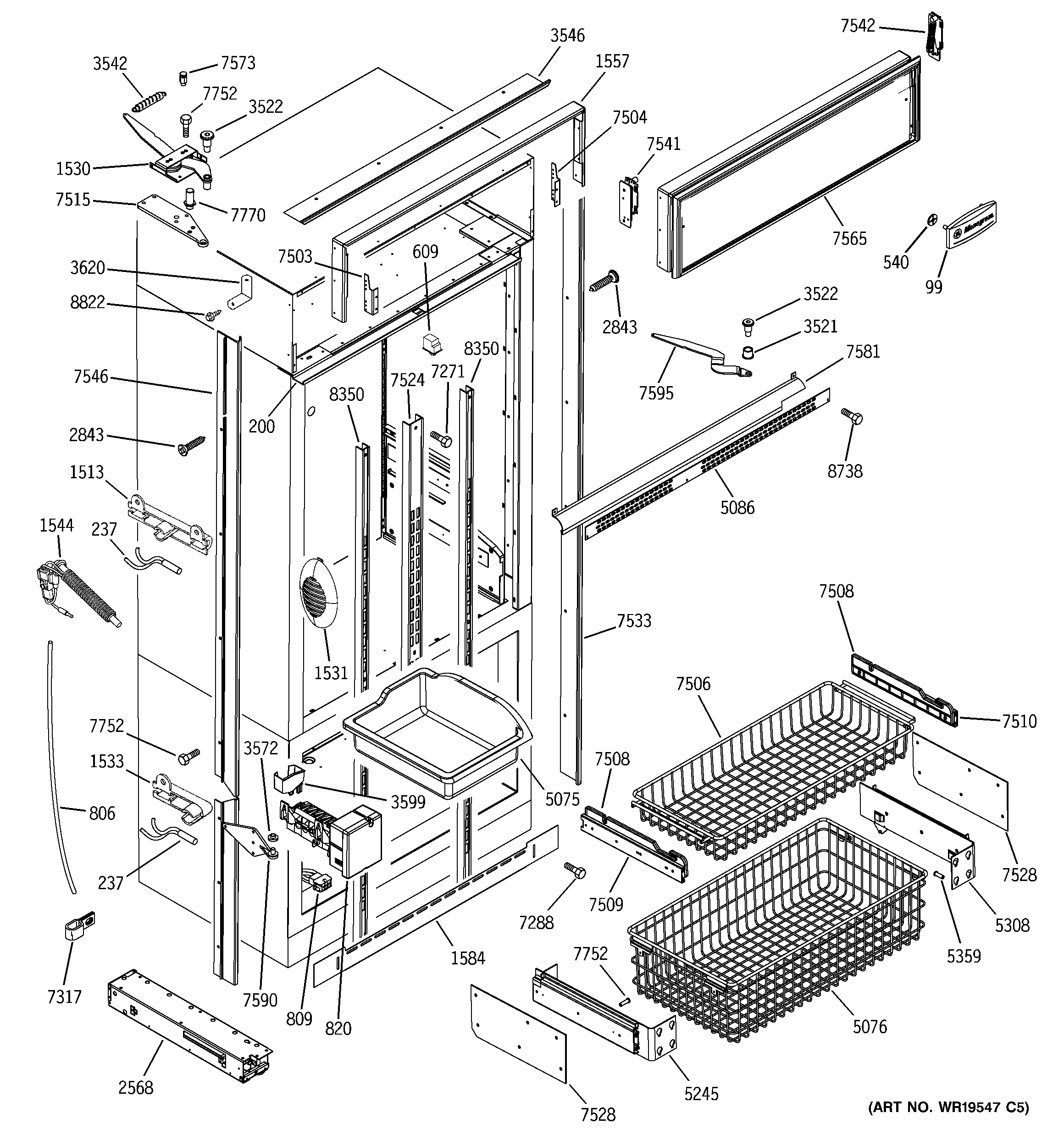

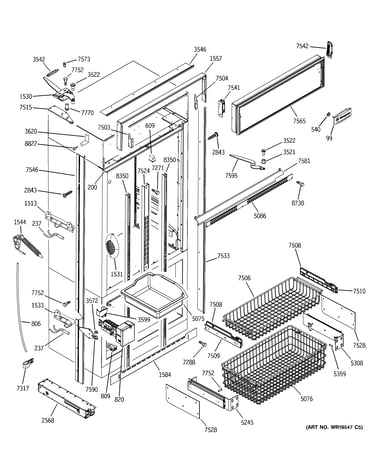

Freezer section, trim & components diagram
Refrigerator ice makerPart #WR30X10012
Replaced by #WR30X10093
?Manufacturer substitutionThis part replaces WR30X10012. Substitute parts can look different from the original.$200.31 |6% OFF Phone Price : $212.31In Stock - #740

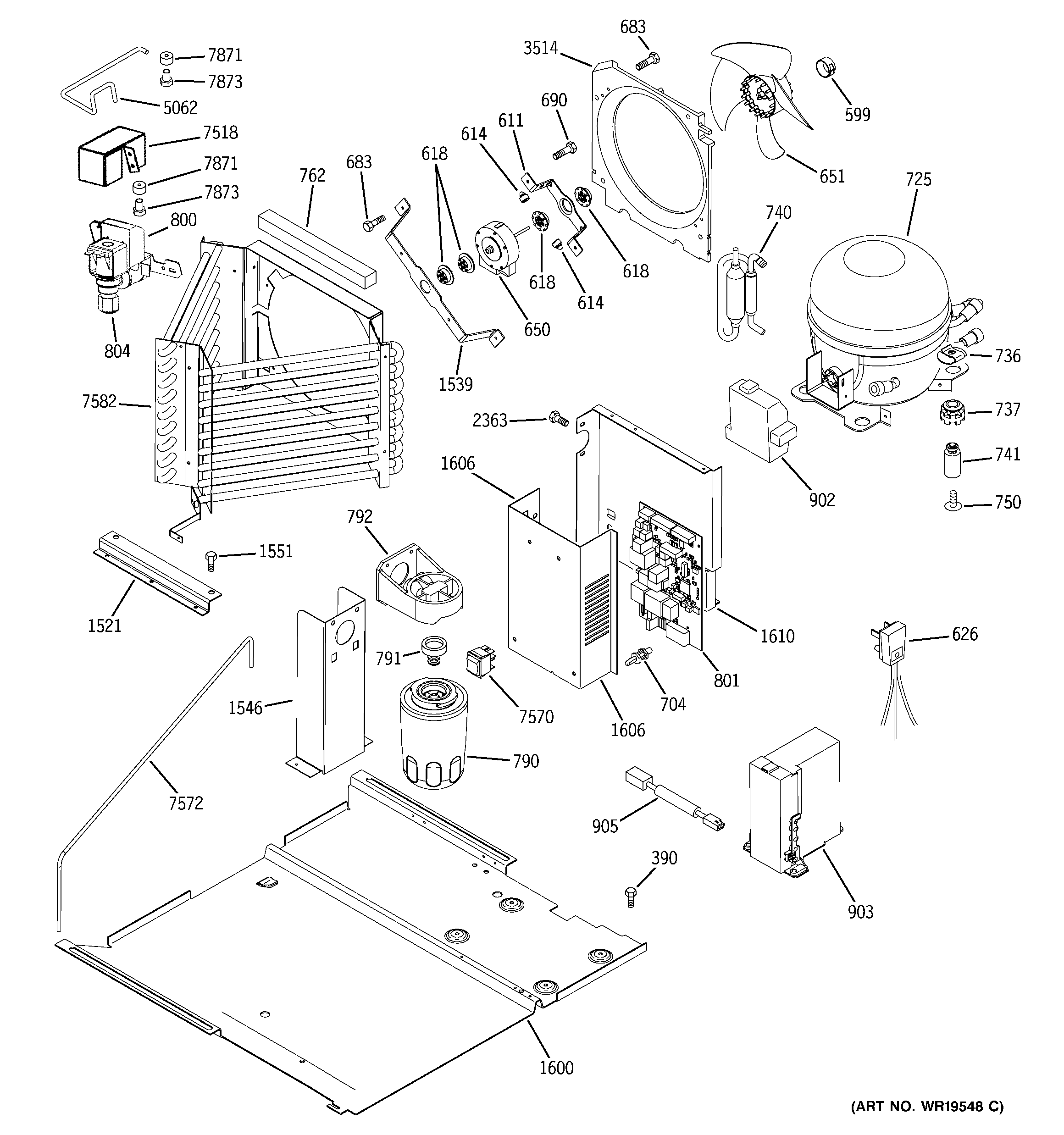

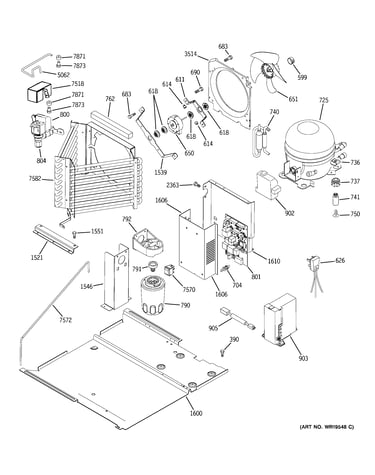

Sealed system & mother board diagram
Dryer filterPart #WR86X0096
Replaced by #WR86X25269
?Manufacturer substitutionThis part replaces WR86X0096. Substitute parts can look different from the original.$74.11 |7% OFF Phone Price : $80.11In Stock - #790
Sealed system & mother board diagram
Ge refrigerator water filterPart #MWF
Replaced by #MWFP
?Manufacturer substitutionThis part replaces MWF. Substitute parts can look different from the original.Get free shipping with Automatic Reorder
$56.03 |10% OFF Phone Price : $62.03In Stock - #7507

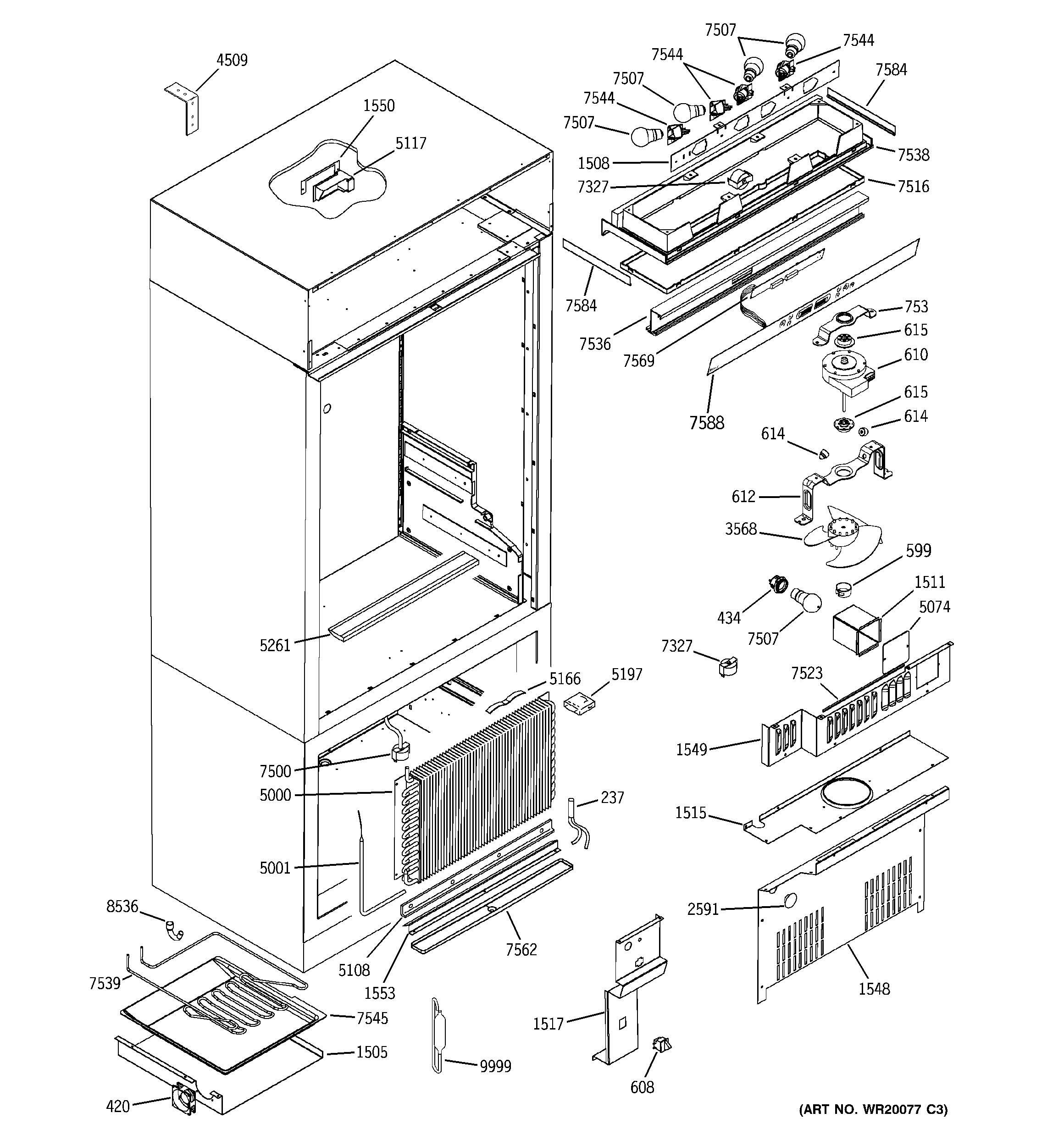

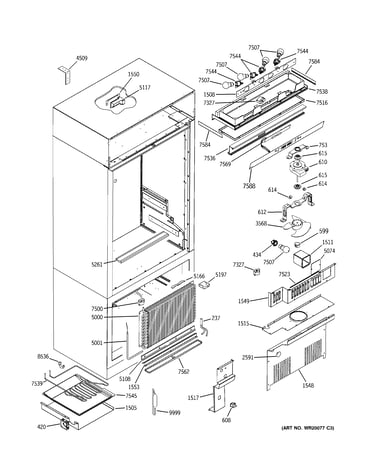

Controls & components diagram
G.e. appliance light bulb, 40-wattPart #40A15
$16.24 |11% OFF Phone Price : $18.24In Stock - #903
Sealed system & mother board diagram
InverterPart #WR55X10685
Replaced by #WR49X10283
?Manufacturer substitutionThis part replaces WR55X10685. Substitute parts can look different from the original.$217.35 |5% OFF Phone Price : $229.35In Stock - #725
Sealed system & mother board diagram
Compressor vPart #WR87X10123
Replaced by #WR87X10111
?Manufacturer substitutionThis part replaces WR87X10123. Substitute parts can look different from the original.$735.57 |$12.00 OFF Phone Price : $747.57In Stock - #650
Sealed system & mother board diagram
Condenser motorPart #WR60X10216
Replaced by #WR60X10209
?Manufacturer substitutionThis part replaces WR60X10216. Substitute parts can look different from the original.$60.17 |9% OFF Phone Price : $66.17In Stock - #3568
Controls & components diagram
Refrigerator evaporator fan bladePart #WR60X10050
Replaced by #WR60X41627
?Manufacturer substitutionThis part replaces WR60X10050. Substitute parts can look different from the original.$36.77In Stock - #800
Sealed system & mother board diagram
Water valvePart #WR57X10075
Replaced by #WR57X10033
?Manufacturer substitutionThis part replaces WR57X10075. Substitute parts can look different from the original.$41.98 |13% OFF Phone Price : $47.98In Stock - #651
Sealed system & mother board diagram
Refrigerator condenser fan bladePart #WR60X10206
Replaced by #WR60X24484
?Manufacturer substitutionThis part replaces WR60X10206. Substitute parts can look different from the original.This item is not returnable$25.00 |19% OFF Phone Price : $31.00In Stock
