Heating & Cooling Combined Unit

Model # NPGA060G2HA Official ICP package gas/electric combination unit

Here are the diagrams and repair parts for Official ICP NPGA060G2HA package gas/electric combination unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

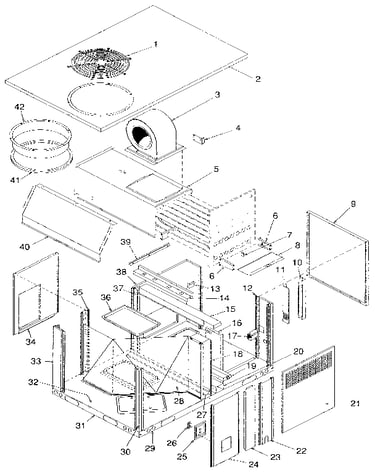

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Capacitor 1053918
#31

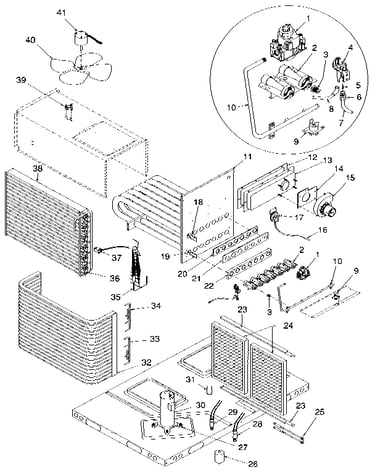

Functional replacement parts diagram

Capacitor

Part #1053918

Replaced by #PAKTRCF10

?
Manufacturer substitution
This part replaces 1053918. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
Module 1005651
#10

Control box diagram

Module

Part #1005651

The manufacturer no longer makes this part, and there's no substitute part

Control F&l 1065295
#39

Functional replacement parts diagram

Control f&l

Part #1065295

Replaced by #3L05-1

?
Manufacturer substitution
This part replaces 1065295. Substitute parts can look different from the original.
$35.55 |
14% OFF Phone Price : $41.55
In Stock
Control Fan 1065750
#8

Control box diagram

Control fan

Part #1065750

Replaced by #7070

?
Manufacturer substitution
This part replaces 1065750. Substitute parts can look different from the original.
$86.18 |
7% OFF Phone Price : $92.18
In Stock
Manifold Se 1054414
#10

Functional replacement parts diagram

Manifold se

Part #1054414

$22.93
In Stock
Retainer Fil 1054517
#23

Functional replacement parts diagram

Retainer fil

Part #1054517

$110.82
In Stock
Gasket Restr 1065211
#20

Functional replacement parts diagram

Gasket restr

Part #1065211

$25.89
In Stock
Shaft .x. Sl 1054598
#18

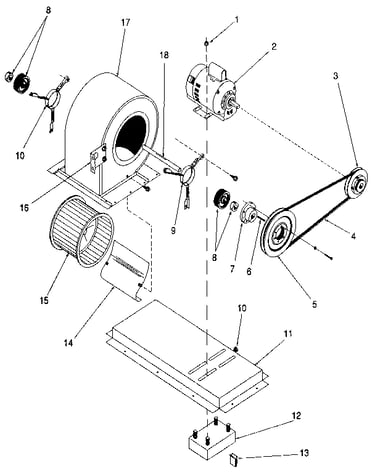

Blower diagram

Shaft .x. sl

Part #1054598

$59.93
In Stock
Plate Restri 1054392
#21

Functional replacement parts diagram

Plate restri

Part #1054392

$78.80
In Stock
Wheel .xx. 1054596
#15

Blower diagram

Wheel .xx.

Part #1054596

$318.85
In Stock
