Kenmore
Canister Vacuum

Model # 11629412990 Official Kenmore canister vacuum

Here are the diagrams and repair parts for Official Kenmore 11629412990 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Vacuum Floor Brush 4370358
#3

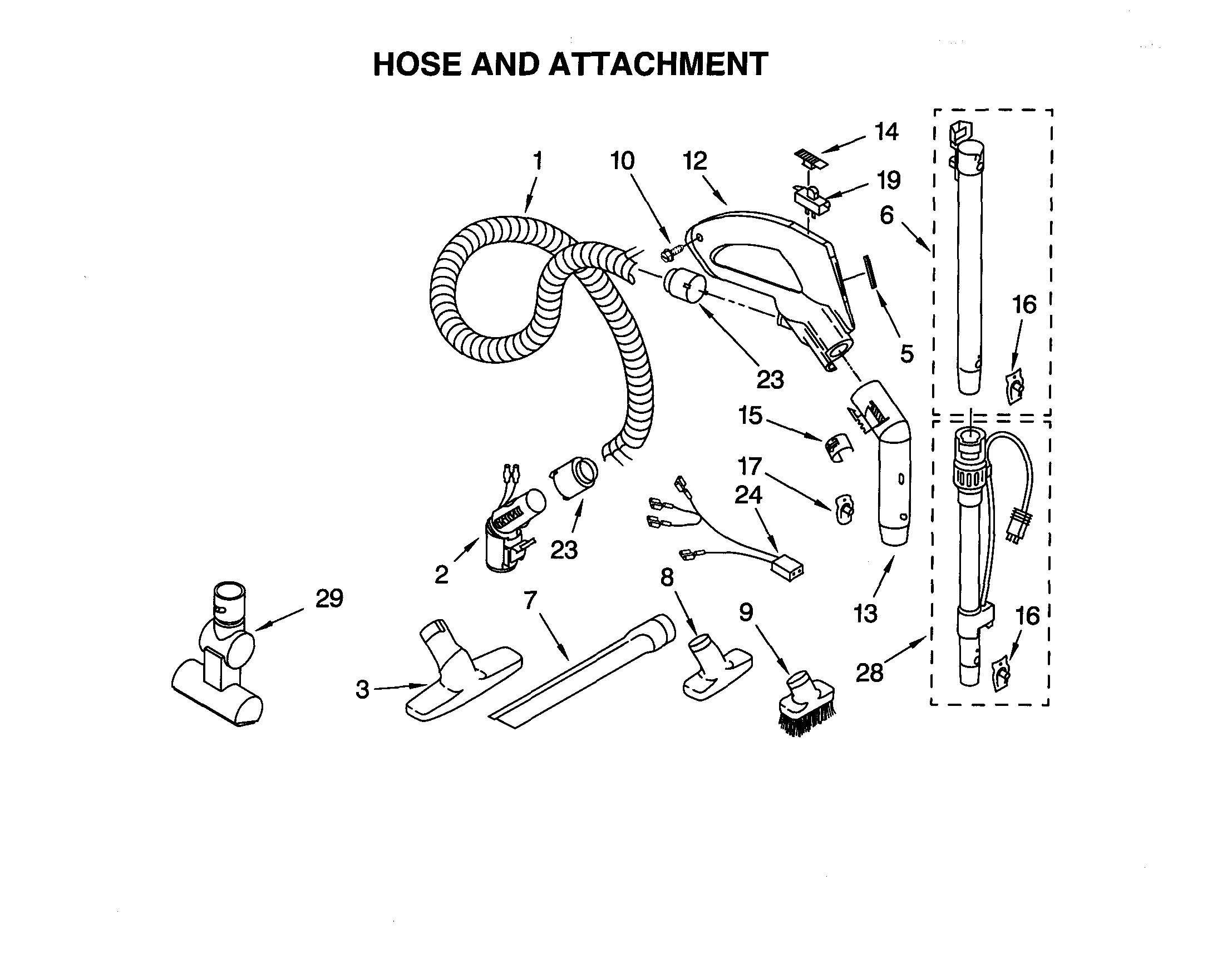

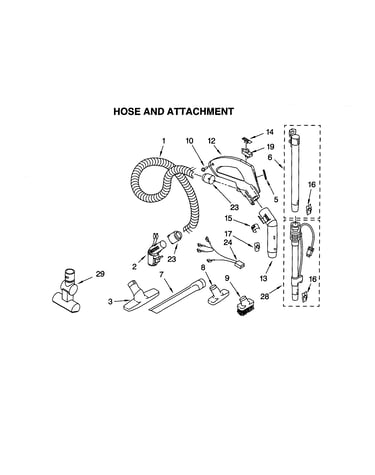

Hose and attachments diagram

Vacuum floor brush

Part #4370358

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Primary Filter 4370059
#18

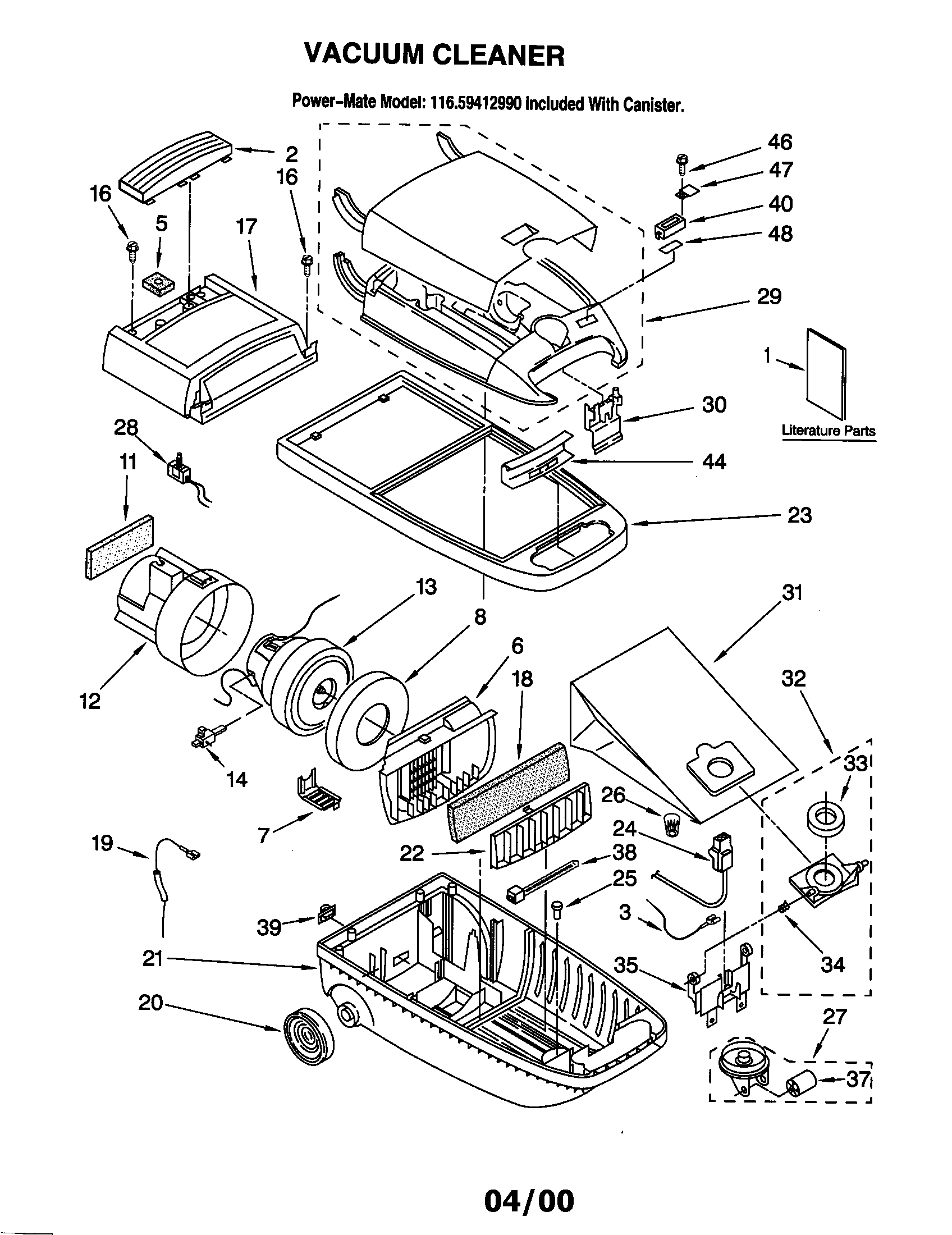

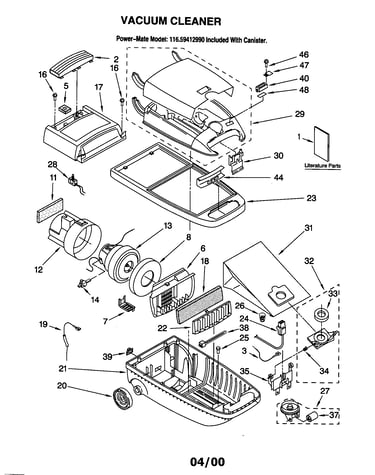

Vacuum cleaner diagram

Vacuum primary filter

Part #4370059

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Grip Handle 4155620
#44

Vacuum cleaner diagram

Vacuum grip handle

Part #4155620

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Adapter 4370325
#23

Hose and attachments diagram

Vacuum hose adapter

Part #4370325

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Brush 4370335
#9

Hose and attachments diagram

Vacuum dust brush

Part #4370335

The manufacturer no longer makes this part, and there's no substitute part

Insert, Strike 4371001
#35

Vacuum cleaner diagram

Insert, strike

Part #4371001

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual LIT04371004
#1B

Vacuum cleaner diagram

Owner's manual

Part #LIT04371004

The manufacturer no longer makes this part, and there's no substitute part

Bracket 4152380
#1

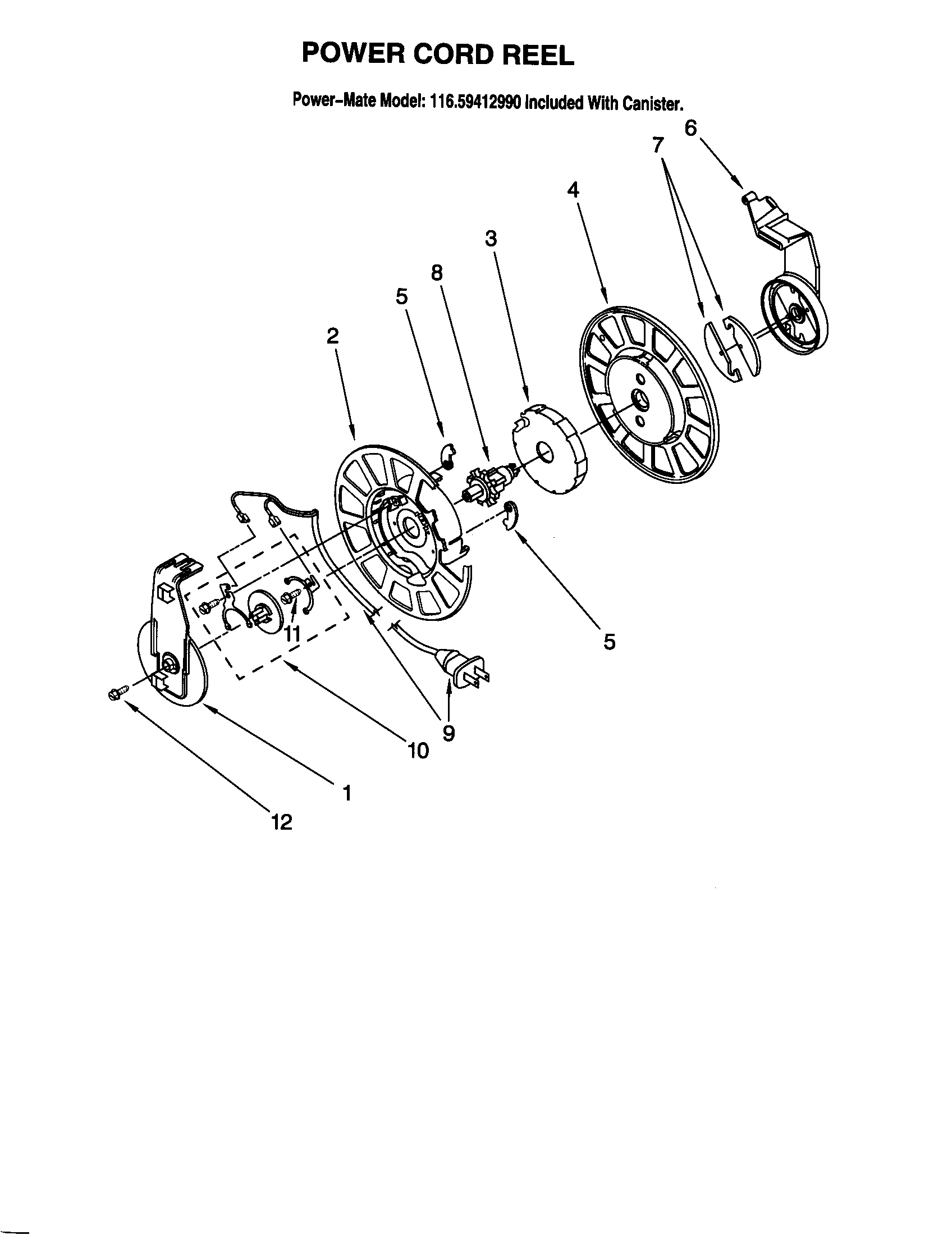

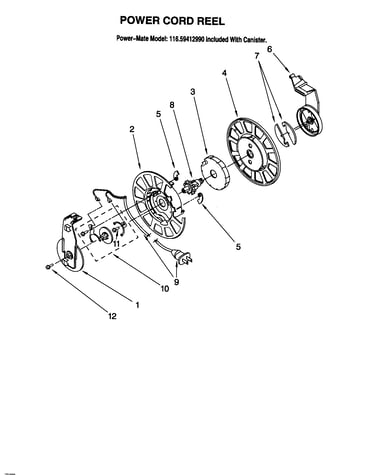

Power cord reel diagram

Bracket

Part #4152380

The manufacturer no longer makes this part, and there's no substitute part

Handi-mate Jr. 4371007
#29

Hose and attachments diagram

Handi-mate jr.

Part #4371007

The manufacturer no longer makes this part, and there's no substitute part

Filtr-sfty 4152969
#22

Vacuum cleaner diagram

Filtr-sfty

Part #4152969

The manufacturer no longer makes this part, and there's no substitute part
