Frigidaire
Warming Drawer

Model # PLEW27S3ECA Official Frigidaire warming drawer

Here are the diagrams and repair parts for Official Frigidaire PLEW27S3ECA warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

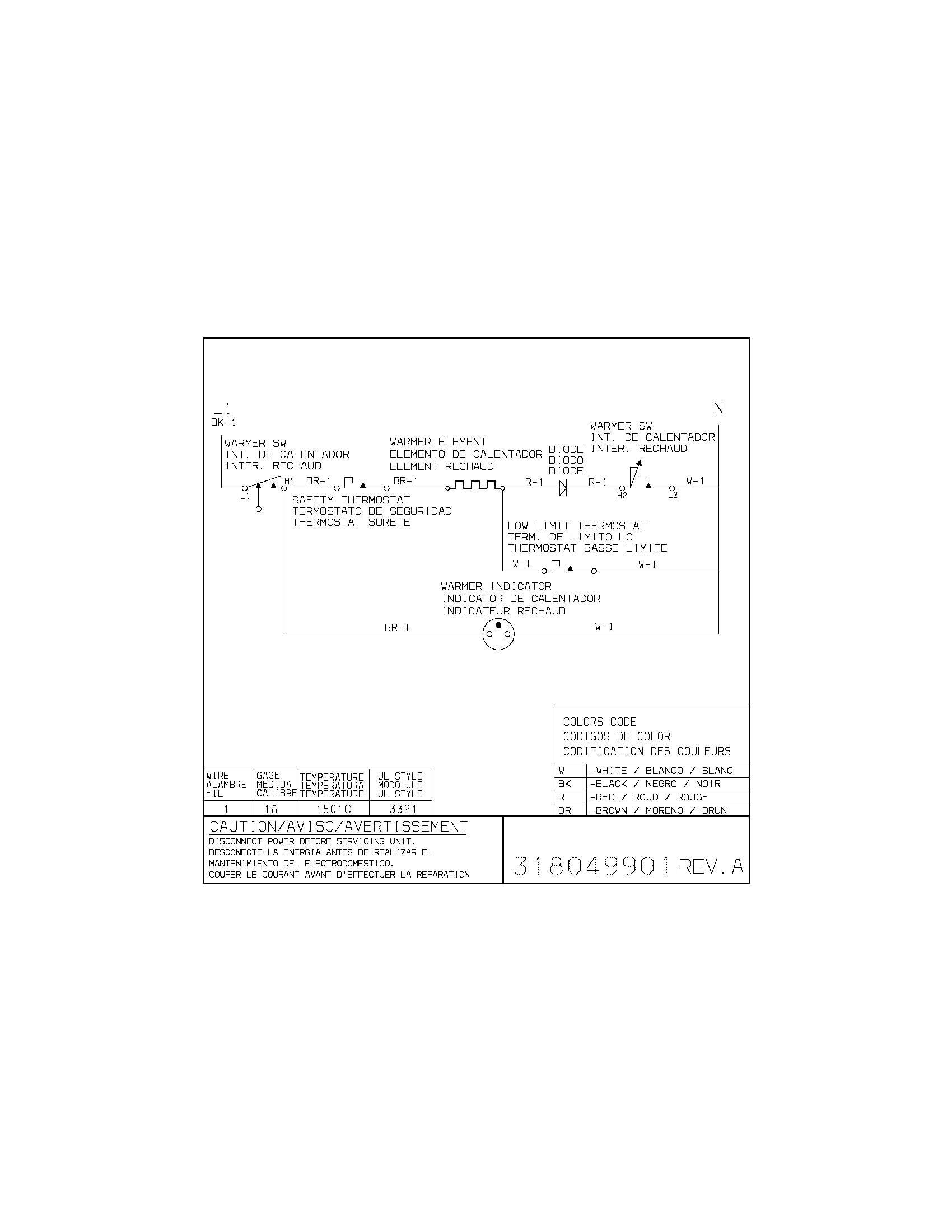

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Warmer Switch 316095500
#13A

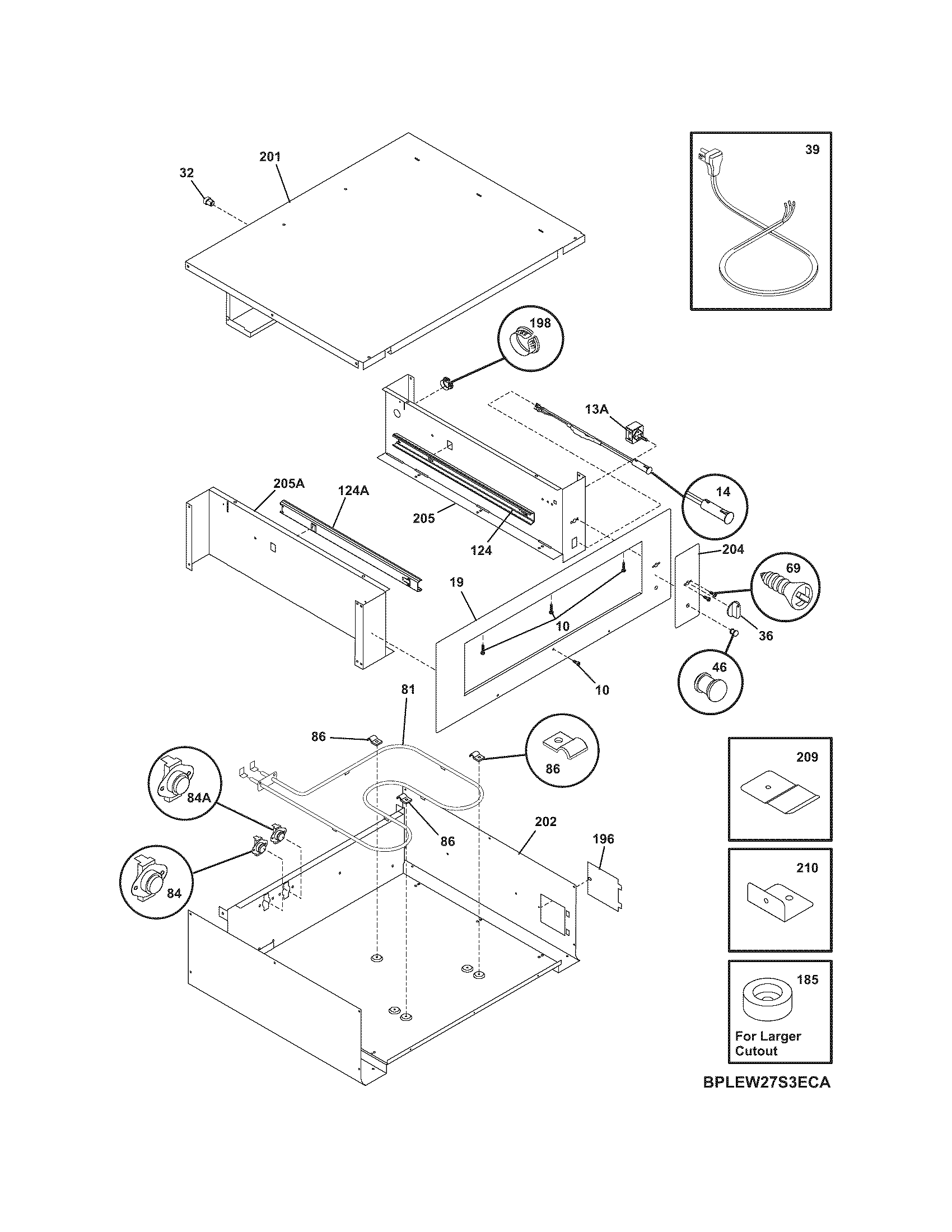

Body diagram

Warmer switch

Part #316095500

Replaced by #5304508926

?
Manufacturer substitution
This part replaces 316095500. Substitute parts can look different from the original.
$75.39 |
7% OFF Phone Price : $81.39
In Stock
Range Screw 5303311333
Range screw

Part #5303311333

Replaced by #5304453707

?
Manufacturer substitution
This part replaces 5303311333. Substitute parts can look different from the original.
$14.69
In Stock
Range Screw 5303311174
#10

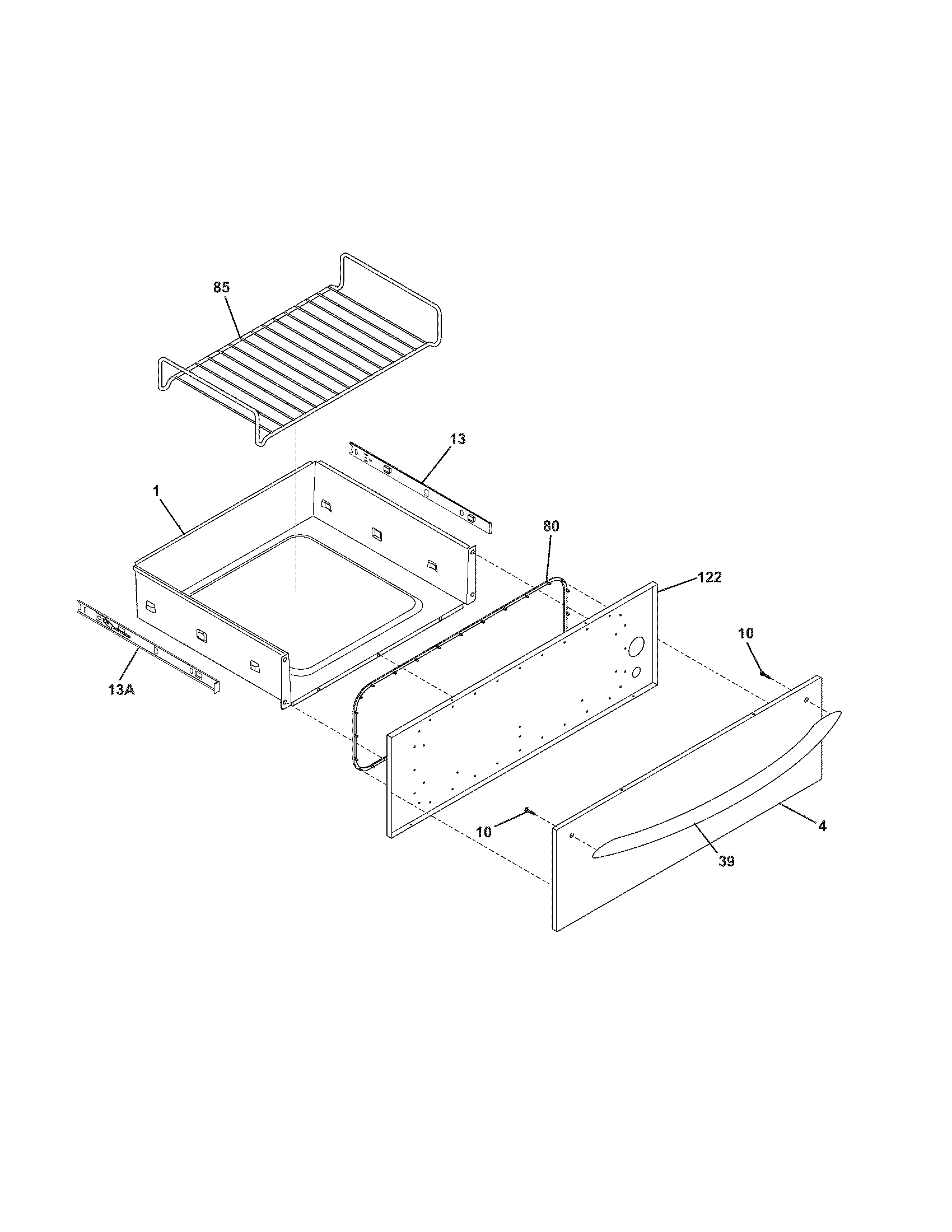

Drawer diagram

Range screw

Part #5303311174

This item is not returnable
$16.46 |
11% OFF Phone Price : $18.46
In Stock
Range Screw 5304436875
#10

Body diagram

Range screw

Part #5304436875

This item is not returnable
$13.92 |
13% OFF Phone Price : $15.92
In Stock
Rack 318257600
#85

Drawer diagram

Rack

Part #318257600

Replaced by #807328301

?
Manufacturer substitution
This part replaces 318257600. Substitute parts can look different from the original.
$65.52 |
8% OFF Phone Price : $71.52
In Stock
Handle 318219801
#39

Drawer diagram

Handle

Part #318219801

Replaced by #316246105

?
Manufacturer substitution
This part replaces 318219801. Substitute parts can look different from the original.
$86.87 |
6% OFF Phone Price : $92.87
In Stock
Range Padded Washer 5303304015
#NI

Drawer diagram

Range padded washer

Part #5303304015

This item is not returnable
$5.27 |
16% OFF Phone Price : $6.27
In Stock
Range Warming Drawer Element Bracket 316095800
#86

Body diagram

Range warming drawer element bracket

Part #316095800

This item is not returnable
$11.66
In Stock
Bushing 08008009
#198

Body diagram

Bushing

Part #08008009

$10.20
In Stock
Range Screw 5303323140
#NI

Body diagram

Range screw

Part #5303323140

$11.17
In Stock
