Thermador
Warming Drawer

Model # WDF30EP/01 Official Thermador drawer

Here are the diagrams and repair parts for Official Thermador WDF30EP-01 drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Screw 422098
#102

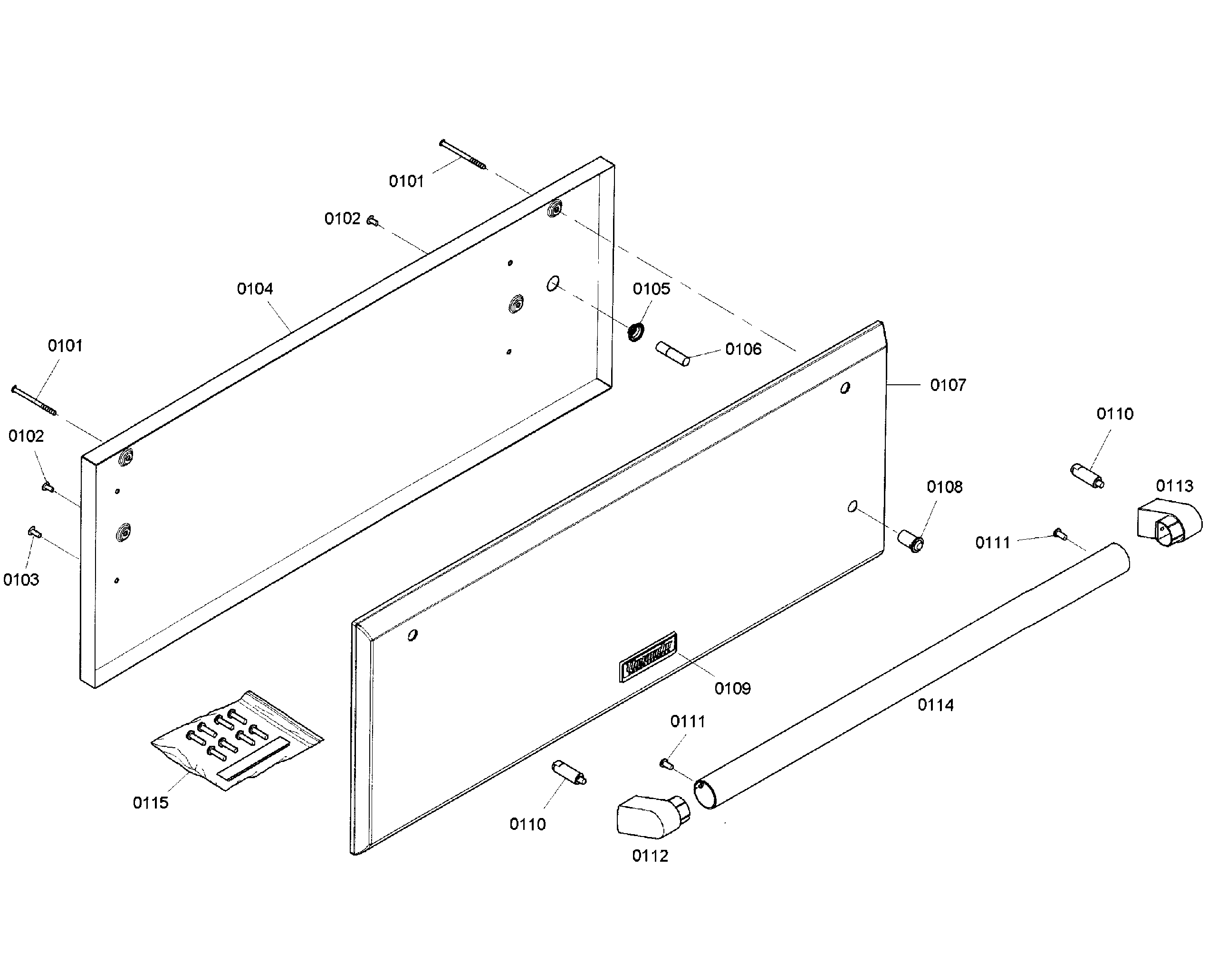

Drawer diagram

Screw

Part #422098

Replaced by #00422098

?
Manufacturer substitution
This part replaces 422098. Substitute parts can look different from the original.
$29.78
In Stock
Lighting-u 609080
#106

Drawer diagram

Lighting-u

Part #609080

The manufacturer no longer makes this part, and there's no substitute part

Screw 8-32 608077
#111

Drawer diagram

Screw 8-32

Part #608077

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 603021
#109

Drawer diagram

Nameplate

Part #603021

The manufacturer no longer makes this part, and there's no substitute part

Handle Bar 144653
#114

Drawer diagram

Handle bar

Part #144653

The manufacturer no longer makes this part, and there's no substitute part

Lens Blue 427069
#108

Drawer diagram

Lens blue

Part #427069

The manufacturer no longer makes this part, and there's no substitute part

Grommet 609074
#105

Drawer diagram

Grommet

Part #609074

The manufacturer no longer makes this part, and there's no substitute part

Handle Cap 642857
#113

Drawer diagram

Handle cap

Part #642857

The manufacturer no longer makes this part, and there's no substitute part

Fascia Panel 144734
#107

Drawer diagram

Fascia panel

Part #144734

The manufacturer no longer makes this part, and there's no substitute part

Handle Cap 642856
#112

Drawer diagram

Handle cap

Part #642856

The manufacturer no longer makes this part, and there's no substitute part
