Model # 2335990360 Official Kenmore downdraft blower system
Here are the diagrams and repair parts for Official Kenmore 2335990360 downdraft blower system, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
2335990360 Downdraft Blower System
#46

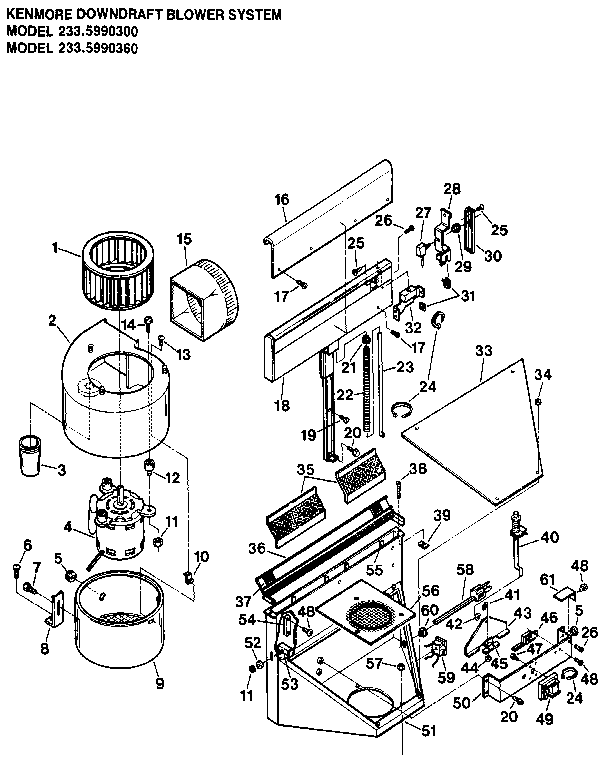

Downdraft blower system diagram
Range hood interlock switch assembly
Part #97009972
The manufacturer no longer makes this part, and there's no substitute part
#35A
Downdraft blower system diagram
Downdraft vent grease filter, 2-pack
Part #97009787
The manufacturer no longer makes this part, and there's no substitute part
#41
Downdraft blower system diagram
Range hood u-bolt
Part #99380633
Replaced by #S99380633
?
Manufacturer substitution
This part replaces 99380633. Substitute parts can look different from the original.
$61.63
In Stock
#54
Downdraft blower system diagram
Range hood spacer
Part #99710032
Replaced by #S99710032
?
Manufacturer substitution
This part replaces 99710032. Substitute parts can look different from the original.
$28.80
In Stock
#25
Downdraft blower system diagram
Downdraft vent screw, #8 x 1/2-in
Part #99150488
Replaced by #S99150488
?
Manufacturer substitution
This part replaces 99150488. Substitute parts can look different from the original.
$28.80
In Stock
#24
Downdraft blower system diagram
Wire tie
Part #93270493
This item is not returnable
$3.33
In Stock
#57
Downdraft blower system diagram
Appliance lock nut
Part #93260447
This item is not returnable
$3.36
In Stock
#26
Downdraft blower system diagram
Range hood grounding screw (green)
Part #99150471
Replaced by #S99150471
?
Manufacturer substitution
This part replaces 99150471. Substitute parts can look different from the original.
This item is not returnable
$3.64
In Stock
#35
Downdraft blower system diagram
Downdraft vent grease filter, 2-pack
Part #97009786
The manufacturer no longer makes this part, and there's no substitute part
#58
Downdraft blower system diagram
Corp
Part #99270936
Replaced by #S97009969
?
Manufacturer substitution
This part replaces 99270936. Substitute parts can look different from the original.
$14.20
In Stock
