Model # R-21JCA Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-21JCA microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

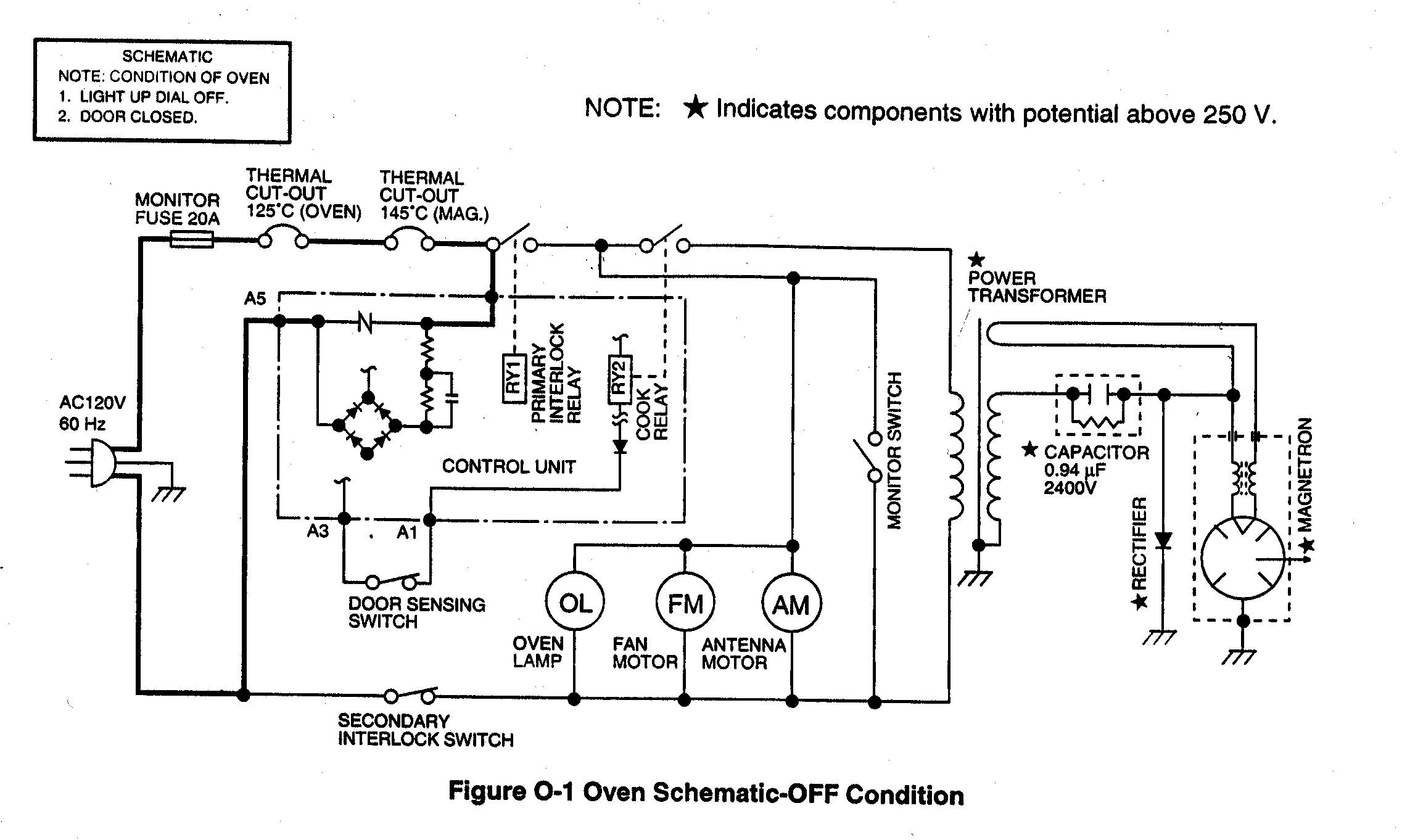

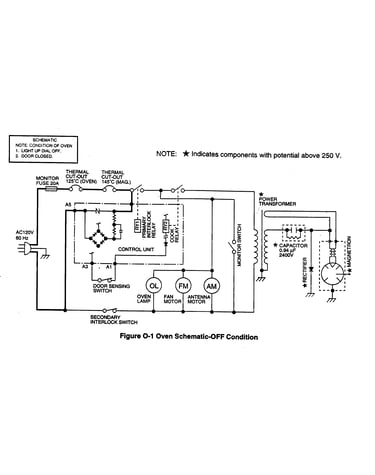

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Switch QSW-MA051WRE0
#1-2

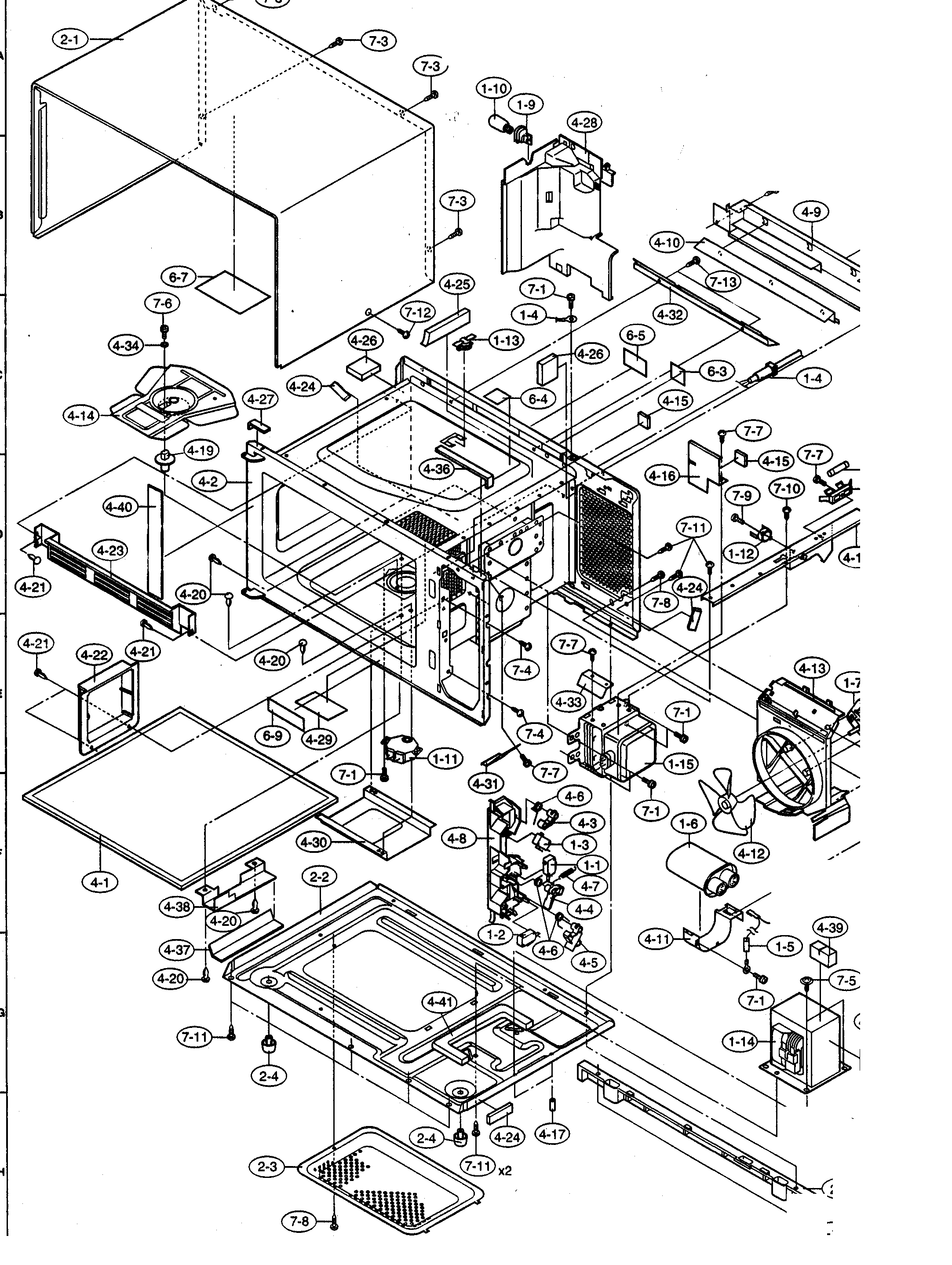

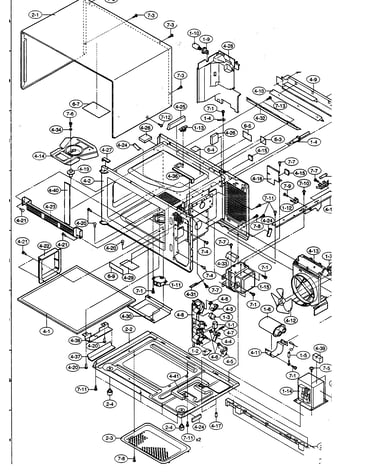

Oven cabinet diagram

Switch

Part #QSW-MA051WRE0

The manufacturer no longer makes this part, and there's no substitute part

Magnetron RV-MZA197WRE0
#1-15

Oven cabinet diagram

Magnetron

Part #RV-MZA197WRE0

The manufacturer no longer makes this part, and there's no substitute part

Sharp Support LANGFA199WRWZ
#4-18

Oven cabinet diagram

Sharp support

Part #LANGFA199WRWZ

The manufacturer no longer makes this part, and there's no substitute part

Cover PSHEPA674WRE0
#4-38

Oven cabinet diagram

Cover

Part #PSHEPA674WRE0

The manufacturer no longer makes this part, and there's no substitute part

Cushion PCUSUA517WRP0
#4-37

Oven cabinet diagram

Cushion

Part #PCUSUA517WRP0

The manufacturer no longer makes this part, and there's no substitute part

Cushion PCUSUA518WRP0
#4-41

Oven cabinet diagram

Cushion

Part #PCUSUA518WRP0

The manufacturer no longer makes this part, and there's no substitute part

Cushion PCUSUA514WRP0
#4-27

Oven cabinet diagram

Cushion

Part #PCUSUA514WRP0

The manufacturer no longer makes this part, and there's no substitute part

Shaft NSFTPA035WRFZ
#4-19

Oven cabinet diagram

Shaft

Part #NSFTPA035WRFZ

The manufacturer no longer makes this part, and there's no substitute part

Cushion PPACGA171WRE0
#4-39

Oven cabinet diagram

Cushion

Part #PPACGA171WRE0

The manufacturer no longer makes this part, and there's no substitute part

Sharp Control Unit DPWBFC288WRUZ
#3-1

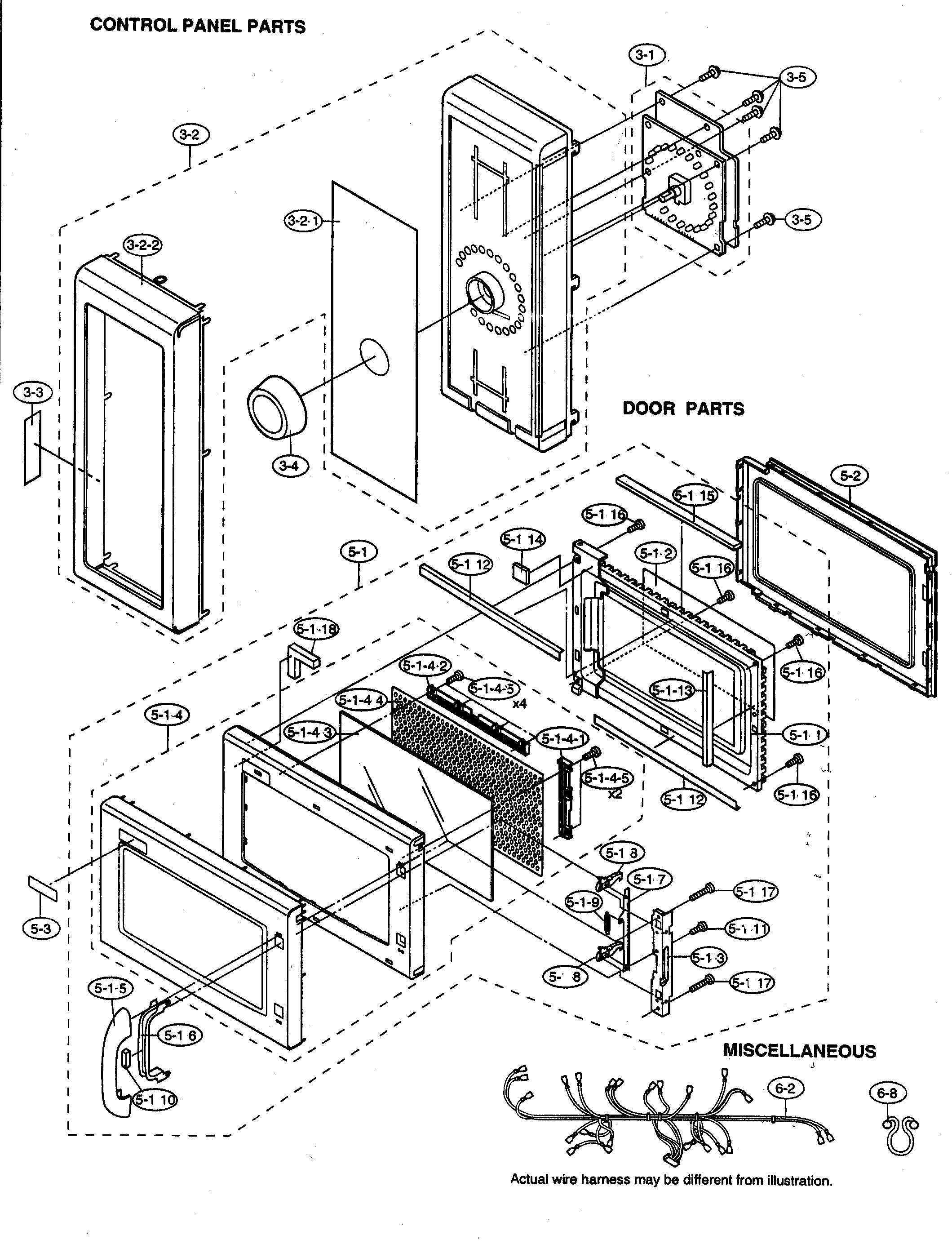

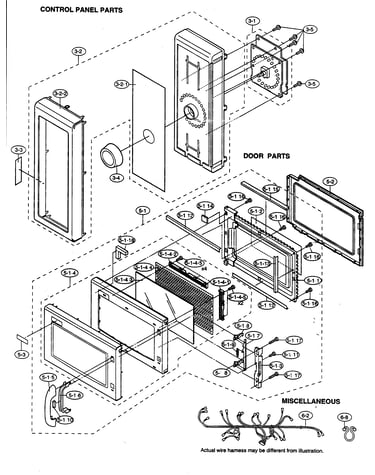

Control panel/door/miscellaneous diagram

Sharp control unit

Part #DPWBFC288WRUZ

The manufacturer no longer makes this part, and there's no substitute part
