Model # FDSH450LAF3A Official Frigidaire dishwasher

Here are the diagrams and repair parts for Official Frigidaire FDSH450LAF3A dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

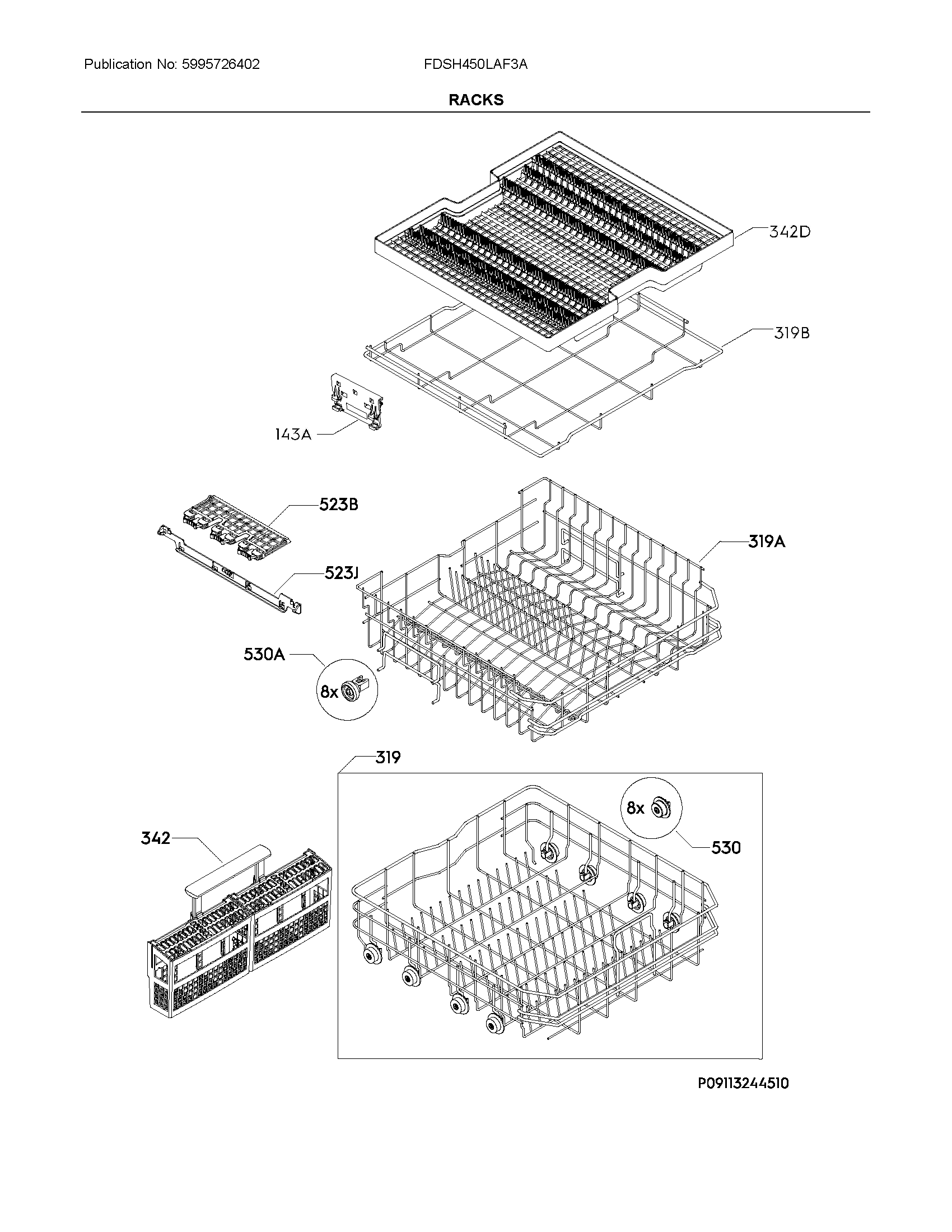

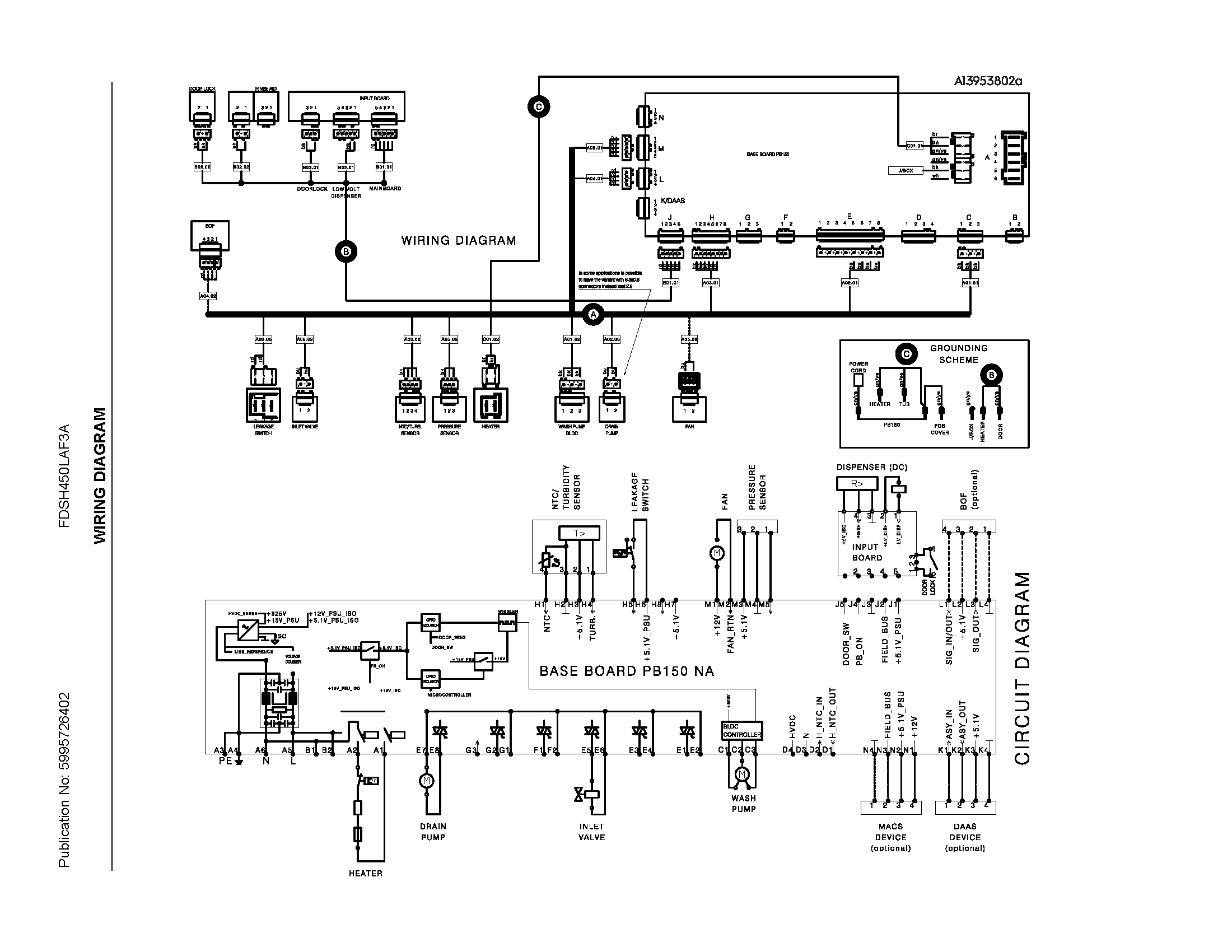

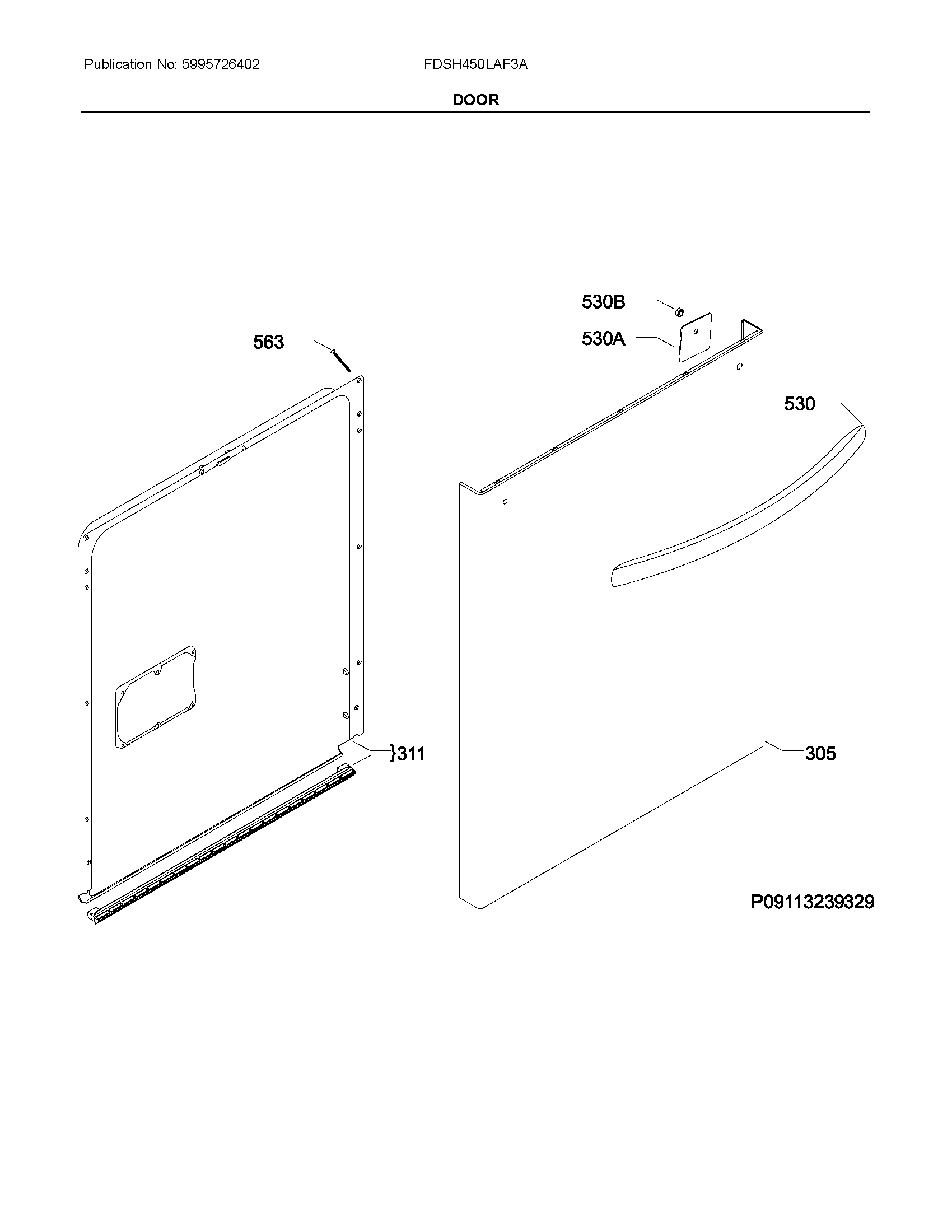

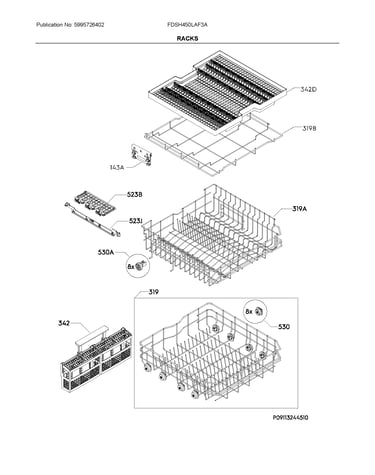

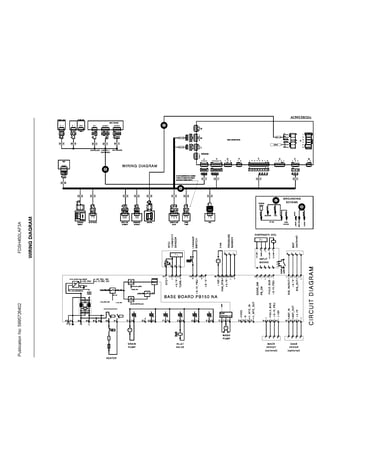

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Dishwasher User Interface (replaces A18213101) 5304528982
#520

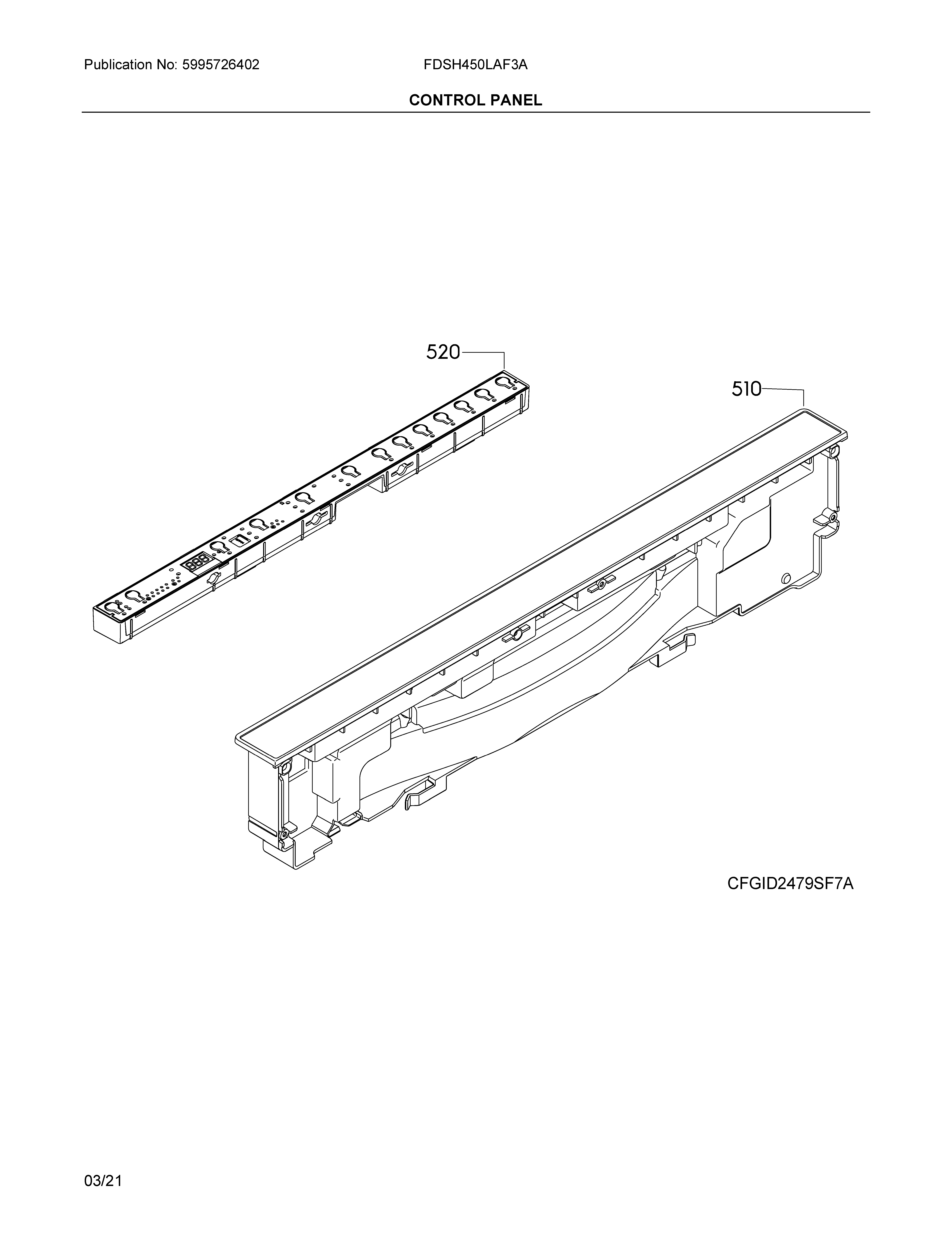

Control panel diagram

Dishwasher user interface (replaces a18213101)

Part #5304528982

BEST SELLER
$150.84 |
7% OFF Phone Price : $162.84
In Stock
Crosley Dishwasher Water-level Pressure Switch (replaces A00055406) A00055408
#12

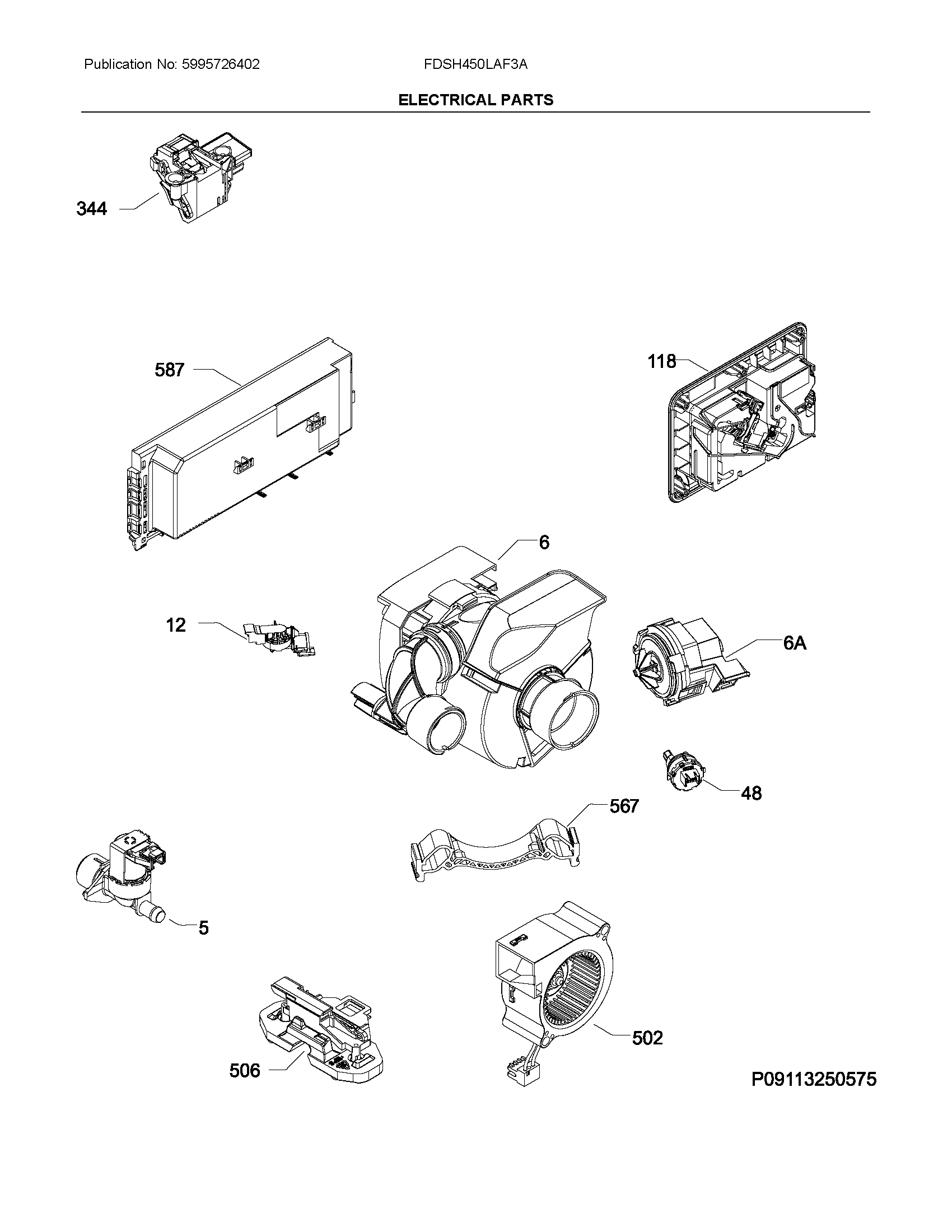

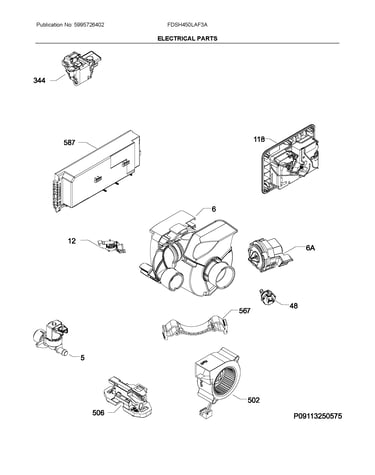

Electrical parts diagram

Crosley dishwasher water-level pressure switch (replaces a00055406)

Part #A00055408

BEST SELLER
$54.40 |
10% OFF Phone Price : $60.40
In Stock
Dishwasher Water Inlet Valve 807445904
#5

Electrical parts diagram

Dishwasher water inlet valve

Part #807445904

Replaced by #807445905

?
Manufacturer substitution
This part replaces 807445904. Substitute parts can look different from the original.
BEST SELLER
$69.13
In Stock
Crosley Dishwasher Drain Pump A00044324
#6A

Electrical parts diagram

Crosley dishwasher drain pump

Part #A00044324

BEST SELLER
$101.49 |
11% OFF Phone Price : $113.49
In Stock
Crosley Dishwasher Drain Hose 807032601
#112

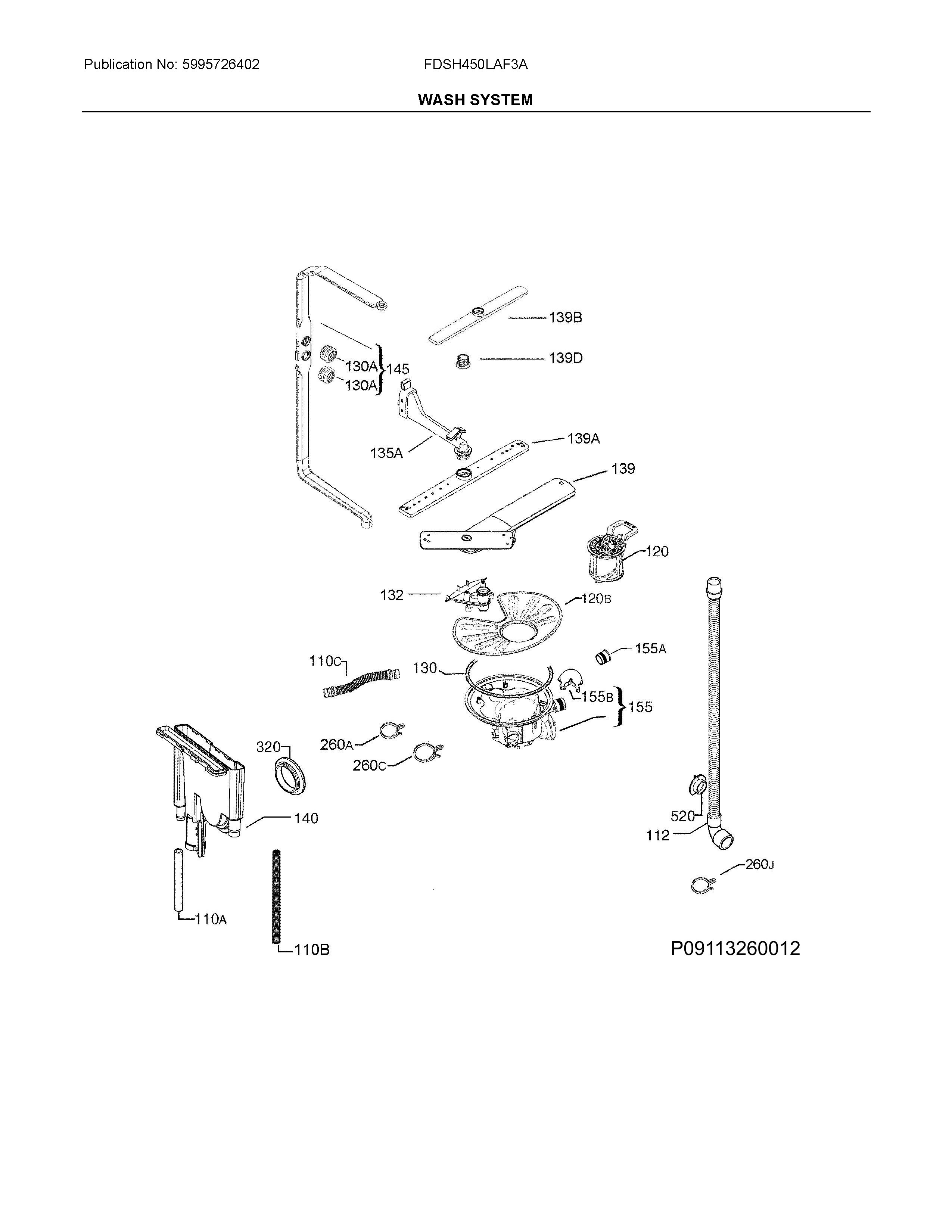

Wash system diagram

Crosley dishwasher drain hose

Part #807032601

BEST SELLER
$41.47 |
13% OFF Phone Price : $47.47
In Stock
Crosley Dishwasher Float Switch Assembly (replaces 14000056504) A00056504
#506

Electrical parts diagram

Crosley dishwasher float switch assembly (replaces 14000056504)

Part #A00056504

$42.56 |
12% OFF Phone Price : $48.56
In Stock
Dishwasher Control Panel A18195209
#510

Control panel diagram

Dishwasher control panel

Part #A18195209

$190.58
In Stock
Crosley Dishwasher Door Seal 117158011
#130

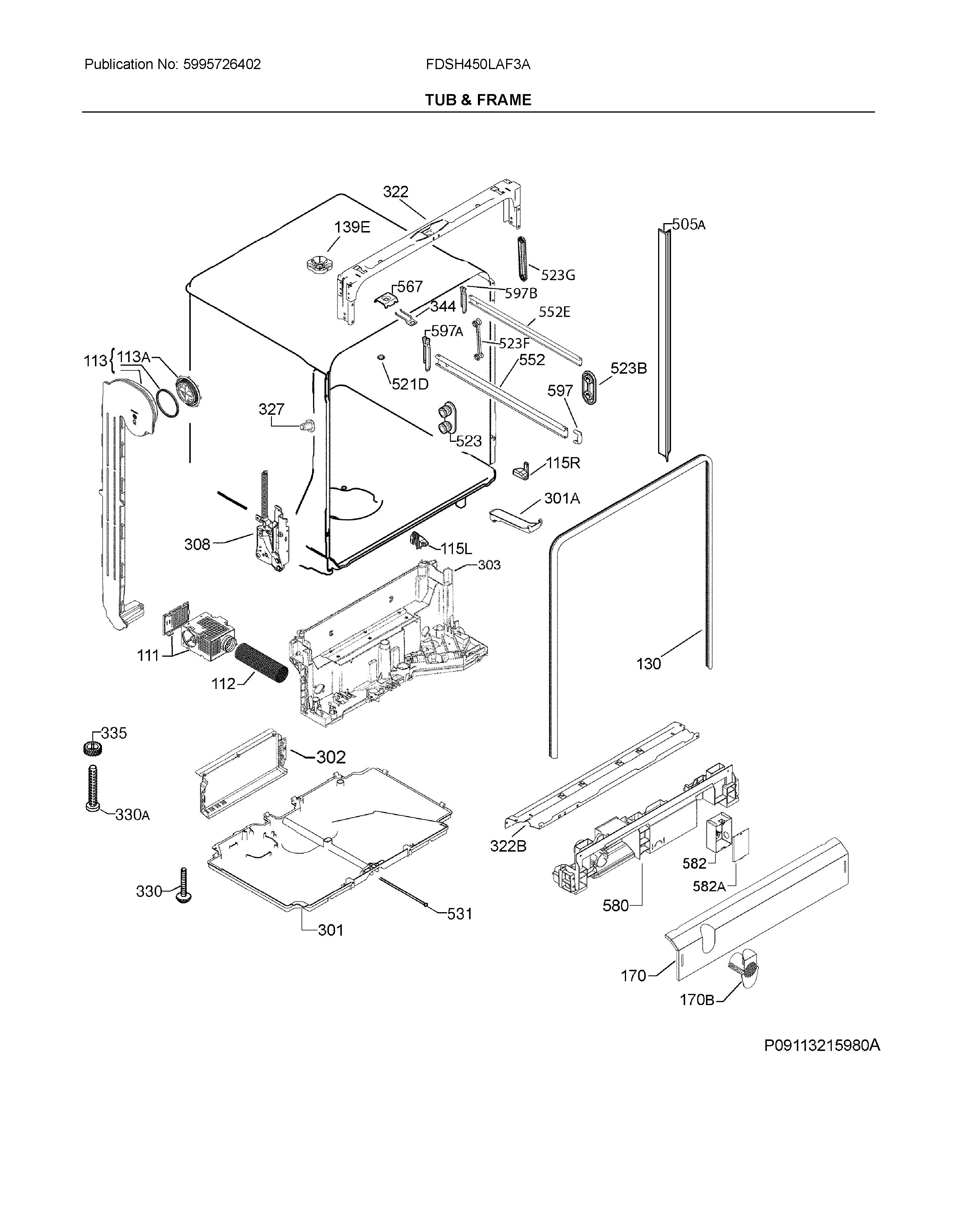

Tub & frame diagram

Crosley dishwasher door seal

Part #117158011

$36.43 |
14% OFF Phone Price : $42.43
In Stock
Crosley Dishwasher Upper Spray Arm Bearing 807035801
#139

Wash system diagram

Crosley dishwasher upper spray arm bearing

Part #807035801

This item is not returnable
$23.09
In Stock
Crosley Dishwasher Sump 5304520660
#155

Wash system diagram

Crosley dishwasher sump

Part #5304520660

$72.38
In Stock
