Whirlpool
Freestanding Ice Maker

Model # GI1500PHW3 Official Whirlpool freestanding ice maker

Here are the diagrams and repair parts for Official Whirlpool GI1500PHW3 freestanding ice maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

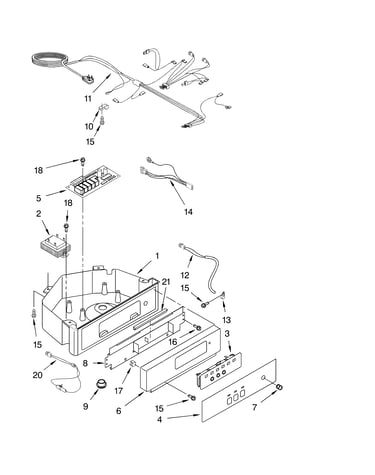

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |
Drier 2209223
#23

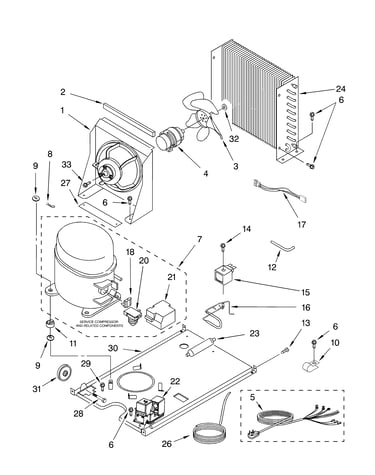

Unit diagram

Drier

Part #2209223

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2209223. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Cement 797403
#NI

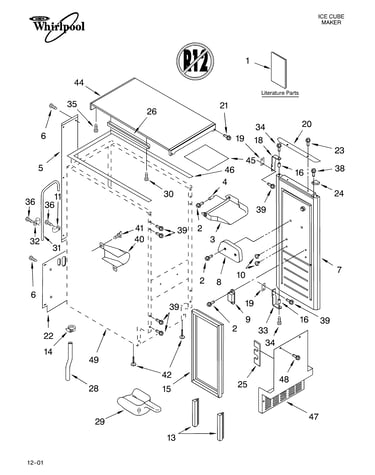

Cabinet, liner and door/literature diagram

Cement

Part #797403

Replaced by #WP279368

?
Manufacturer substitution
This part replaces 797403. Substitute parts can look different from the original.
BEST SELLER
$42.72 |
12% OFF Phone Price : $48.72
In Stock
Freestanding Ice Maker Cleaner 8171307
#NI

Cabinet, liner and door/literature diagram

Freestanding ice maker cleaner

Part #8171307

Replaced by #W11179302

?
Manufacturer substitution
This part replaces 8171307. Substitute parts can look different from the original.
BEST SELLER
$21.66
In Stock
Evaporator 2208420
#5

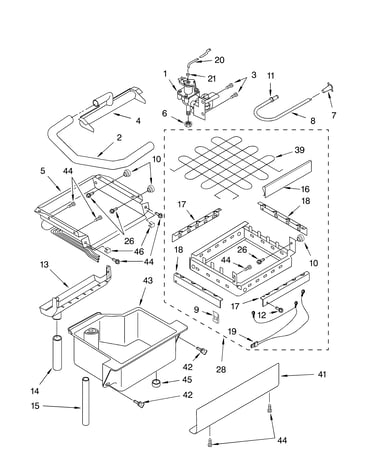

Evaporator, ice cutter grid and water diagram

Evaporator

Part #2208420

Replaced by #WPW10218037

?
Manufacturer substitution
This part replaces 2208420. Substitute parts can look different from the original.
BEST SELLER
$377.14 |
20% OFF Was : $471.42
In Stock
Refrigerator Service Valve 978025
#NI

Cabinet, liner and door/literature diagram

Refrigerator service valve

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$29.51 |
17% OFF Phone Price : $35.51
In Stock
Refrigerator Water Tube Fitting 627018
#6

Evaporator, ice cutter grid and water diagram

Refrigerator water tube fitting

Part #627018

Replaced by #WP627018

?
Manufacturer substitution
This part replaces 627018. Substitute parts can look different from the original.
This item is not returnable
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Appliance Screw 304392
#6

Unit diagram

Appliance screw

Part #304392

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 304392. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Terminal Cover 2208371
#21

Unit diagram

Terminal cover

Part #2208371

Replaced by #WP2162358

?
Manufacturer substitution
This part replaces 2208371. Substitute parts can look different from the original.
$34.39 |
15% OFF Phone Price : $40.39
In Stock
Sears Refrigerator Permagum Sealer 212643
#NI

Cabinet, liner and door/literature diagram

Sears refrigerator permagum sealer

Part #212643

This item is not returnable
$50.09 |
11% OFF Phone Price : $56.09
In Stock
Screw 488500
#29

Unit diagram

Screw

Part #488500

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 488500. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
