Model # 22238 Official Craftsman power tool leg set

Here are the diagrams and repair parts for Official Craftsman 22238 power tool leg set, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
Hex Nut STD541250
#11

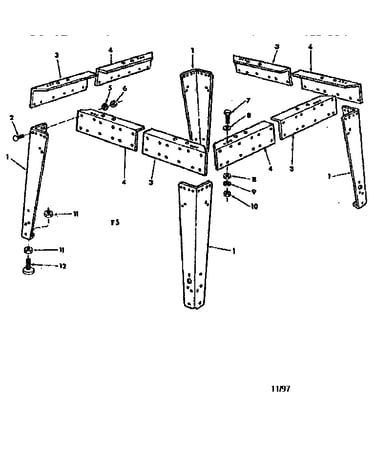

Leg set diagram

Hex nut

Part #STD541250

The manufacturer no longer makes this part, and there's no substitute part

Plain Washer STD551031
#8

Leg set diagram

Plain washer

Part #STD551031

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut STD541231
#10

Leg set diagram

Hex nut

Part #STD541231

The manufacturer no longer makes this part, and there's no substitute part

Bag Assembly 63795

#NI

All parts diagram

Bag assembly

Part #63795

The manufacturer no longer makes this part, and there's no substitute part

Stfnr R H 63751
#3

Leg set diagram

Stfnr r h

Part #63751

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer, 5/16-in, 8-pack STD551131
#9

Leg set diagram

Lock washer, 5/16-in, 8-pack

Part #STD551131

The manufacturer no longer makes this part, and there's no substitute part

Bag Of Parts 63752

#NI

All parts diagram

Bag of parts

Part #63752

The manufacturer no longer makes this part, and there's no substitute part

Stfnr L H 63750
#4

Leg set diagram

Stfnr l h

Part #63750

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Bolt, 5/16-18 X 1/2-in STD523106
#7

Leg set diagram

Hex head bolt, 5/16-18 x 1/2-in

Part #STD523106

The manufacturer no longer makes this part, and there's no substitute part

Ft. Levlng 803835
#12

Leg set diagram

Ft. levlng

Part #803835

The manufacturer no longer makes this part, and there's no substitute part
