Husqvarna
Gas Walk-Behind Mower

Model # 917384590 Official Husqvarna lawn mower

Here are the diagrams and repair parts for Official Husqvarna 917384590 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 228 parts  |
Lawn Mower Grass Bag 580943408
#30

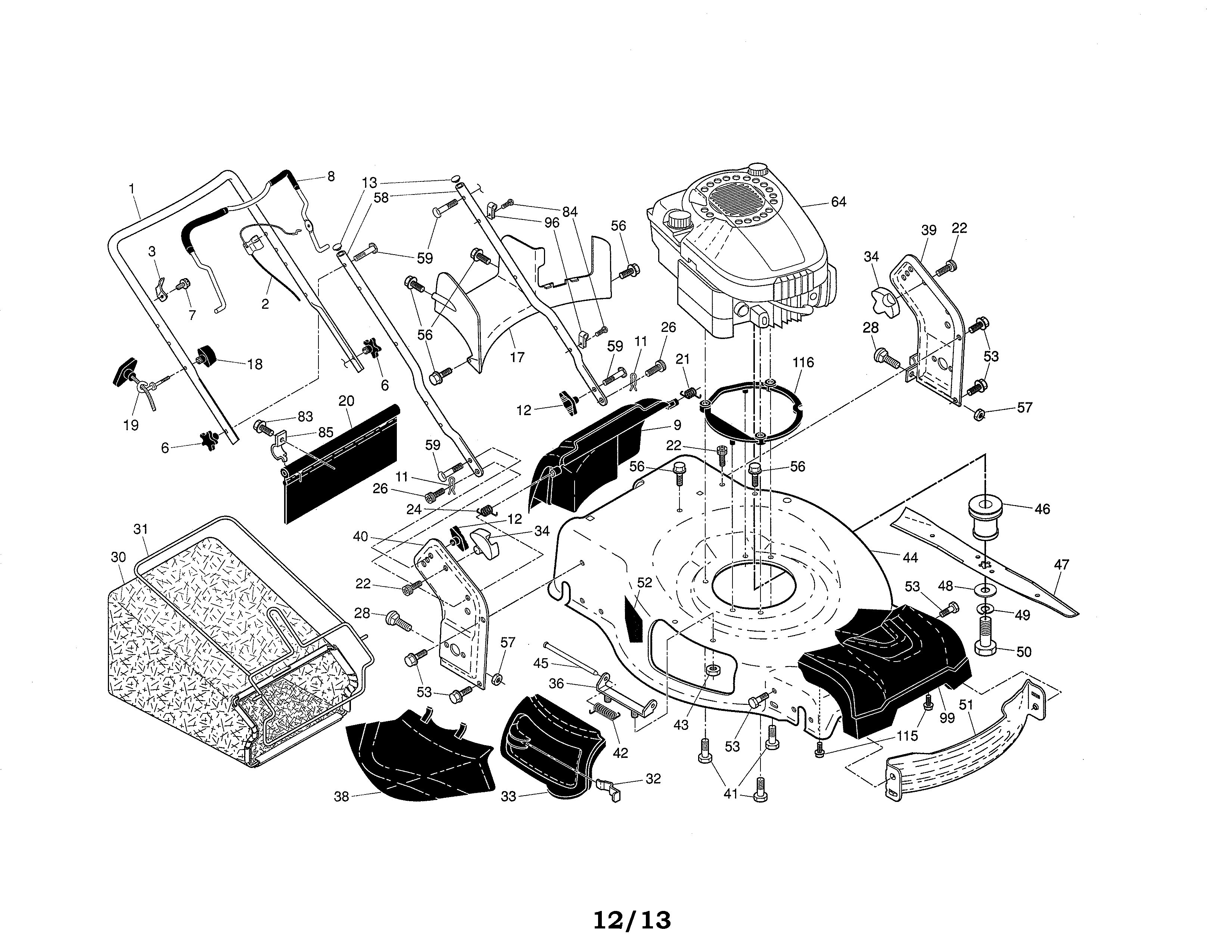

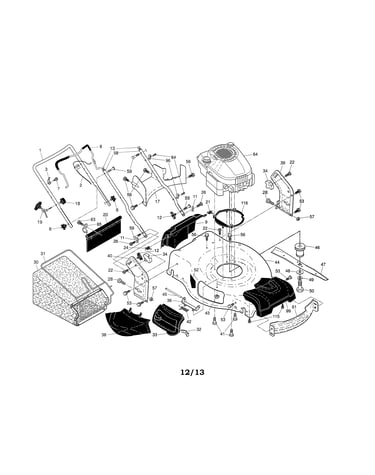

Engine/housing/handle diagram

Lawn mower grass bag

Part #580943408

Replaced by #580943401

?
Manufacturer substitution
This part replaces 580943408. Substitute parts can look different from the original.
BEST SELLER
$39.98 |
13% OFF Phone Price : $45.98
In Stock
Drive Pawl 404845
#31

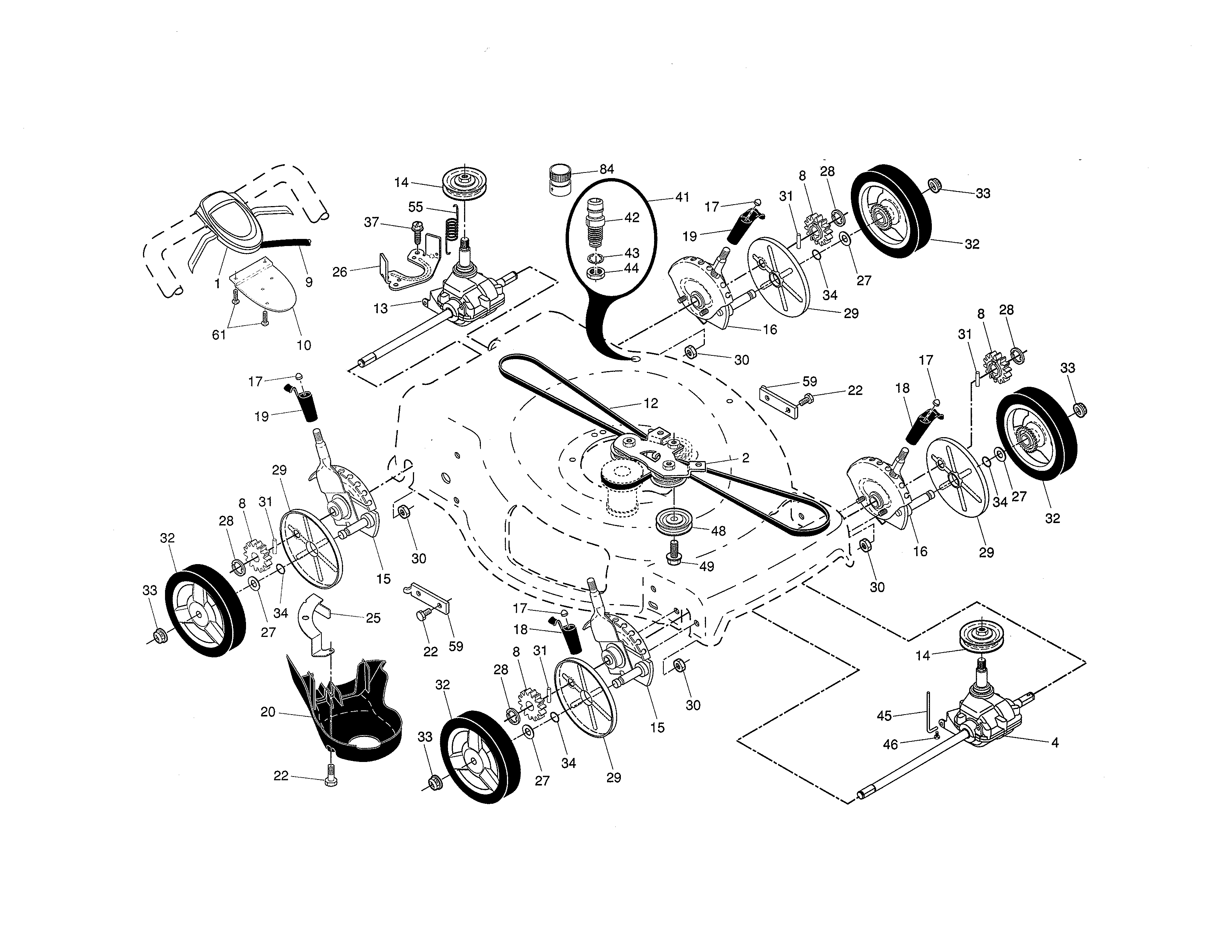

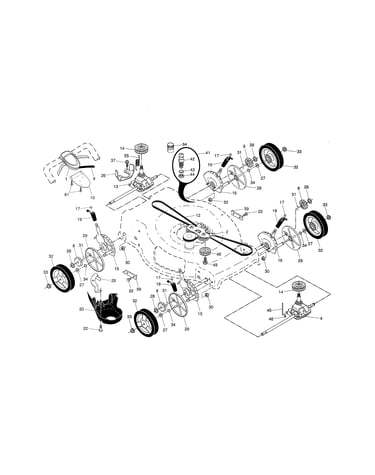

Drive control/gear case/wheels diagram

Drive pawl

Part #404845

Replaced by #532404845

?
Manufacturer substitution
This part replaces 404845. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Belt.drive.a 580364602
#12

Drive control/gear case/wheels diagram

Belt.drive.a

Part #580364602

Replaced by #580364610

?
Manufacturer substitution
This part replaces 580364602. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$19.98 |
9% OFF Phone Price : $21.98
In Stock
Bolt 17000510
Bolt

Part #17000510

Replaced by #817000510

?
Manufacturer substitution
This part replaces 17000510. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Handle Knob 182398
#6

Engine/housing/handle diagram

Handle knob

Part #182398

Replaced by #532182398

?
Manufacturer substitution
This part replaces 182398. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Idler Pulley 581904001
#48

Drive control/gear case/wheels diagram

Idler pulley

Part #581904001

Replaced by #587973001

?
Manufacturer substitution
This part replaces 581904001. Substitute parts can look different from the original.
$26.64 |
18% OFF Phone Price : $32.64
In Stock
Nut.flange.5 155377
#57

Engine/housing/handle diagram

Nut.flange.5

Part #155377

Replaced by #596039201

?
Manufacturer substitution
This part replaces 155377. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Poulan Lawn Mower Transmission Assembly (replaces 434564) 581680801
#13

Drive control/gear case/wheels diagram

Poulan lawn mower transmission assembly (replaces 434564)

Part #581680801

$111.41 |
10% OFF Phone Price : $123.41
In Stock
Lawn Mower Drive Control Assembly 581950505
#1

Drive control/gear case/wheels diagram

Lawn mower drive control assembly

Part #581950505

Replaced by #589818808

?
Manufacturer substitution
This part replaces 581950505. Substitute parts can look different from the original.
$40.89 |
13% OFF Phone Price : $46.89
In Stock
Rod.hinge.21 175650
#45

Engine/housing/handle diagram

Rod.hinge.21

Part #175650

Replaced by #532175650

?
Manufacturer substitution
This part replaces 175650. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
