Model # AR12ME5L1 Official Frigidaire room air conditioner - lf34089070
Here are the diagrams and repair parts for Official Frigidaire AR12ME5L1 room air conditioner - lf34089070, as well as links to manuals and error code tables, if available.
By Schematic

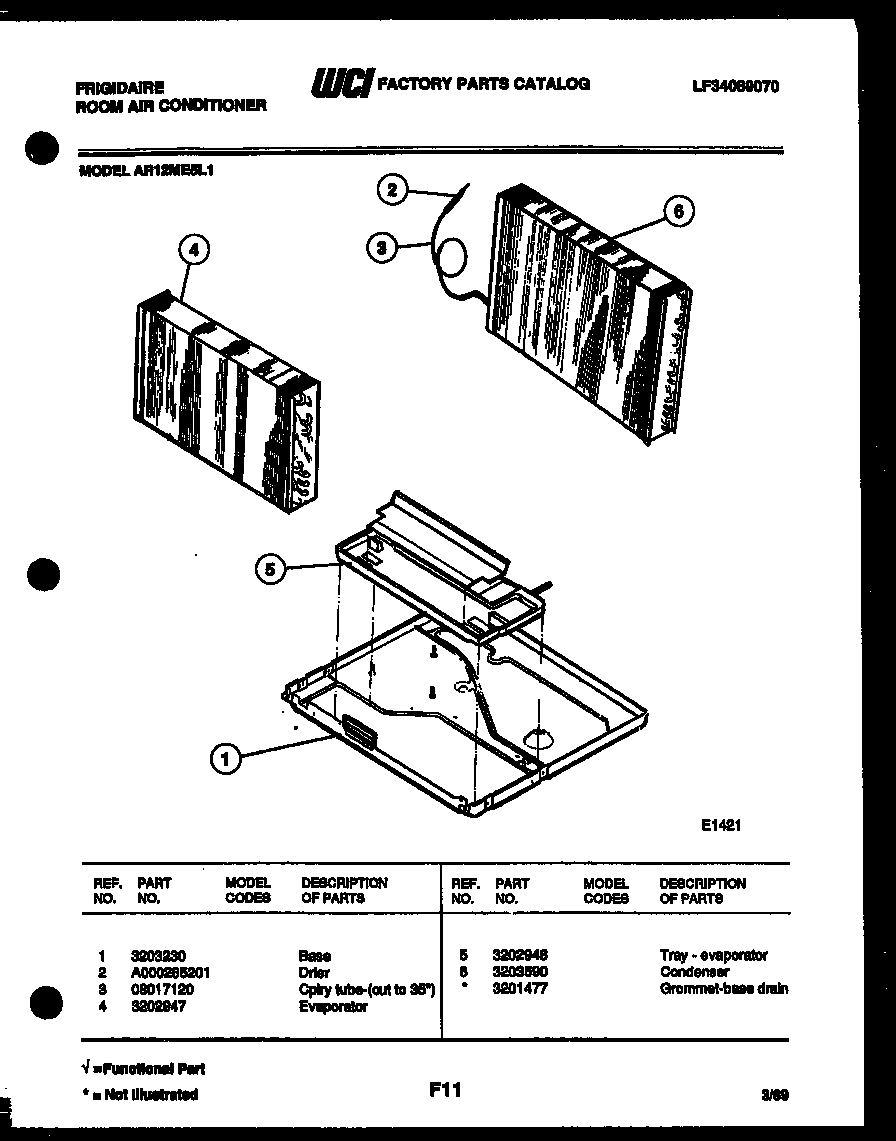

SELECT DIAGRAM
Browse Parts for
AR12ME5L1 Room Air Conditioner - LF34089070
Screw
Part #3015427
Replaced by #134178901
?
Manufacturer substitution
This part replaces 3015427. Substitute parts can look different from the original.
$41.07
In Stock
#14

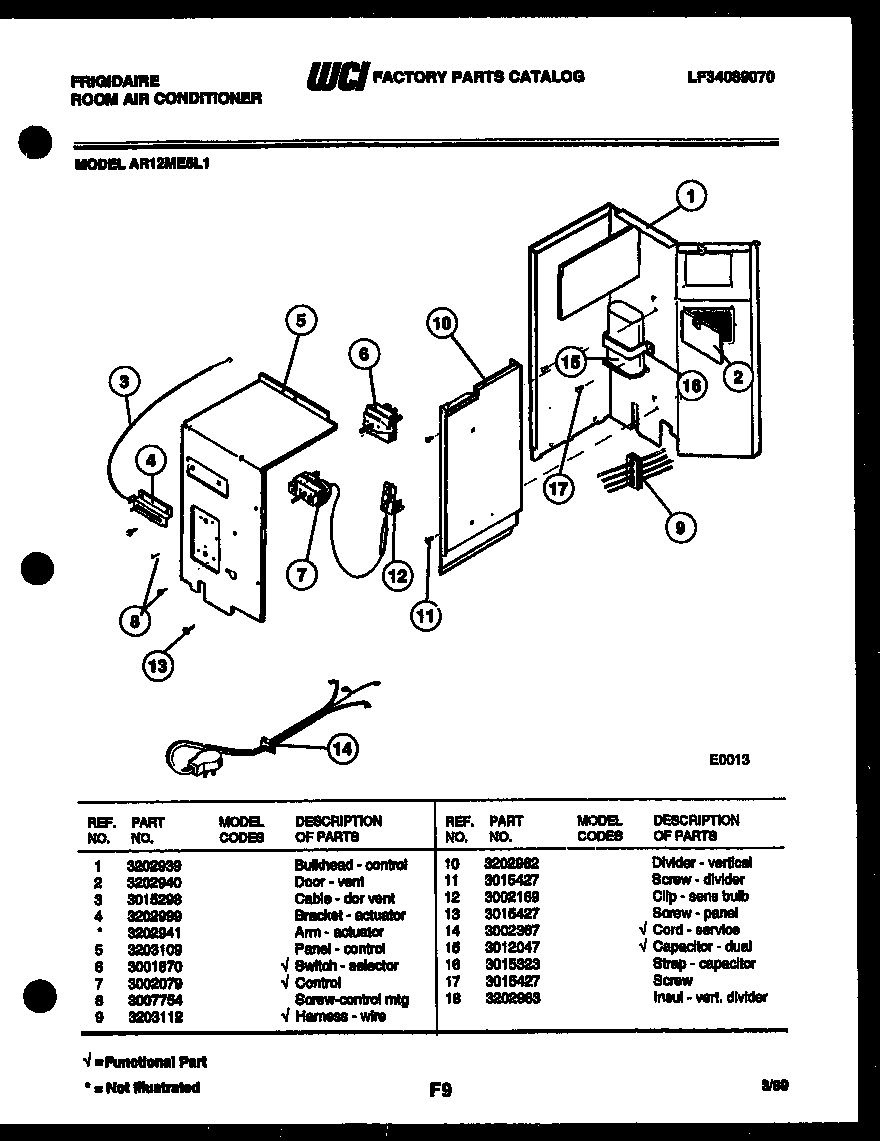

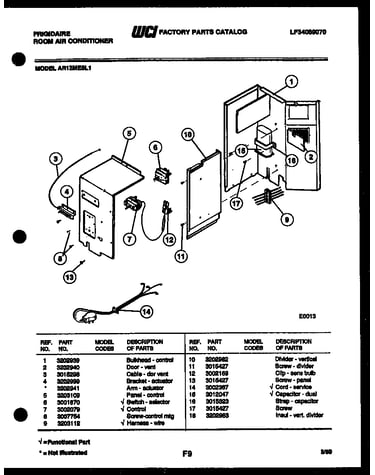

Electrical parts diagram
115v cord
Part #3002367
Replaced by #5303301021
?
Manufacturer substitution
This part replaces 3002367. Substitute parts can look different from the original.
$49.98
In Stock
#6

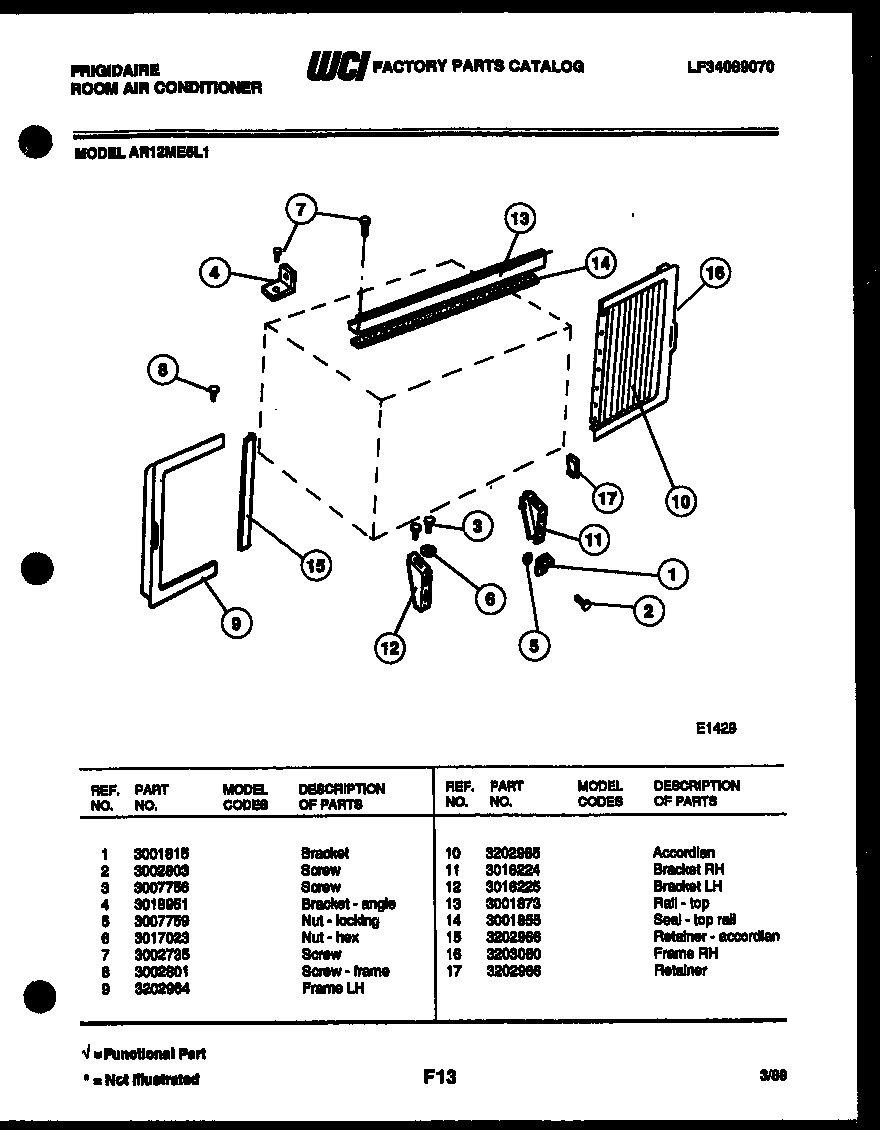

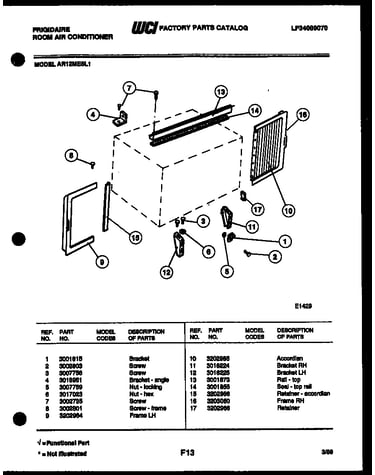

Window mounting parts diagram
Nut-hex
Part #3017023
Replaced by #316205500
?
Manufacturer substitution
This part replaces 3017023. Substitute parts can look different from the original.
This item is not returnable
$38.36
In Stock
Screw
Part #3202975
Replaced by #5304410881
?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
#6

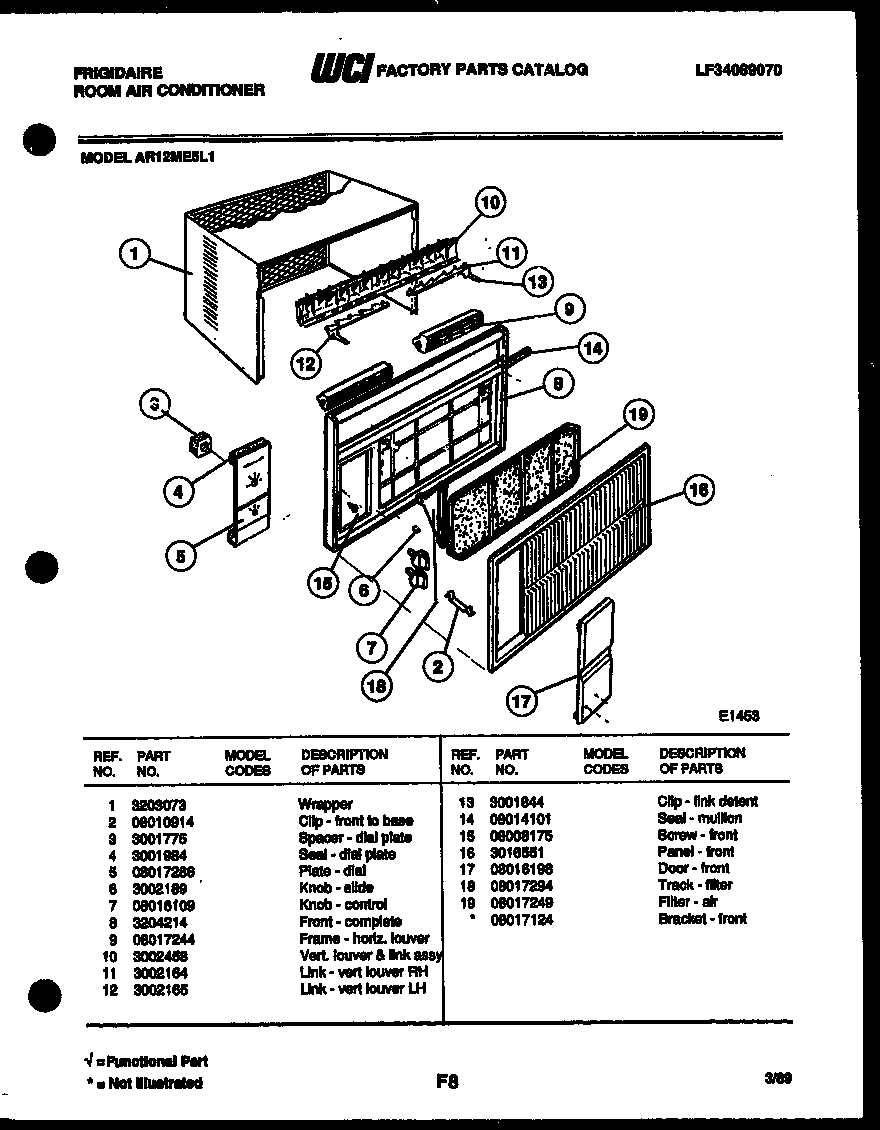

Cabinet parts diagram
Knob
Part #3002189
The manufacturer no longer makes this part, and there's no substitute part
#1

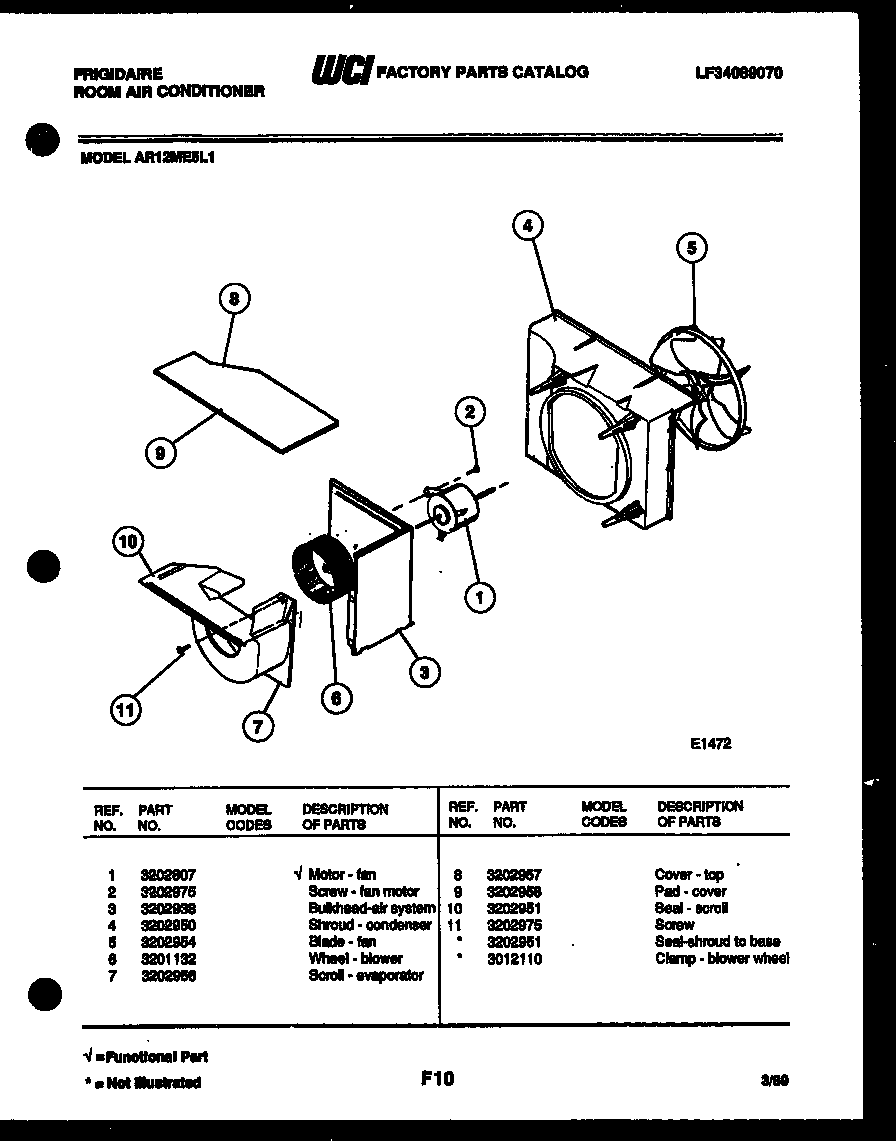

Air handling parts diagram
Motor
Part #3202807
The manufacturer no longer makes this part, and there's no substitute part
#7
Air handling parts diagram
Scroll
Part #3202956
The manufacturer no longer makes this part, and there's no substitute part
#6

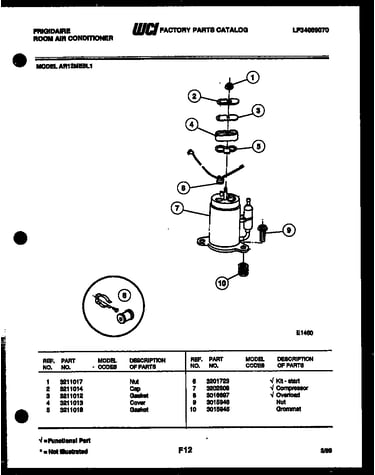

Compressor parts diagram
Capacitor
Part #3201723
The manufacturer no longer makes this part, and there's no substitute part
#5
Compressor parts diagram
Terminal gasket
Part #3211018
The manufacturer no longer makes this part, and there's no substitute part
#8
Cabinet parts diagram
Front
Part #3204214
The manufacturer no longer makes this part, and there's no substitute part
