Model # COLOR PRINTER Official IBM printer

Here are the diagrams and repair parts for Official IBM COLOR-PRINTER printer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

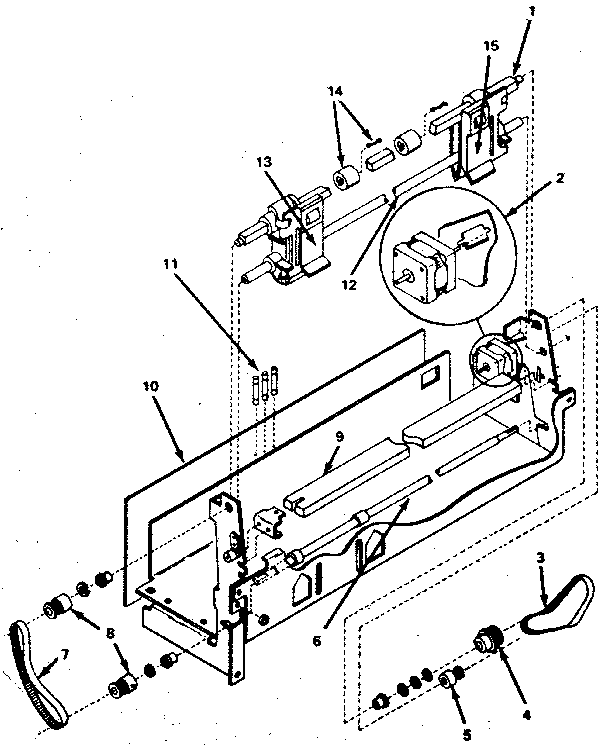

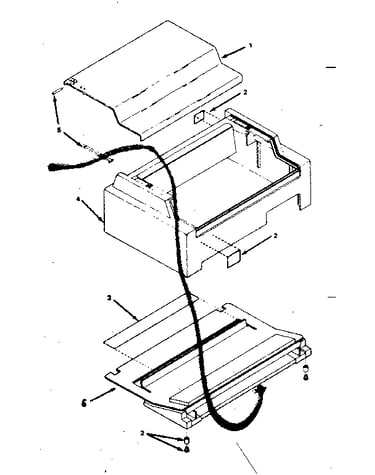

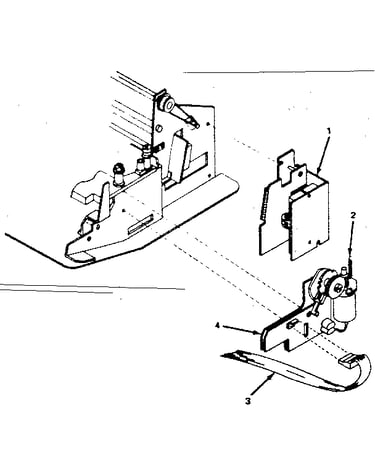

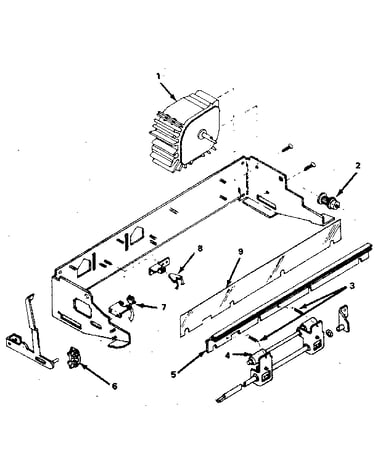

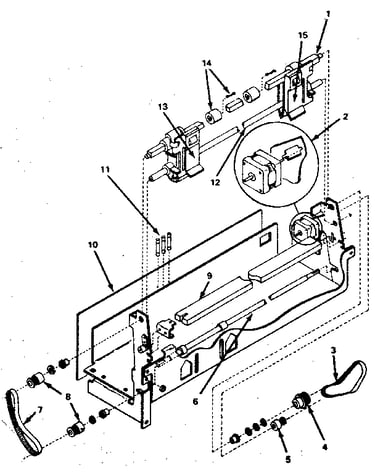

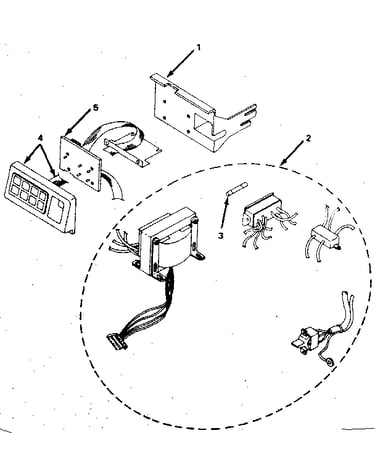

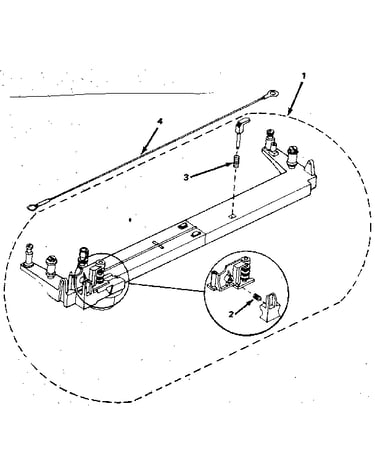

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Cam Adjust Screw (restricted Availability) 6323490
#8F

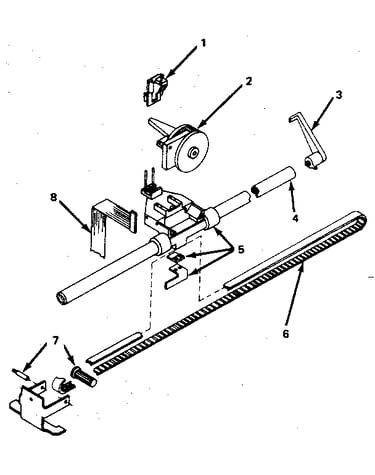

Carriage assembly diagram

Cam adjust screw (restricted availability)

Part #6323490

The manufacturer no longer makes this part, and there's no substitute part

Ribbon Cartridge Latch (restricted Availability) 6323494
#8J

Carriage assembly diagram

Ribbon cartridge latch (restricted availability)

Part #6323494

The manufacturer no longer makes this part, and there's no substitute part

Ribbon Post, Rear (restricted Availability) 6323486
#8B

Carriage assembly diagram

Ribbon post, rear (restricted availability)

Part #6323486

The manufacturer no longer makes this part, and there's no substitute part

Stuffing Wheel Knob (restricted Availability) 6323493
#8I

Carriage assembly diagram

Stuffing wheel knob (restricted availability)

Part #6323493

The manufacturer no longer makes this part, and there's no substitute part

Cam Adjust Pad (restricted Availability) 6323489
#8E

Carriage assembly diagram

Cam adjust pad (restricted availability)

Part #6323489

The manufacturer no longer makes this part, and there's no substitute part

Cam Adjust Knob (restricted Availability) 6323488
#8D

Carriage assembly diagram

Cam adjust knob (restricted availability)

Part #6323488

The manufacturer no longer makes this part, and there's no substitute part

(4-6) Power Cord (see Power Cord Parts List For The Proper Power Cord Certified For Your Country.) N/P
(4-6) power cord (see power cord parts list for the proper power cord certified for your country.)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Rear Ribbon Roller (restricted Availability) 6323491
#8G

Carriage assembly diagram

Rear ribbon roller (restricted availability)

Part #6323491

The manufacturer no longer makes this part, and there's no substitute part

Stuffing Wheel Idler (restricted Availability) 6323492
#8H

Carriage assembly diagram

Stuffing wheel idler (restricted availability)

Part #6323492

The manufacturer no longer makes this part, and there's no substitute part

Carrier 8286033
#1

Carriage assembly diagram

Carrier

Part #8286033

The manufacturer no longer makes this part, and there's no substitute part
