Frigidaire
Top-Mount Refrigerator

Model # FRT21NRGB2 Official Frigidaire refrigerator - p5995316428

Here are the diagrams and repair parts for Official Frigidaire FRT21NRGB2 refrigerator - p5995316428, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

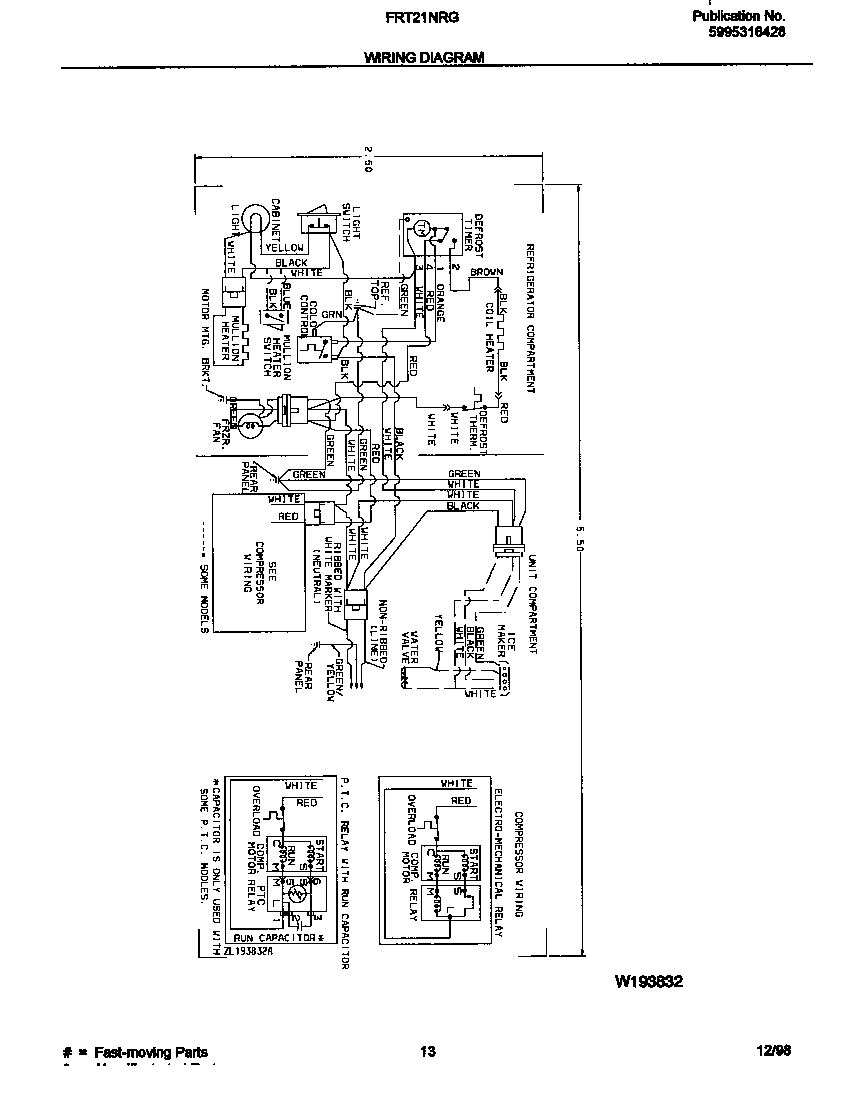

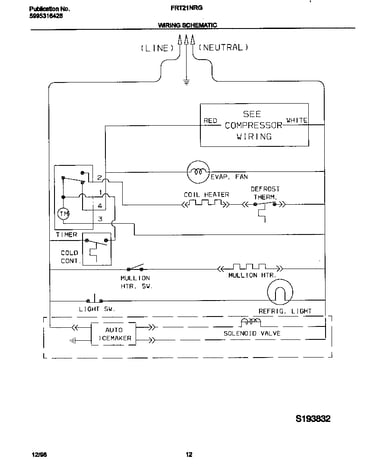

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 218 parts  |
Drier-r12 218541000
#4

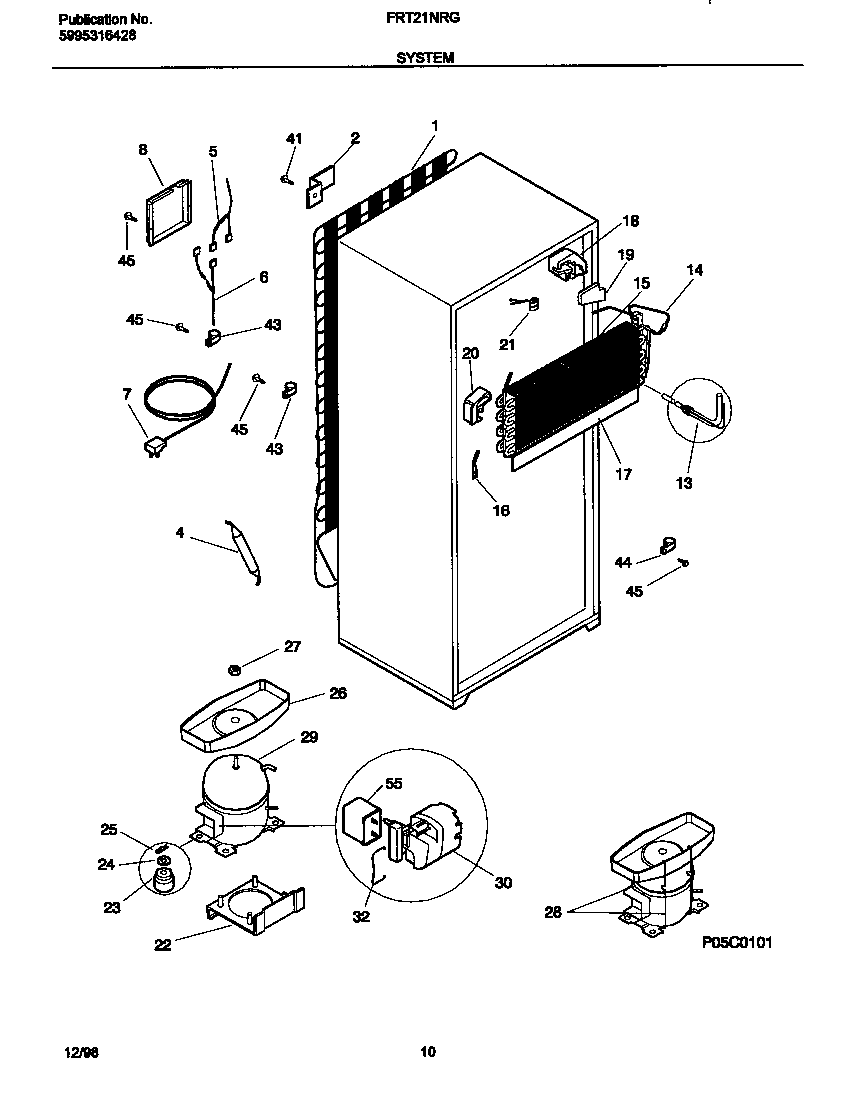

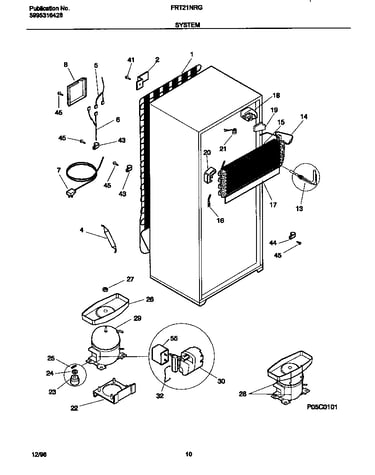

System diagram

Drier-r12

Part #218541000

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218541000. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Appliance Light Bulb, 40-watt 5303001179
#15

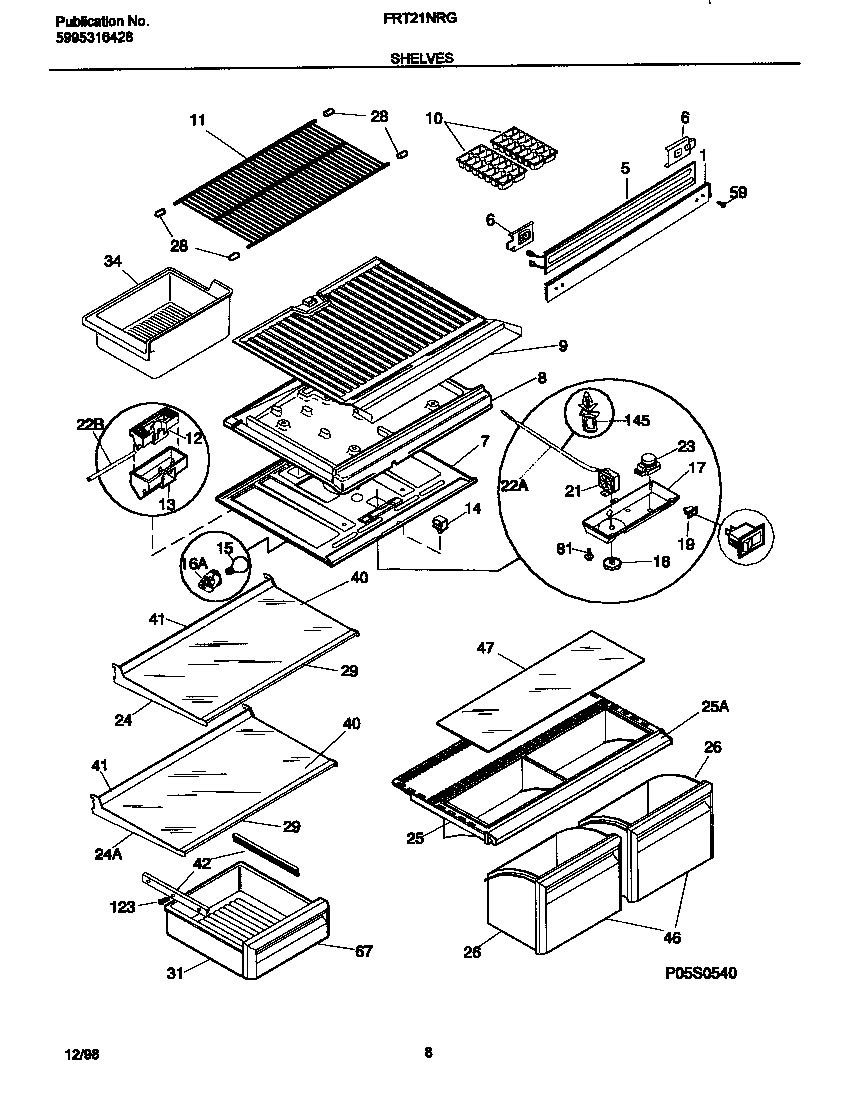

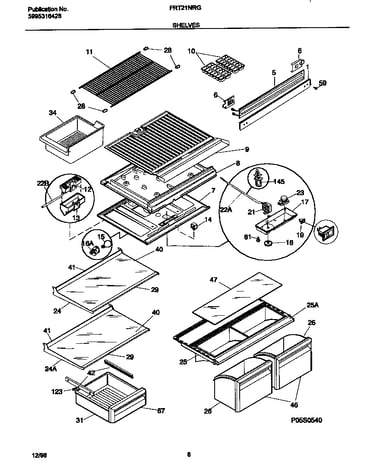

Shelves diagram

Appliance light bulb, 40-watt

Part #5303001179

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303001179. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Refrigerator Fan Blade 218649000
#5

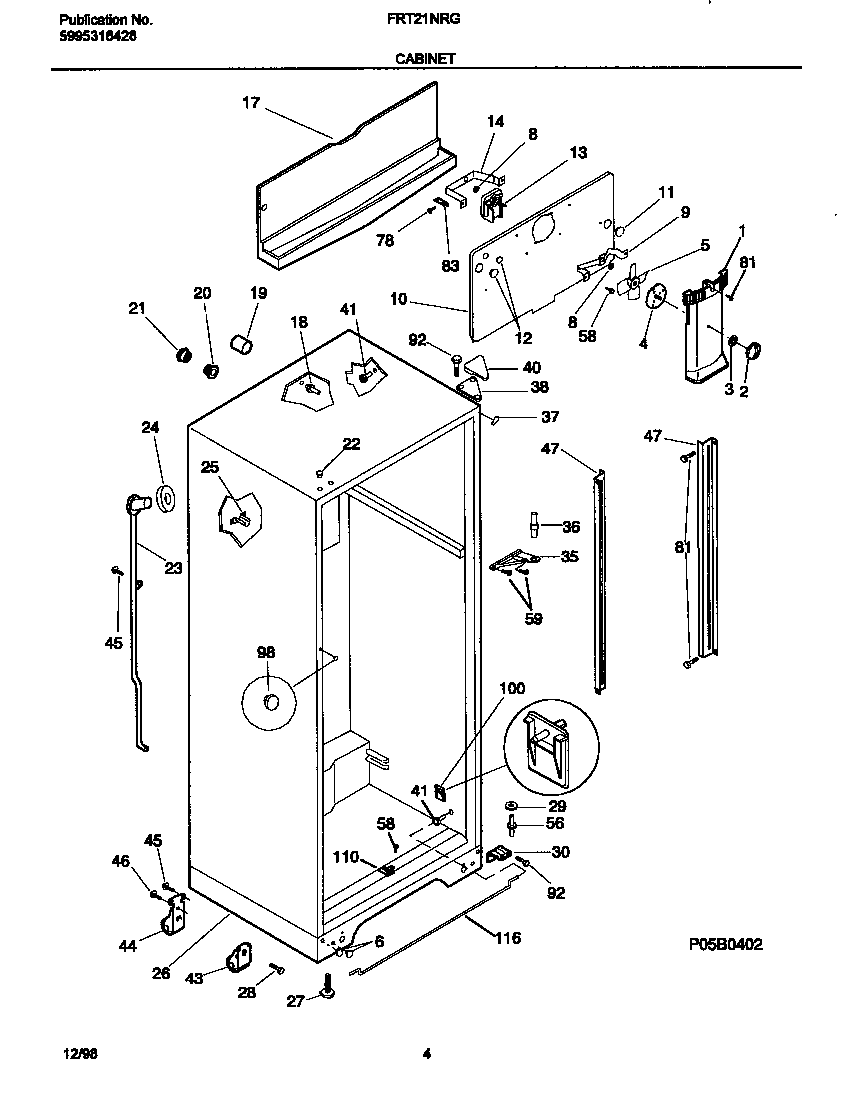

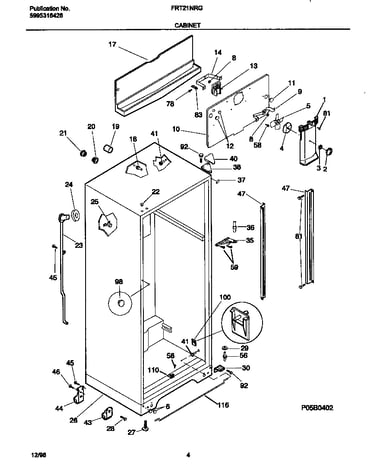

Cabinet diagram

Refrigerator fan blade

Part #218649000

Replaced by #5308000010

?
Manufacturer substitution
This part replaces 218649000. Substitute parts can look different from the original.
BEST SELLER
$41.13 |
13% OFF Phone Price : $47.13
In Stock
Refrigerator Timer 215846606
#23

Shelves diagram

Refrigerator timer

Part #215846606

Replaced by #215846602

?
Manufacturer substitution
This part replaces 215846606. Substitute parts can look different from the original.
BEST SELLER
$30.20 |
17% OFF Phone Price : $36.20
In Stock
Compressor-a 218374515
#29

System diagram

Compressor-a

Part #218374515

Replaced by #5304475098

?
Manufacturer substitution
This part replaces 218374515. Substitute parts can look different from the original.
BEST SELLER
$363.07 |
$12.00 OFF Phone Price : $375.07
In Stock
Capacitor 216236200
#55

System diagram

Capacitor

Part #216236200

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 216236200. Substitute parts can look different from the original.
BEST SELLER
$45.87 |
12% OFF Phone Price : $51.87
In Stock
Refrigerator Strap 5308000110
#16

System diagram

Refrigerator strap

Part #5308000110

BEST SELLER
$52.30 |
10% OFF Phone Price : $58.30
In Stock
Refrigerator Light Socket 218906801
#16

Shelves diagram

Refrigerator light socket

Part #218906801

Replaced by #218906802

?
Manufacturer substitution
This part replaces 218906801. Substitute parts can look different from the original.
This item is not returnable
$18.49 |
10% OFF Phone Price : $20.49
In Stock
Refrigerator Evaporator Fan Mounting Bracket Screw 5308016566
Refrigerator evaporator fan mounting bracket screw

Part #5308016566

Replaced by #5304455650

?
Manufacturer substitution
This part replaces 5308016566. Substitute parts can look different from the original.
This item is not returnable
$14.79 |
12% OFF Phone Price : $16.79
In Stock
Touch Paint 5303305324

#NI

All parts diagram

Touch paint

Part #5303305324

Replaced by #5303321319

?
Manufacturer substitution
This part replaces 5303305324. Substitute parts can look different from the original.
This item is not returnable
$15.09 |
12% OFF Phone Price : $17.09
In Stock
