Tecumseh
Lawn & Garden Engine

Model # HM80-155303K Official Tecumseh 4-cycle engine

Here are the diagrams and repair parts for Official Tecumseh HM80-155303K 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

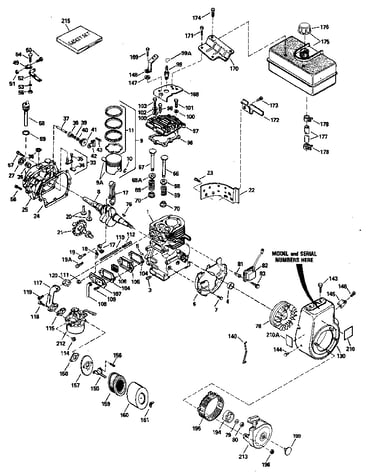

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
Needle Seat 631021
#30

Carburetor 632351 (71/143) diagram

Needle seat

Part #631021

Replaced by #631021B

?
Manufacturer substitution
This part replaces 631021. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.79 |
9% OFF Phone Price : $10.79
In Stock
Rope 590451A
#9

Rewind starter diagram

Rope

Part #590451A

Replaced by #590535

?
Manufacturer substitution
This part replaces 590451A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Troybilt Lawn & Garden Equipment Engine Fuel Line Clamp 26460
#178

Replacement parts diagram

Troybilt lawn & garden equipment engine fuel line clamp

Part #26460

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Gasket 27110
#44

Carburetor 632351 (71/143) diagram

Gasket

Part #27110

Replaced by #27110A

?
Manufacturer substitution
This part replaces 27110. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Cook Top Side Trim Kit Lawn & Garden Equipment Engine Air Filter (replaces 28424l) 28424
#106

Replacement parts diagram

Cook top side trim kit lawn & garden equipment engine air filter (replaces 28424l)

Part #28424

BEST SELLER
This item is not returnable
$4.14 |
19% OFF Phone Price : $5.14
In Stock
Lawn & Garden Equipment Engine Fuel Tank Cap 35355
#176

Replacement parts diagram

Lawn & garden equipment engine fuel tank cap

Part #35355

Replaced by #37845

?
Manufacturer substitution
This part replaces 35355. Substitute parts can look different from the original.
BEST SELLER
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Cook Top Side Trim Kit Lawn & Garden Equipment Engine Carburetor Manifold Gasket 33263
#115

Replacement parts diagram

Cook top side trim kit lawn & garden equipment engine carburetor manifold gasket

Part #33263

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Cook Top Side Trim Kit Lawn & Garden Equipment Engine Air Filter 33268
#159

Replacement parts diagram

Cook top side trim kit lawn & garden equipment engine air filter

Part #33268

This item is not returnable
$16.59 |
11% OFF Phone Price : $18.59
In Stock
Plug Cover 27276
#99A

Replacement parts diagram

Plug cover

Part #27276

Replaced by #610118

?
Manufacturer substitution
This part replaces 27276. Substitute parts can look different from the original.
This item is not returnable
$5.24 |
16% OFF Phone Price : $6.24
In Stock
Lauson Lawn & Garden Equipment Engine Carburetor Rebuild Kit 632347
#60

Carburetor 632351 (71/143) diagram

Lauson lawn & garden equipment engine carburetor rebuild kit

Part #632347

This item is not returnable
$21.69 |
22% OFF Phone Price : $27.69
In Stock
