Frigidaire
Built-In Microwave

Model # FPMO209KFA Official Frigidaire microwave

Here are the diagrams and repair parts for Official Frigidaire FPMO209KFA microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

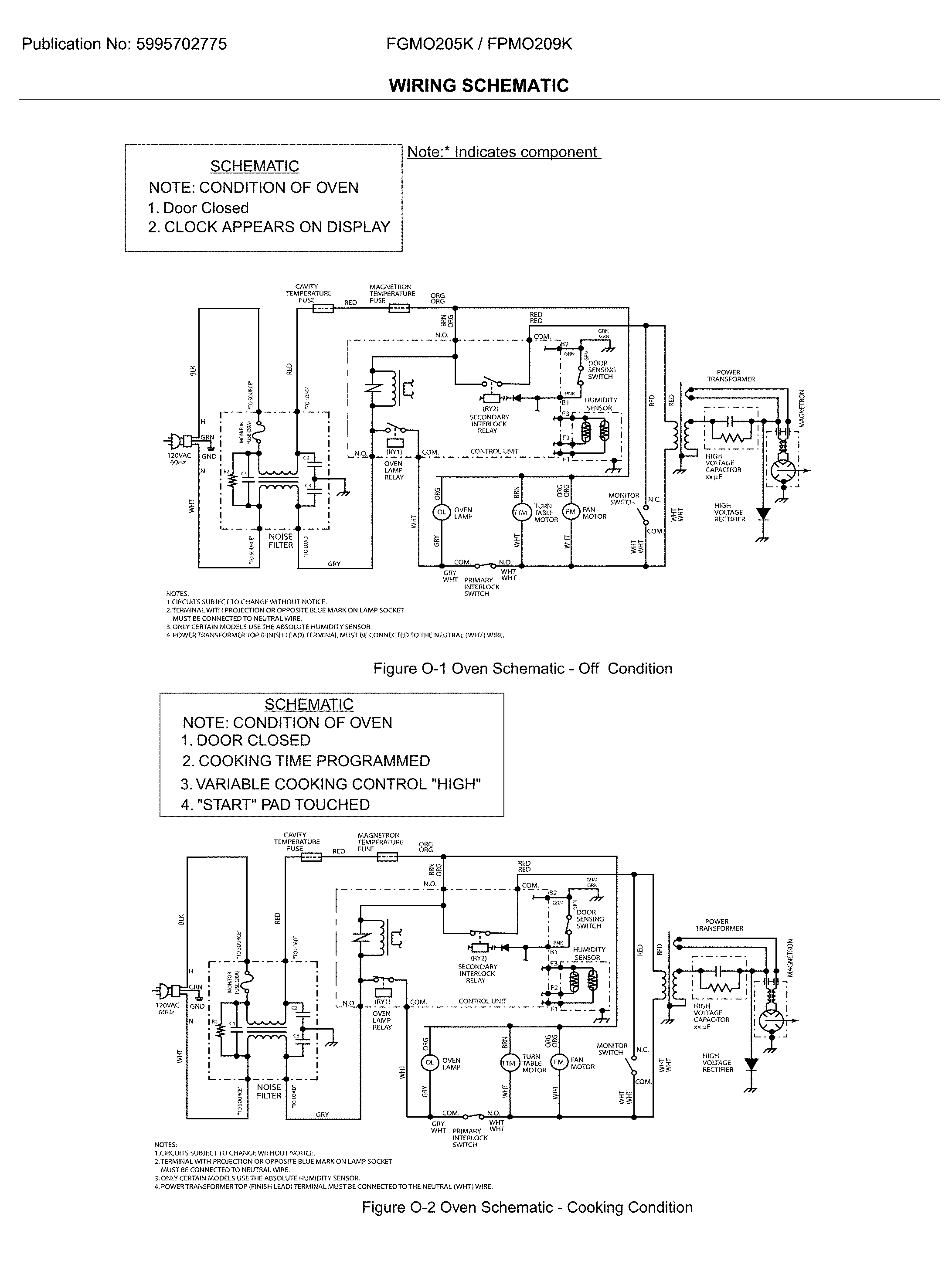

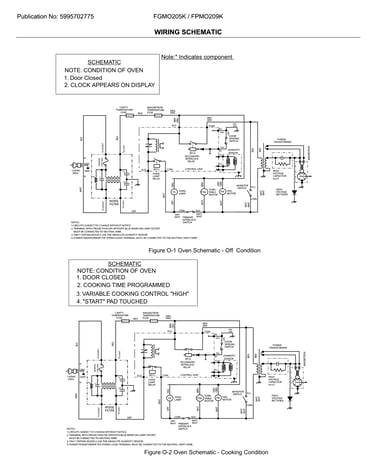

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Latch 5304440840
#30

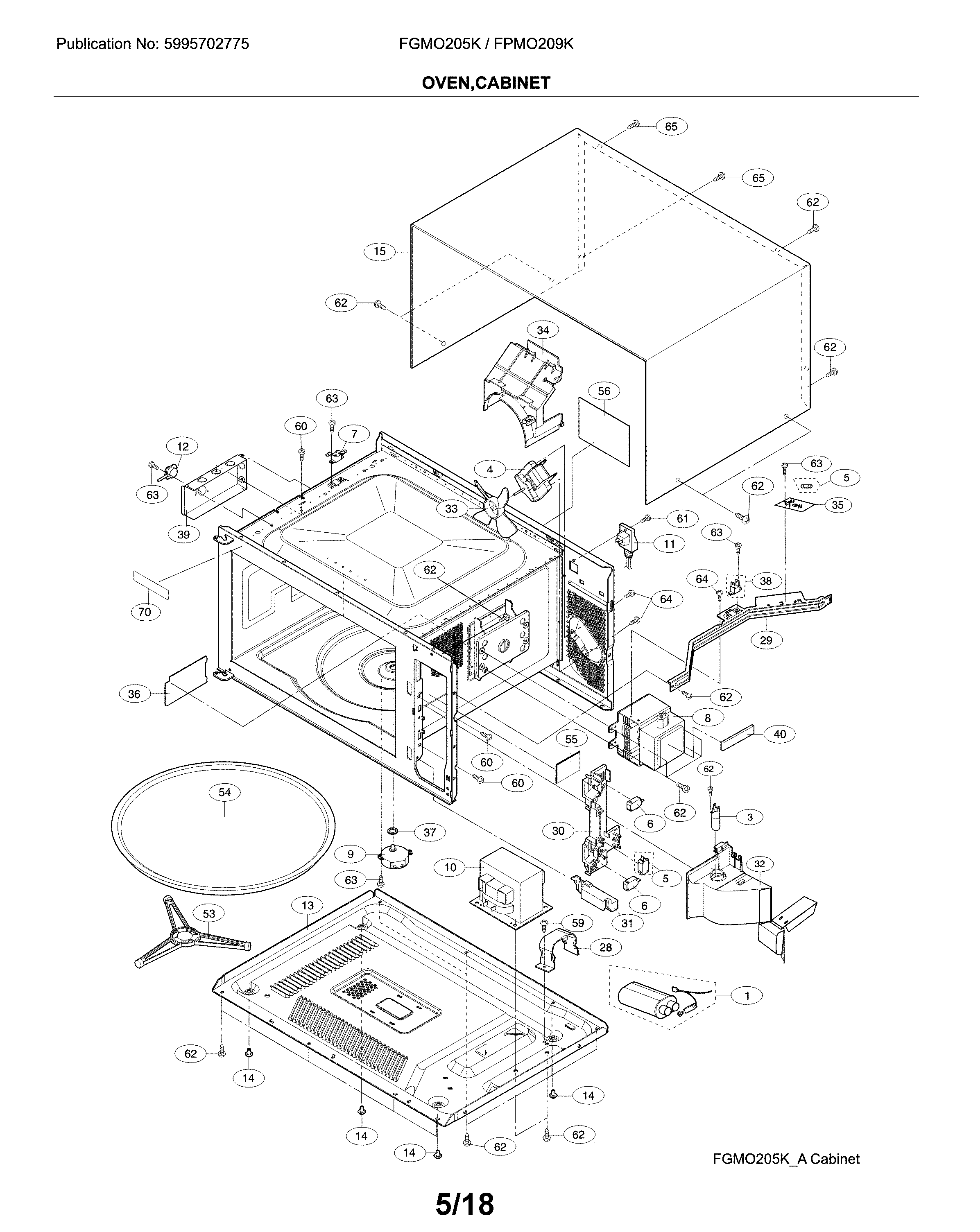

Oven,cabinet diagram

Latch

Part #5304440840

Replaced by #5304503439

?
Manufacturer substitution
This part replaces 5304440840. Substitute parts can look different from the original.
BEST SELLER
$48.11 |
11% OFF Phone Price : $54.11
In Stock
Lever 5304464899
#31

Oven,cabinet diagram

Lever

Part #5304464899

Replaced by #5304485407

?
Manufacturer substitution
This part replaces 5304464899. Substitute parts can look different from the original.
BEST SELLER
$51.29 |
10% OFF Phone Price : $57.29
In Stock
Microwave Door Interlock Switch And Fuse (replaces 75303319559) 5303319559
#5

Oven,cabinet diagram

Microwave door interlock switch and fuse (replaces 75303319559)

Part #5303319559

BEST SELLER
$77.69 |
7% OFF Phone Price : $83.69
In Stock
Microwave Door Latch Spring (replaces 75304440316) 5304440316
#36

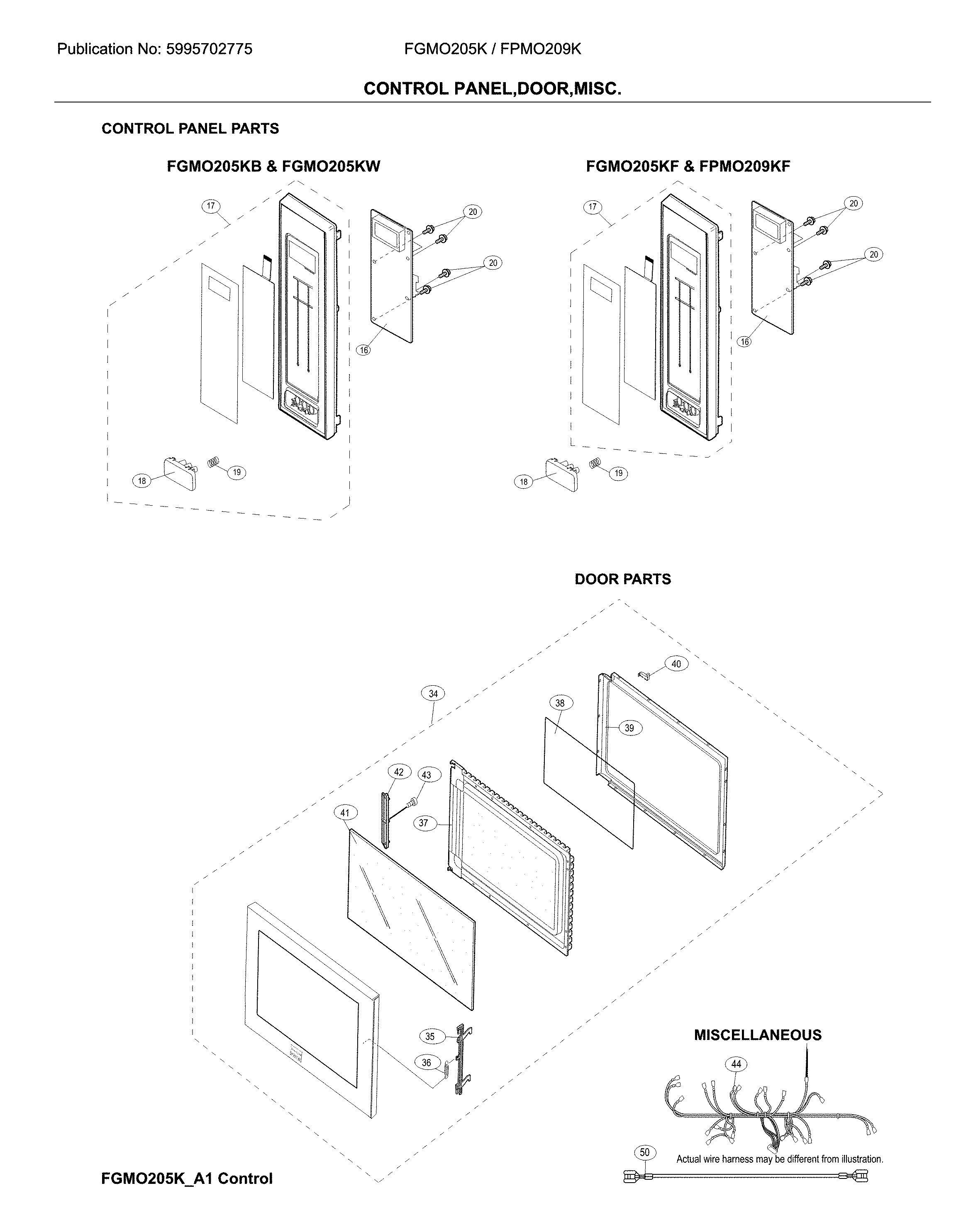

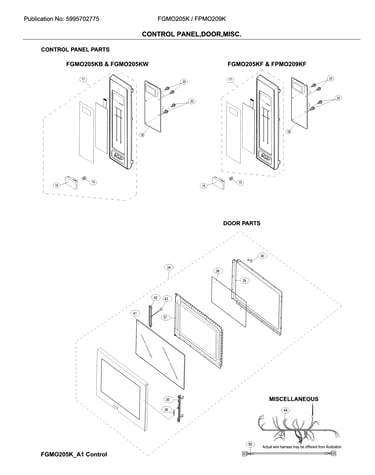

Control panel,door,misc. diagram

Microwave door latch spring (replaces 75304440316)

Part #5304440316

$49.59 |
11% OFF Phone Price : $55.59
In Stock
Wall Oven Microwave Thermal Fuse, 20-amp (replaces 75304440780) 5304440780
#7

Oven,cabinet diagram

Wall oven microwave thermal fuse, 20-amp (replaces 75304440780)

Part #5304440780

$69.79 |
8% OFF Phone Price : $75.79
In Stock
Microwave Glass Turntable Tray 5304440868
#54

Oven,cabinet diagram

Microwave glass turntable tray

Part #5304440868

Replaced by #5304529482

?
Manufacturer substitution
This part replaces 5304440868. Substitute parts can look different from the original.
$85.30 |
7% OFF Phone Price : $91.30
In Stock
Microwave Electronic Control Board 5304472840
#16

Control panel,door,misc. diagram

Microwave electronic control board

Part #5304472840

$234.02 |
5% OFF Phone Price : $246.02
In Stock
Microwave Door Release Button Spring 5304440831
#19

Control panel,door,misc. diagram

Microwave door release button spring

Part #5304440831

This item is not returnable
$21.91 |
21% OFF Phone Price : $27.91
In Stock
Bushing 5304440288
#37

Oven,cabinet diagram

Bushing

Part #5304440288

$16.77
In Stock
Wall Oven Wire Harness 5304452260
#44

Control panel,door,misc. diagram

Wall oven wire harness

Part #5304452260

Replaced by #5304499758

?
Manufacturer substitution
This part replaces 5304452260. Substitute parts can look different from the original.
$102.87
In Stock
