Model # SWFX71QN1127 Official Speed Queen commercial washer

Here are the diagrams and repair parts for Official Speed Queen SWFX71QN1127 commercial washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

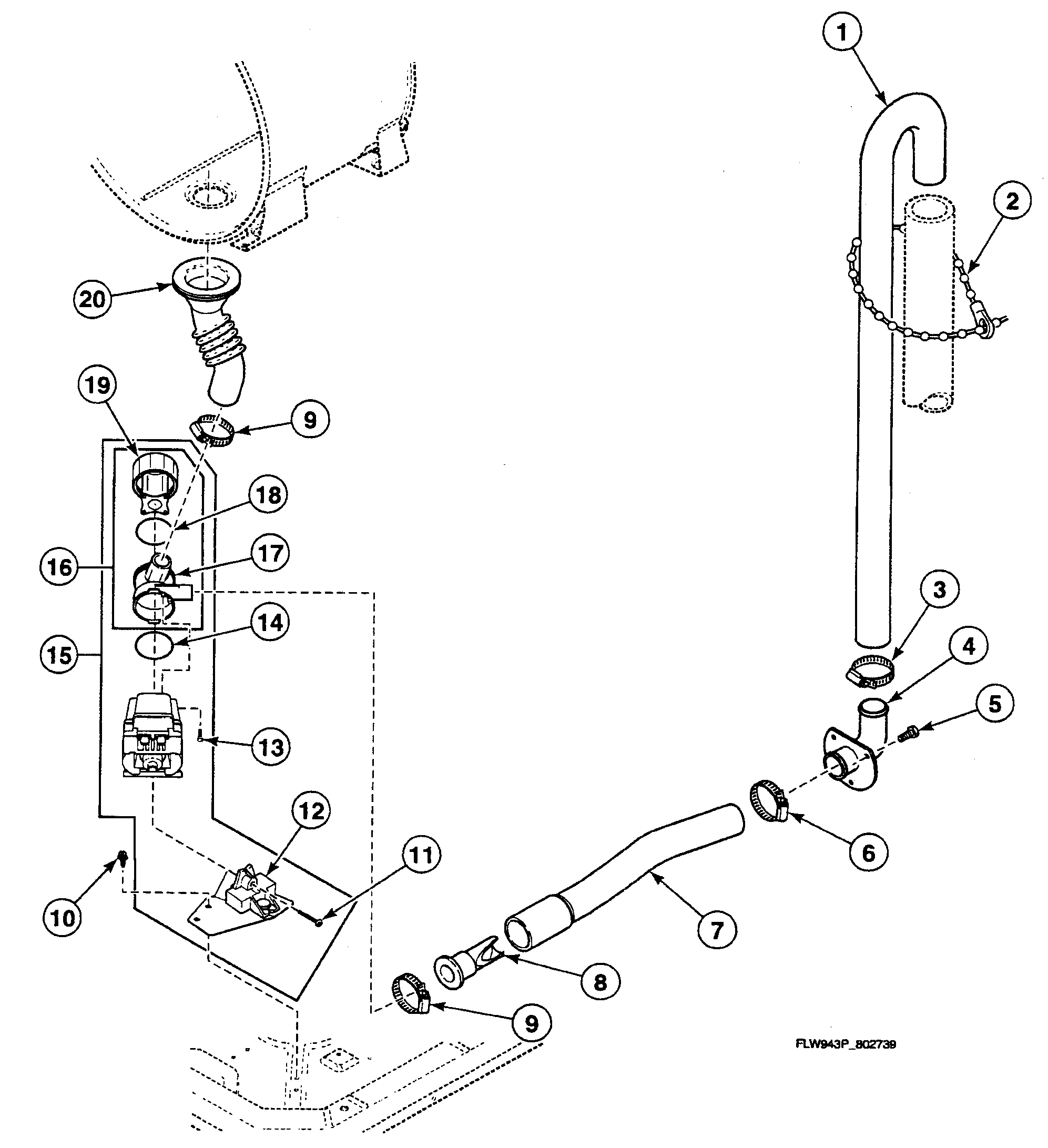

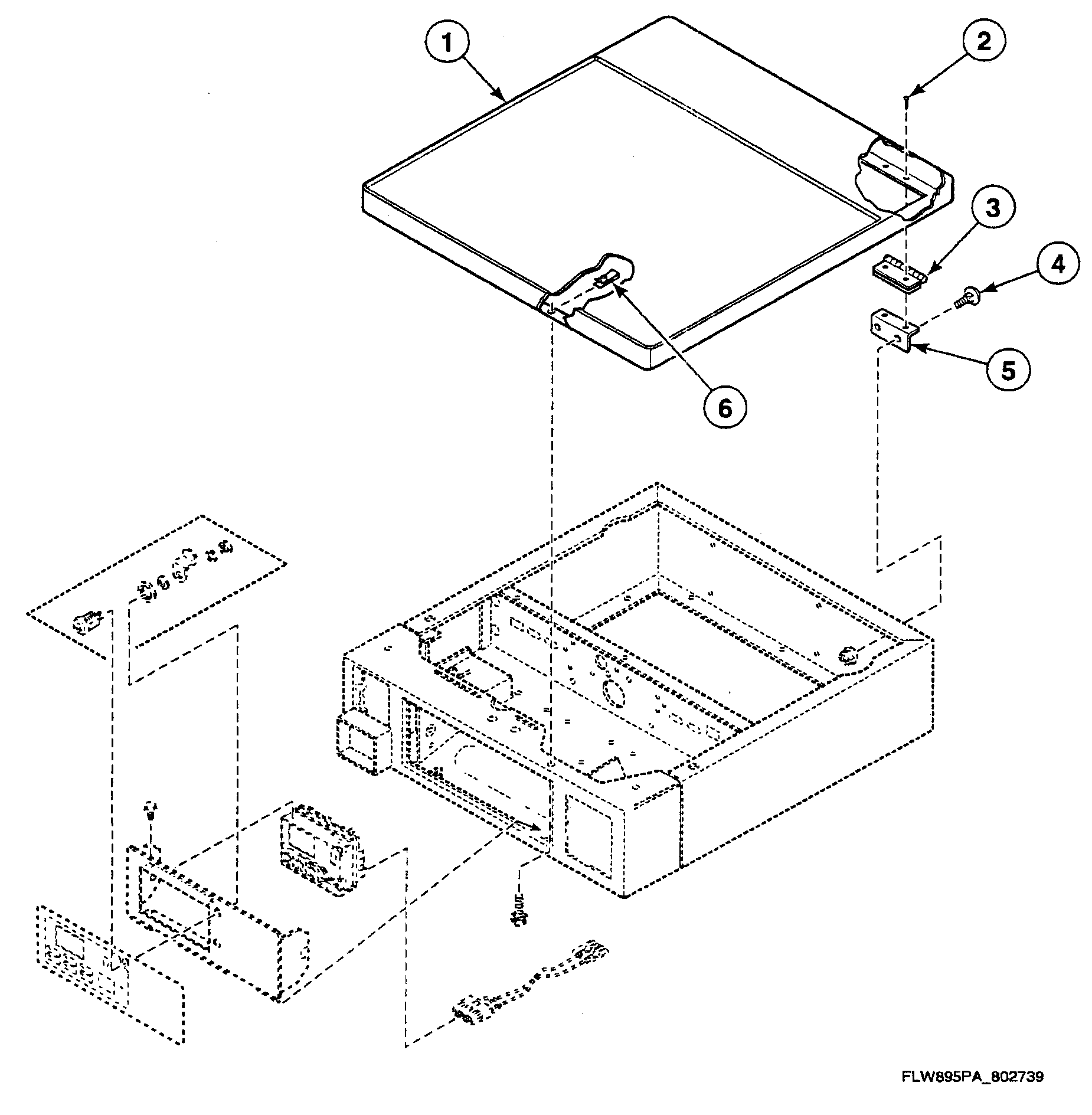

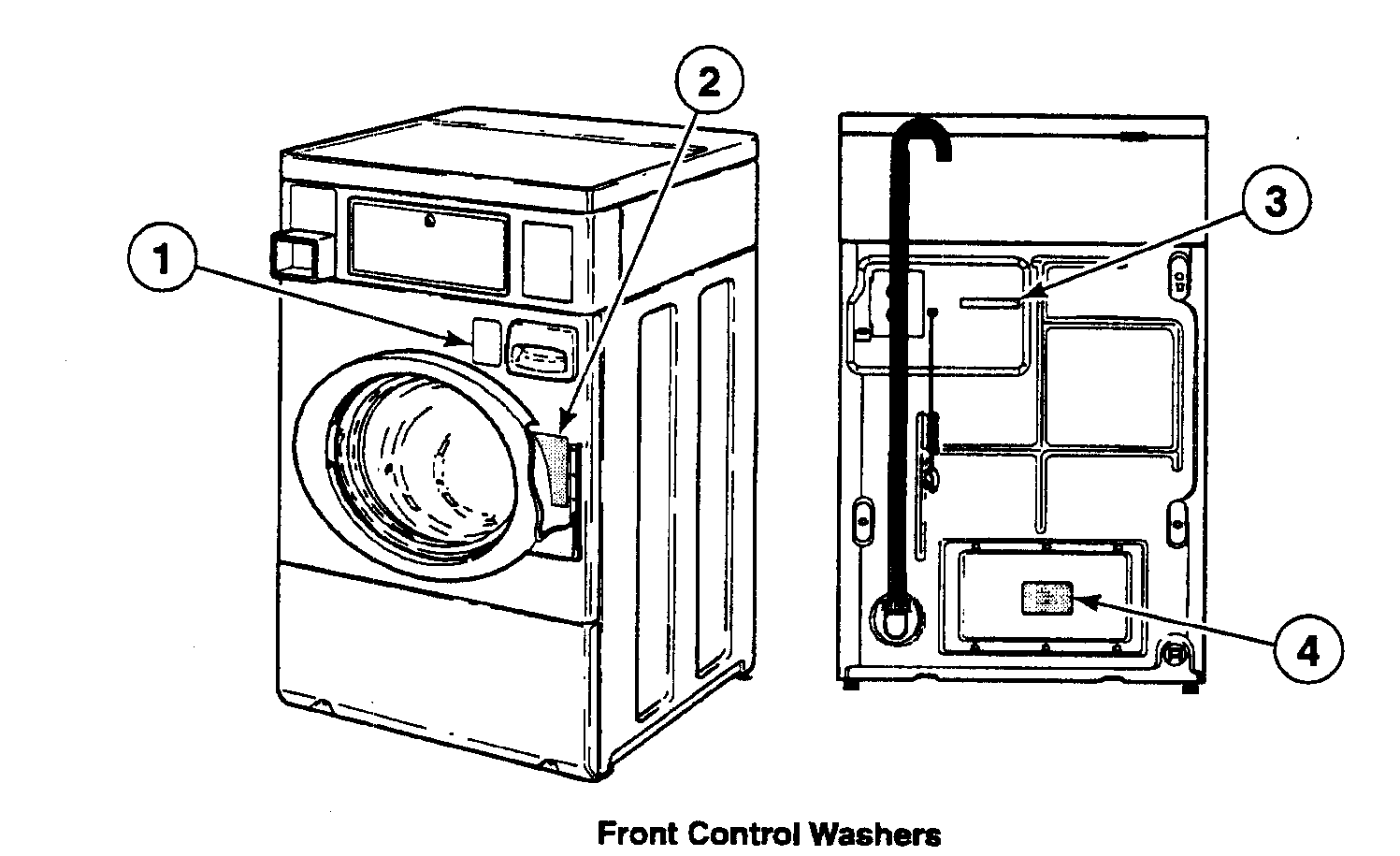

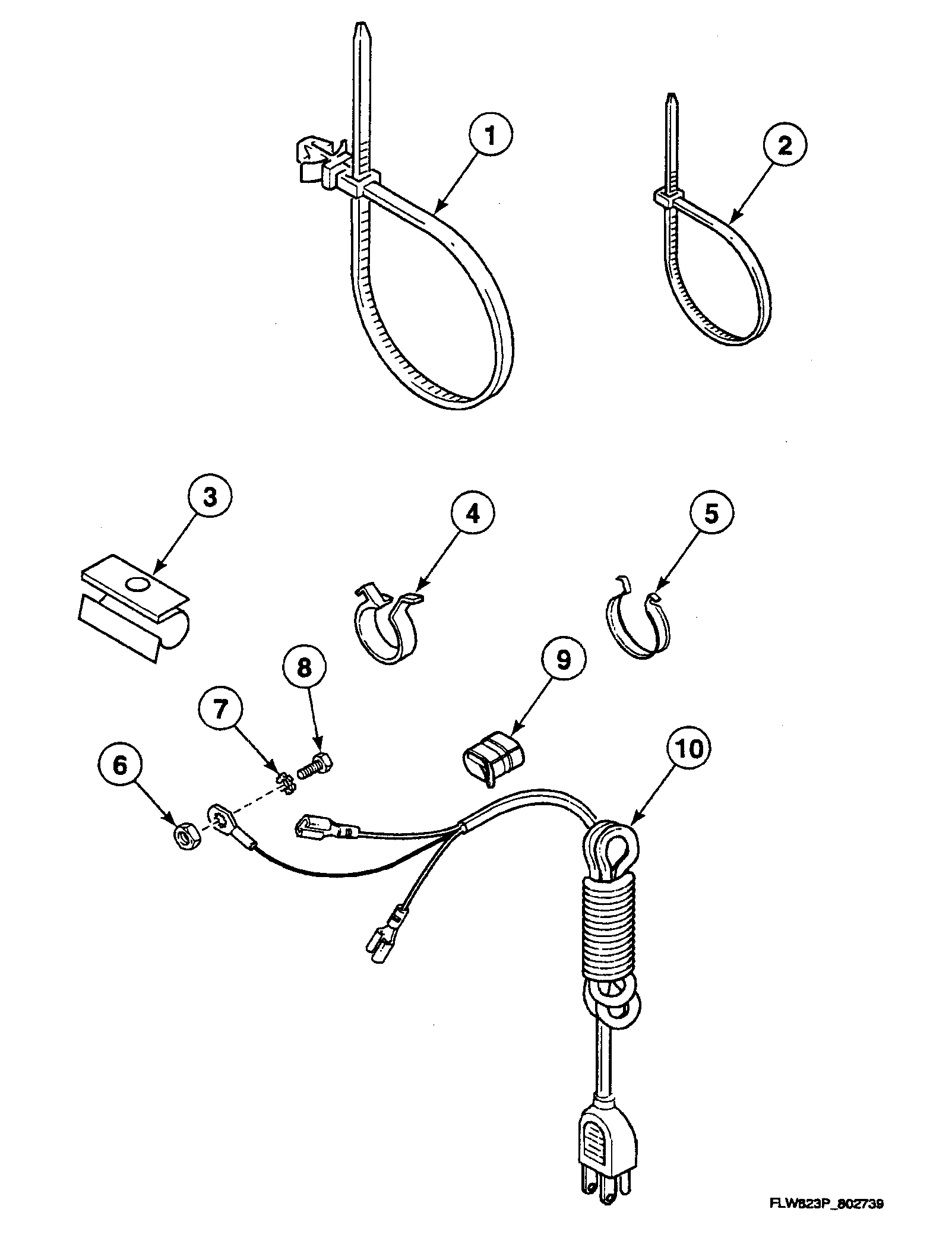

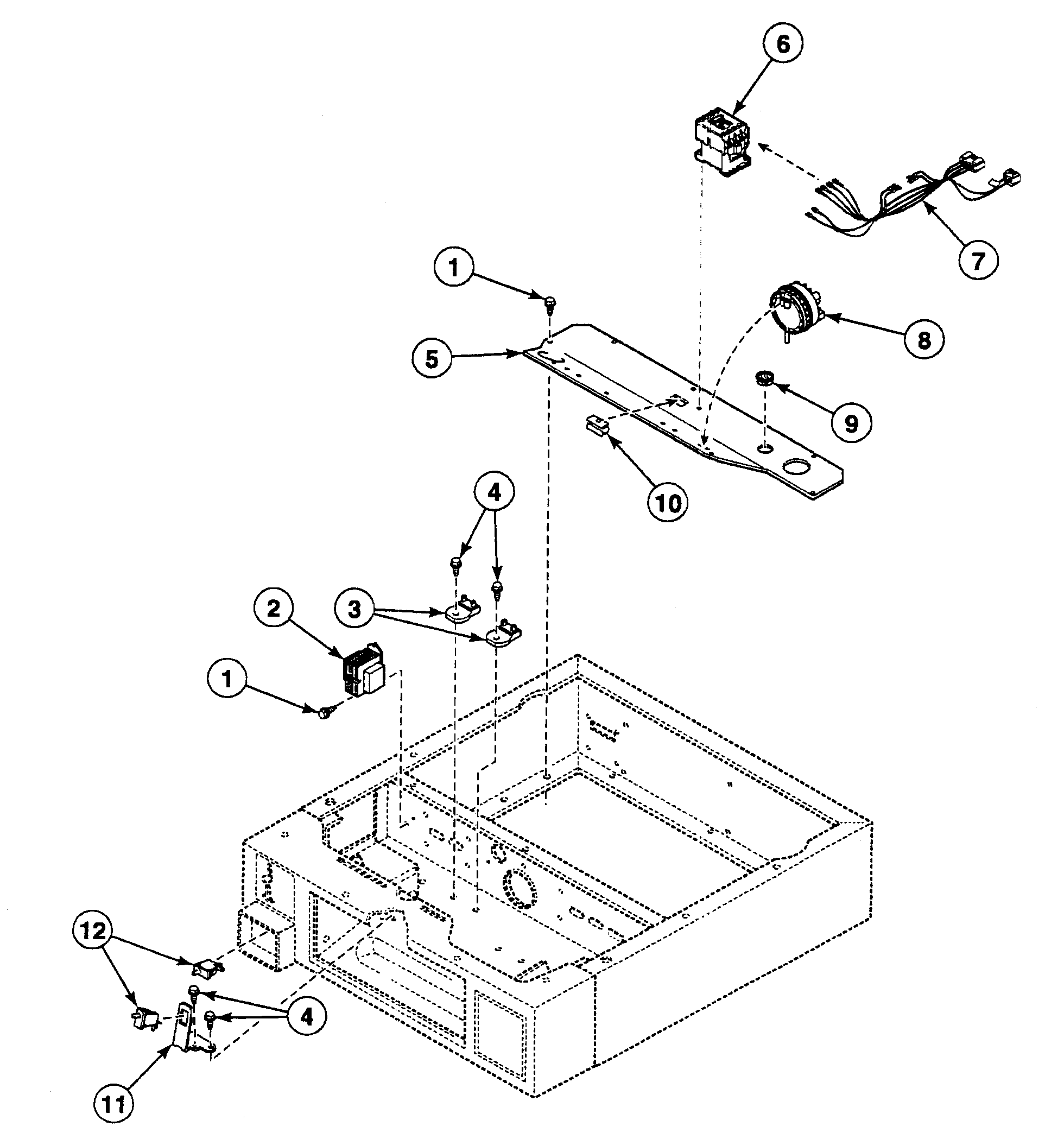

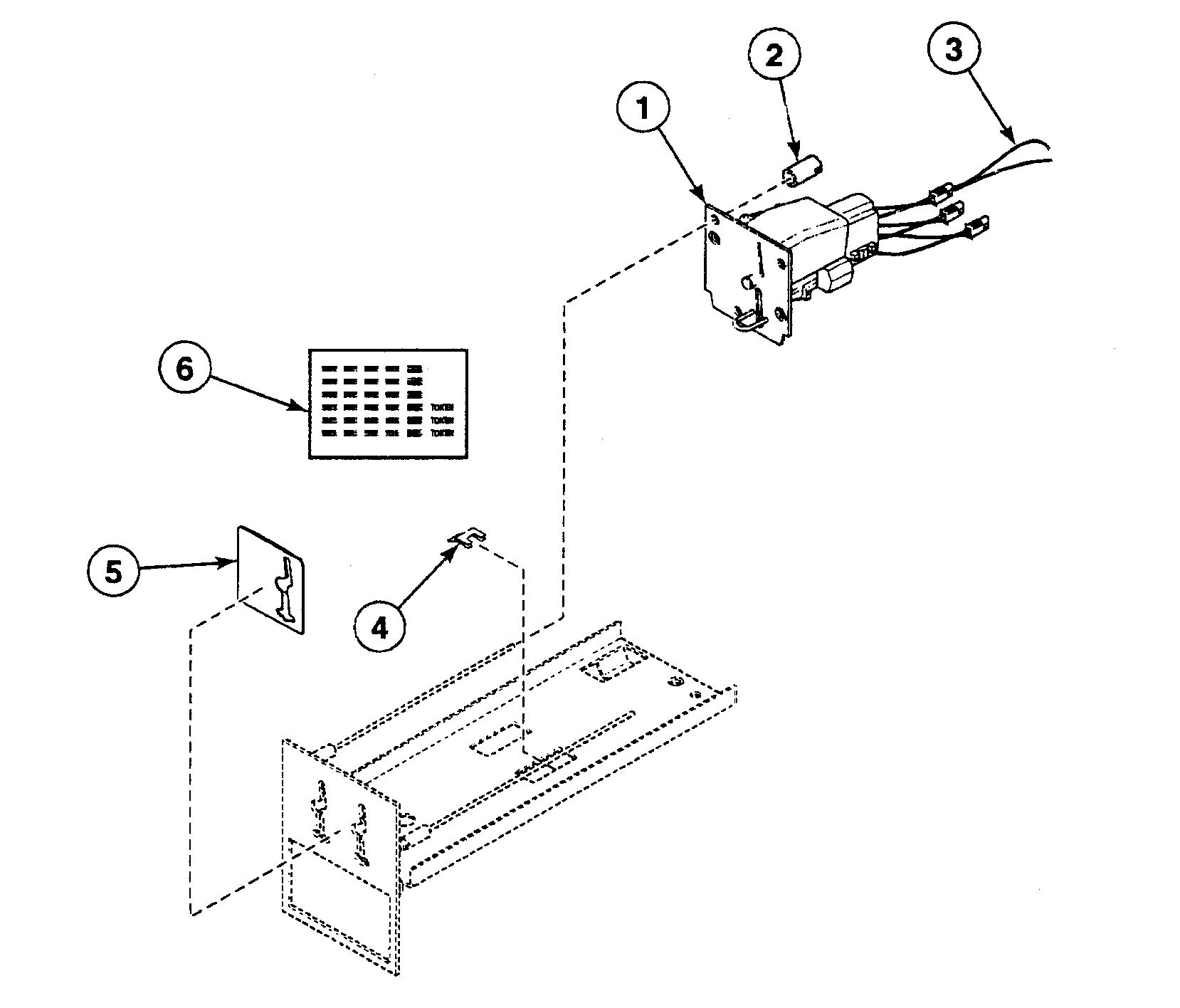

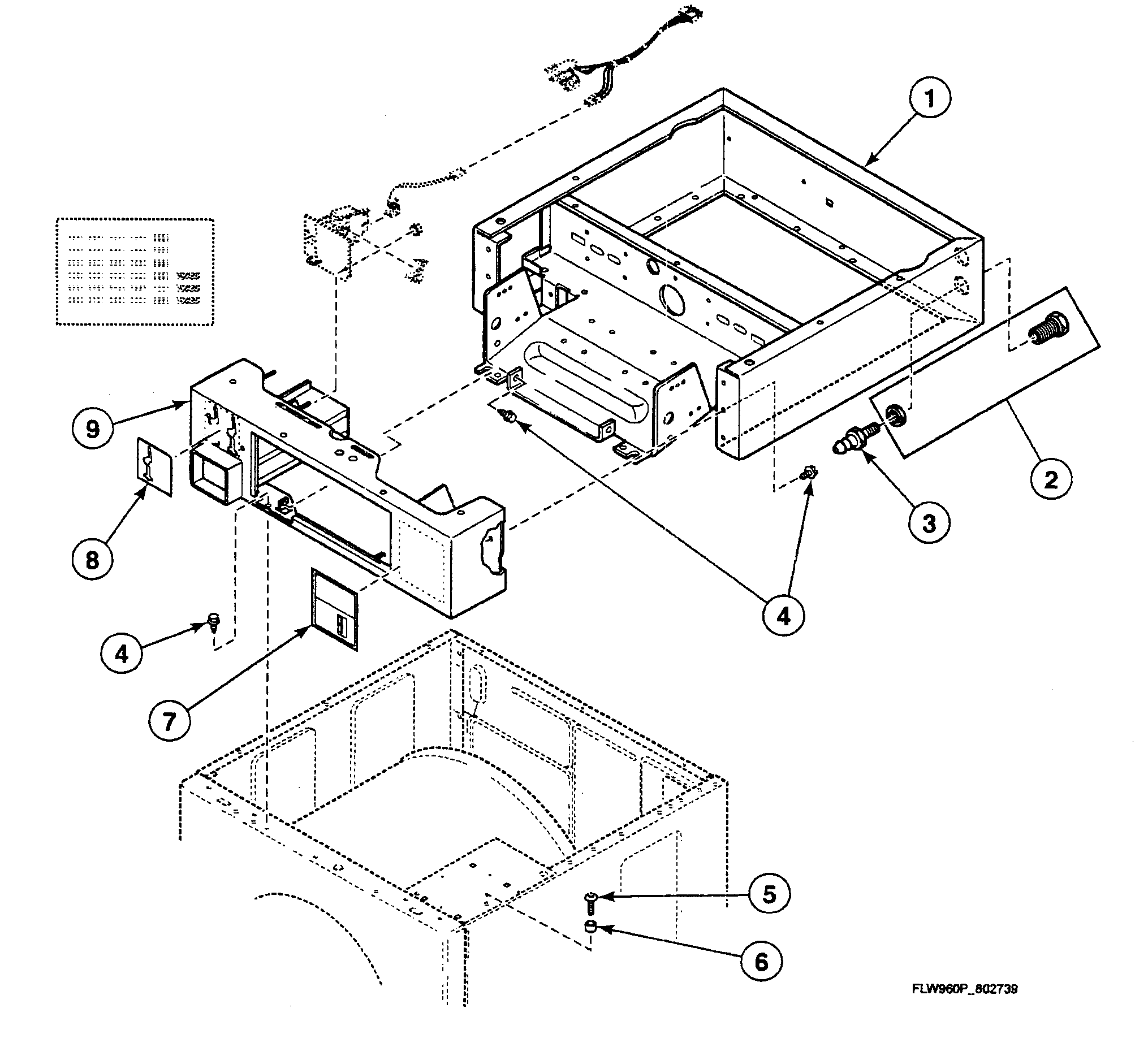

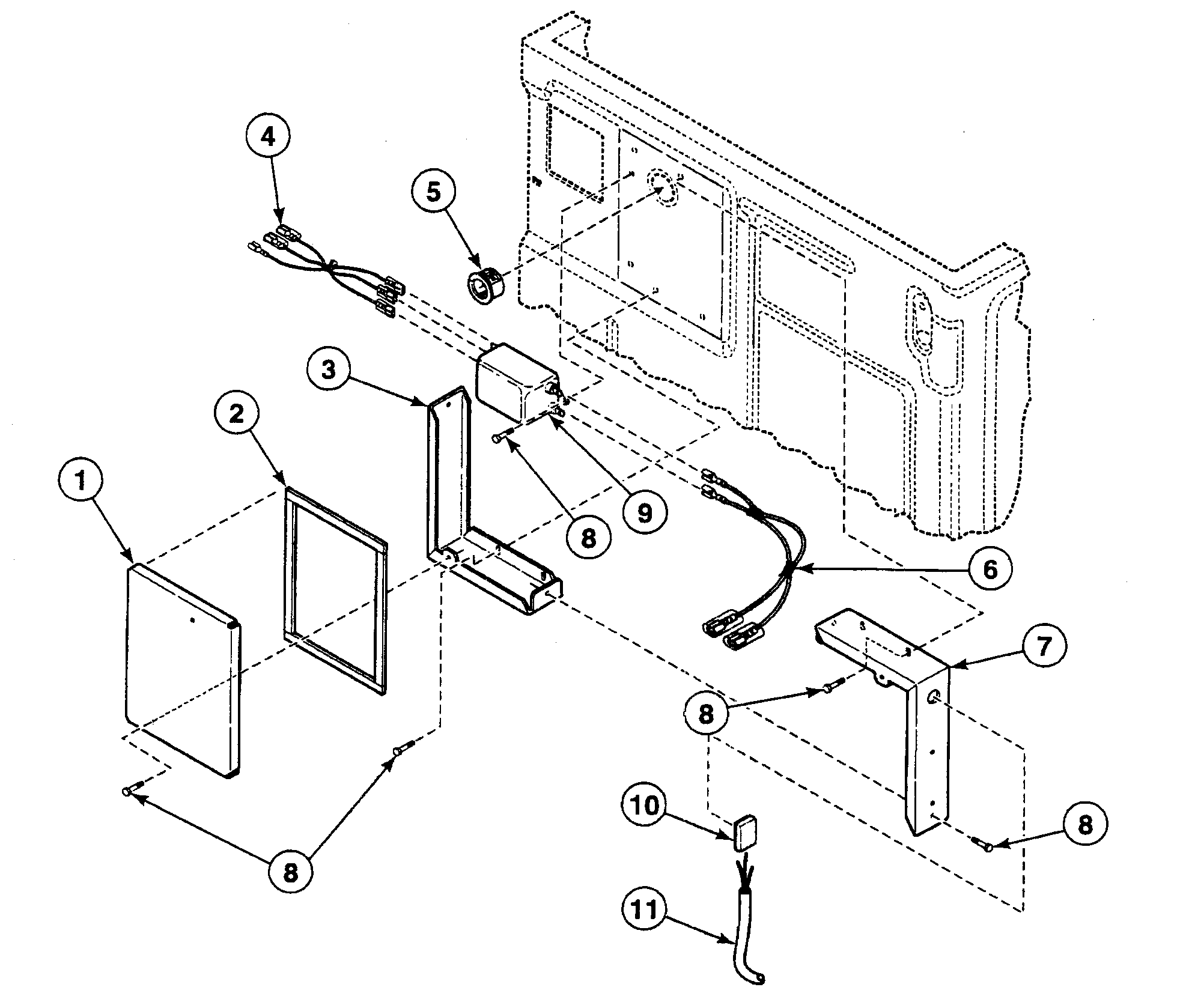

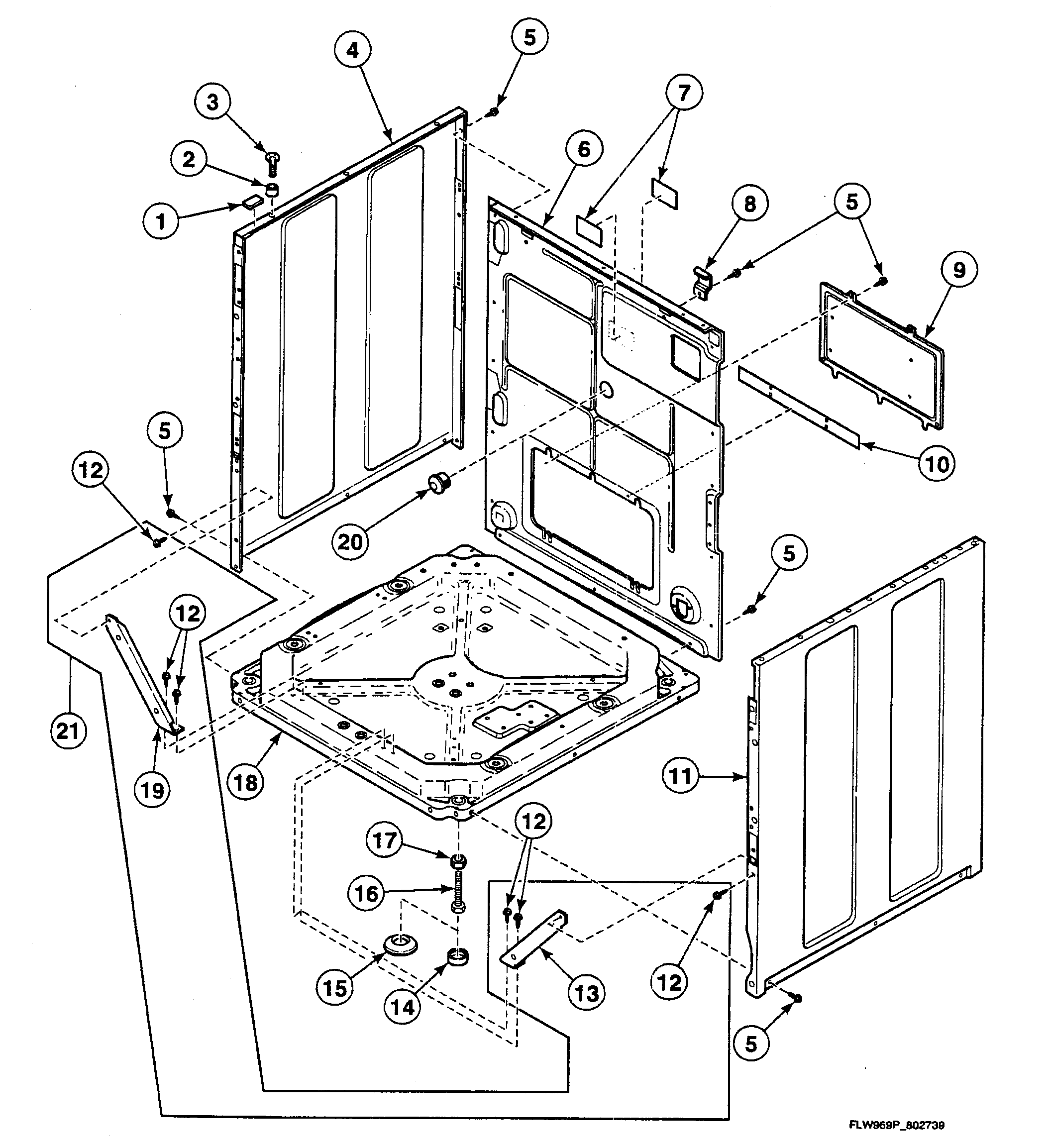

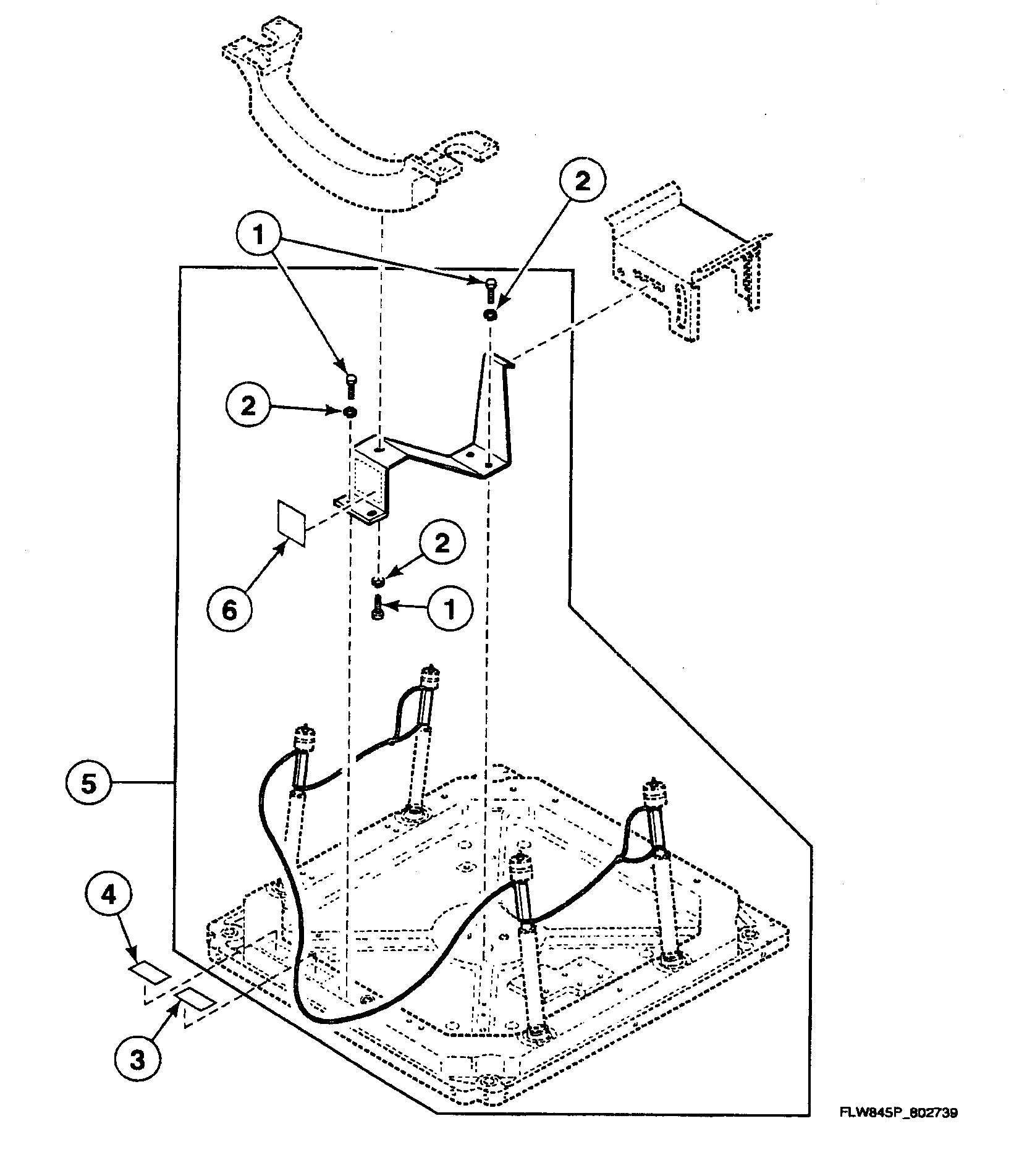

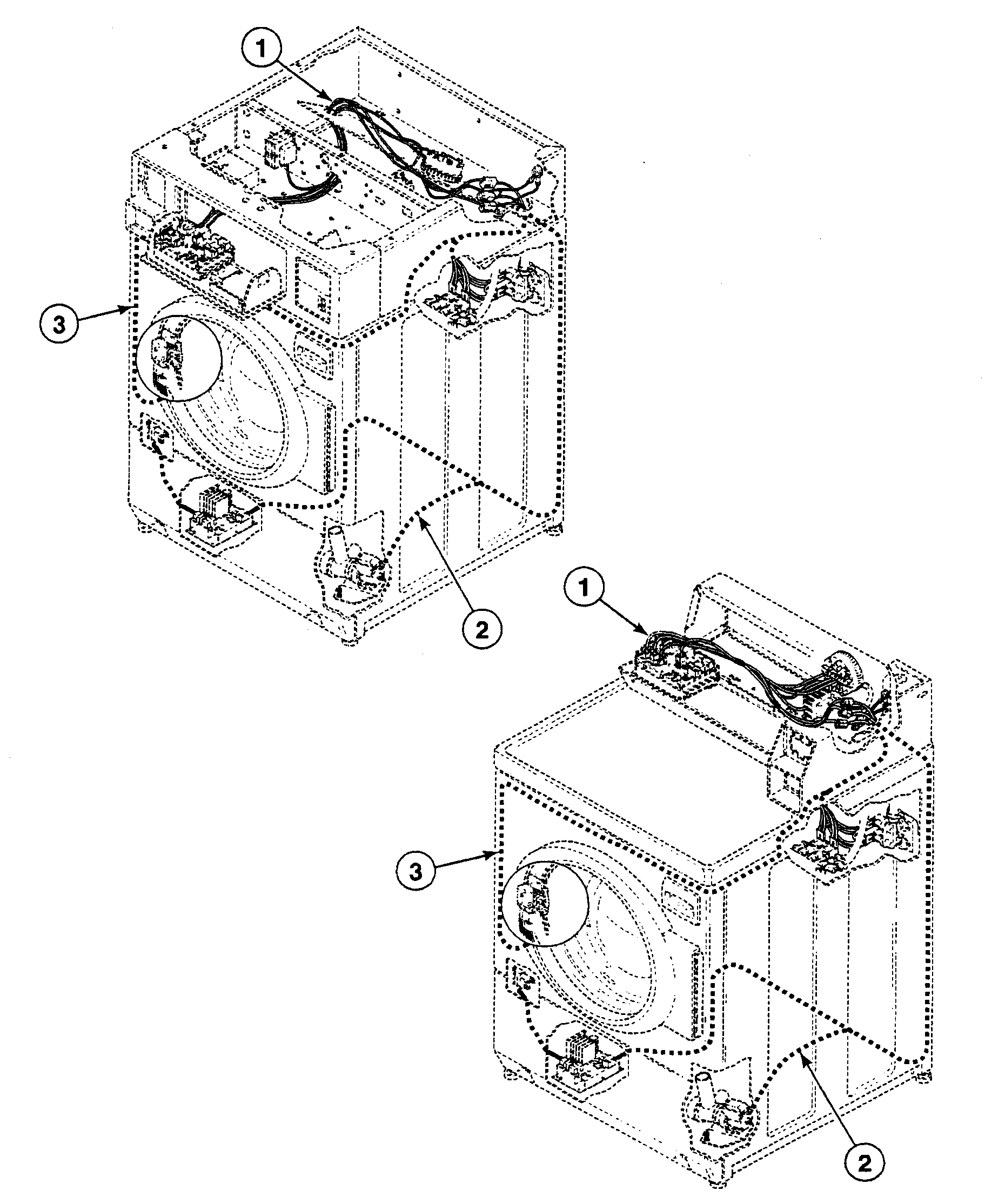

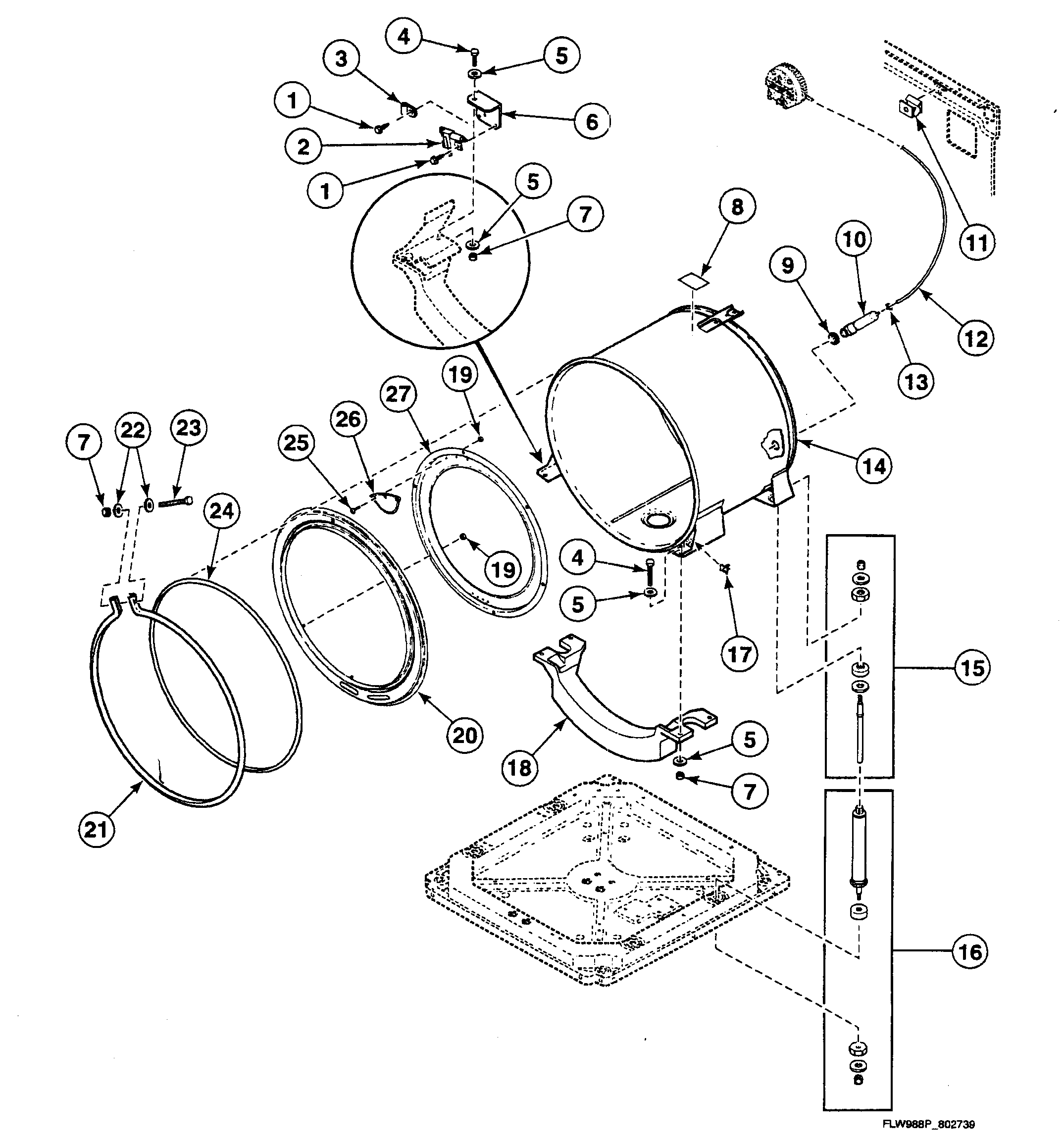

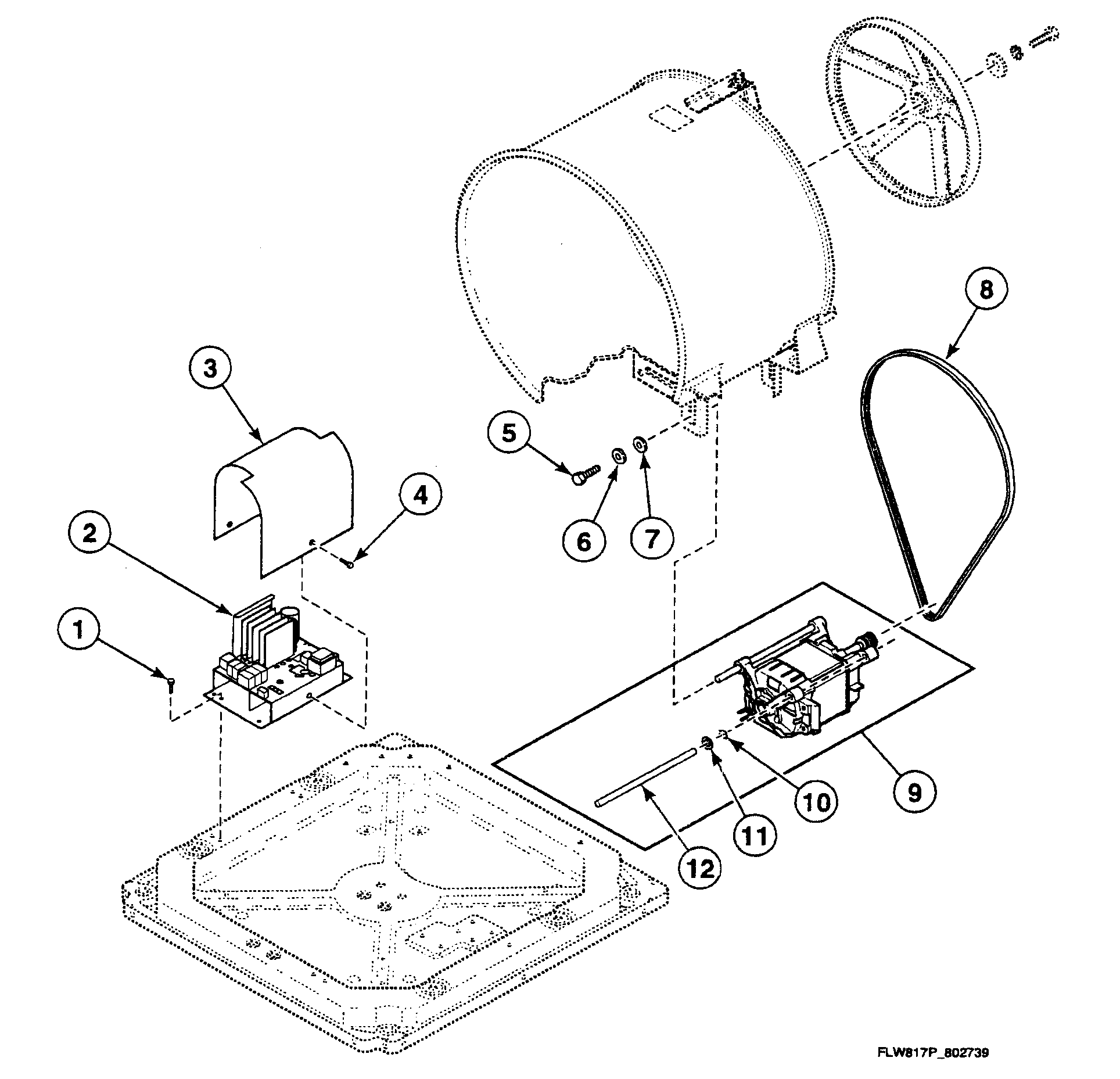

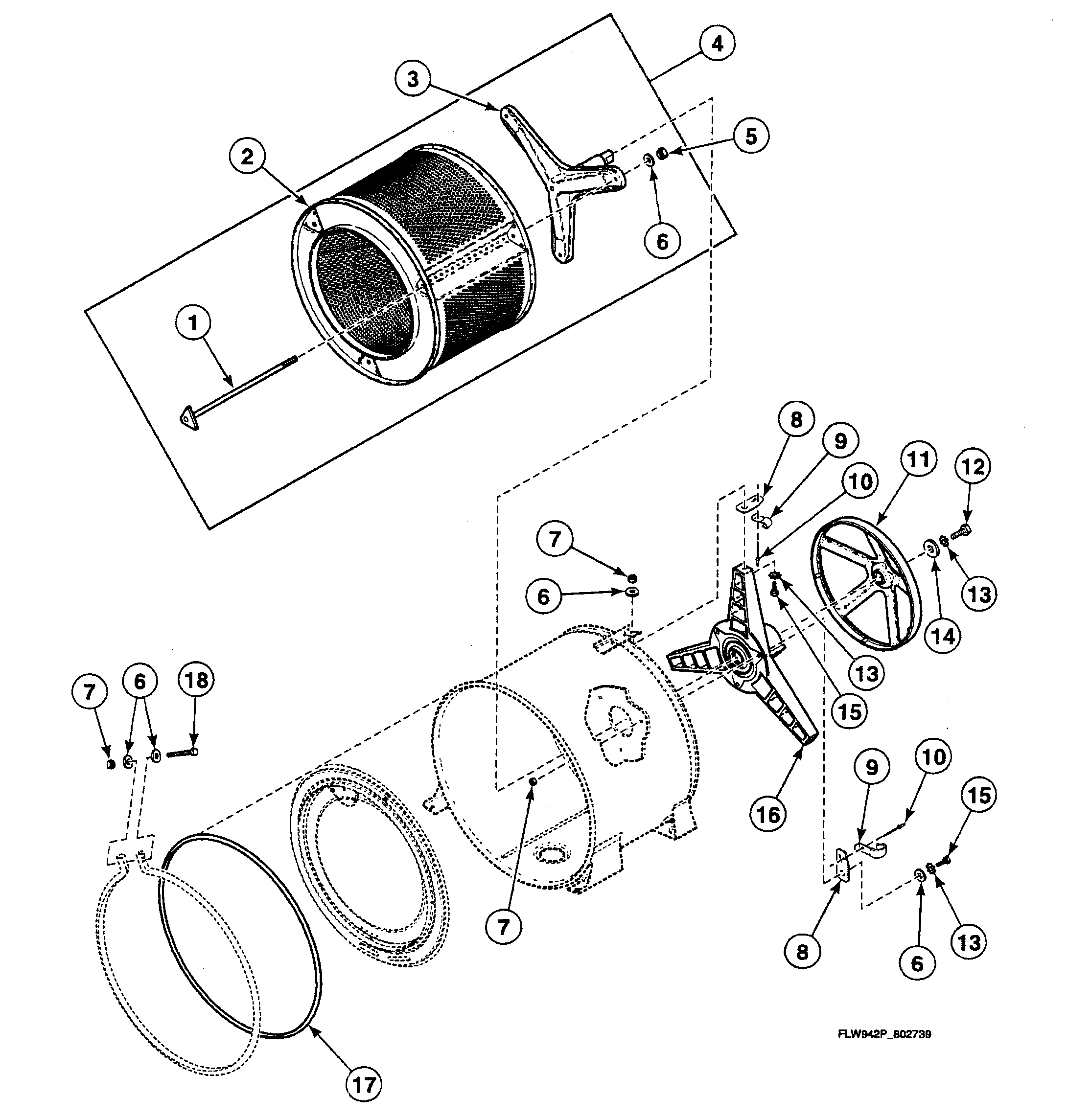

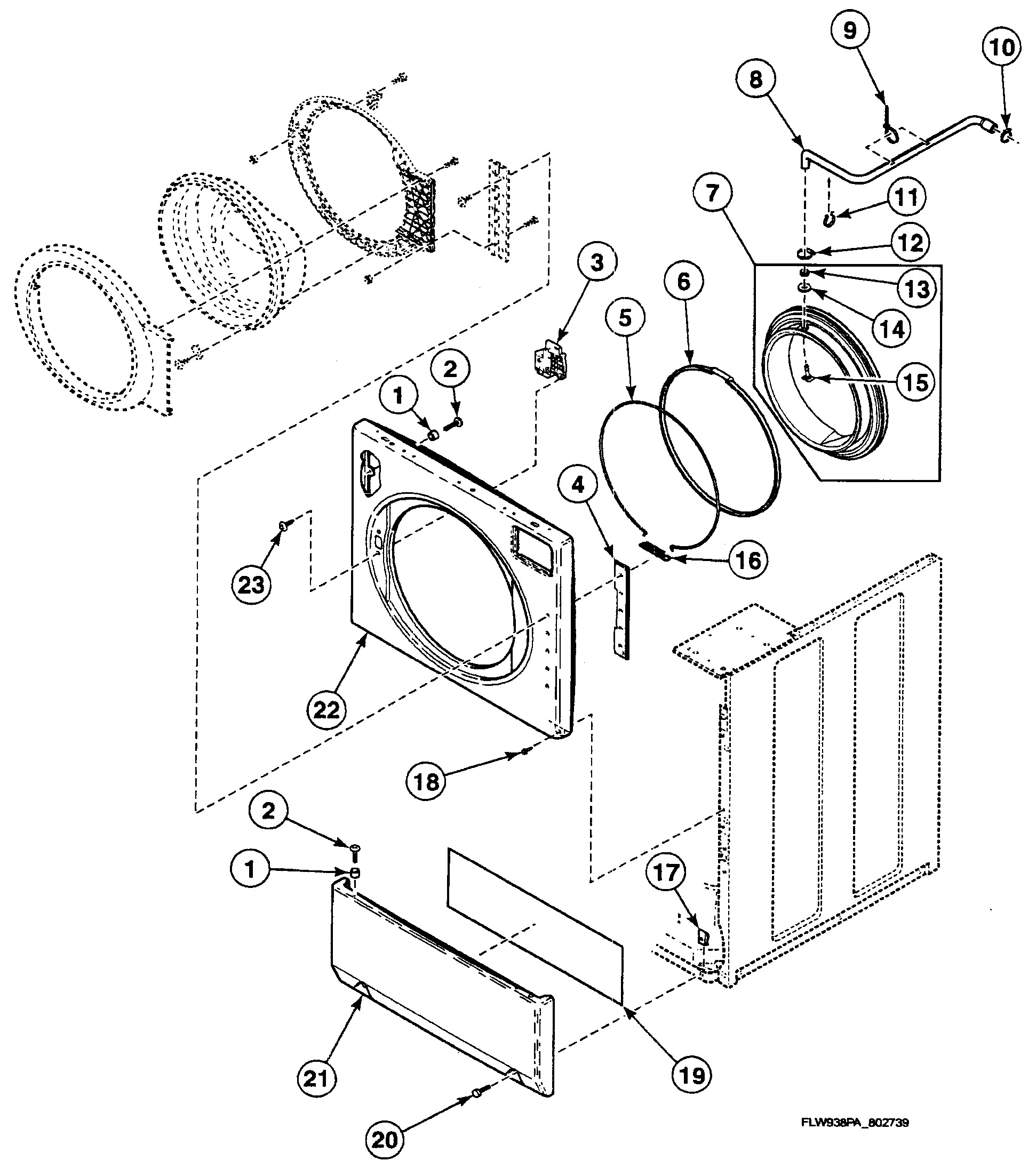

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 229 parts  |
Screw 503688
Screw

Part #503688

Replaced by #WP3390631

?
Manufacturer substitution
This part replaces 503688. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Washer Door Bezel, Inner 802307P
#4

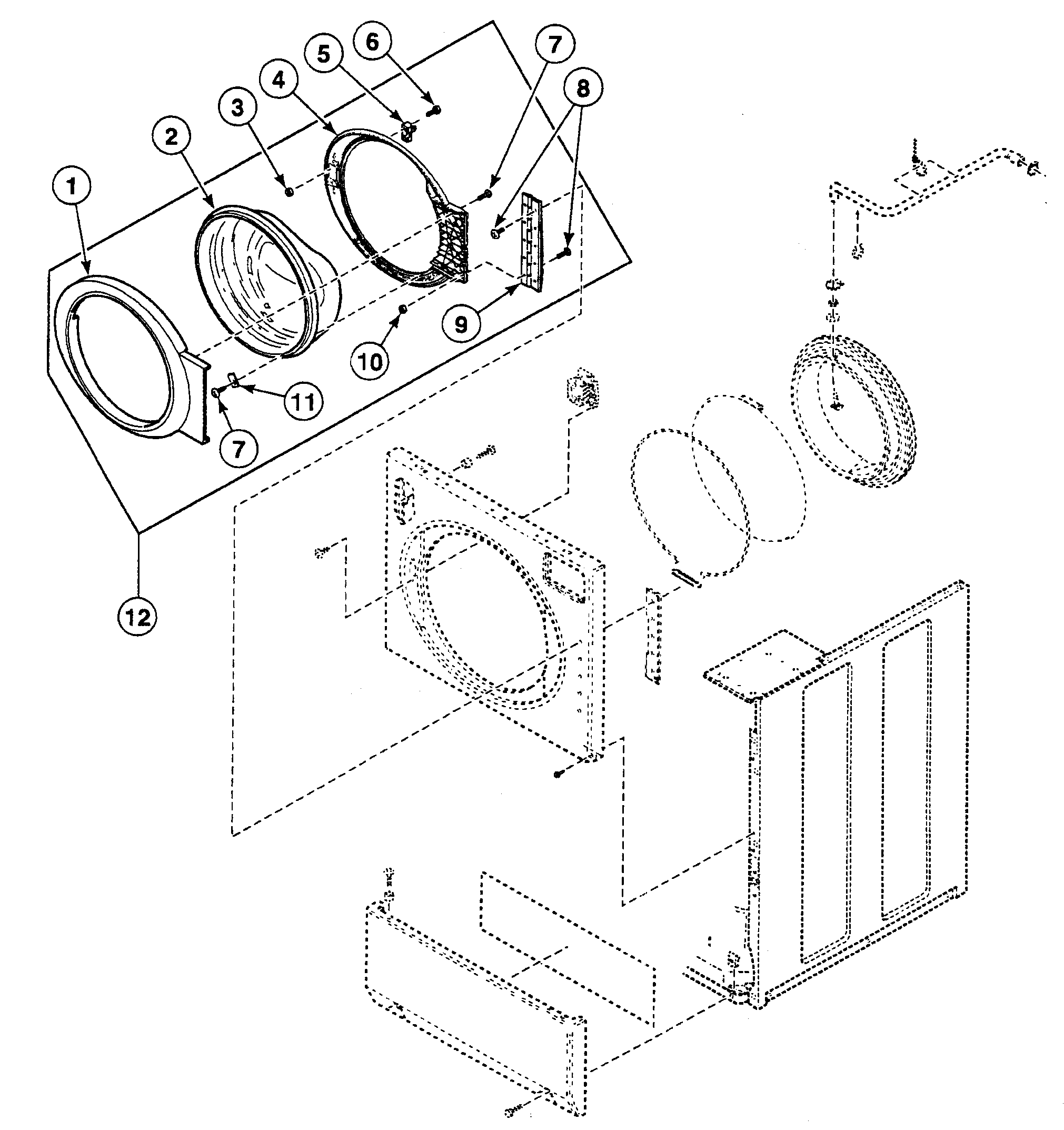

Door assy diagram

Washer door bezel, inner

Part #802307P

$124.56
In Stock
Dispenser 685756P
#15

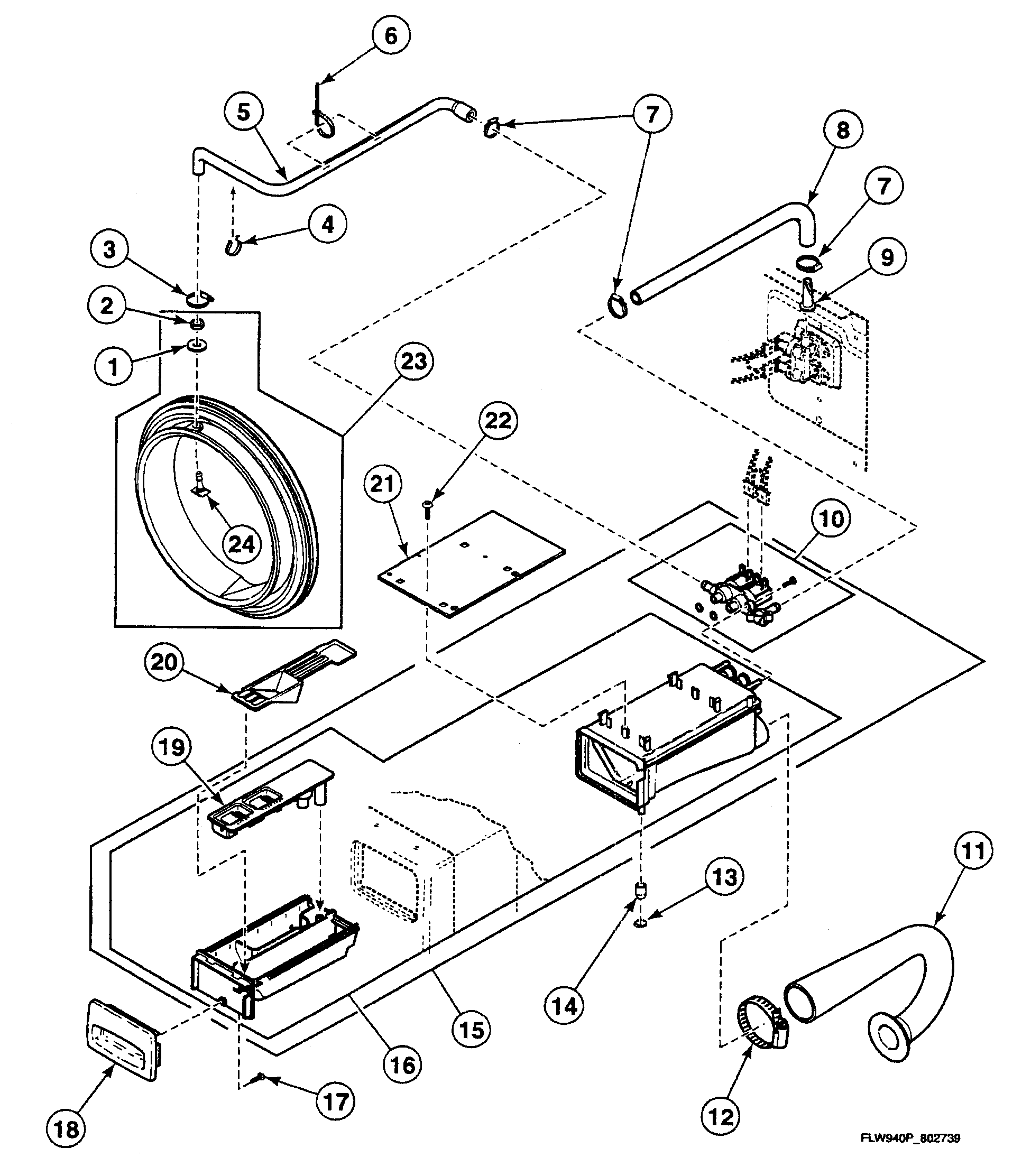

Dispenser assy diagram

Dispenser

Part #685756P

$170.42 |
7% OFF Phone Price : $182.42
In Stock
Coin Drop 38479P
#1

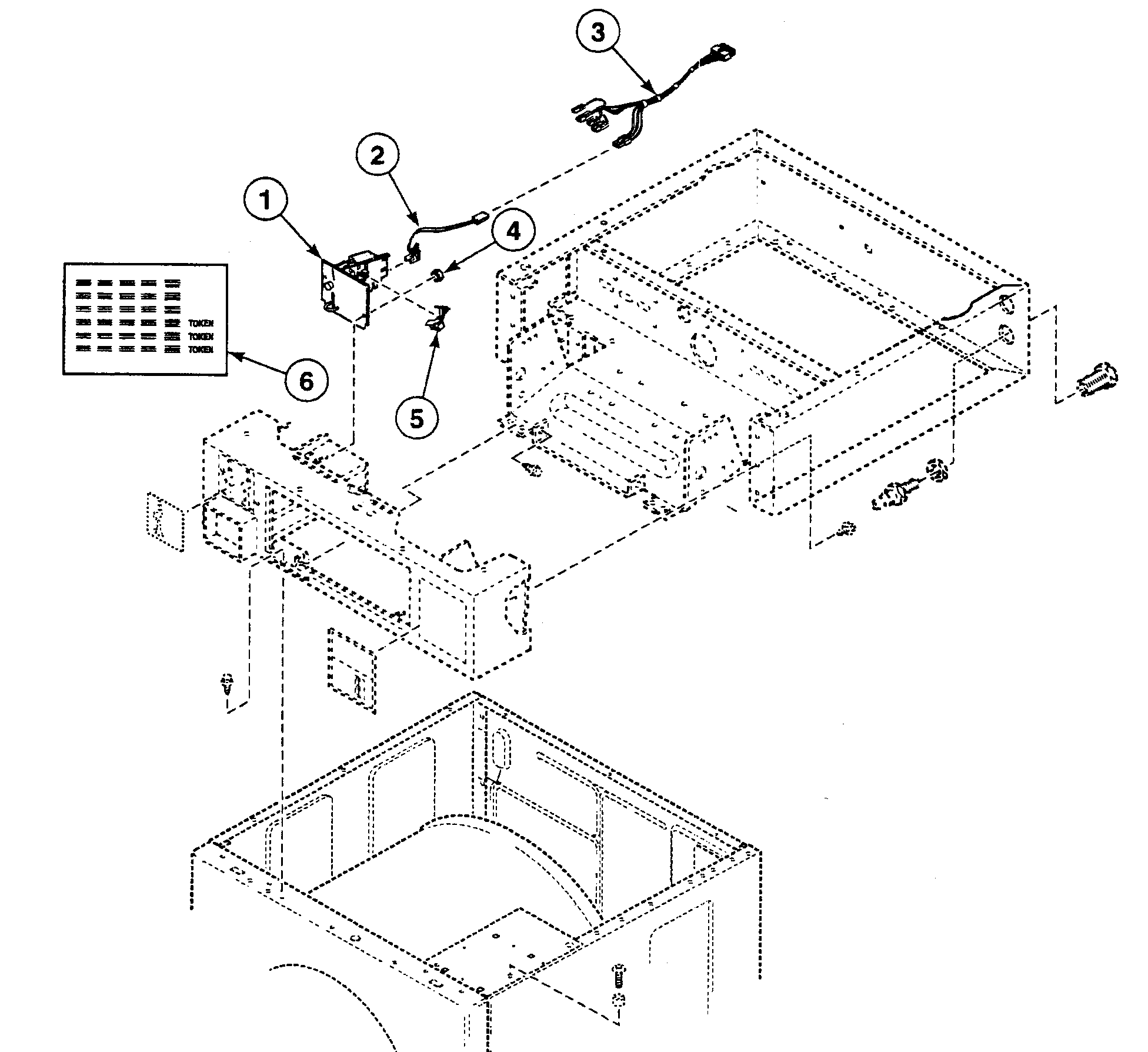

Coin drop 1 diagram

Coin drop

Part #38479P

$268.38
In Stock
Screen F270300
#8

Valve assy diagram

Screen

Part #F270300

This item is not returnable
$5.60
In Stock
Guard Wire 201595P
#5

Coin drop 1 diagram

Guard wire

Part #201595P

$46.56
In Stock
Commercial Laundry Appliance Coin Drop Assembly 38462P
#1A

Coin drop 1 diagram

Commercial laundry appliance coin drop assembly

Part #38462P

$642.12 |
$12.00 OFF Phone Price : $654.12
In Stock
Washer Water Inlet Valve 802220P
#11

Valve assy diagram

Washer water inlet valve

Part #802220P

$67.09
In Stock
Fill Hose 38349P
#7C

Valve assy diagram

Fill hose

Part #38349P

$35.67
In Stock
Coupler 200674P
#2

Coin drop 1 diagram

Coupler

Part #200674P

$147.98
In Stock
