Model # GFP1528SNWW Official GE laundry accessory

Here are the diagrams and repair parts for Official GE GFP1528SNWW laundry accessory, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Screws

ALL PARTS

Showing 10 of 12 parts |

#369

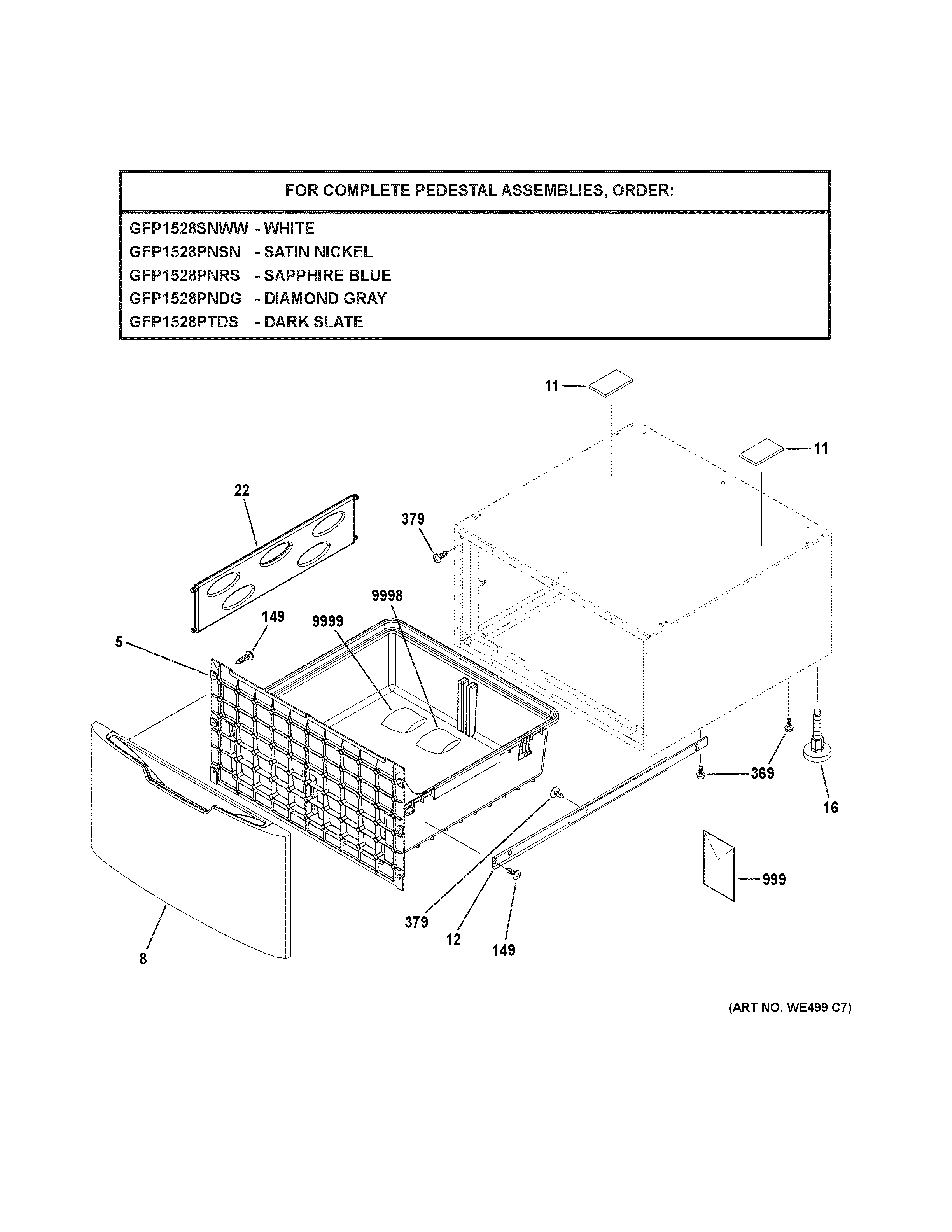

Pedestal diagram

Laundry center screw

Part #WH2X1217

$7.09 |

12% OFF Phone Price : $8.09

In Stock

Qty

Laundry Appliance Pedestal Drawer Slide Rail WH16X10099

#12

Pedestal diagram

Laundry appliance pedestal drawer slide rail

Part #WH16X10099

$18.49

In Stock

Qty

#16

Pedestal diagram

Leg assembly

Part #WH01X10585

This item is not returnable

$8.32 |

11% OFF Phone Price : $9.32

In Stock

Qty

#379

Pedestal diagram

Scr 8-18 ab

Part #WE02X20373

This item is not returnable

$7.88 |

11% OFF Phone Price : $8.88

In Stock

Qty

#22

Pedestal diagram

Pedestal drawer divider

Part #WH01X30237

This item is not returnable

$26.02 |

19% OFF Phone Price : $32.02

In Stock

Qty

Laundry Appliance Pedestal Installation Bracket Kit (replaces Wh01x30240) WH02X30977

#9999

Pedestal diagram

Laundry appliance pedestal installation bracket kit (replaces wh01x30240)

Part #WH02X30977

$63.54 |

9% OFF Phone Price : $69.54

In Stock

Qty

Pedestal diagram

Ge pedestal front panel white

Part #WH13X30239

$44.53

In Stock

Qty

#149

Pedestal diagram

Scr 8-18 hi/

Part #WR01X10196

This item is not returnable

$7.88 |

11% OFF Phone Price : $8.88

In Stock

Qty

#11

Pedestal diagram

Foam pad

Part #WH01X30260

$11.40

In Stock

Qty

#9998

Pedestal diagram

Pedestal hardware pack

Part #WH01X30240

Replaced by #WH02X30977

$63.54 |

9% OFF Phone Price : $69.54

In Stock

Qty
