Model # FAS255J2A2 Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAS255J2A2 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

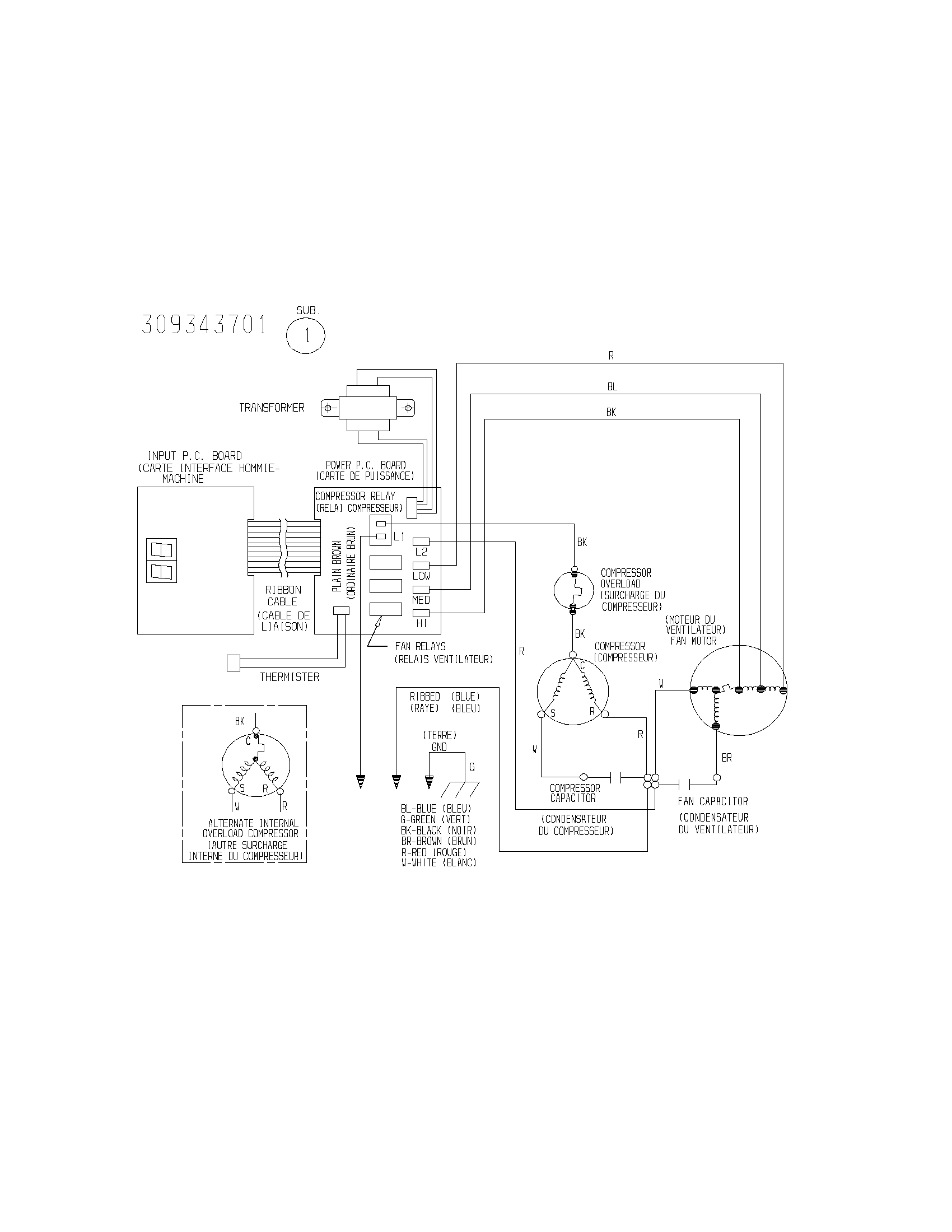

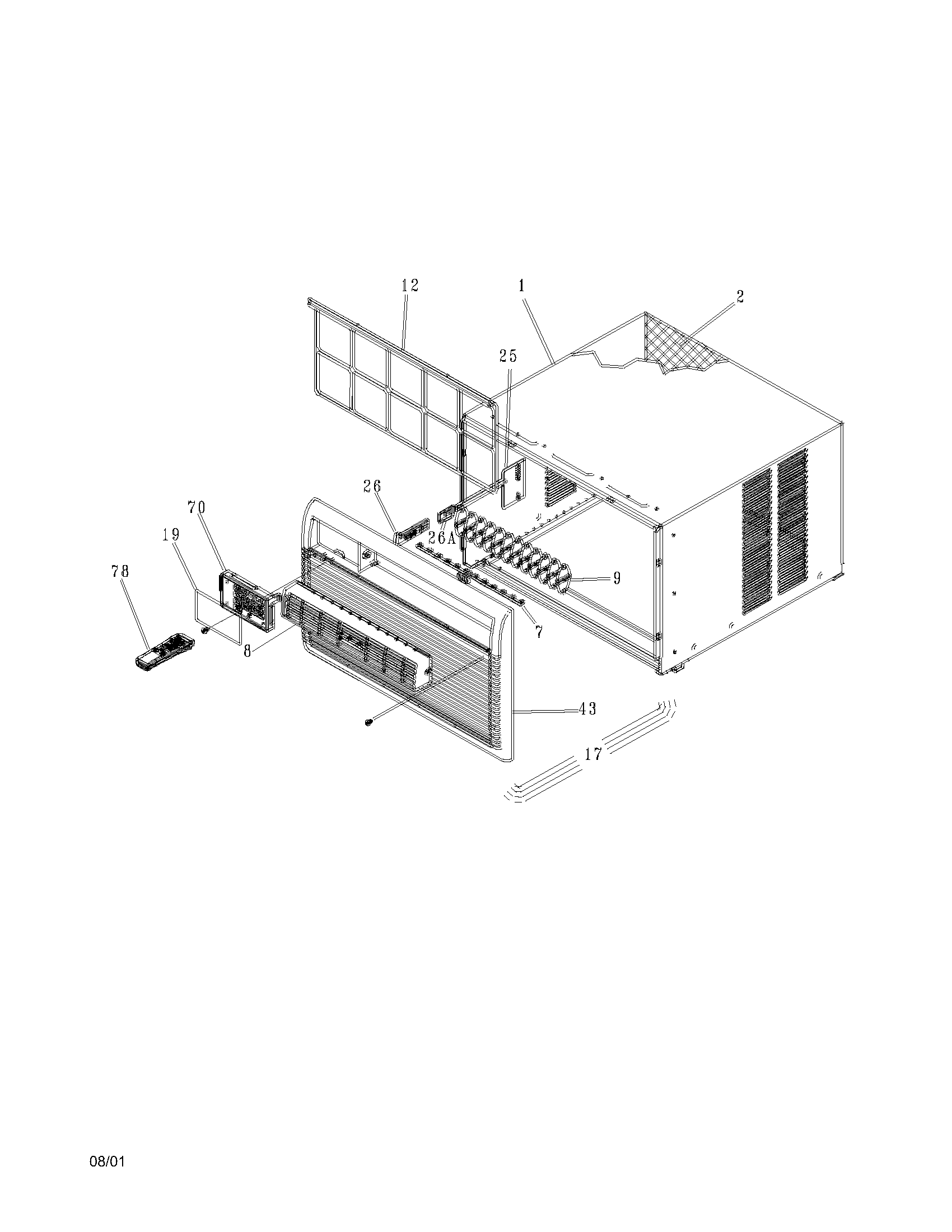

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Westinghouse Screw-wrapper 5303293767
#29

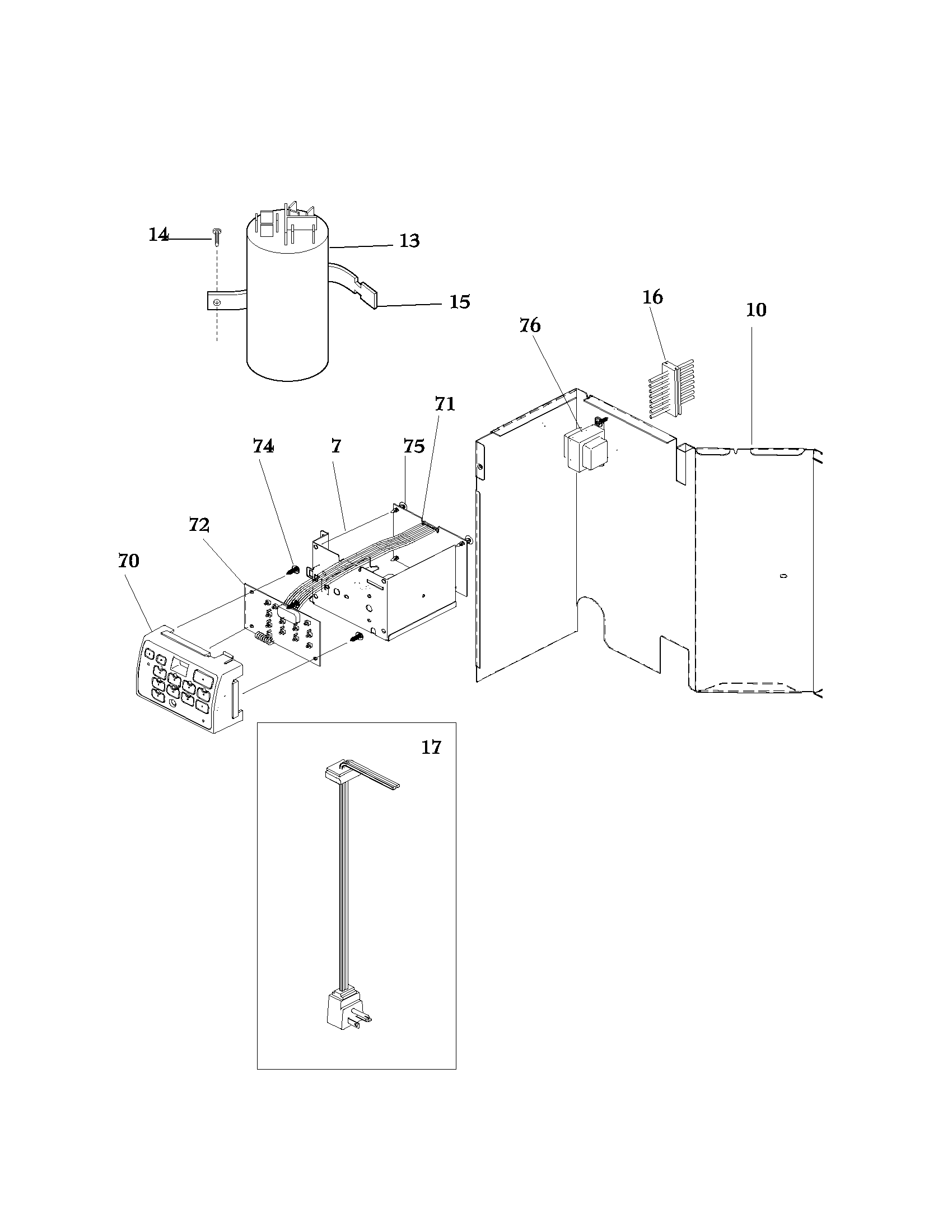

Controls diagram

Westinghouse screw-wrapper

Part #5303293767

This item is not returnable
$5.80
In Stock
Room Air Conditioner Screw 5303015427
#7

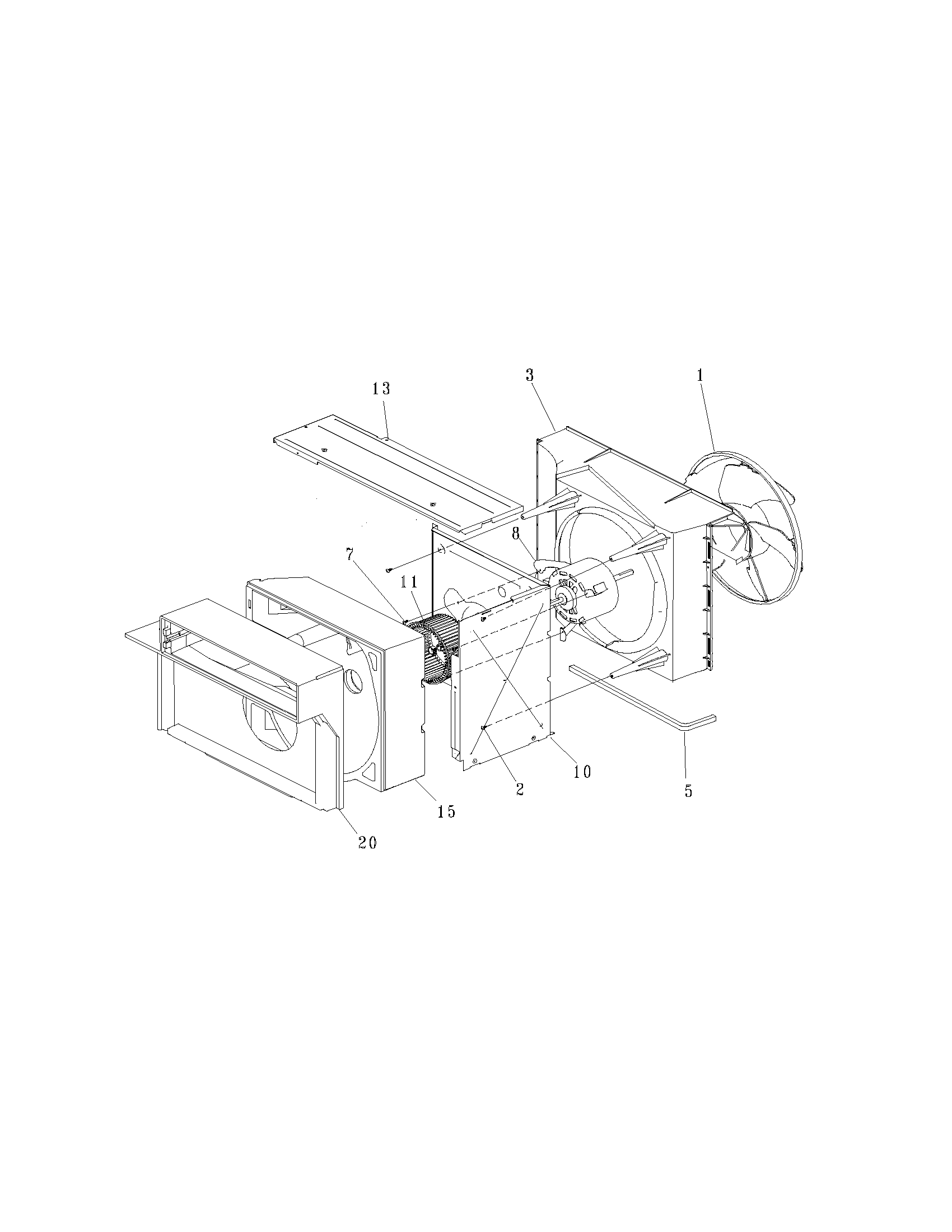

Air handling diagram

Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
$14.69
In Stock
Bracket Screw 3015312
#14

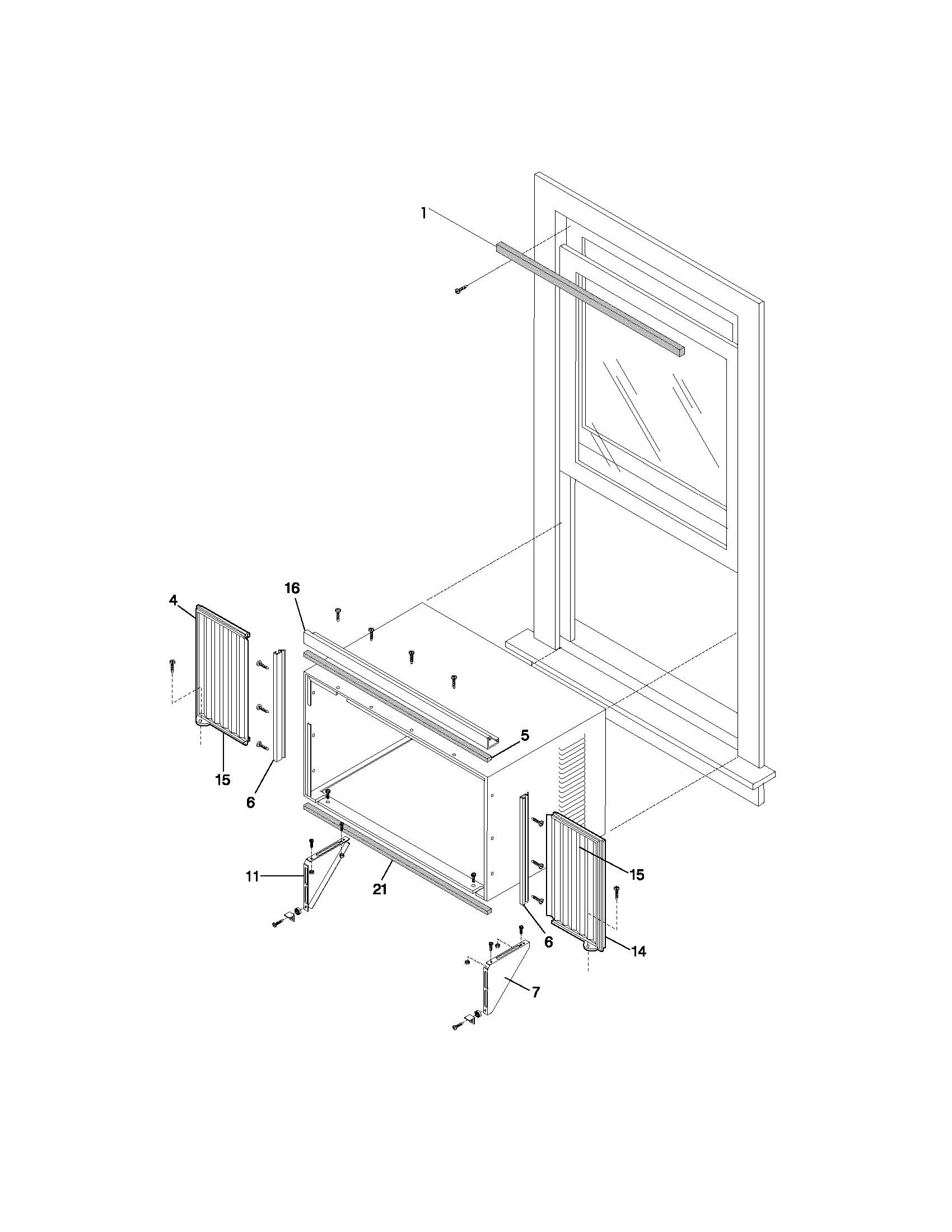

Window mounting diagram

Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
$5.80
In Stock
Universal/multiflex (frigidaire) Cover 5303002067
#7

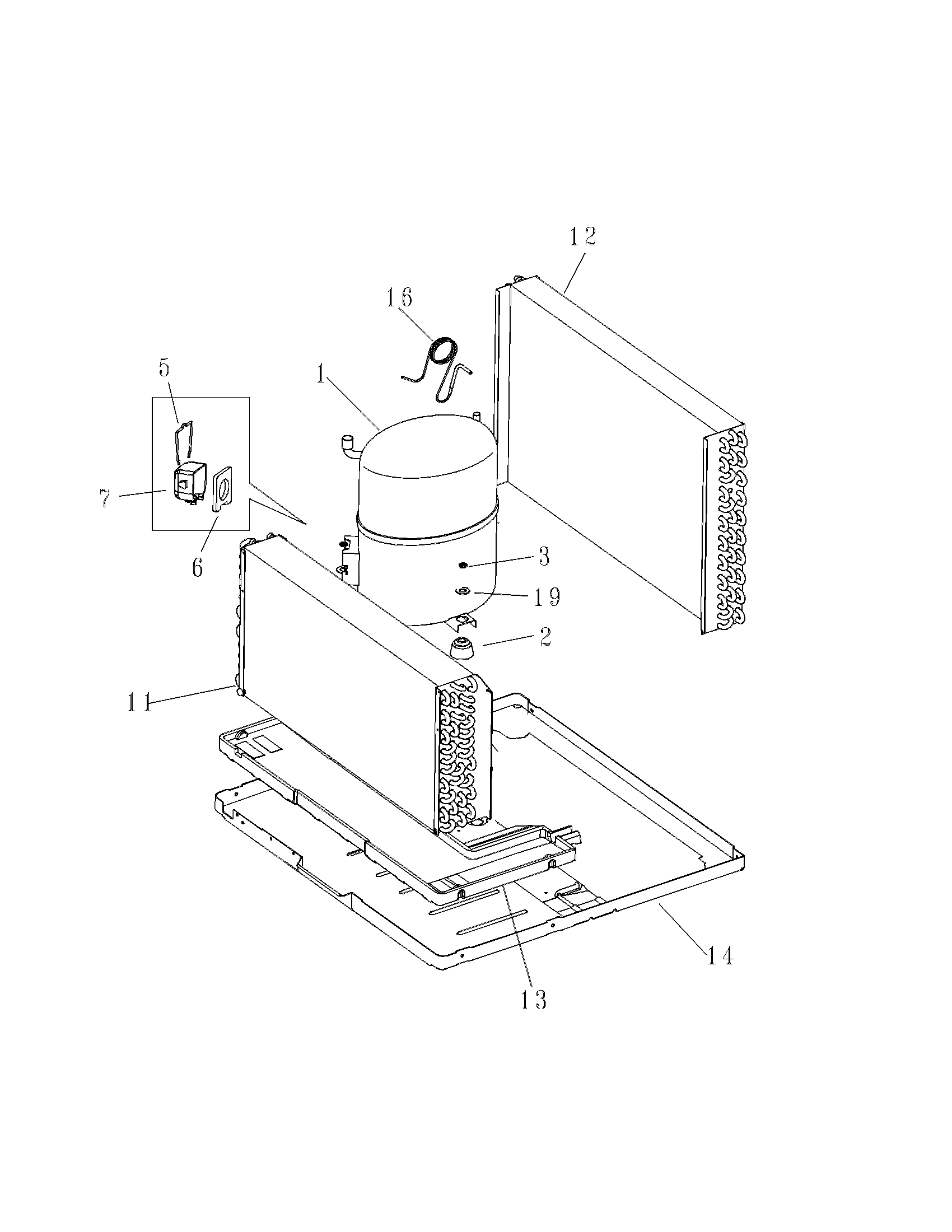

System diagram

Universal/multiflex (frigidaire) cover

Part #5303002067

$14.32
In Stock
Room Air Conditioner Electronic Control Board 309350403
#72

Controls diagram

Room air conditioner electronic control board

Part #309350403

$157.39 |
7% OFF Phone Price : $169.39
In Stock
Frigidaire Room Air Conditioner Electronic Control Board Assembly 5304420622
#71

Controls diagram

Frigidaire room air conditioner electronic control board assembly

Part #5304420622

$394.85
In Stock
Foam Strip 5304407729
#1

Window mounting diagram

Foam strip

Part #5304407729

$25.17
In Stock
Sleeve 309630301
#13

Air handling diagram

Sleeve

Part #309630301

$9.99
In Stock
Bracket Screw 5303301590
#74

Controls diagram

Bracket screw

Part #5303301590

This item is not returnable
$4.63
In Stock
Screw 3202975
#2

Air handling diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
