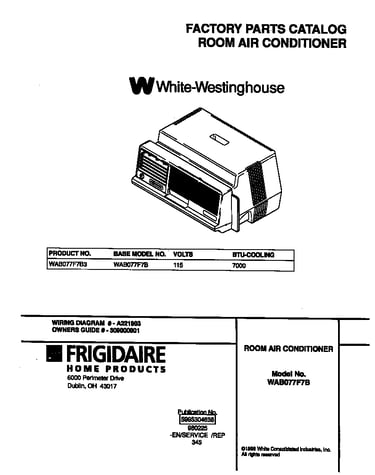

Model # WAB077F7B3 Official White-Westinghouse room air conditioner - p5995304838

Here are the diagrams and repair parts for Official White-Westinghouse WAB077F7B3 room air conditioner - p5995304838, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

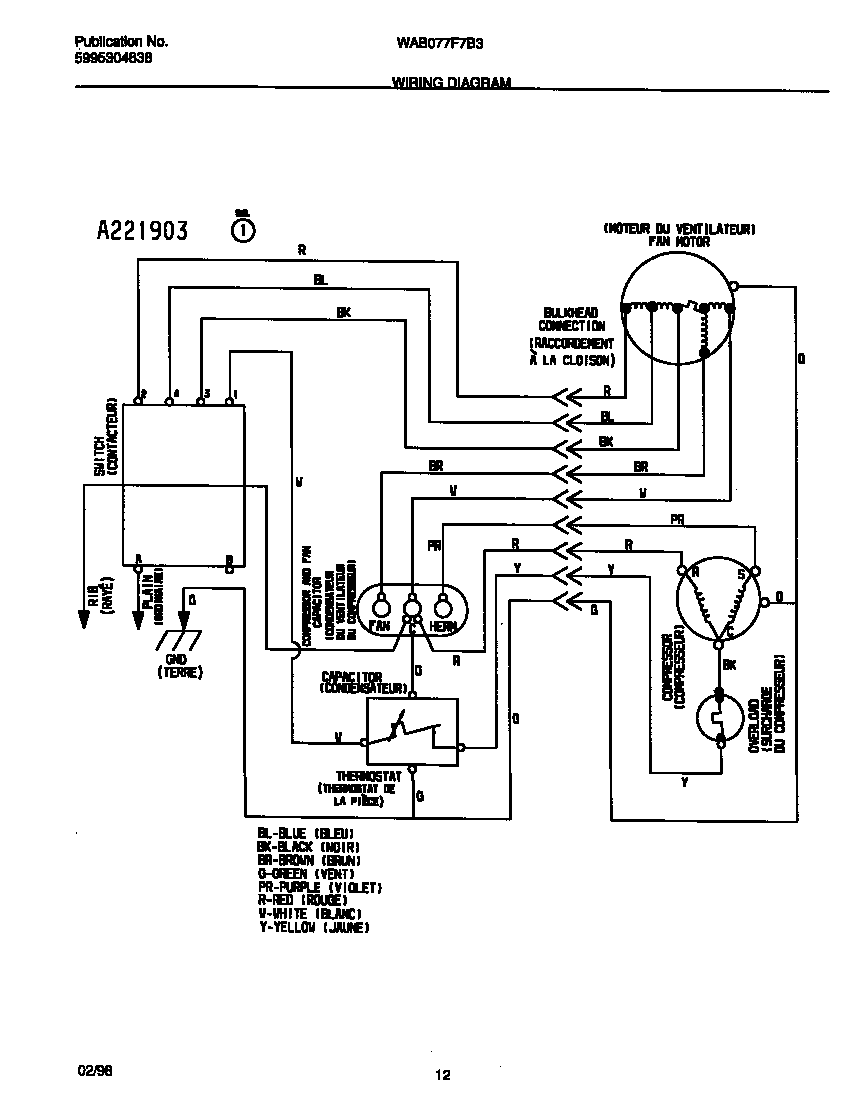

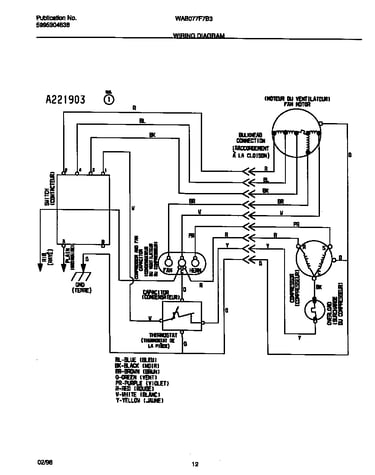

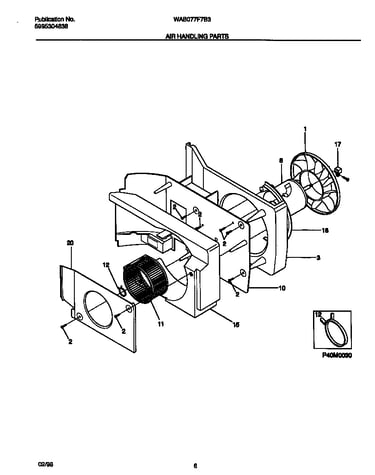

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Accordian,(2) 53033214828
#15

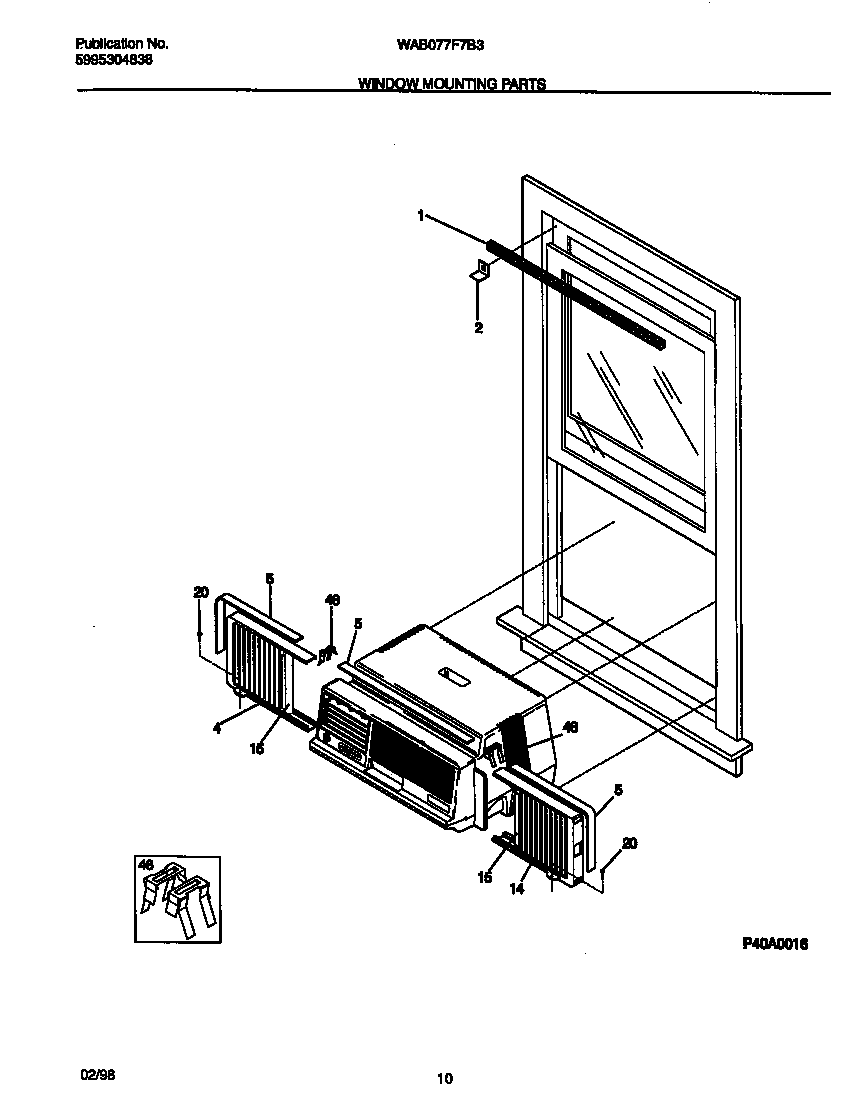

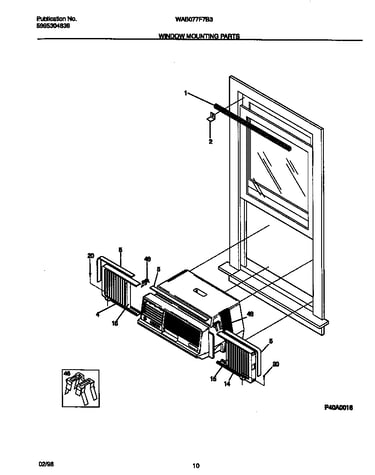

Window mounting parts diagram

Accordian,(2)

Part #53033214828

The manufacturer no longer makes this part, and there's no substitute part

Capacitor Nut 53032700928
#30

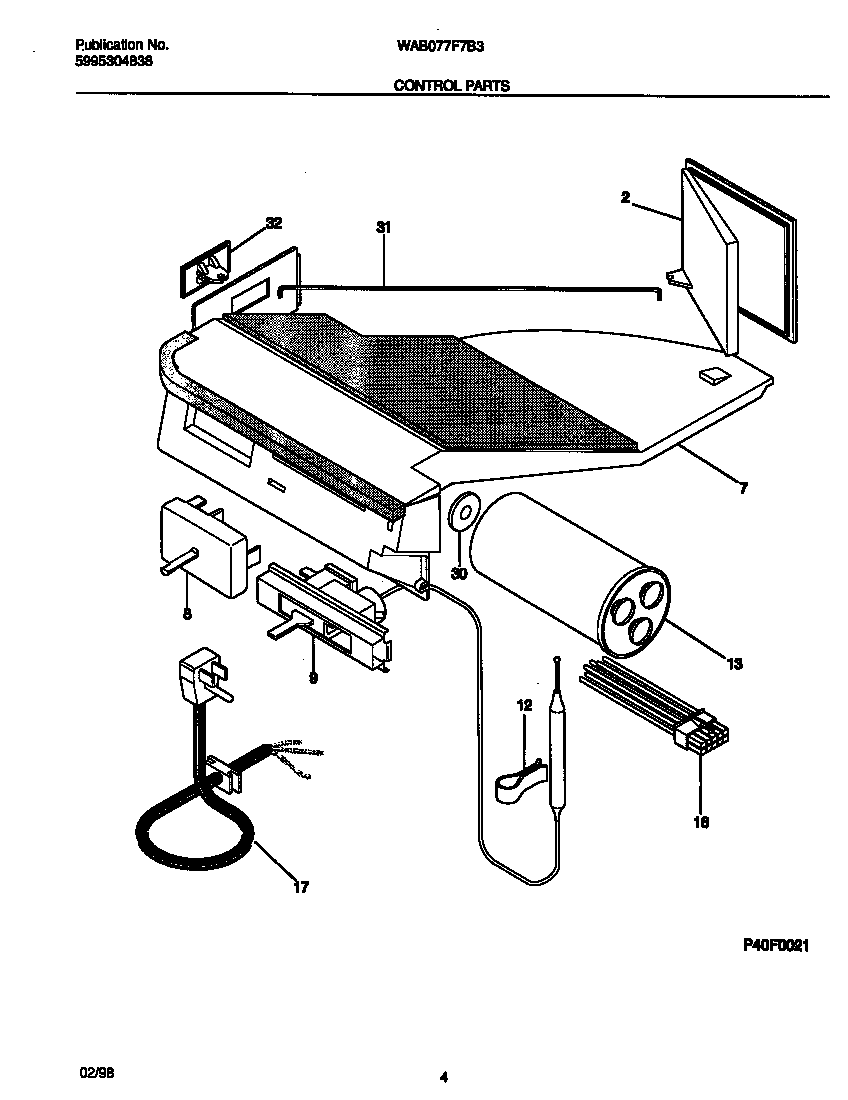

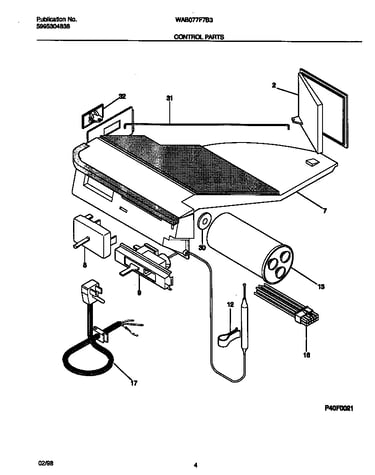

Control parts diagram

Capacitor nut

Part #53032700928

The manufacturer no longer makes this part, and there's no substitute part

Bracket 53032110568
#2

Window mounting parts diagram

Bracket

Part #53032110568

The manufacturer no longer makes this part, and there's no substitute part

Frame,lh 53033215048
#4

Window mounting parts diagram

Frame,lh

Part #53033215048

The manufacturer no longer makes this part, and there's no substitute part

Knob-control,(2) 3093068018
#20

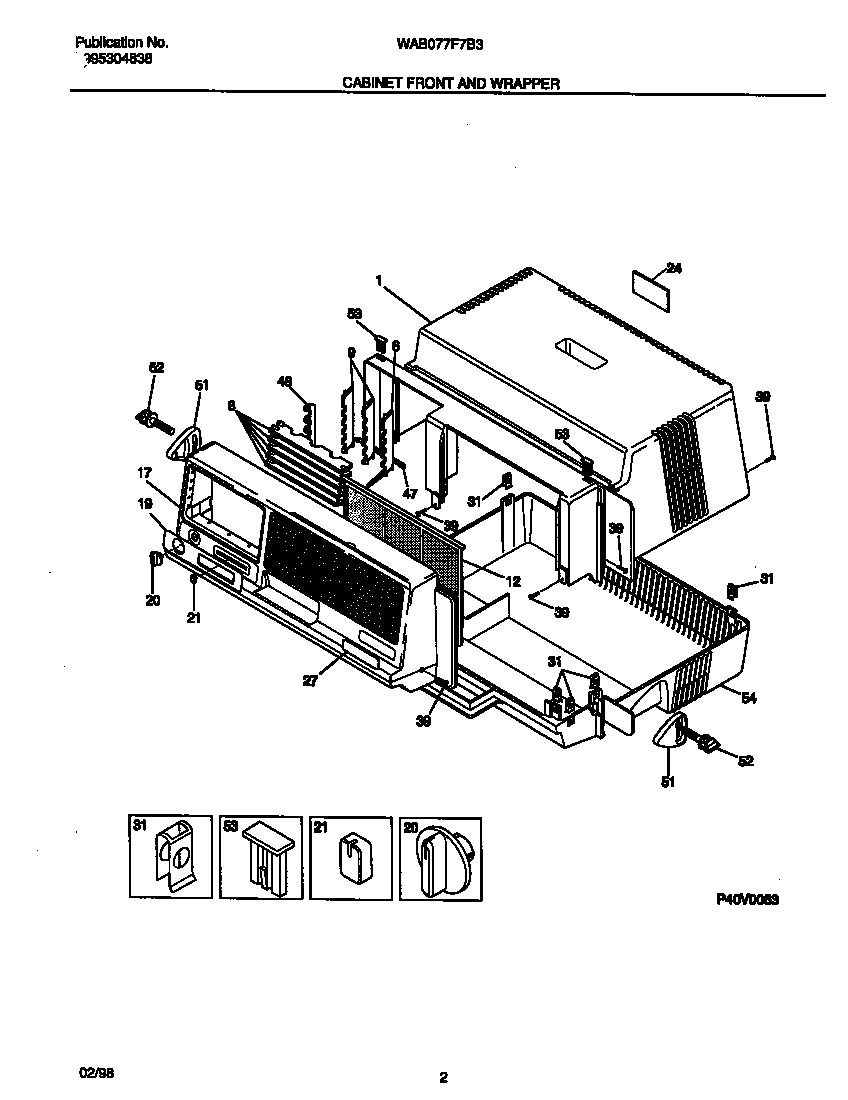

Cabinet front and wrapper diagram

Knob-control,(2)

Part #3093068018

The manufacturer no longer makes this part, and there's no substitute part

Bolt,compressor ,(3) 3091014058
#4

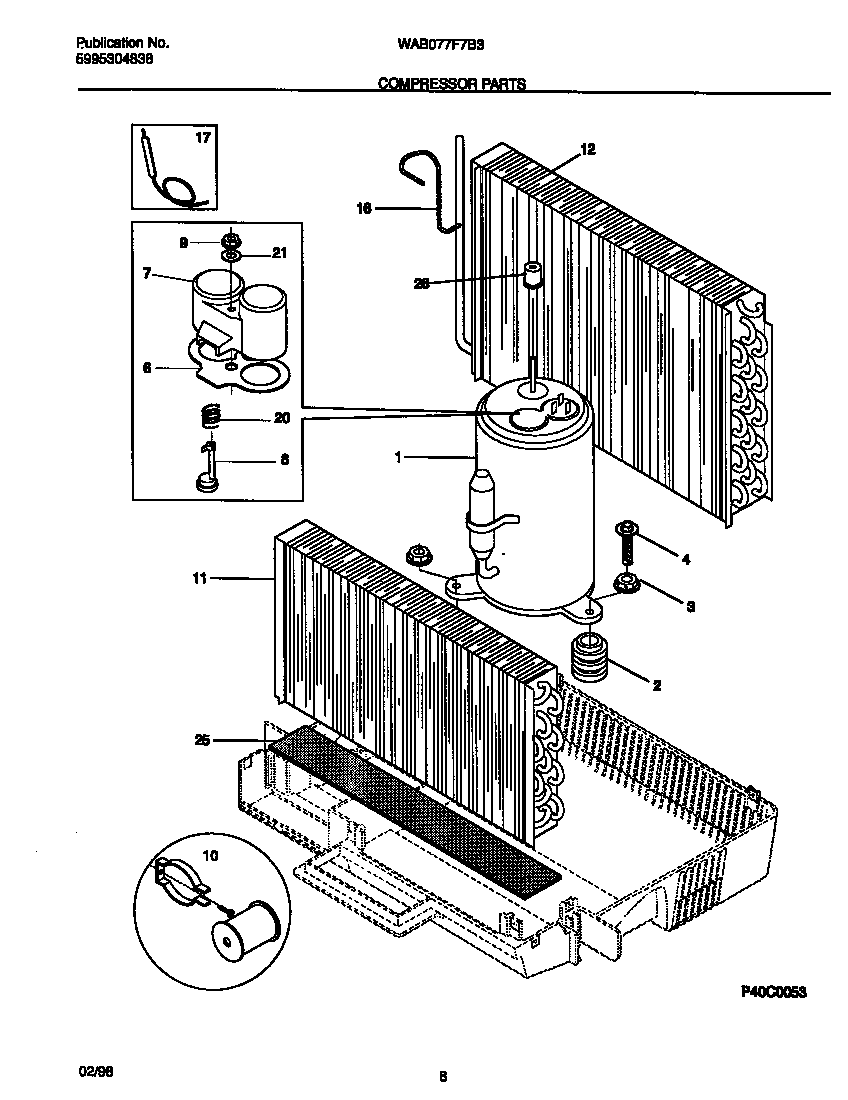

Compressor parts diagram

Bolt,compressor ,(3)

Part #3091014058

The manufacturer no longer makes this part, and there's no substitute part

Link-louver Horiz 53032854778
#47

Cabinet front and wrapper diagram

Link-louver horiz

Part #53032854778

The manufacturer no longer makes this part, and there's no substitute part

Wrapper-upper 53033078028
#1

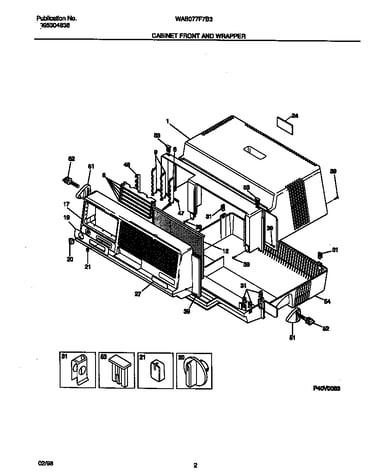

Cabinet front and wrapper diagram

Wrapper-upper

Part #53033078028

The manufacturer no longer makes this part, and there's no substitute part

Button,lock,front ,(2) 53032895688
#53

Cabinet front and wrapper diagram

Button,lock,front ,(2)

Part #53032895688

The manufacturer no longer makes this part, and there's no substitute part

Knob-slide 53033031148
#21

Cabinet front and wrapper diagram

Knob-slide

Part #53033031148

The manufacturer no longer makes this part, and there's no substitute part
