Kenmore
Faucet Water Filter

Model # 625349210 Official Kenmore iron filter

Here are the diagrams and repair parts for Official Kenmore 625349210 iron filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

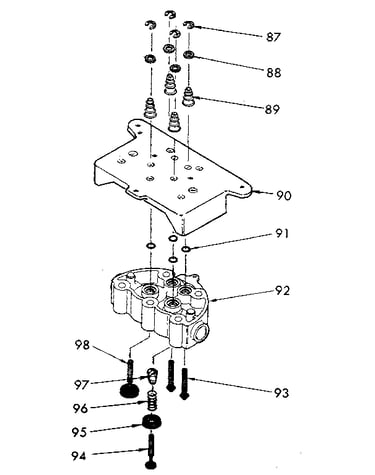

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Washer 900570
#17

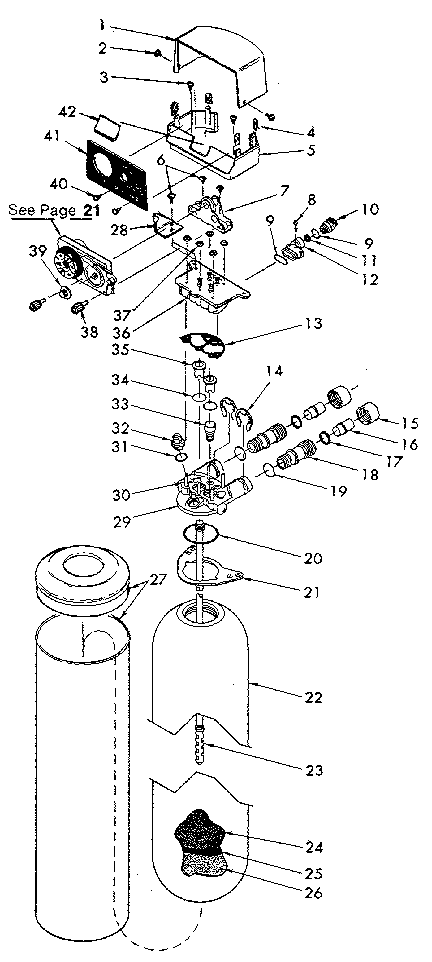

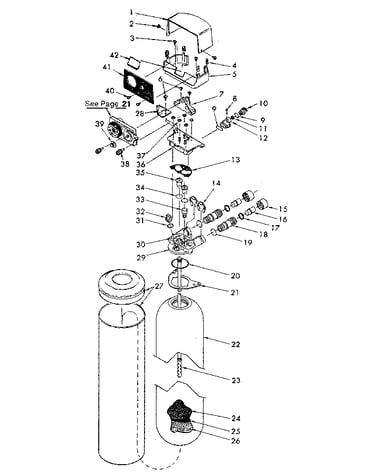

Filter assembly diagram

Washer

Part #900570

Replaced by #7170335

?
Manufacturer substitution
This part replaces 900570. Substitute parts can look different from the original.
This item is not returnable
$9.39 |
10% OFF Phone Price : $10.39
In Stock
Water Filtration System Filtering Sand, 10-lb 501783
#25

Filter assembly diagram

Water filtration system filtering sand, 10-lb

Part #501783

Replaced by #0501783

?
Manufacturer substitution
This part replaces 501783. Substitute parts can look different from the original.
$30.59 |
16% OFF Phone Price : $36.59
In Stock
Tube 507615
#16

Filter assembly diagram

Tube

Part #507615

Replaced by #0507615

?
Manufacturer substitution
This part replaces 507615. Substitute parts can look different from the original.
This item is not returnable
$19.86 |
9% OFF Phone Price : $21.86
In Stock
Flow Washer 509537
#11

Filter assembly diagram

Flow washer

Part #509537

Replaced by #0509537

?
Manufacturer substitution
This part replaces 509537. Substitute parts can look different from the original.
$15.71
In Stock
Spring 1234900
#61

Timer assembly diagram

Spring

Part #1234900

This item is not returnable
$2.99
In Stock
Bushing 503287
#57

Timer assembly diagram

Bushing

Part #503287

This item is not returnable
$2.99
In Stock
Push Arm 1230500
#60

Timer assembly diagram

Push arm

Part #1230500

$8.99
In Stock
Ring 900287
#56

Timer assembly diagram

Ring

Part #900287

This item is not returnable
$2.99
In Stock
U-plate 7060467
#79

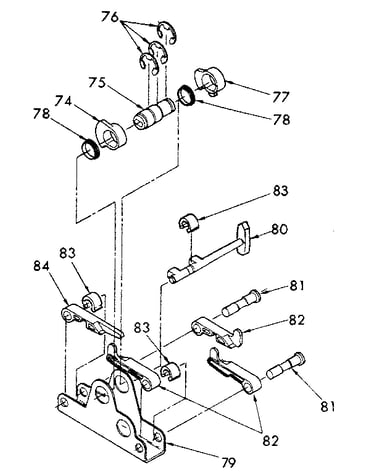

Cam nest assembly diagram

U-plate

Part #7060467

$43.99
In Stock
Shroud 7092210
#27

Filter assembly diagram

Shroud

Part #7092210

$187.67
In Stock
