Model # 706593890 Official Craftsman tool box

Here are the diagrams and repair parts for Official Craftsman 706593890 tool box, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |

Tool Chest Clip M9371
#NI

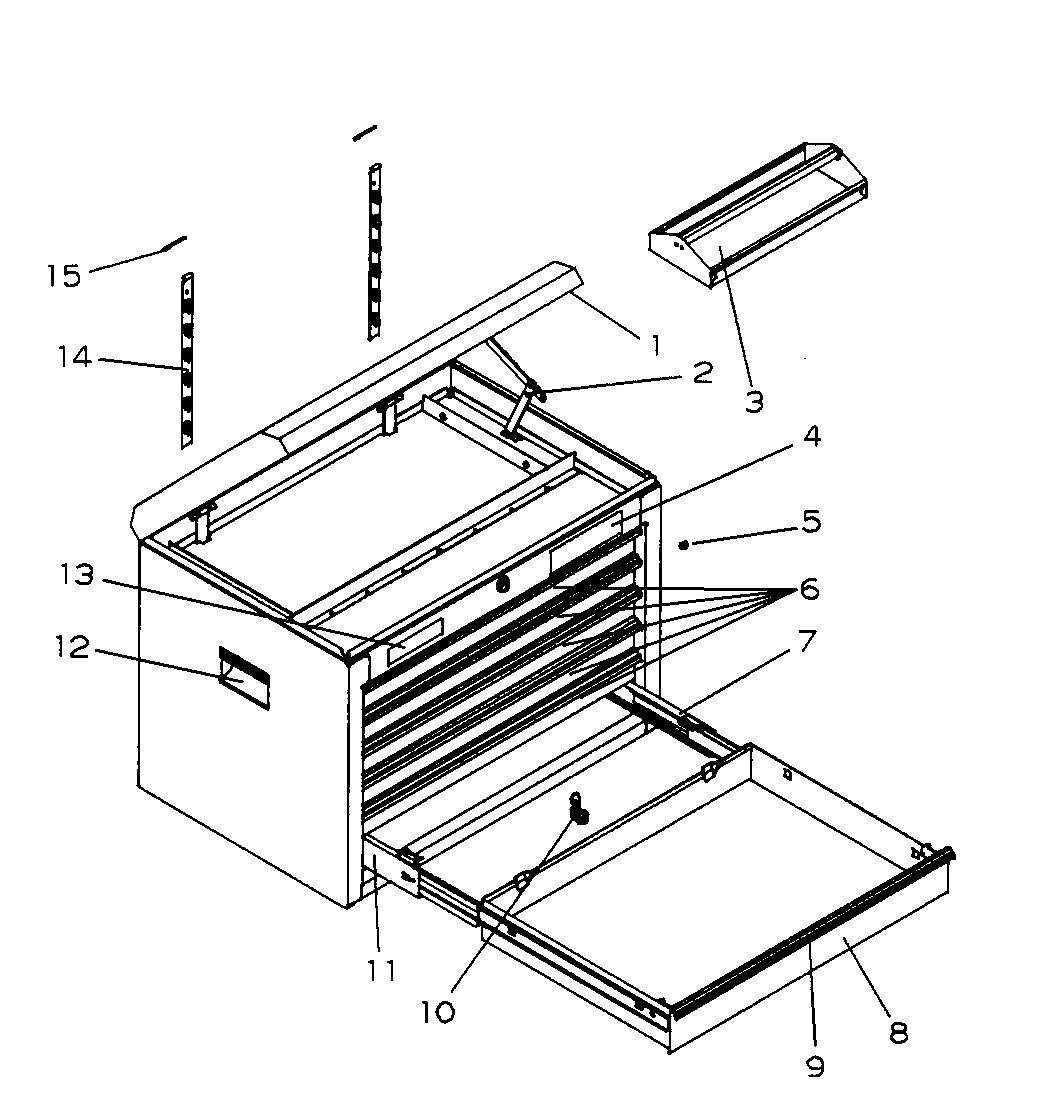

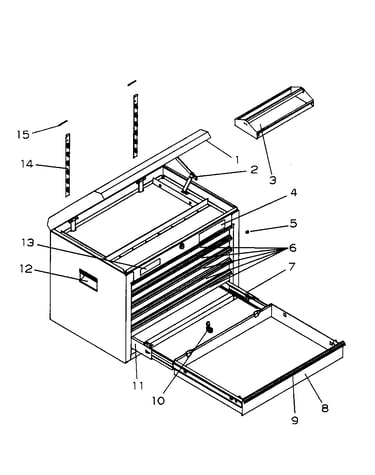

Cabinet parts diagram

Tool chest clip

Part #M9371

The manufacturer no longer makes this part, and there's no substitute part

Plug M14593
#5

Cabinet parts diagram

Plug

Part #M14593

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Lock Bar T16514-EB2
#14

Cabinet parts diagram

Tool chest lock bar

Part #T16514-EB2

The manufacturer no longer makes this part, and there's no substitute part

Tote Tray A4828-EB2
#3

Cabinet parts diagram

Tote tray

Part #A4828-EB2

The manufacturer no longer makes this part, and there's no substitute part

Companion Tool Chest Door Hinge Pin M1495
#15

Cabinet parts diagram

Companion tool chest door hinge pin

Part #M1495

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Handle M12833
#12

Cabinet parts diagram

Tool chest handle

Part #M12833

The manufacturer no longer makes this part, and there's no substitute part

Drawer Slide M15861
#11

Cabinet parts diagram

Drawer slide

Part #M15861

The manufacturer no longer makes this part, and there's no substitute part

Lock M12918A35-SS
#10

Cabinet parts diagram

Lock

Part #M12918A35-SS

The manufacturer no longer makes this part, and there's no substitute part

Slide M15862
#7

Cabinet parts diagram

Slide

Part #M15862

The manufacturer no longer makes this part, and there's no substitute part

Drawer 3"b A17016A1-EB2
#8

Cabinet parts diagram

Drawer 3"b

Part #A17016A1-EB2

The manufacturer no longer makes this part, and there's no substitute part
