GE
Countertop Microwave

Model # JEM10F01 Official GE countertop microwave

Here are the diagrams and repair parts for Official GE JEM10F01 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

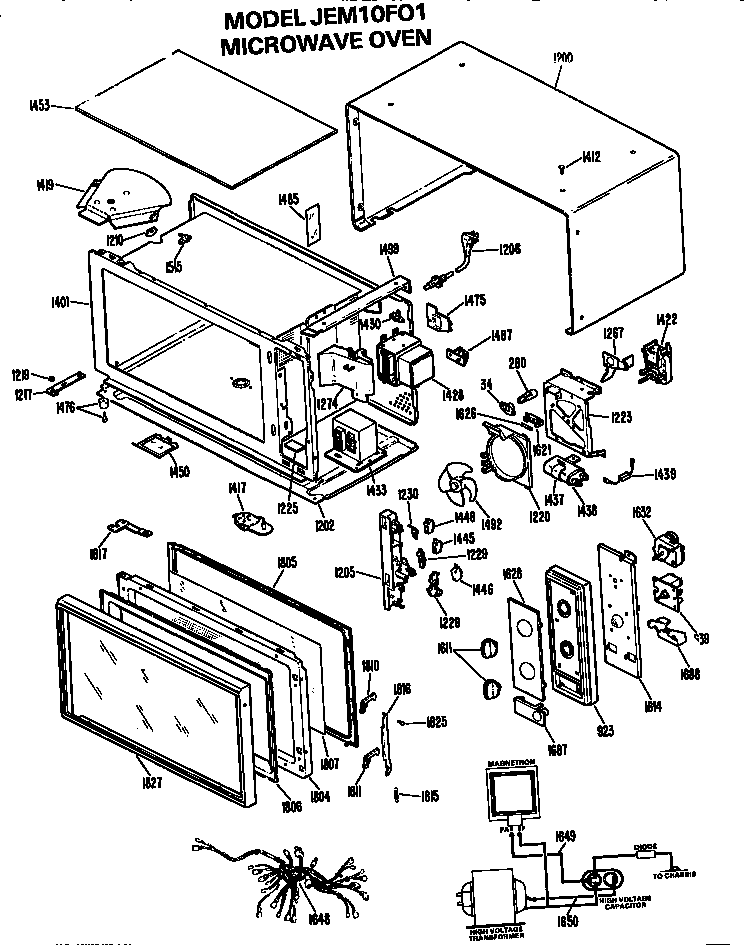

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Diode WB27X5333

#1439

All parts diagram

Diode

Part #WB27X5333

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X5333. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Frame WB56X1766

#50

All parts diagram

Frame

Part #WB56X1766

$16.99
In Stock
Frame WB56X1767

#46

All parts diagram

Frame

Part #WB56X1767

$18.49
In Stock
Outer Case WB56X1760

#1

All parts diagram

Outer case

Part #WB56X1760

$82.99
In Stock
Magnetron NOT AVAIL

#1428

All parts diagram

Magnetron

Part #NOT AVAIL

The manufacturer no longer makes this part, and there's no substitute part

Door Hook WB2X4643

#34

All parts diagram

Door hook

Part #WB2X4643

The manufacturer no longer makes this part, and there's no substitute part

Magnetron WB27X337

#1428

All parts diagram

Magnetron

Part #WB27X337

The manufacturer no longer makes this part, and there's no substitute part

Foot Pin WB2X4650

#41

All parts diagram

Foot pin

Part #WB2X4650

The manufacturer no longer makes this part, and there's no substitute part

Orifice WB2X4645

#19

All parts diagram

Orifice

Part #WB2X4645

The manufacturer no longer makes this part, and there's no substitute part

Capacitor WB27X226

#1438

All parts diagram

Capacitor

Part #WB27X226

The manufacturer no longer makes this part, and there's no substitute part
