Model # WCG97US0HS05 Official Whirlpool cooktop, gas

Here are the diagrams and repair parts for Official Whirlpool WCG97US0HS05 cooktop, gas, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Spark Module (red) W10475149
#9

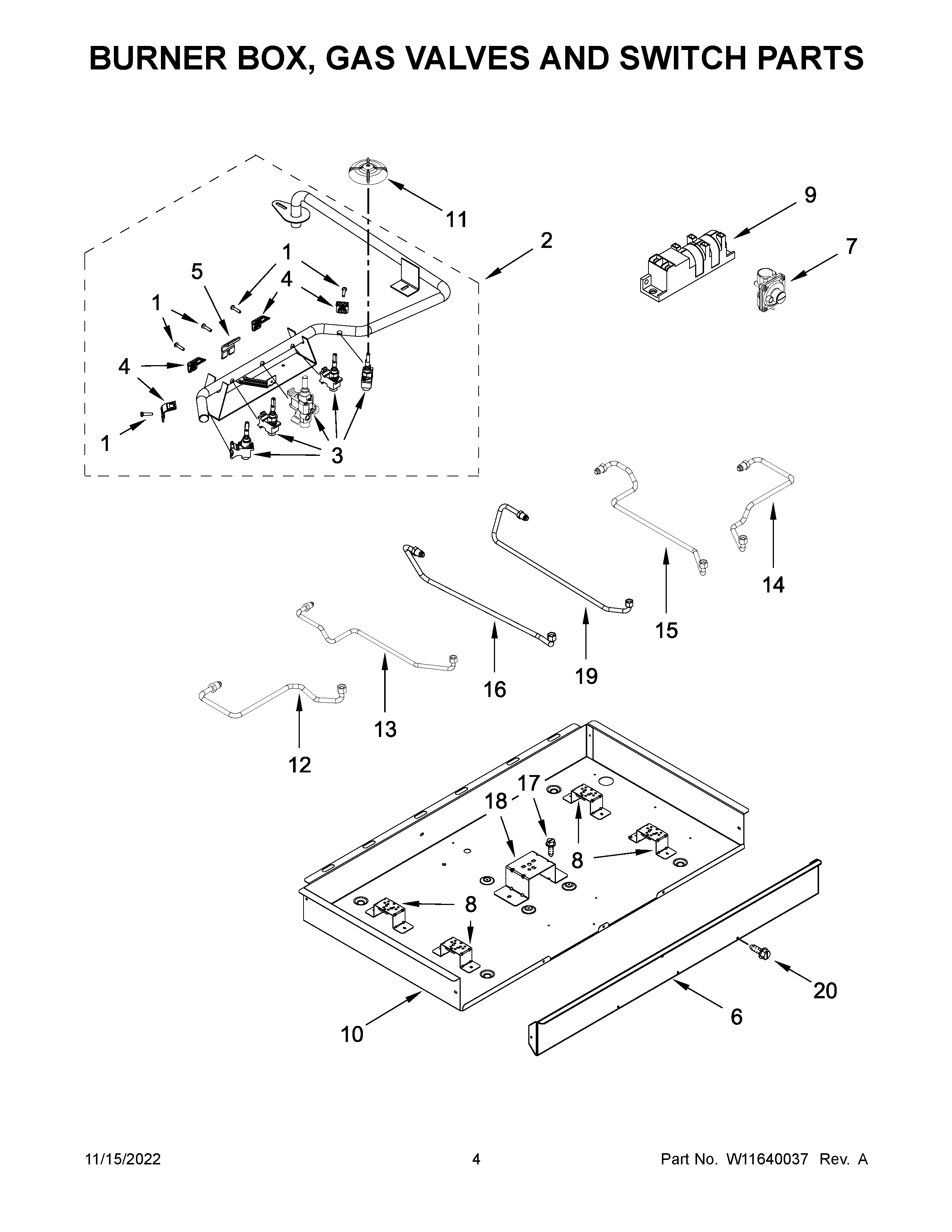

Burner box, gas valves and switch parts diagram

Spark module (red)

Part #W10475149

Replaced by #WPW10475149

?
Manufacturer substitution
This part replaces W10475149. Substitute parts can look different from the original.
$140.52 |
8% OFF Phone Price : $152.52
In Stock
Screw 3196537
#20

Burner box, gas valves and switch parts diagram

Screw

Part #3196537

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 3196537. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Grate Kit W11047085
#4

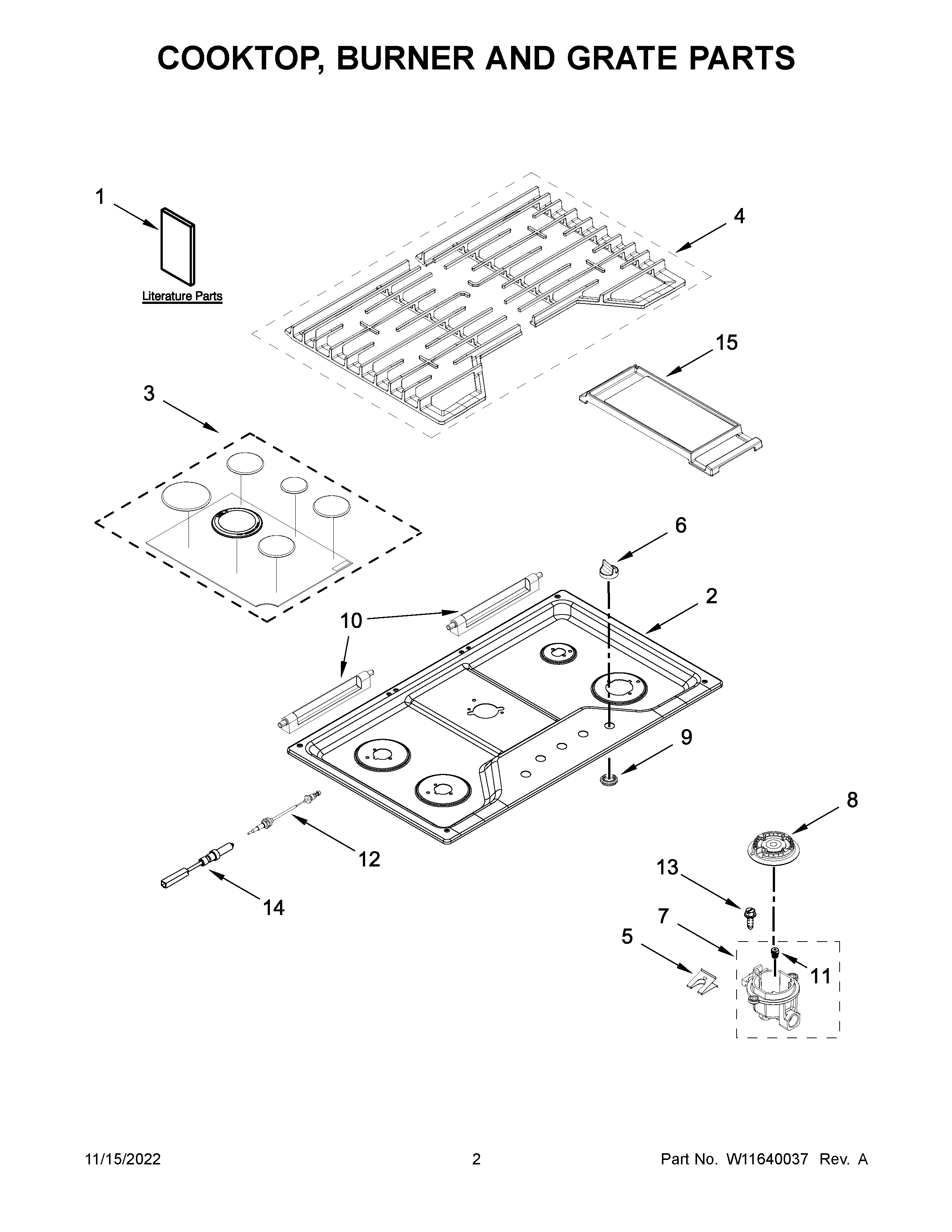

Cooktop, burner and grate parts diagram

Grate kit

Part #W11047085

Replaced by #W11204009

?
Manufacturer substitution
This part replaces W11047085. Substitute parts can look different from the original.
$205.52 |
6% OFF Phone Price : $217.52
In Stock
Cooktop Burner Head 8286814
#8

Cooktop, burner and grate parts diagram

Cooktop burner head

Part #8286814

Replaced by #WP8286814

?
Manufacturer substitution
This part replaces 8286814. Substitute parts can look different from the original.
$64.15 |
9% OFF Phone Price : $70.15
In Stock
Ikea Cooktop Griddle W10685483
#15

Cooktop, burner and grate parts diagram

Ikea cooktop griddle

Part #W10685483

$65.49 |
8% OFF Phone Price : $71.49
In Stock
Knob - Whp,w W11084624
#6

Cooktop, burner and grate parts diagram

Knob - whp,w

Part #W11084624

Replaced by #W11204451

?
Manufacturer substitution
This part replaces W11084624. Substitute parts can look different from the original.
$46.63 |
11% OFF Phone Price : $52.63
In Stock
Cooktop Burner Head 8286813
#8A

Cooktop, burner and grate parts diagram

Cooktop burner head

Part #8286813

Replaced by #WP8286813

?
Manufacturer substitution
This part replaces 8286813. Substitute parts can look different from the original.
$64.15 |
9% OFF Phone Price : $70.15
In Stock
Electrode W10763330
#14

Cooktop, burner and grate parts diagram

Electrode

Part #W10763330

Replaced by #W10852959

?
Manufacturer substitution
This part replaces W10763330. Substitute parts can look different from the original.
$29.28 |
17% OFF Phone Price : $35.28
In Stock
Cooktop Burner Orifice, 5,000-btu W10652711
#11A

Cooktop, burner and grate parts diagram

Cooktop burner orifice, 5,000-btu

Part #W10652711

$40.80
In Stock
Valve W10594393
#3B

Burner box, gas valves and switch parts diagram

Valve

Part #W10594393

Replaced by #W10859922

?
Manufacturer substitution
This part replaces W10594393. Substitute parts can look different from the original.
$32.29 |
16% OFF Phone Price : $38.29
In Stock
