Amana
Gas Range

Model # AGS1740BDW Official Amana gas slide-in range

Here are the diagrams and repair parts for Official Amana AGS1740BDW gas slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |
Oven Bulb 7407P103-60
#15A

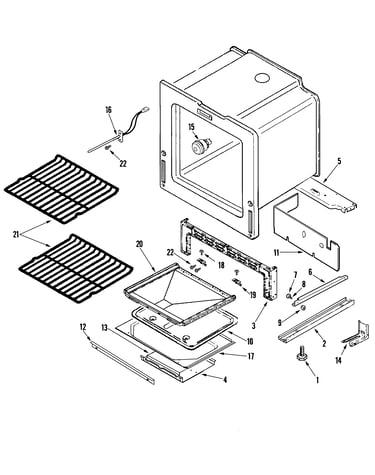

Oven/base diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Ikea Range Oven Burner Igniter (replaces 7432p075-60, 7432p106-60) 74007498
#8

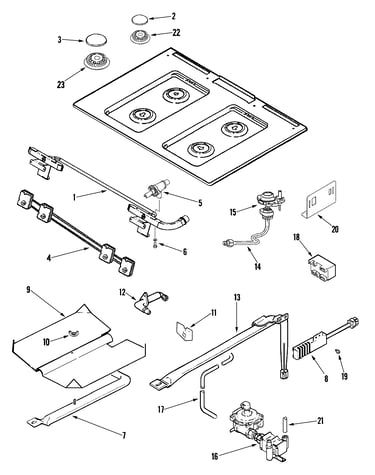

Gas controls diagram

Ikea range oven burner igniter (replaces 7432p075-60, 7432p106-60)

Part #74007498

BEST SELLER
$59.77 |
9% OFF Phone Price : $65.77
In Stock
Range Screw 3368921
#NI

Gas controls diagram

Range screw

Part #3368921

Replaced by #WP3368921

?
Manufacturer substitution
This part replaces 3368921. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.34 |
14% OFF Phone Price : $7.34
In Stock
Oven Sensor 74004944
#16

Oven/base diagram

Oven sensor

Part #74004944

Replaced by #12001655

?
Manufacturer substitution
This part replaces 74004944. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Spark Module 74004283
#18

Gas controls diagram

Spark module

Part #74004283

Replaced by #8215557

?
Manufacturer substitution
This part replaces 74004283. Substitute parts can look different from the original.
BEST SELLER
$97.33 |
11% OFF Phone Price : $109.33
In Stock
Screw 7101P282-60
#19

Gas controls diagram

Screw

Part #7101P282-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P282-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Screw 7101P112-60
#13

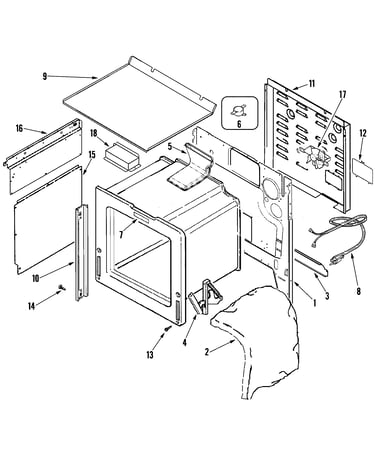

Body diagram

Screw

Part #7101P112-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P112-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Bracket, Ant 74005564
#14

Oven/base diagram

Bracket, ant

Part #74005564

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 74005564. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
Holder Orifice 74010908
#15

Gas controls diagram

Holder orifice

Part #74010908

Replaced by #WPW10407680

?
Manufacturer substitution
This part replaces 74010908. Substitute parts can look different from the original.
$46.11 |
12% OFF Phone Price : $52.11
In Stock
Cooktop Holder Orifice 74010909
#15A

Gas controls diagram

Cooktop holder orifice

Part #74010909

Replaced by #WPW10407679

?
Manufacturer substitution
This part replaces 74010909. Substitute parts can look different from the original.
$48.09 |
11% OFF Phone Price : $54.09
In Stock
