Kenmore
Refrigerator

Model # 1067698481 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 1067698481 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

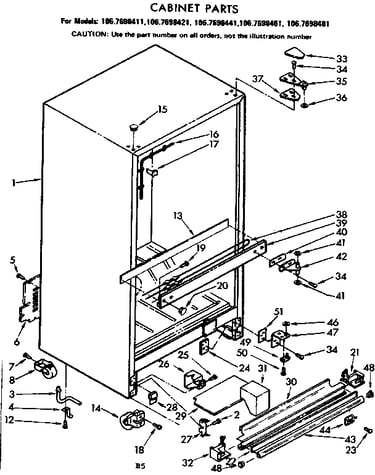

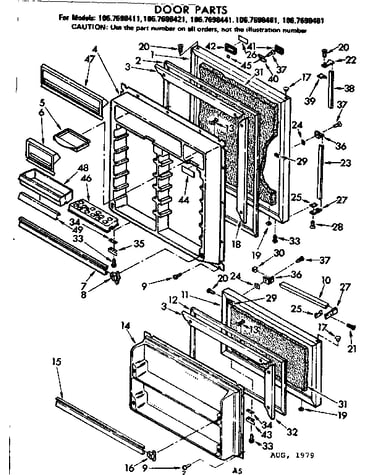

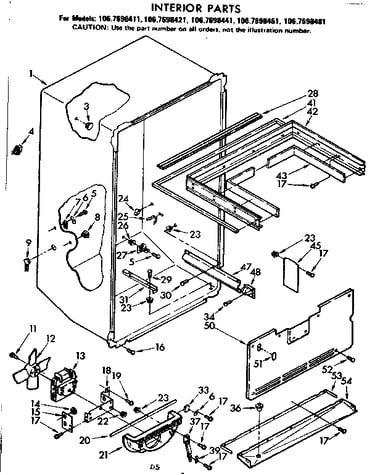

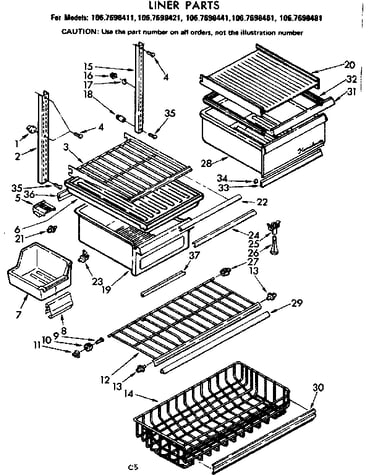

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 416 parts  |
Refrigerator Ice Maker 978556
#100

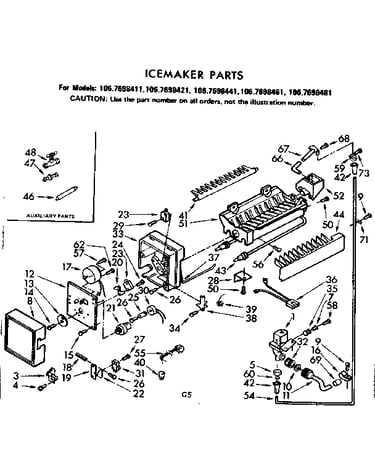

Icemaker parts diagram

Refrigerator ice maker

Part #978556

Replaced by #4317943

?
Manufacturer substitution
This part replaces 978556. Substitute parts can look different from the original.
BEST SELLER
$93.89 |
6% OFF Phone Price : $99.89
In Stock
Light Bulb 527949
#33

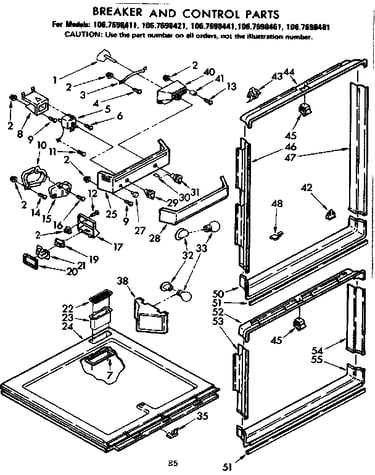

Breaker and control parts diagram

Light bulb

Part #527949

Replaced by #40A15

?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Switch 989282
#45

Breaker and control parts diagram

Refrigerator switch

Part #989282

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 989282. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Timer 851701
#15

Breaker and control parts diagram

Refrigerator timer

Part #851701

Replaced by #W10822278

?
Manufacturer substitution
This part replaces 851701. Substitute parts can look different from the original.
BEST SELLER
$27.99 |
18% OFF Phone Price : $33.99
In Stock
Drier Tube 978246
#32

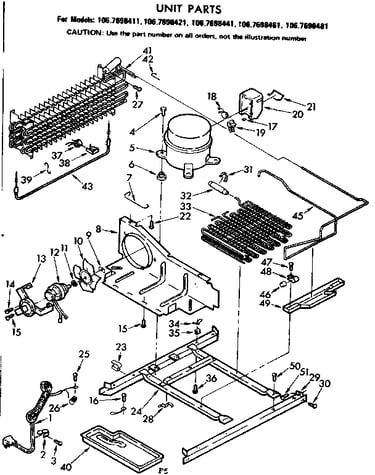

Unit parts diagram

Drier tube

Part #978246

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 978246. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Tube 659811
#54

Icemaker parts diagram

Refrigerator tube

Part #659811

Replaced by #W10823511

?
Manufacturer substitution
This part replaces 659811. Substitute parts can look different from the original.
BEST SELLER
$33.27 |
15% OFF Phone Price : $39.27
In Stock
Fan Motor 851618
#12

Unit parts diagram

Fan motor

Part #851618

Replaced by #833697

?
Manufacturer substitution
This part replaces 851618. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock
Cement 797403

#NI

All parts diagram

Cement

Part #797403

Replaced by #WP279368

?
Manufacturer substitution
This part replaces 797403. Substitute parts can look different from the original.
BEST SELLER
$42.72 |
12% OFF Phone Price : $48.72
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Fitting (almond) 836489
#67

Icemaker parts diagram

Fitting (almond)

Part #836489

Replaced by #WP2196157

?
Manufacturer substitution
This part replaces 836489. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.30 |
14% OFF Phone Price : $7.30
In Stock
