Model # 917299382 Official Craftsman 6-hp tiller with reverse

Here are the diagrams and repair parts for Official Craftsman 917299382 6-hp tiller with reverse, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

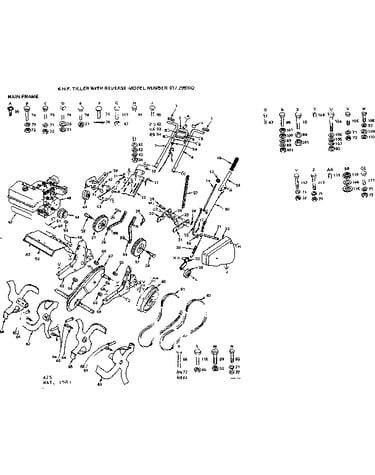

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Washer 19121414
#75

Replacement parts diagram

Washer

Part #19121414

Replaced by #596134901

?
Manufacturer substitution
This part replaces 19121414. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Spring Retainer 3146R
#64

Replacement parts diagram

Spring retainer

Part #3146R

Replaced by #532003146

?
Manufacturer substitution
This part replaces 3146R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.02 |
20% OFF Phone Price : $5.02
In Stock
Shldr Bolt 4898H
#38

Replacement parts diagram

Shldr bolt

Part #4898H

Replaced by #596434402

?
Manufacturer substitution
This part replaces 4898H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Tiller Reverse Drive Belt 2614J
#62

Replacement parts diagram

Tiller reverse drive belt

Part #2614J

Replaced by #599385301

?
Manufacturer substitution
This part replaces 2614J. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$19.98 |
9% OFF Phone Price : $21.98
In Stock
Washer 19171616
#116

Replacement parts diagram

Washer

Part #19171616

Replaced by #596040101

?
Manufacturer substitution
This part replaces 19171616. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Hex Head Bolt, 5/16-18 X 3/4-in, 5-pack STD523107
#106

Replacement parts diagram

Hex head bolt, 5/16-18 x 3/4-in, 5-pack

Part #STD523107

The manufacturer no longer makes this part, and there's no substitute part

Weed Eater Lawn & Garden Equipment Washer 19092016
#109

Replacement parts diagram

Weed eater lawn & garden equipment washer

Part #19092016

This item is not returnable
$3.44
In Stock
Washer STD551025
#82

Replacement parts diagram

Washer

Part #STD551025

The manufacturer no longer makes this part, and there's no substitute part

Washer STD551037
#89

Replacement parts diagram

Washer

Part #STD551037

The manufacturer no longer makes this part, and there's no substitute part

Nut 2628J
#11

Replacement parts diagram

Nut

Part #2628J

Replaced by #532183724

?
Manufacturer substitution
This part replaces 2628J. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
