Bosch
Electric Wall Oven

Model # HBN3550UC/03 Official Bosch wall oven

Here are the diagrams and repair parts for Official Bosch HBN3550UC-03 wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

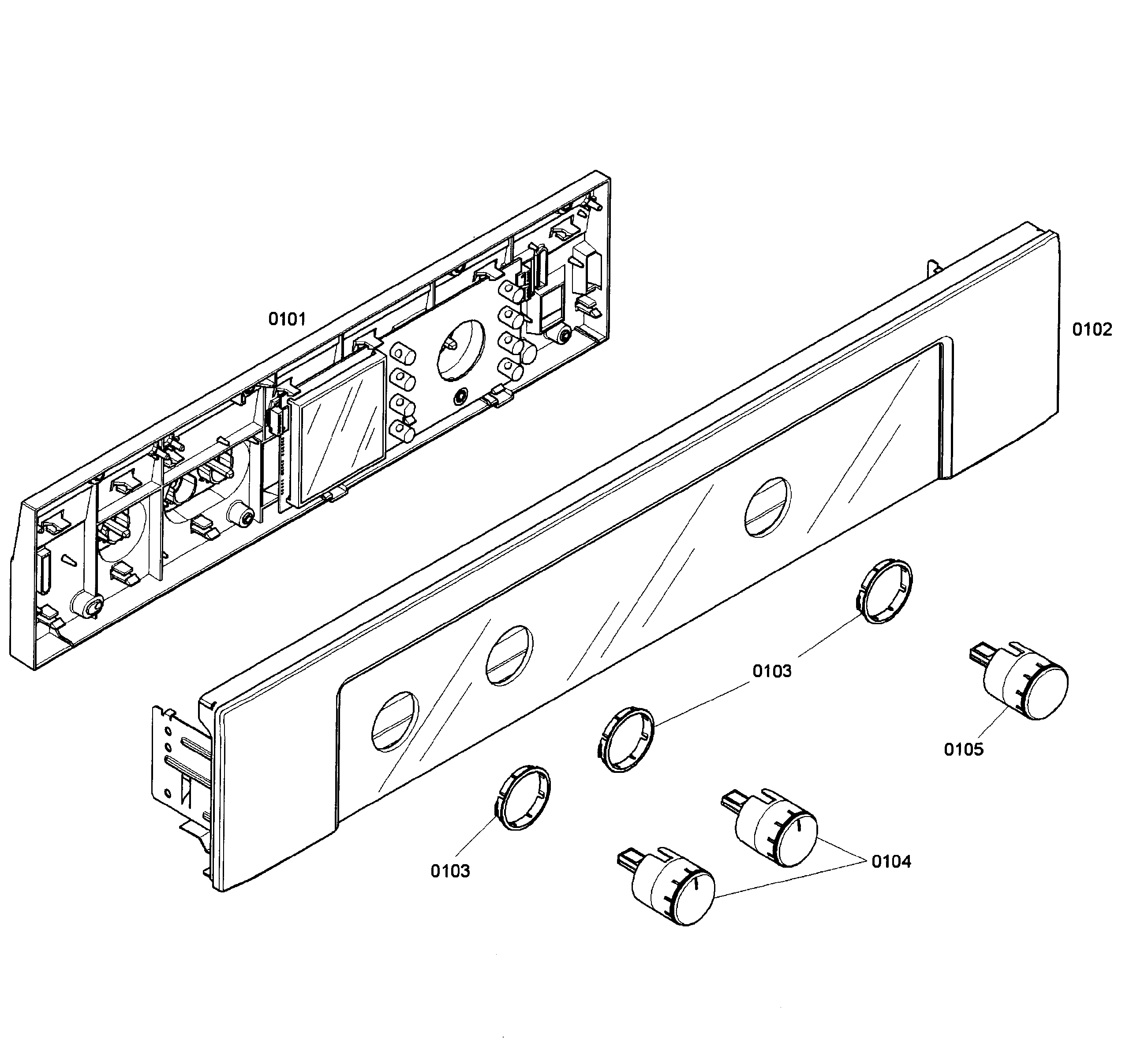

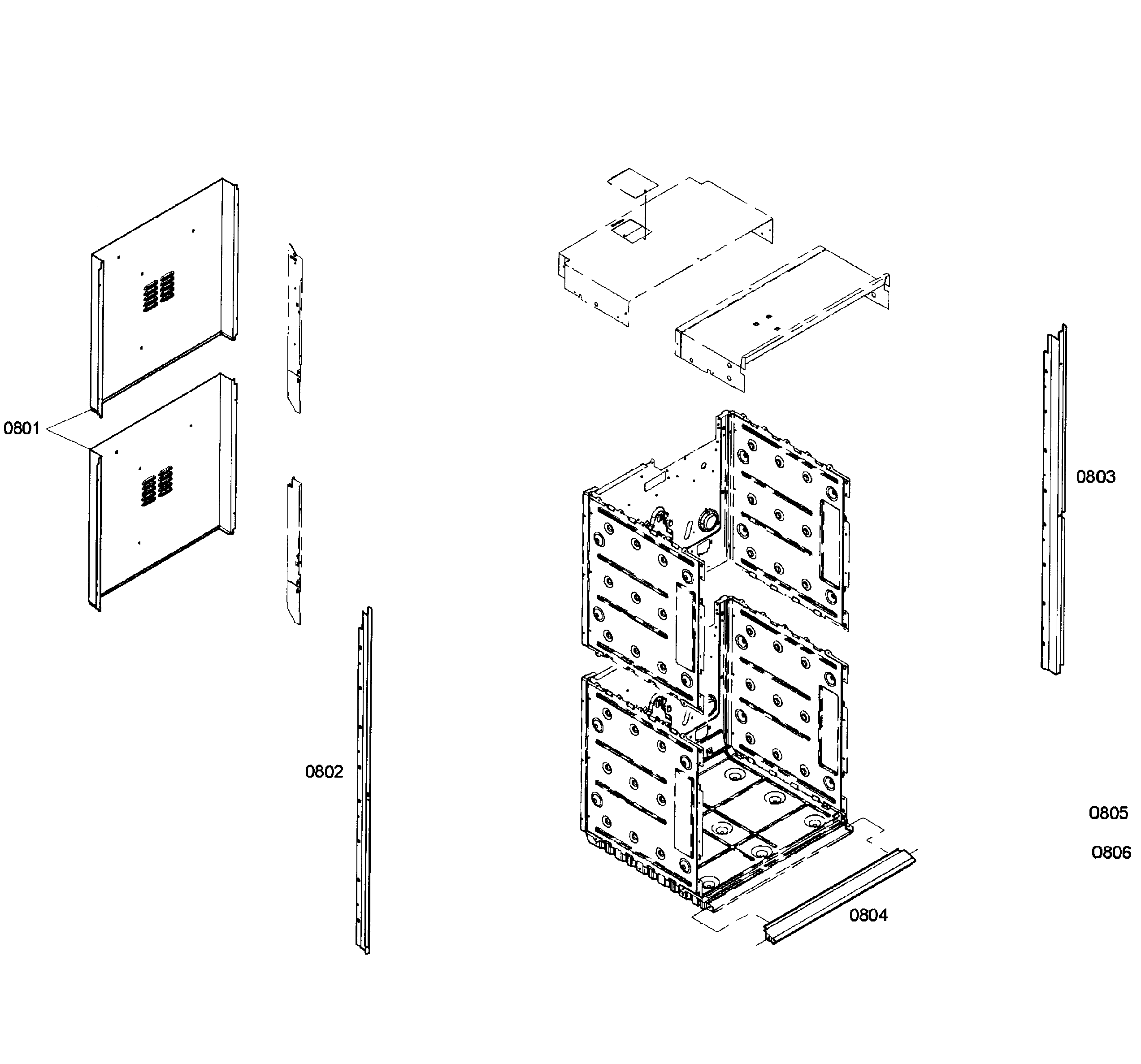

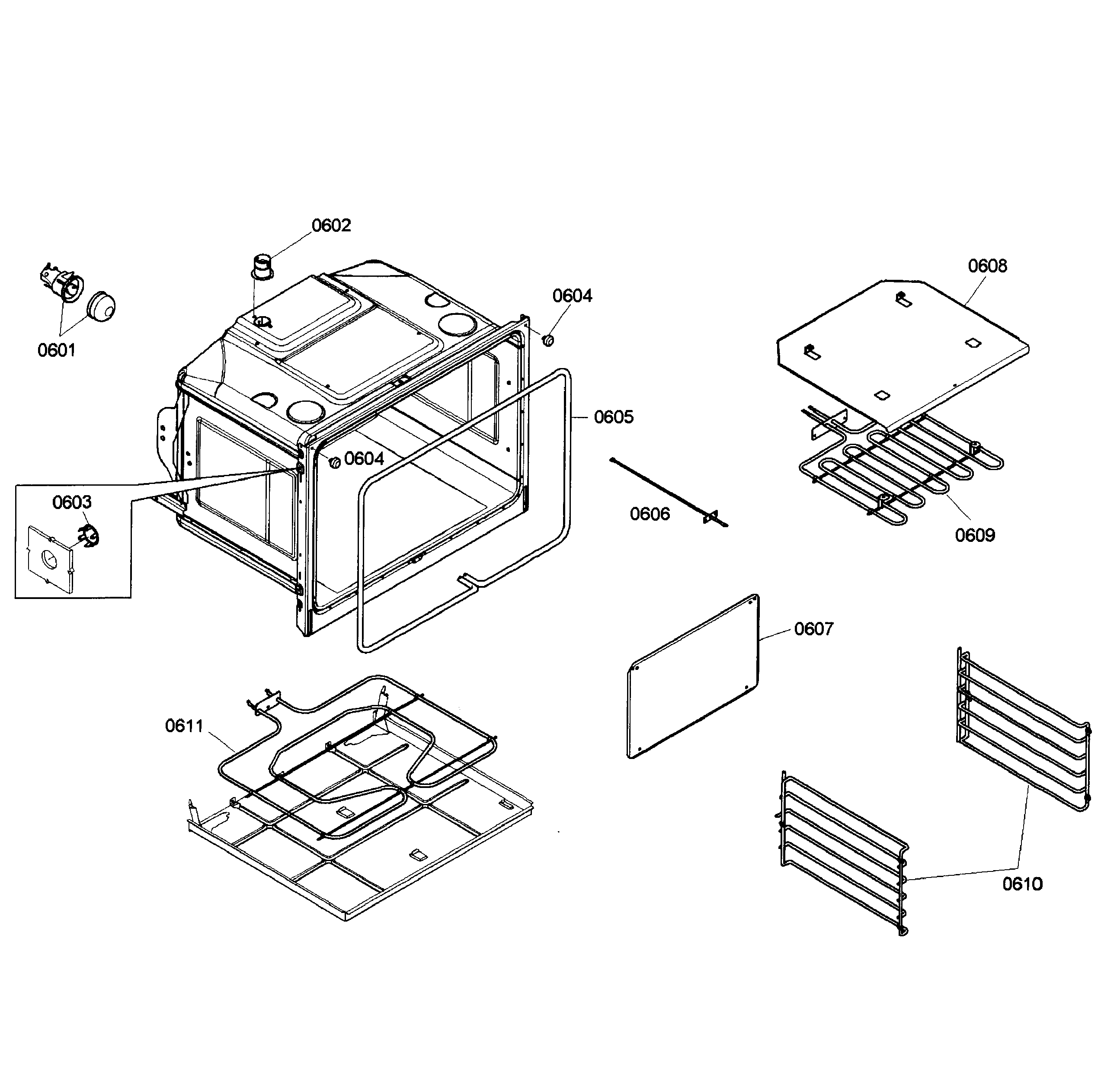

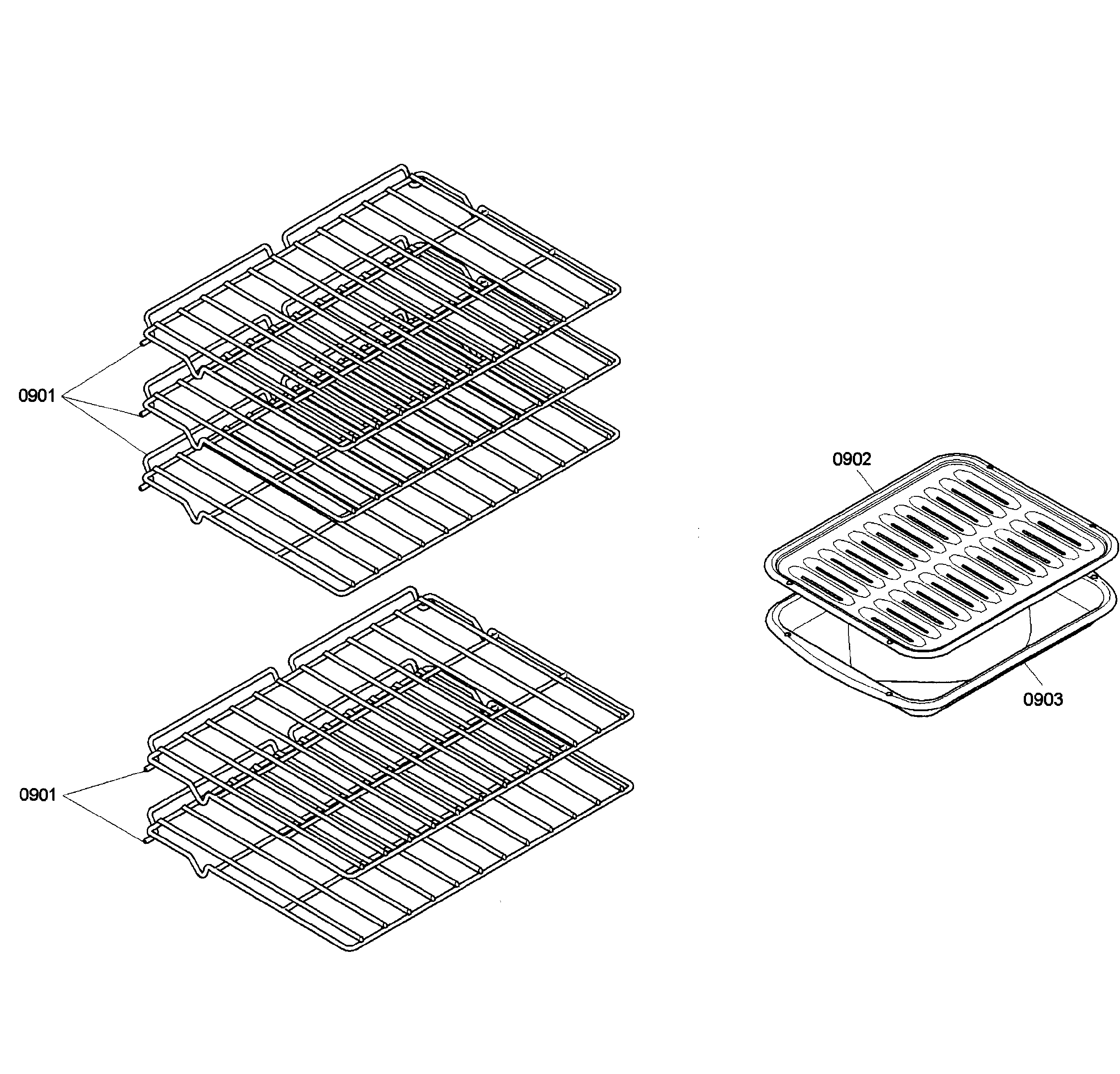

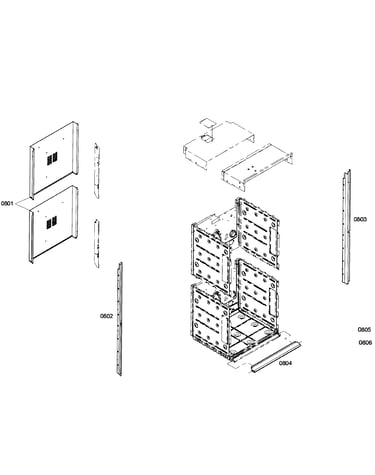

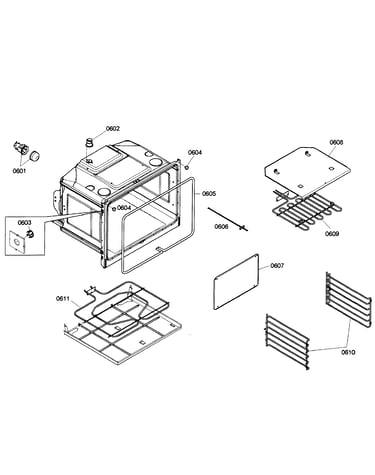

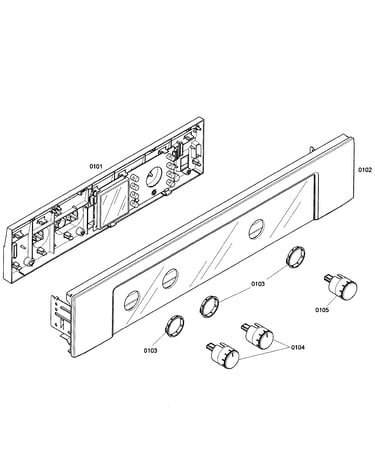

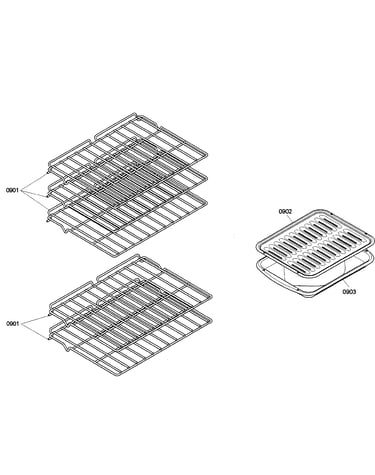

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Power Supply 663802
#203

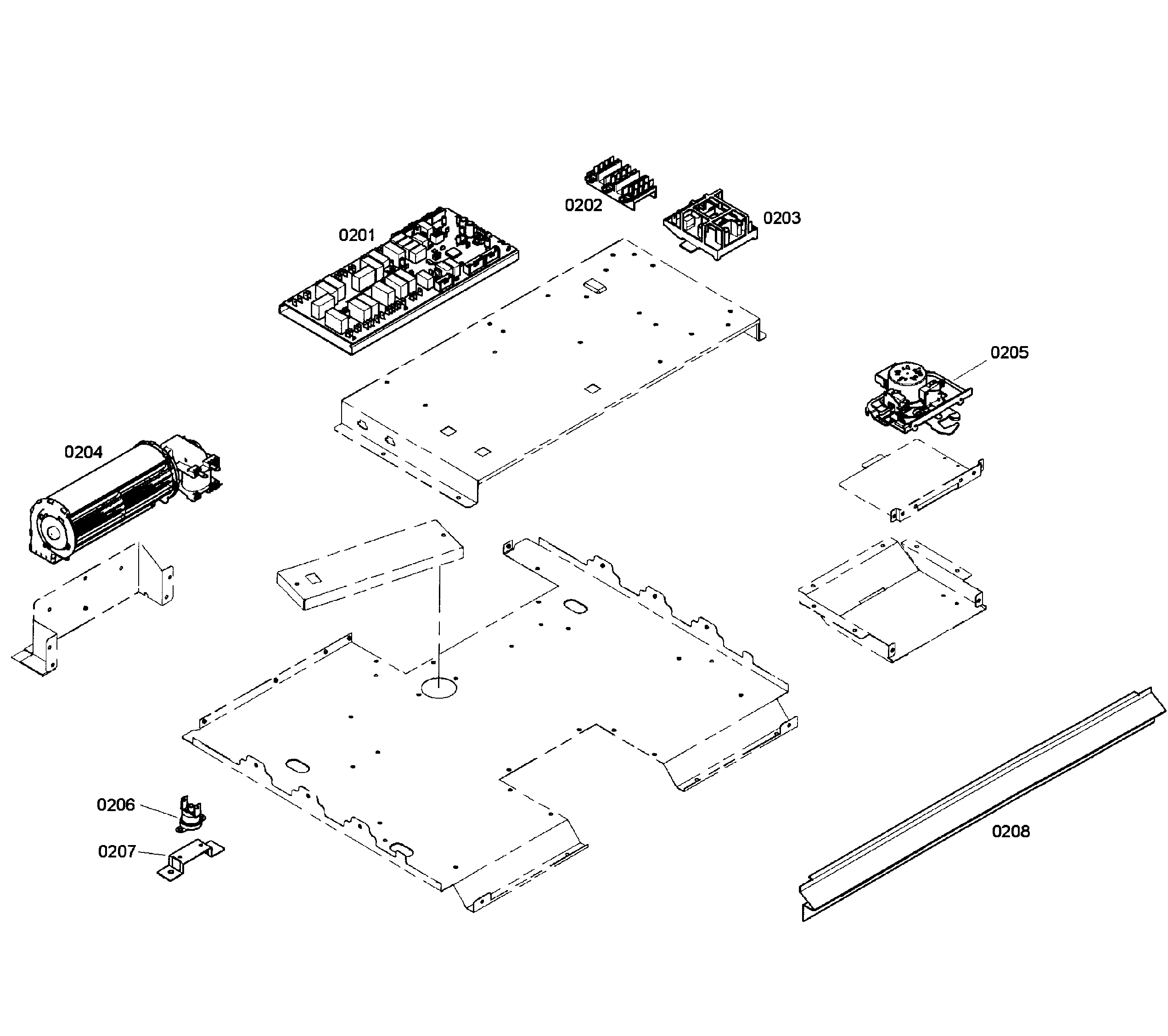

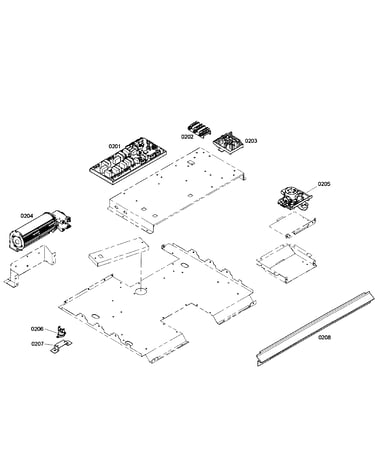

Pcb's assy diagram

Power supply

Part #663802

Replaced by #00663802

?
Manufacturer substitution
This part replaces 663802. Substitute parts can look different from the original.
$128.19 |
9% OFF Phone Price : $140.19
In Stock
Heater 144723
Heater

Part #144723

Replaced by #00144723

?
Manufacturer substitution
This part replaces 144723. Substitute parts can look different from the original.
$108.79 |
10% OFF Phone Price : $120.79
In Stock
Motor 642845
#302

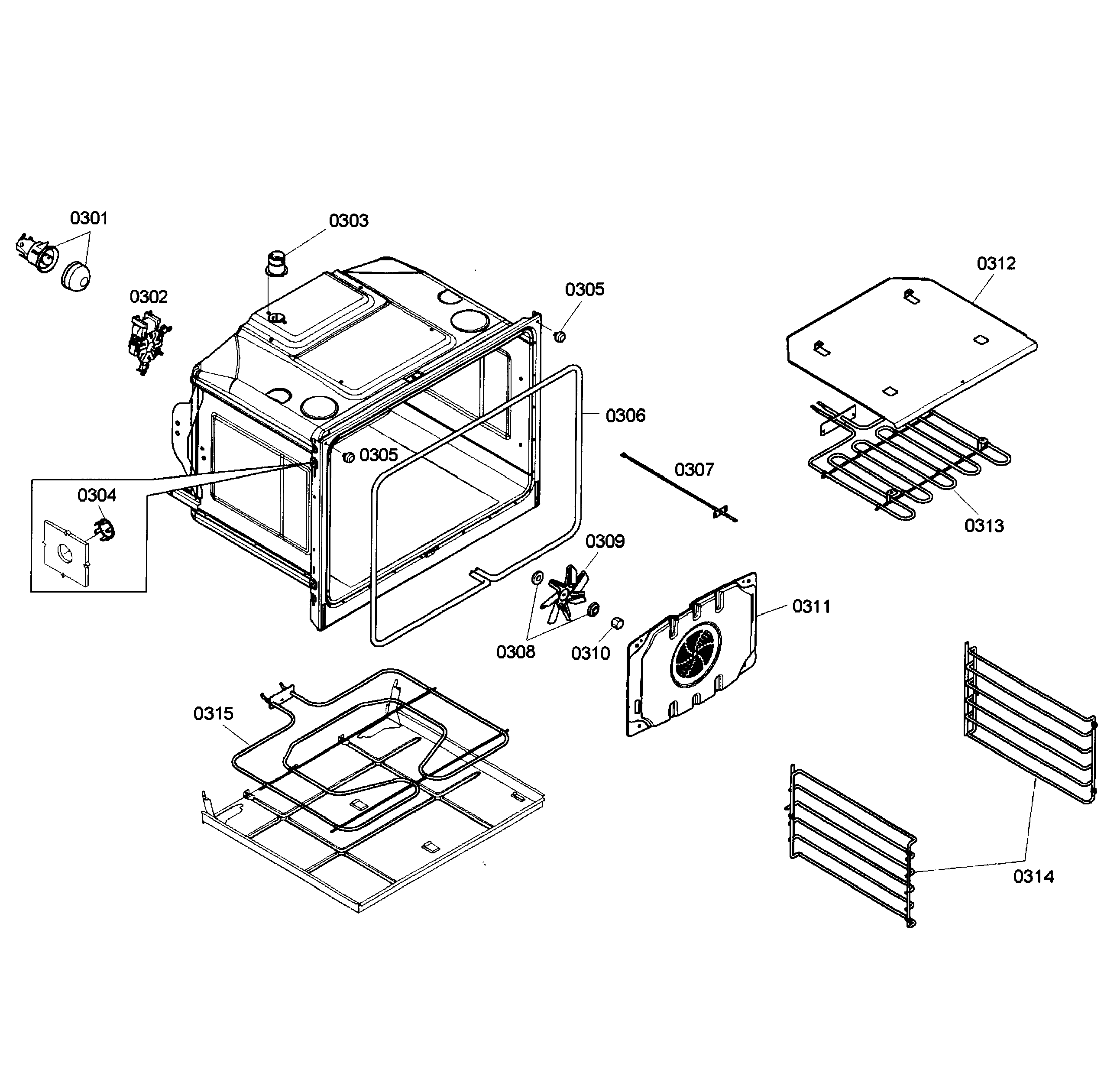

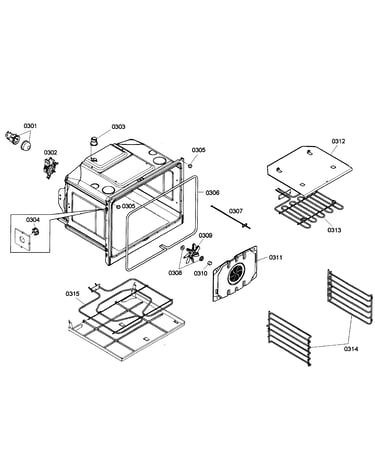

Conv oven diagram

Motor

Part #642845

Replaced by #00642845

?
Manufacturer substitution
This part replaces 642845. Substitute parts can look different from the original.
$165.59 |
7% OFF Phone Price : $177.59
In Stock
Spacer 427919
Spacer

Part #427919

Replaced by #00427919

?
Manufacturer substitution
This part replaces 427919. Substitute parts can look different from the original.
$19.80
In Stock
Inner Door 478701
Inner door

Part #478701

Replaced by #00688544

?
Manufacturer substitution
This part replaces 478701. Substitute parts can look different from the original.
$332.33 |
$12.00 OFF Phone Price : $344.33
In Stock
Catalyzer 491572
Catalyzer

Part #491572

Replaced by #00491572

?
Manufacturer substitution
This part replaces 491572. Substitute parts can look different from the original.
$59.36
In Stock
Washer 426300
Washer

Part #426300

Replaced by #00426300

?
Manufacturer substitution
This part replaces 426300. Substitute parts can look different from the original.
This item is not returnable
$6.46
In Stock
Fixing Kit 617877
#503

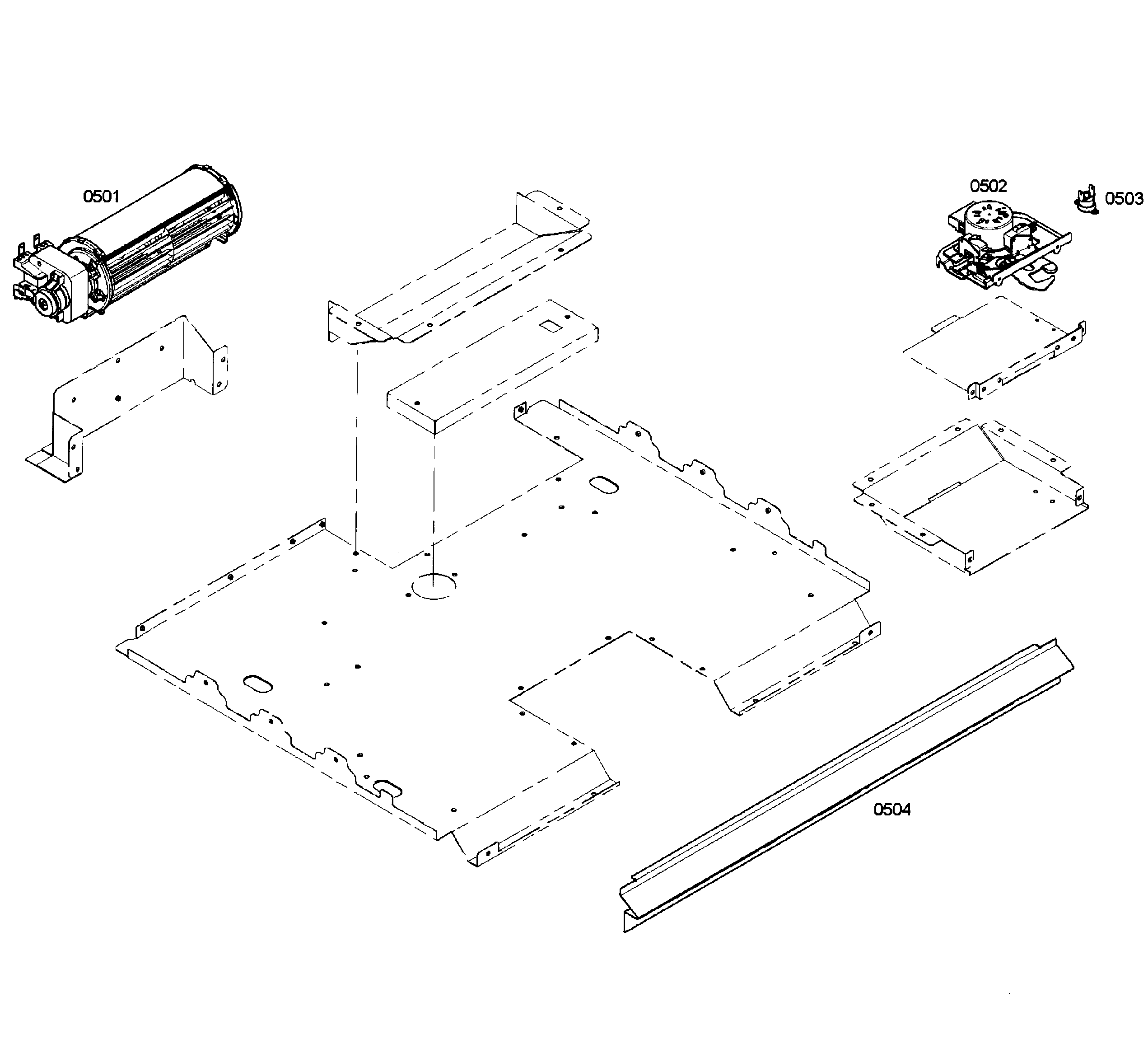

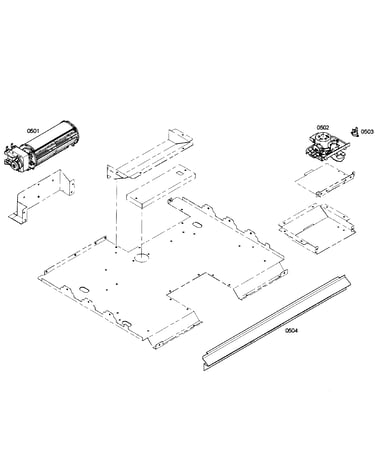

Fan assy diagram

Fixing kit

Part #617877

Replaced by #00617877

?
Manufacturer substitution
This part replaces 617877. Substitute parts can look different from the original.
$29.36
In Stock
Limiter 642844
#206

Pcb's assy diagram

Limiter

Part #642844

Replaced by #00617877

?
Manufacturer substitution
This part replaces 642844. Substitute parts can look different from the original.
$29.36
In Stock
Trim Plate 680904
#405

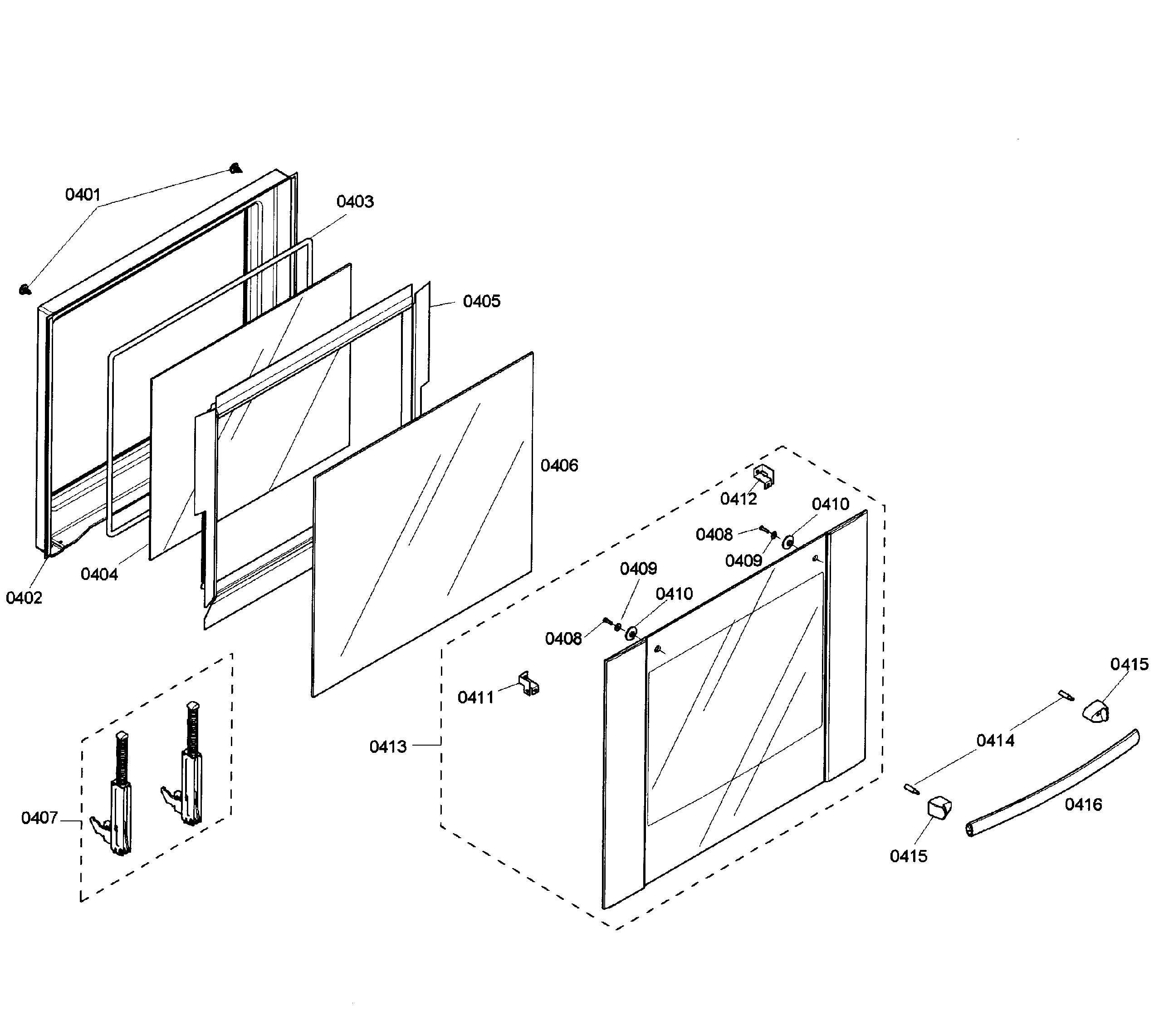

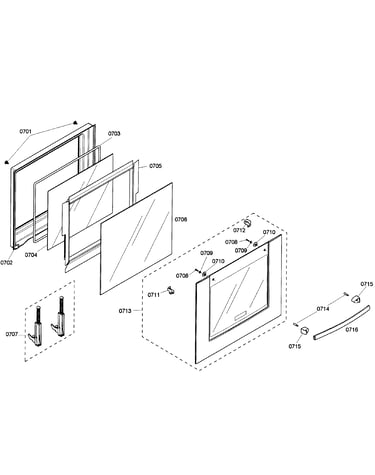

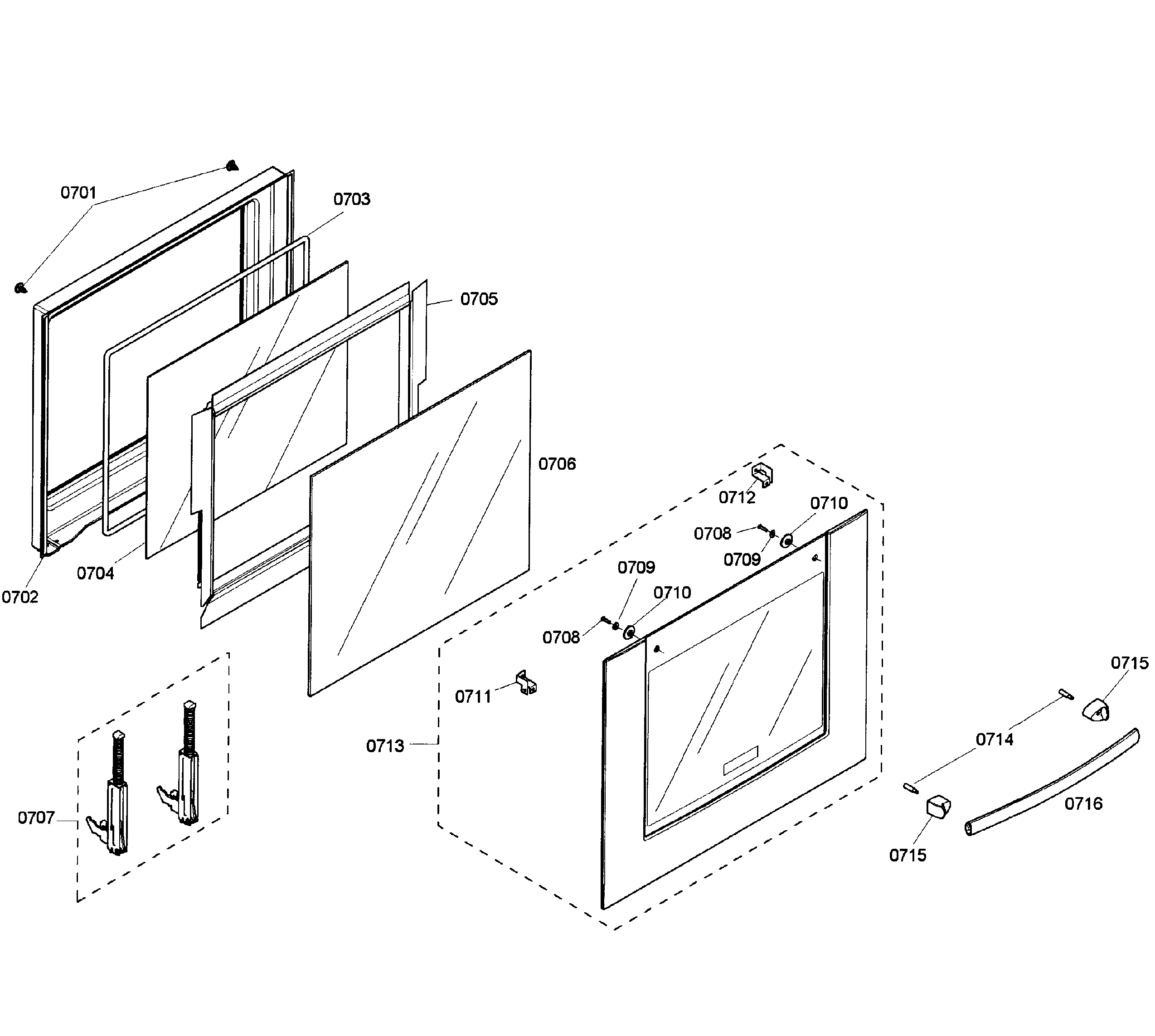

Door assy diagram

Trim plate

Part #680904

Replaced by #00680904

?
Manufacturer substitution
This part replaces 680904. Substitute parts can look different from the original.
$214.01 |
5% OFF Phone Price : $226.01
In Stock
