Model # GTW860SSJ1WS Official GE washer

Here are the diagrams and repair parts for Official GE GTW860SSJ1WS washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

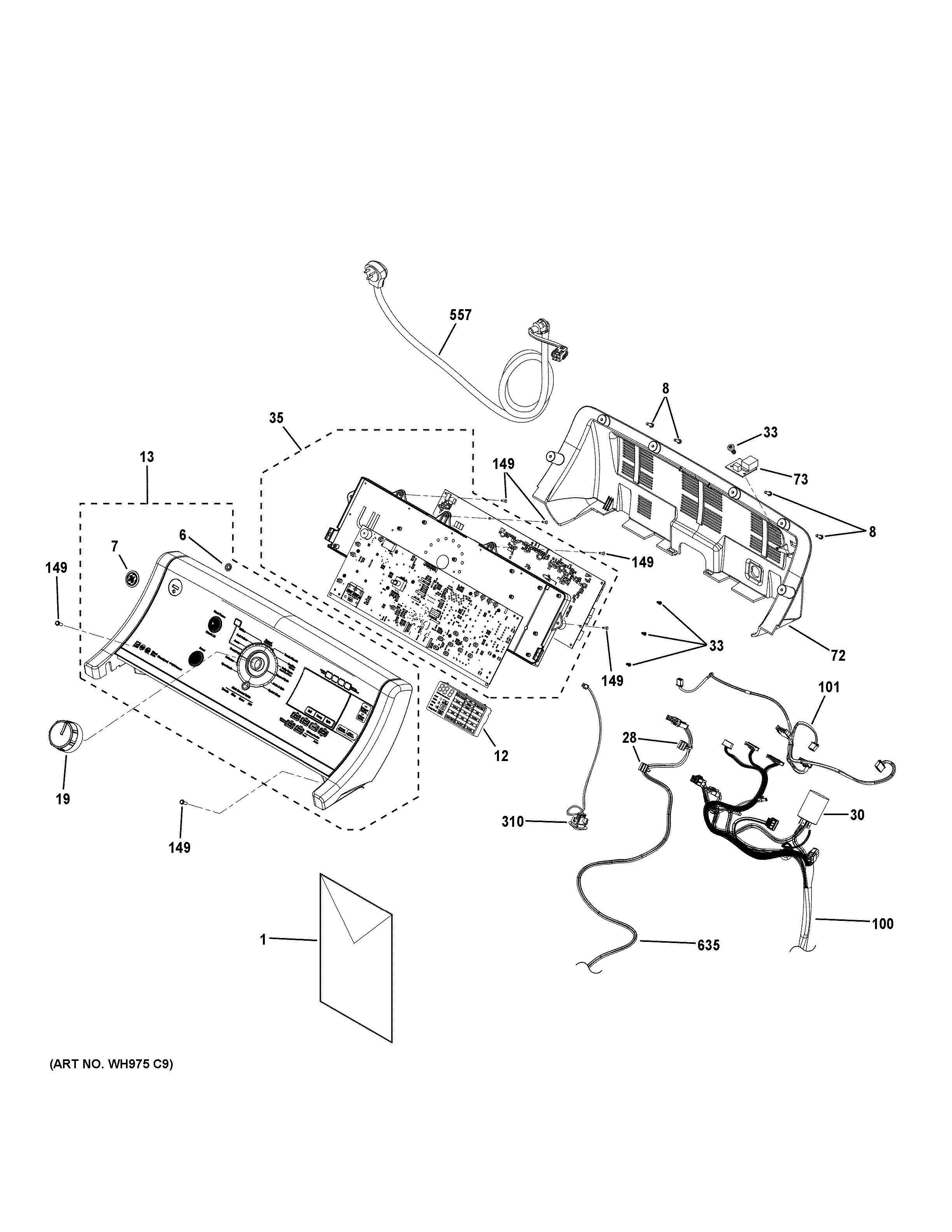

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Washer Hub Nut WH02X10363
#330

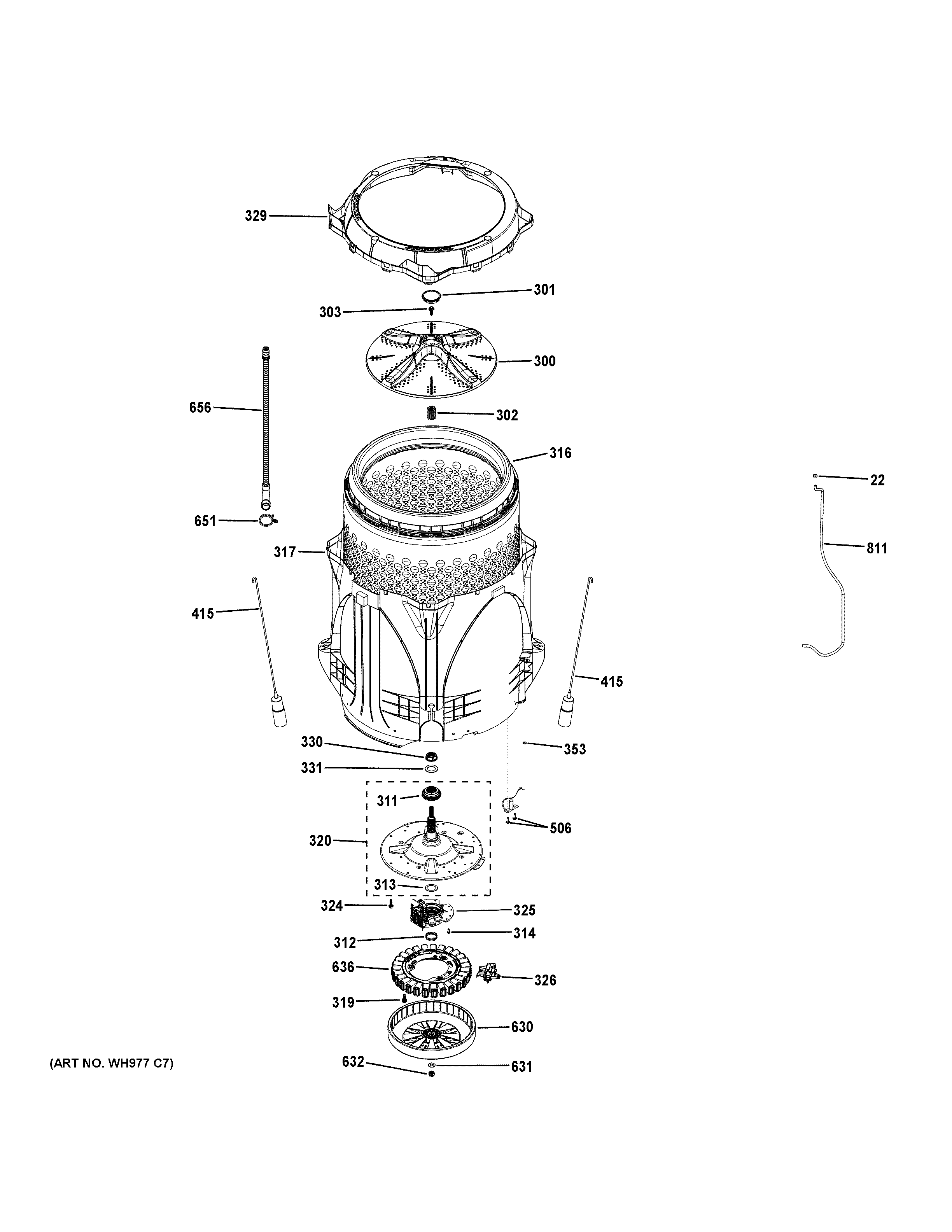

Tub & motor diagram

Washer hub nut

Part #WH02X10363

BEST SELLER
$13.21 |
13% OFF Phone Price : $15.21
In Stock
Washer Motor Rotor Position Sensor (replaces Wh12x10558) WH12X23995
#326

Tub & motor diagram

Washer motor rotor position sensor (replaces wh12x10558)

Part #WH12X23995

$39.32 |
13% OFF Phone Price : $45.32
In Stock
Wire Tie WH01X10217
Wire tie

Part #WH01X10217

Replaced by #WH01X10704

?
Manufacturer substitution
This part replaces WH01X10217. Substitute parts can look different from the original.
This item is not returnable
$7.14
In Stock
Scr 1/4 - 20 WH02X10382
#303

Tub & motor diagram

Scr 1/4 - 20

Part #WH02X10382

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer Motor Stator WH39X20678
#636

Tub & motor diagram

Washer motor stator

Part #WH39X20678

$179.58 |
6% OFF Phone Price : $191.58
In Stock
Washer Drain Hose WH41X10319
#825

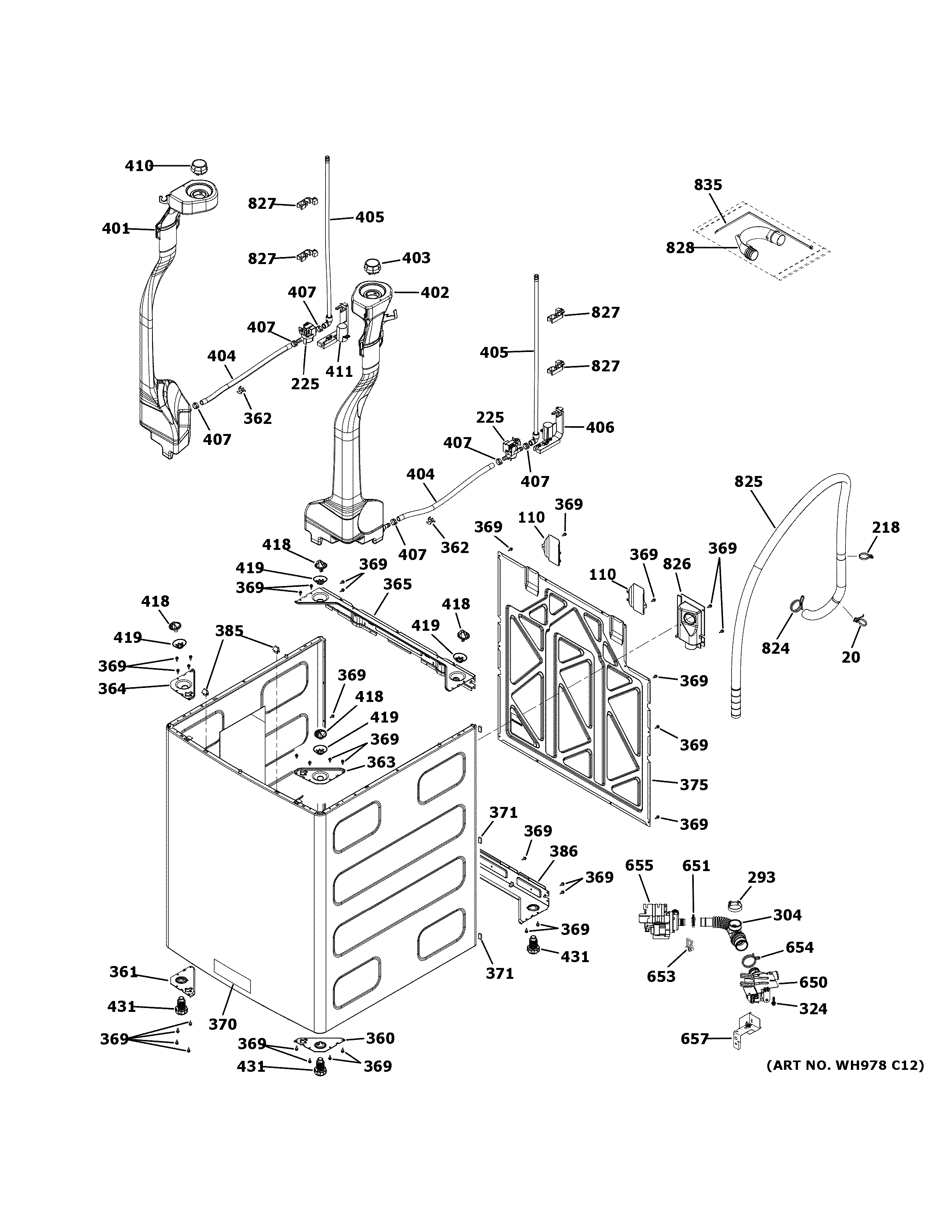

Cabinet diagram

Washer drain hose

Part #WH41X10319

$28.41 |
17% OFF Phone Price : $34.41
In Stock
Washer Suspension Rod And Spring Assembly WH16X23015
#415

Tub & motor diagram

Washer suspension rod and spring assembly

Part #WH16X23015

This item is not returnable
$25.27 |
19% OFF Phone Price : $31.27
In Stock
Washer Lid Lock Assembly WH12X20357
#390

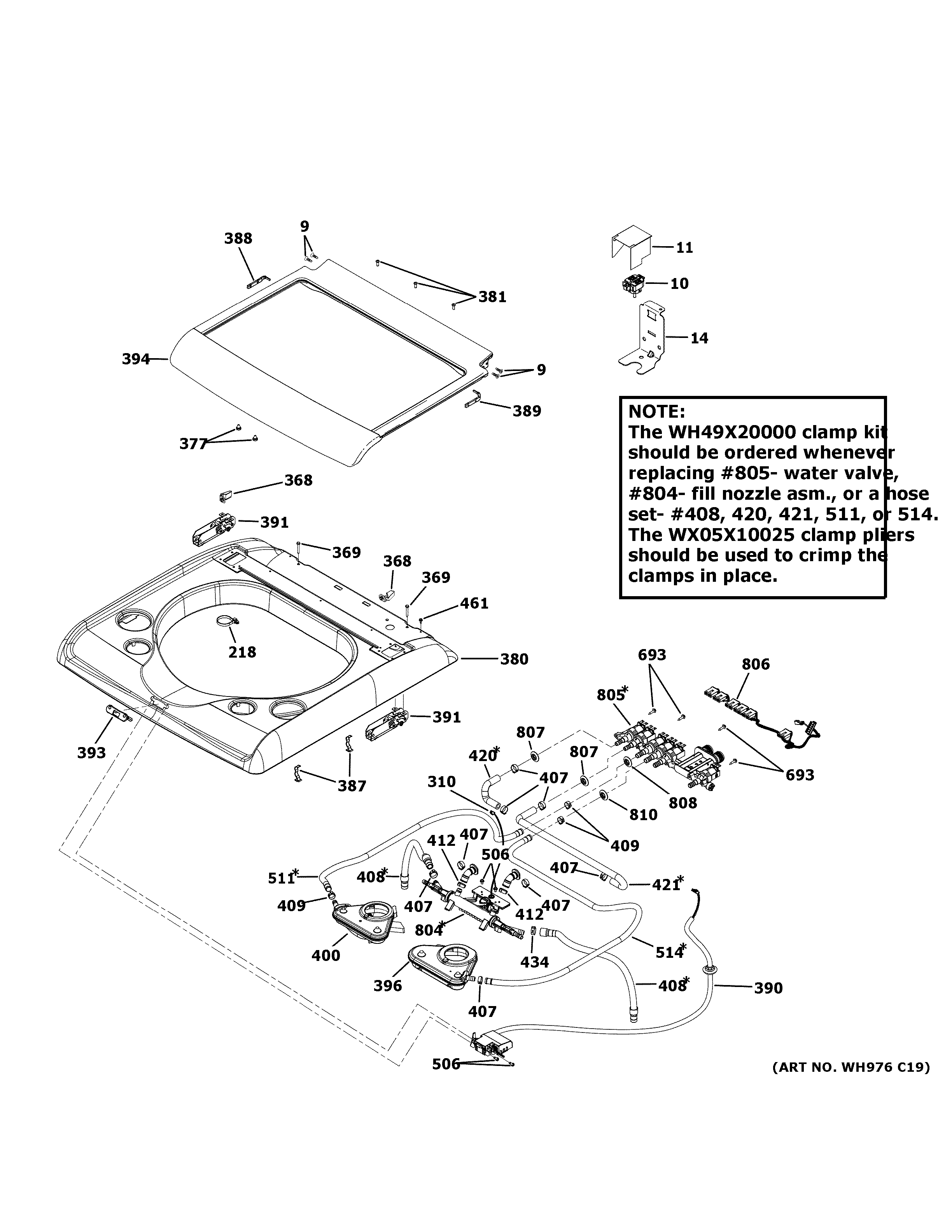

Top panel & lid diagram

Washer lid lock assembly

Part #WH12X20357

$77.85 |
7% OFF Phone Price : $83.85
In Stock
Scr 8-18 Bs WH02X24296
#381

Top panel & lid diagram

Scr 8-18 bs

Part #WH02X24296

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer Water Inlet Valve WH13X10059
#805

Top panel & lid diagram

Washer water inlet valve

Part #WH13X10059

$115.42 |
9% OFF Phone Price : $127.42
In Stock
