Model # 2901 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover 2901 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

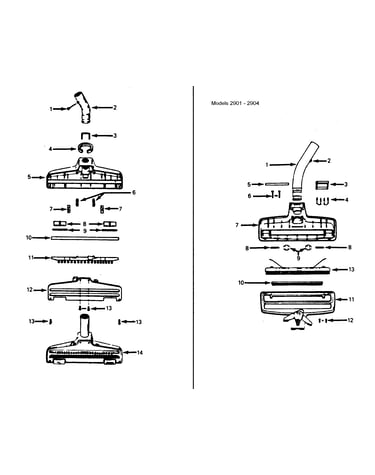

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Split Ring 33712007
#5A

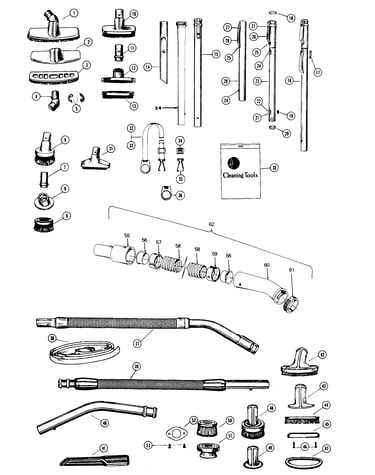

Hose, cleaningtools diagram

Split ring

Part #33712007

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Terminal 27666702
#49

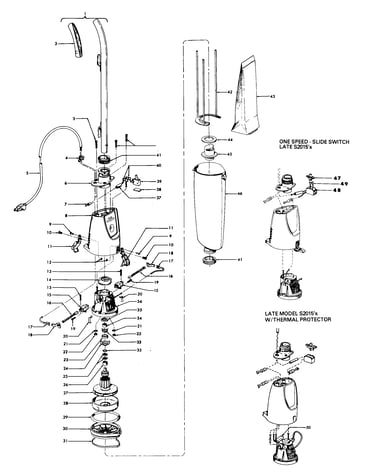

Motor assembly, bag & motorhousing diagram

Kenmore terminal

Part #27666702

The manufacturer no longer makes this part, and there's no substitute part

Shield 37922002
#48

Motor assembly, bag & motorhousing diagram

Shield

Part #37922002

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 048969--
#7

Motor assembly, bag & motorhousing diagram

Twist-on wire connector

Part #048969--

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Floor Brush Attachment Swivel 38644020
#4A

Hose, cleaningtools diagram

Kenmore vacuum floor brush attachment swivel

Part #38644020

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Sleeve Hose 32156010
#56

Hose, cleaningtools diagram

Kenmore sleeve hose

Part #32156010

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Upholstery Nozzle 43414057
#31

Hose, cleaningtools diagram

Kenmore vacuum upholstery nozzle

Part #43414057

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Grip Lock Ring 36153009
Vacuum hose grip lock ring

Part #36153009

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Dust Brush 43414064
#6A

Hose, cleaningtools diagram

Kenmore vacuum dust brush

Part #43414064

The manufacturer no longer makes this part, and there's no substitute part

Extension Tube 43453027
#15

Hose, cleaningtools diagram

Extension tube

Part #43453027

The manufacturer no longer makes this part, and there's no substitute part
