Amana
Countertop Microwave

Model # AH01146.A Official Amana microwave

Here are the diagrams and repair parts for Official Amana AH01146A microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

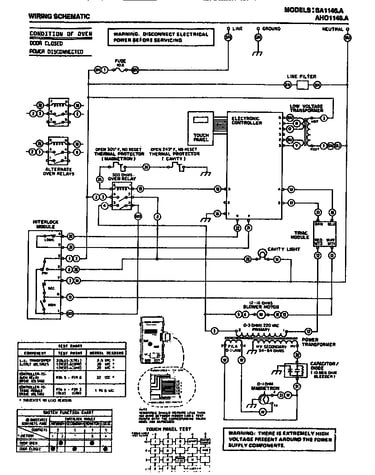

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Keps Nut 8-32 M1D763
#51C

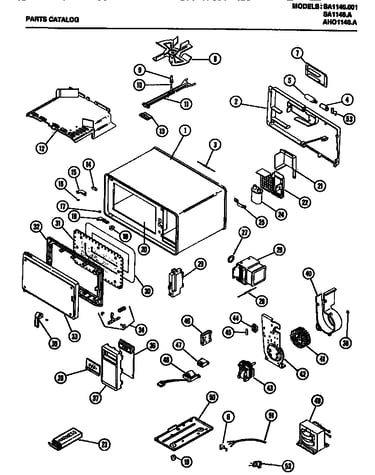

Replacement parts diagram

Keps nut 8-32

Part #M1D763

The manufacturer no longer makes this part, and there's no substitute part

Fuse M4D48
#45

Replacement parts diagram

Fuse

Part #M4D48

The manufacturer no longer makes this part, and there's no substitute part

Torx Driver (t-20) M95D23

#NI

All parts diagram

Torx driver (t-20)

Part #M95D23

The manufacturer no longer makes this part, and there's no substitute part

Nut Plate M8D308
#14

Replacement parts diagram

Nut plate

Part #M8D308

The manufacturer no longer makes this part, and there's no substitute part

H.v. Lead Kit M5D350
#23A

Replacement parts diagram

H.v. lead kit

Part #M5D350

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Cover M45D38
#12

Replacement parts diagram

Stirrer cover

Part #M45D38

The manufacturer no longer makes this part, and there's no substitute part

Rivet, Foot Mtg. M1D890
#4B

Replacement parts diagram

Rivet, foot mtg.

Part #M1D890

The manufacturer no longer makes this part, and there's no substitute part

Door Filler (includes Ref. No. 30) M55D33
#32

Replacement parts diagram

Door filler (includes ref. no. 30)

Part #M55D33

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder M4D39
#44A

Replacement parts diagram

Fuse holder

Part #M4D39

The manufacturer no longer makes this part, and there's no substitute part

Electronic Circuit Board M32D596
#36

Replacement parts diagram

Electronic circuit board

Part #M32D596

The manufacturer no longer makes this part, and there's no substitute part
