Murray
Gas Walk-Behind Mower

Model # 228670X8A Official Murray rotary lawn mower

Here are the diagrams and repair parts for Official Murray 228670X8A rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Nut 15X116
#5

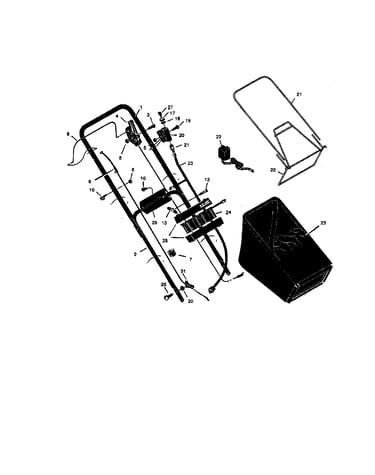

Handle/controls/battery/frame diagram

Nut

Part #15X116

Replaced by #703232

?
Manufacturer substitution
This part replaces 15X116. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.24 |
14% OFF Phone Price : $7.24
In Stock
Wing Nut 71495
#31

Handle/controls/battery/frame diagram

Wing nut

Part #71495

Replaced by #1501260MA

?
Manufacturer substitution
This part replaces 71495. Substitute parts can look different from the original.
BEST SELLER
$10.93 |
15% OFF Phone Price : $12.93
In Stock
T Hex Flange 15X79
#52

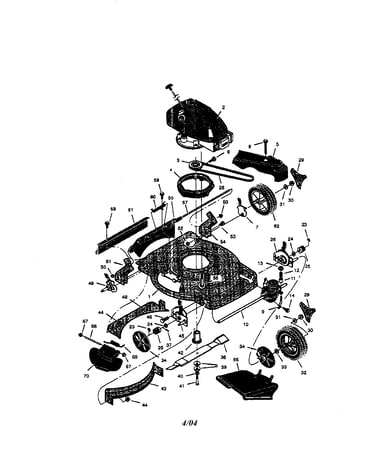

Engine/housing/wheel/transmission diagram

T hex flange

Part #15X79

Replaced by #703409

?
Manufacturer substitution
This part replaces 15X79. Substitute parts can look different from the original.
$9.27 |
10% OFF Phone Price : $10.27
In Stock
Hex Flange Nut 15X68
#44

Engine/housing/wheel/transmission diagram

Hex flange nut

Part #15X68

Replaced by #703333

?
Manufacturer substitution
This part replaces 15X68. Substitute parts can look different from the original.
This item is not returnable
$8.09 |
11% OFF Phone Price : $9.09
In Stock
8-11x.63 Pol 26X303
#8

Engine/housing/wheel/transmission diagram

8-11x.63 pol

Part #26X303

Replaced by #26X303MA

?
Manufacturer substitution
This part replaces 26X303. Substitute parts can look different from the original.
This item is not returnable
$6.66
In Stock
Whl 8x2 Mod 1101432
#32

Engine/housing/wheel/transmission diagram

Whl 8x2 mod

Part #1101432

Replaced by #672441MA

?
Manufacturer substitution
This part replaces 1101432. Substitute parts can look different from the original.
$78.13
In Stock
Pinion Gear 71792
#25

Engine/housing/wheel/transmission diagram

Pinion gear

Part #71792

Replaced by #71792MA

?
Manufacturer substitution
This part replaces 71792. Substitute parts can look different from the original.
$26.38
In Stock
Wheel, 8 X 2-in 1101433
#62

Engine/housing/wheel/transmission diagram

Wheel, 8 x 2-in

Part #1101433

Replaced by #1101433MA

?
Manufacturer substitution
This part replaces 1101433. Substitute parts can look different from the original.
$55.56
In Stock
10 Locknut 15X88
#13

Engine/housing/wheel/transmission diagram

10 locknut

Part #15X88

Replaced by #704067

?
Manufacturer substitution
This part replaces 15X88. Substitute parts can look different from the original.
This item is not returnable
$6.46
In Stock
Screw-#10-24 26X302
#6

Engine/housing/wheel/transmission diagram

Screw-#10-24

Part #26X302

Replaced by #26X304MA

?
Manufacturer substitution
This part replaces 26X302. Substitute parts can look different from the original.
$7.77
In Stock
