Model # 463273215 Official Char-Broil gas grill
Here are the diagrams and repair parts for Official Char-Broil 463273215 gas grill, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
463273215 Outdoor Grills
#16

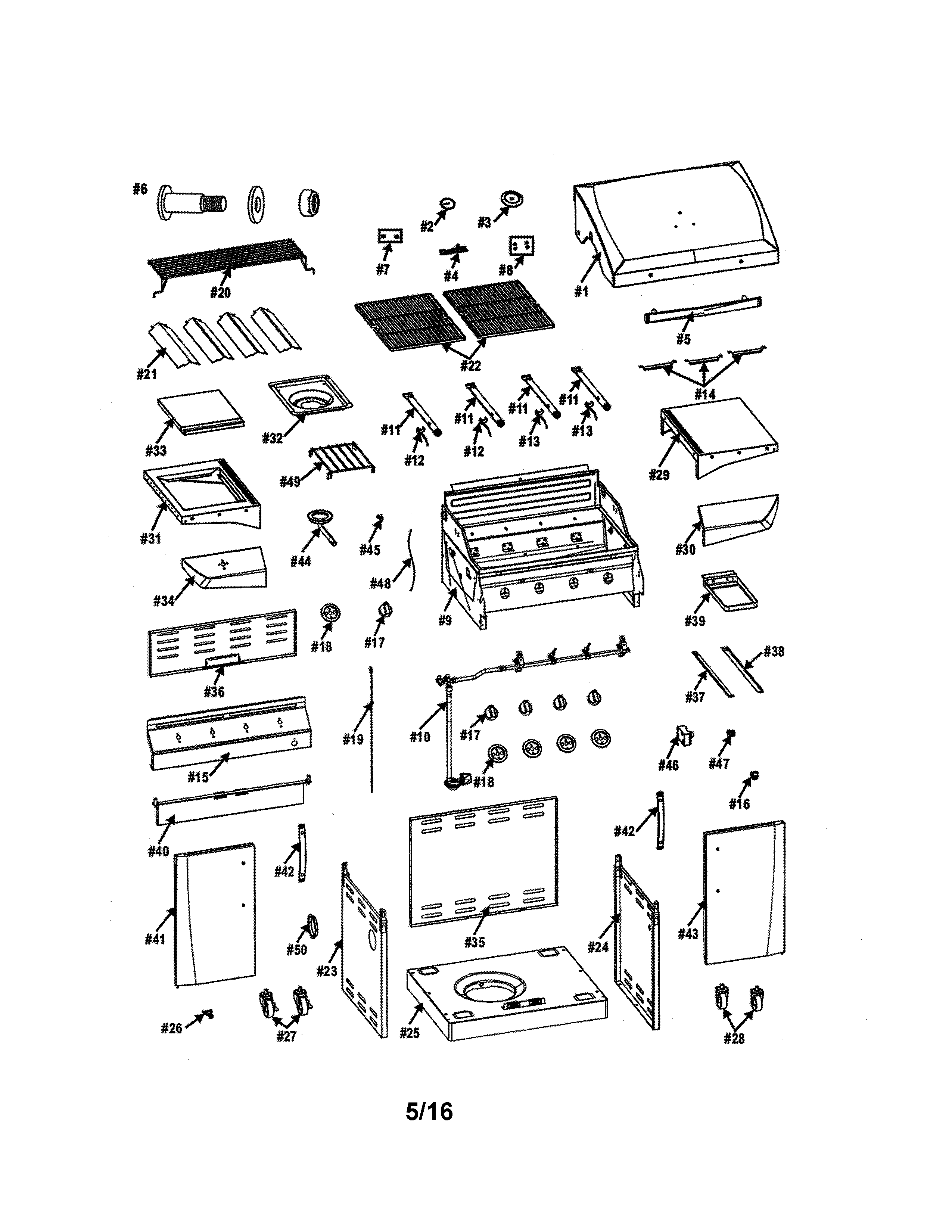

Gas grill diagram
Switch f/ign
Part #G515-0017-W1A
Replaced by #G515-0017-W7
?
Manufacturer substitution
This part replaces G515-0017-W1A. Substitute parts can look different from the original.
$11.09 |
15% OFF Phone Price : $13.09
In Stock
#39
Gas grill diagram
Gas grill grease tray (replaces g350-4400-w1, g515-4500-w1, g515-7500-w1a)
Part #G350-4400-W1A
This item is not returnable
$12.40 |
14% OFF Phone Price : $14.40
In Stock
#12
Gas grill diagram
Gas grill igniter (replaces 80007512)
Part #G515-0014-W1
$6.64 |
13% OFF Phone Price : $7.64
In Stock
#46
Gas grill diagram
Gas grill ignition module (replaces 80018306)
Part #G515-0030-W2
This item is not returnable
$23.86 |
20% OFF Phone Price : $29.86
In Stock
#2
Gas grill diagram
Gas grill temperature gauge
Part #G515-0031-W1
This item is not returnable
$8.99 |
10% OFF Phone Price : $9.99
In Stock
#11
Gas grill diagram
Gas grill main burner (replaces 80017579, g515-2200-9000)
Part #G515-2200-W1
$15.26 |
12% OFF Phone Price : $17.26
In Stock
#49
Gas grill diagram
Gas grill side burner cooking grate
Part #G501-0077-W1
This item is not returnable
$11.39 |
15% OFF Phone Price : $13.39
In Stock
#20
Gas grill diagram
Kenmore gas grill warming rack
Part #G515-00B8-W1
$15.39 |
12% OFF Phone Price : $17.39
In Stock
#17
Gas grill diagram
Gas grill burner knob
Part #G519-2100-W1
This item is not returnable
$6.99
In Stock
#44
Gas grill diagram
Gas grill side burner (replaces 80017653)
Part #G515-1000-W1
This item is not returnable
$15.29 |
12% OFF Phone Price : $17.29
In Stock
Symptoms for gas grills
Choose a symptom to see related gas grill repairs.
Main causes: nearly empty fuel tank, faulty pressure regulator, burner tube clogs, bad burner tube alignment to gas valv…
Main causes: empty fuel tank, tripped flow-limiting device on the pressure regulator, faulty manifold valves, burner tub…
Main cause: worn wheel…
Main causes: damaged or dirty flame tamers, corroded firebox, accumulated grease and debris in the grease pan…
Main causes: clogged burner tubes, cracked insulators on igniter electrodes, wiring failures, bad ignition module, manif…
Repair guides for gas grills
These step-by-step repair guides will help you safely fix what’s broken on your gas grill.

How to replace a gas grill wheel
Replace a broken or damaged wheel in less than 15 minutes.…
Repair difficulty
Time required
15 minutes or less

How to replace a gas grill igniter electrode
Replace the igniter electrode on your gas grill if it won’t light the burner.…
Repair difficulty
Time required
15 minutes or less

How to replace a gas grill ignition module
Follow these steps to replace the ignition module if it doesn't produce a spark. …
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your outdoor grills
Use the advice and tips in these articles and videos to get the most out of your gas grill.

Learn about the main parts of gas grills and get DIY tips for replacing gas grill parts.…
