GE
Faucet Water Filter

Model # GXWH40L Official GE water system

Here are the diagrams and repair parts for Official GE GXWH40L water system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 10 parts  |
Hardware Kit HDKIT
#1

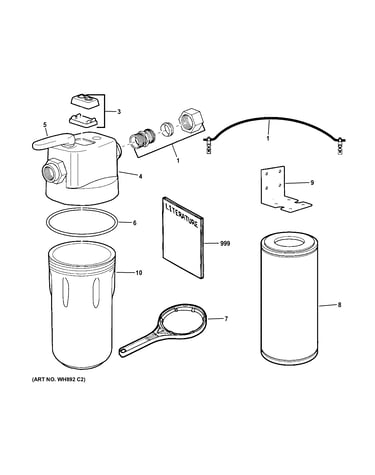

Water filter parts diagram

Hardware kit

Part #HDKIT

$47.99
In Stock
Timer - No Batteries WHTIMER
#3

Water filter parts diagram

Timer - no batteries

Part #WHTIMER

$12.71
In Stock
Water Filtration System Water Filter FXHSC
#8

Water filter parts diagram

Water filtration system water filter

Part #FXHSC

Get free shipping with Automatic Reorder

$28.98 |
17% OFF Phone Price : $34.98
In Stock
Ge Sump WS30X10015
#10

Water filter parts diagram

Ge sump

Part #WS30X10015

$77.54 |
7% OFF Phone Price : $83.54
In Stock
Water Filtration System Water Filter FXHTC
#8

Water filter parts diagram

Water filtration system water filter

Part #FXHTC

Get free shipping with Automatic Reorder

$44.09 |
12% OFF Phone Price : $50.09
In Stock
Wrench HDWRNCH
#7

Water filter parts diagram

Wrench

Part #HDWRNCH

Replaced by #WX5X3002

?
Manufacturer substitution
This part replaces HDWRNCH. Substitute parts can look different from the original.
$9.09 |
10% OFF Phone Price : $10.09
In Stock
O-ring HDRING
#6

Water filter parts diagram

O-ring

Part #HDRING

The manufacturer no longer makes this part, and there's no substitute part

Installation Instructions 49-50220
#999

Water filter parts diagram

Installation instructions

Part #49-50220

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bracket WS28X10071
#9

Water filter parts diagram

Mounting bracket

Part #WS28X10071

The manufacturer no longer makes this part, and there's no substitute part

Bypass Handle HDHANDLE
#5

Water filter parts diagram

Bypass handle

Part #HDHANDLE

The manufacturer no longer makes this part, and there's no substitute part
