Frigidaire
Top-Mount Refrigerator

Model # FRT21LR7AQ3 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire FRT21LR7AQ3 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

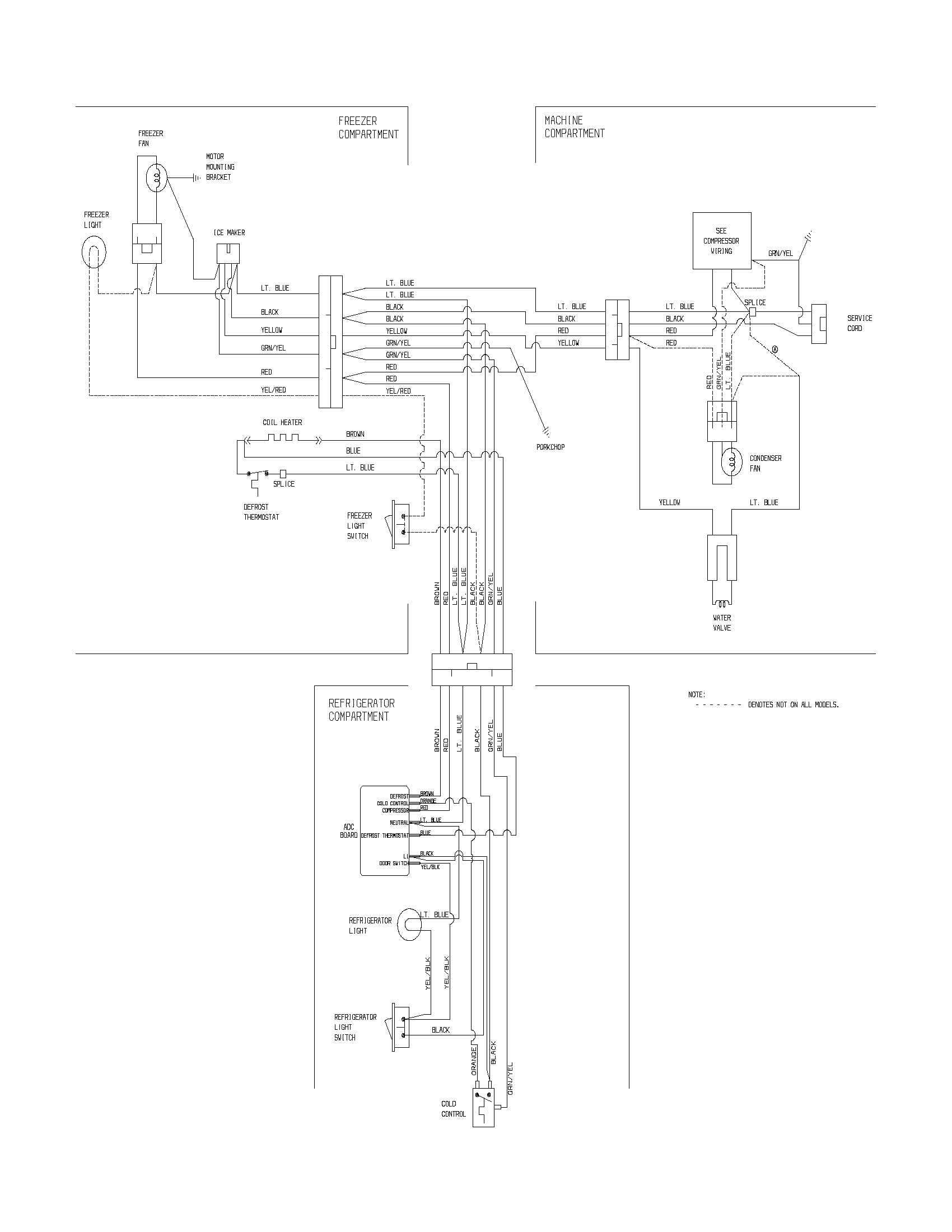

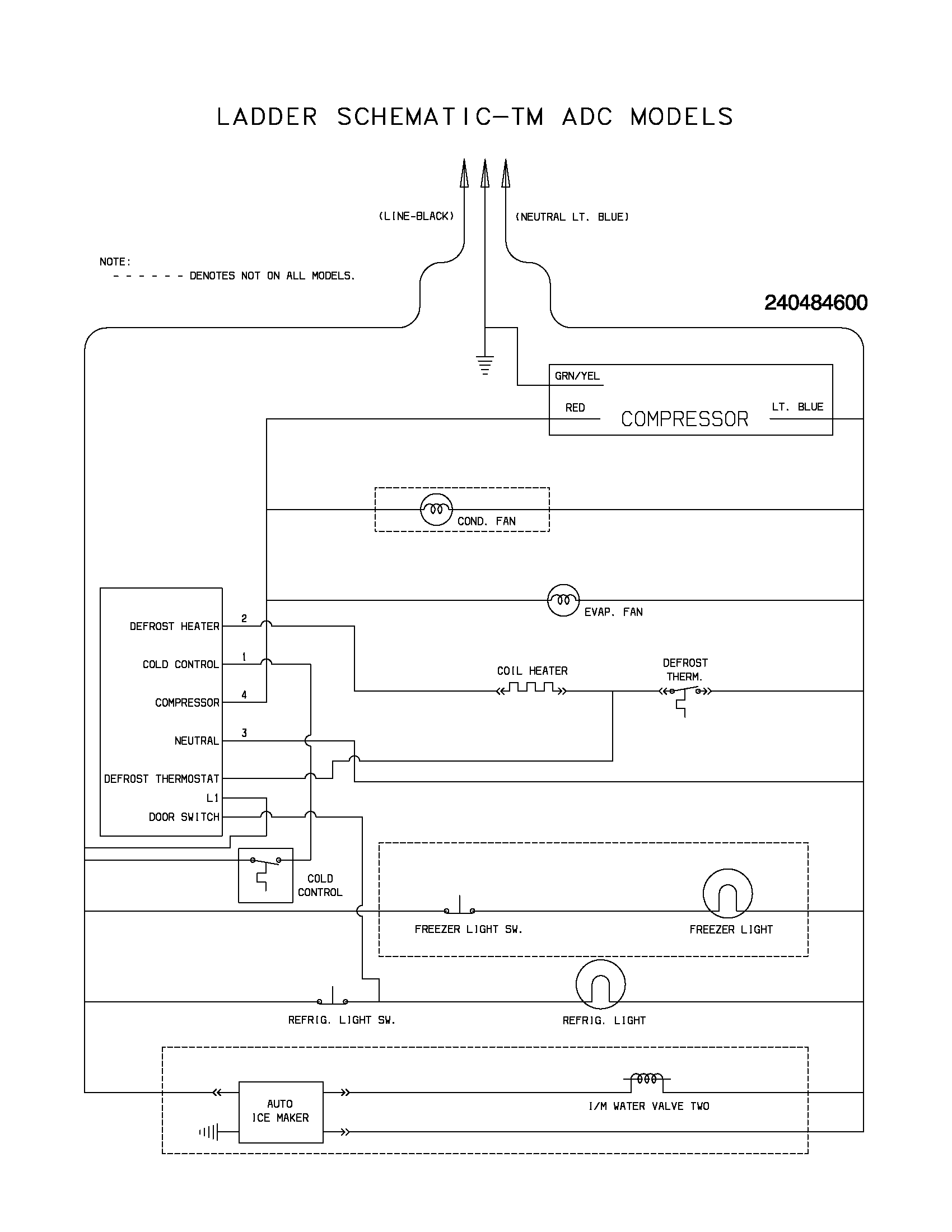

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 223 parts  |
Ice Maker Mold 5303320545
#17

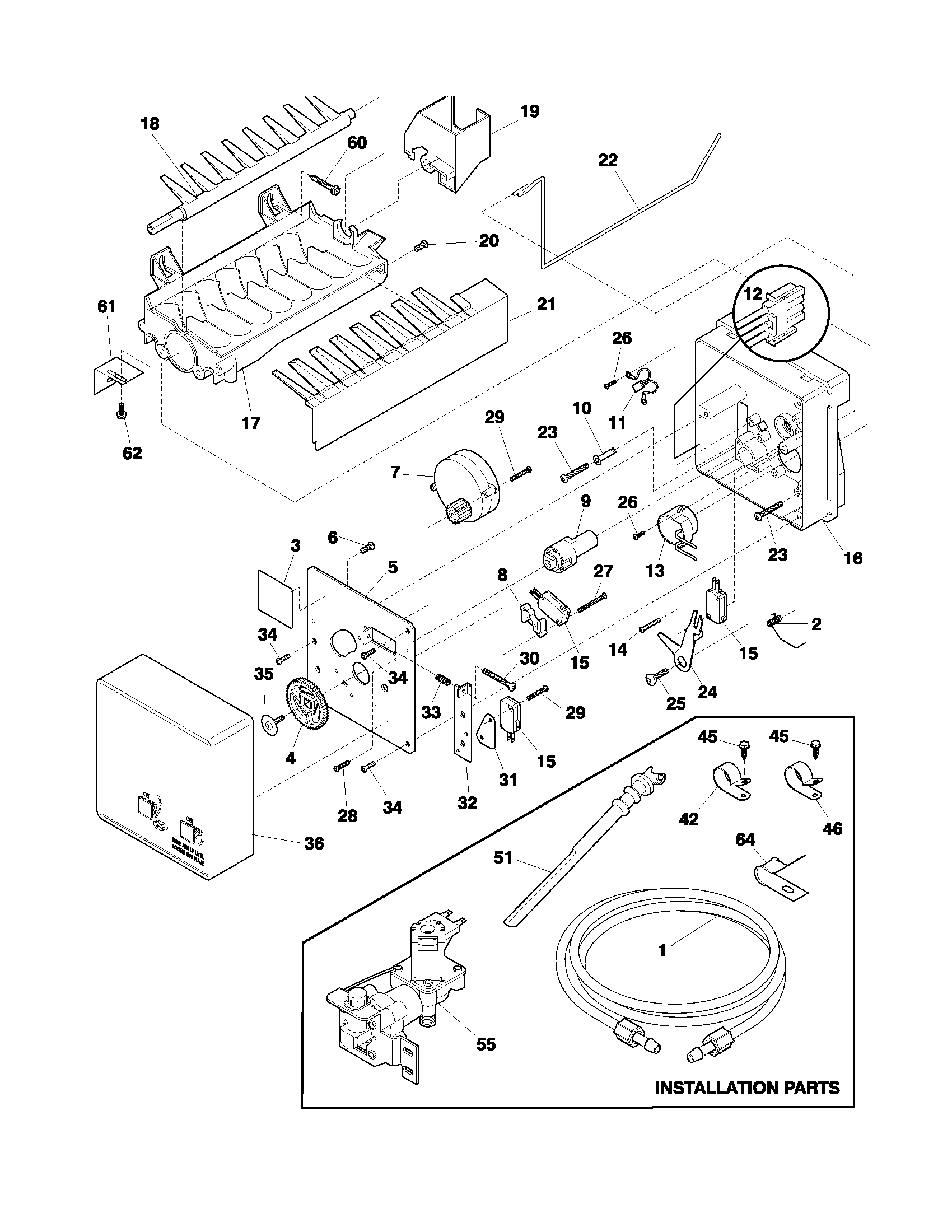

Ice maker diagram

Ice maker mold

Part #5303320545

Replaced by #241798231

?
Manufacturer substitution
This part replaces 5303320545. Substitute parts can look different from the original.
BEST SELLER
$153.02 |
7% OFF Phone Price : $165.02
In Stock
Refrigerator Filter Drier 218944001
#4

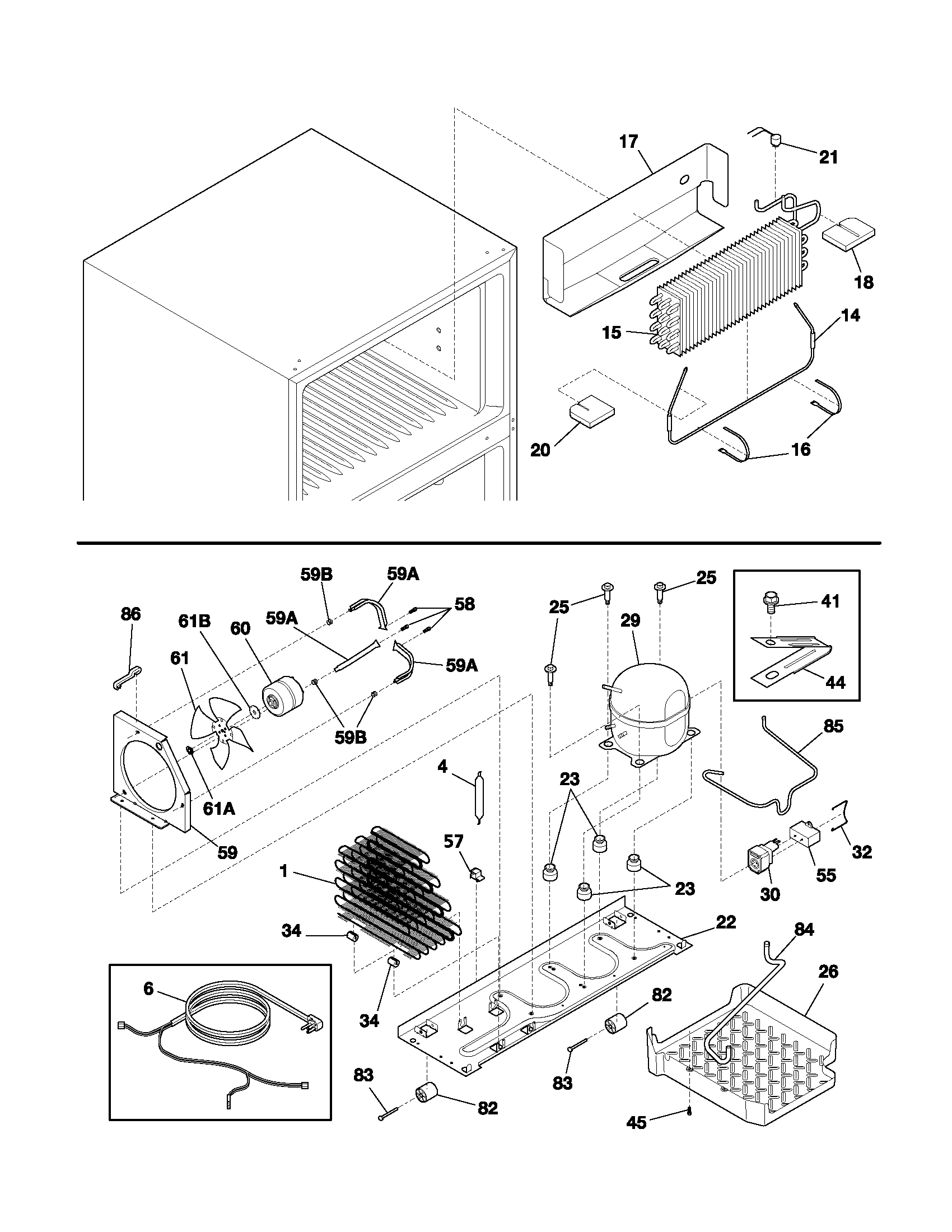

System diagram

Refrigerator filter drier

Part #218944001

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Door 240514608
#2

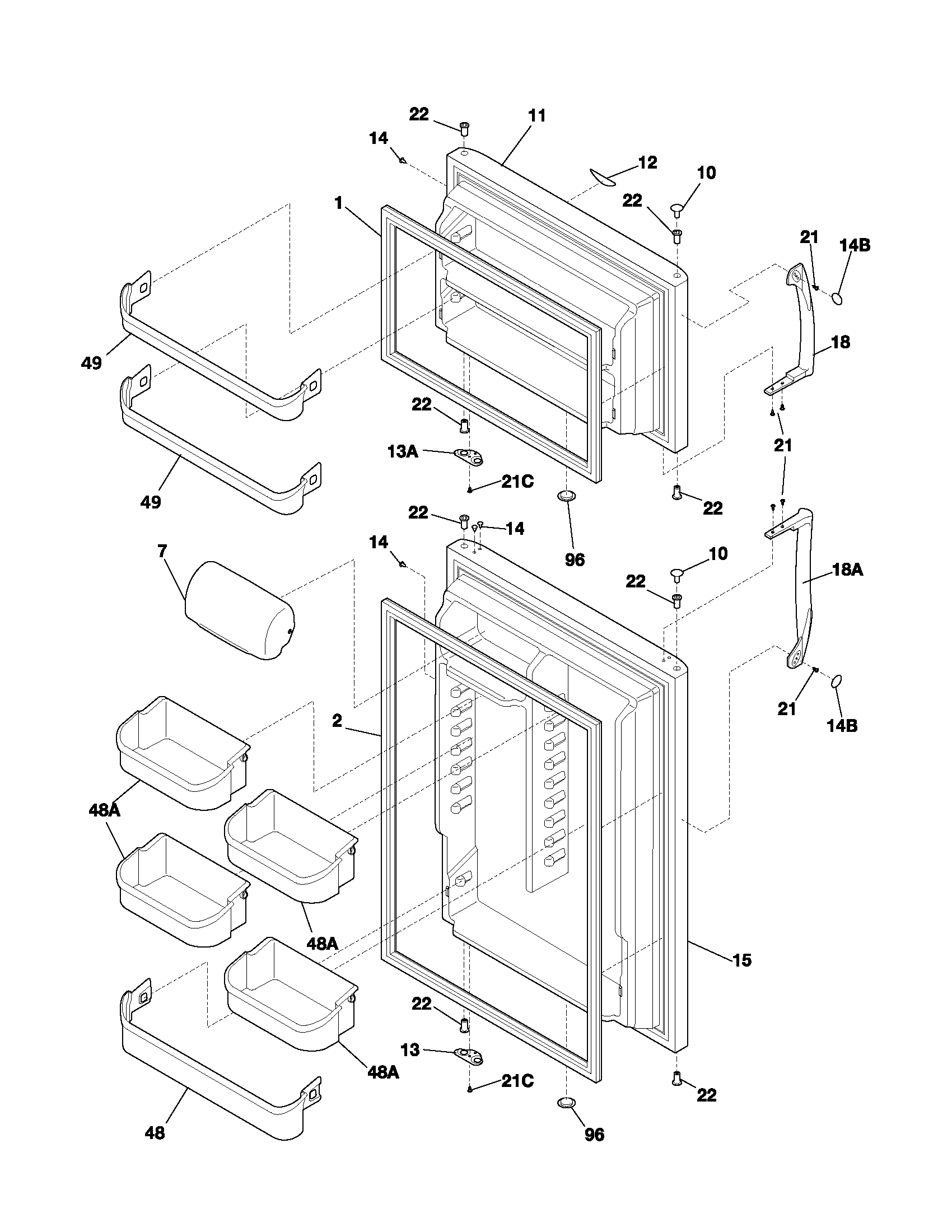

Door diagram

Refrigerator door

Part #240514608

Replaced by #241872513

?
Manufacturer substitution
This part replaces 240514608. Substitute parts can look different from the original.
BEST SELLER
$100.58 |
11% OFF Phone Price : $112.58
In Stock
Refrigerator Temperature Control Thermostat 5304421256
#21

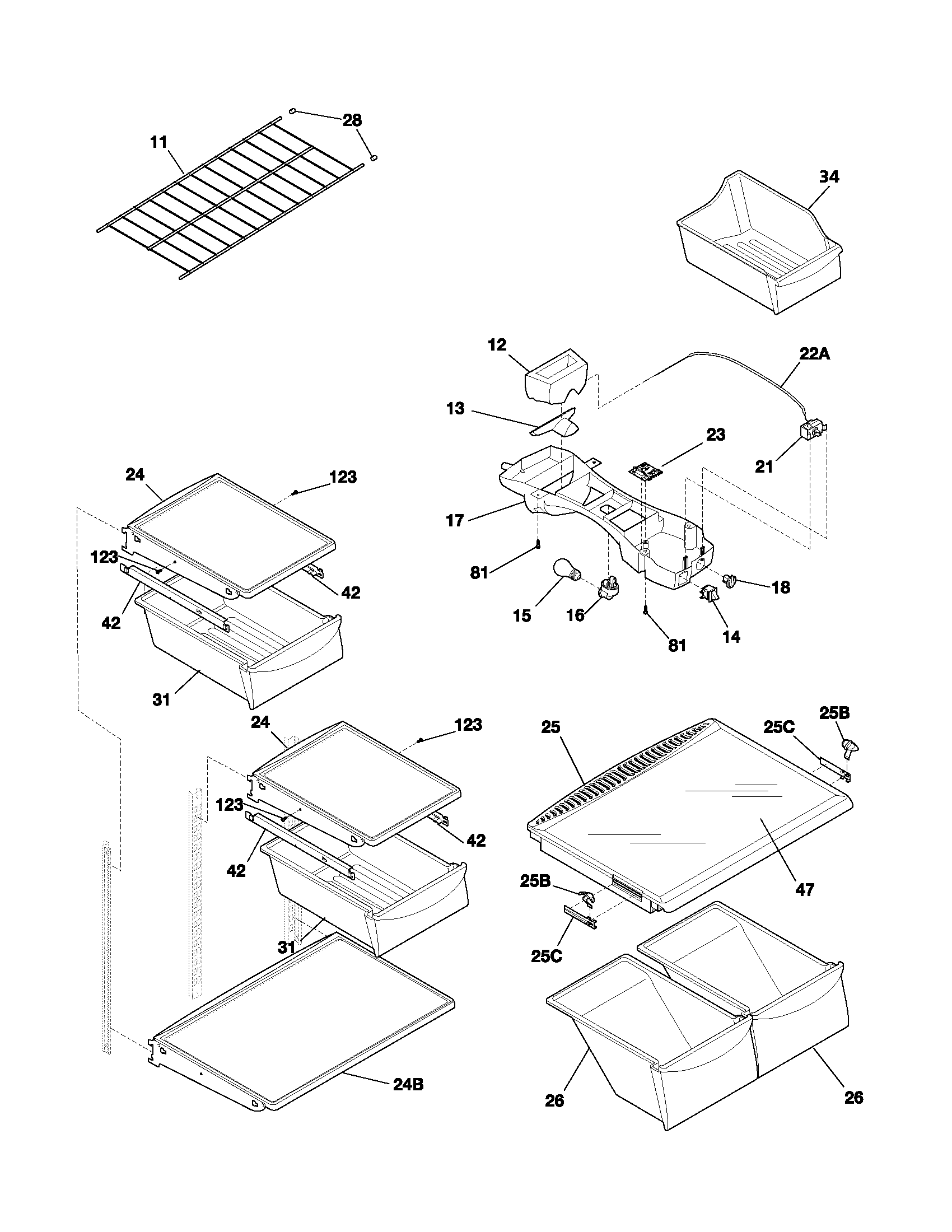

Shelves diagram

Refrigerator temperature control thermostat

Part #5304421256

Replaced by #241537103

?
Manufacturer substitution
This part replaces 5304421256. Substitute parts can look different from the original.
BEST SELLER
$81.31 |
7% OFF Phone Price : $87.31
In Stock
Evaporator Motor 240369701
#13

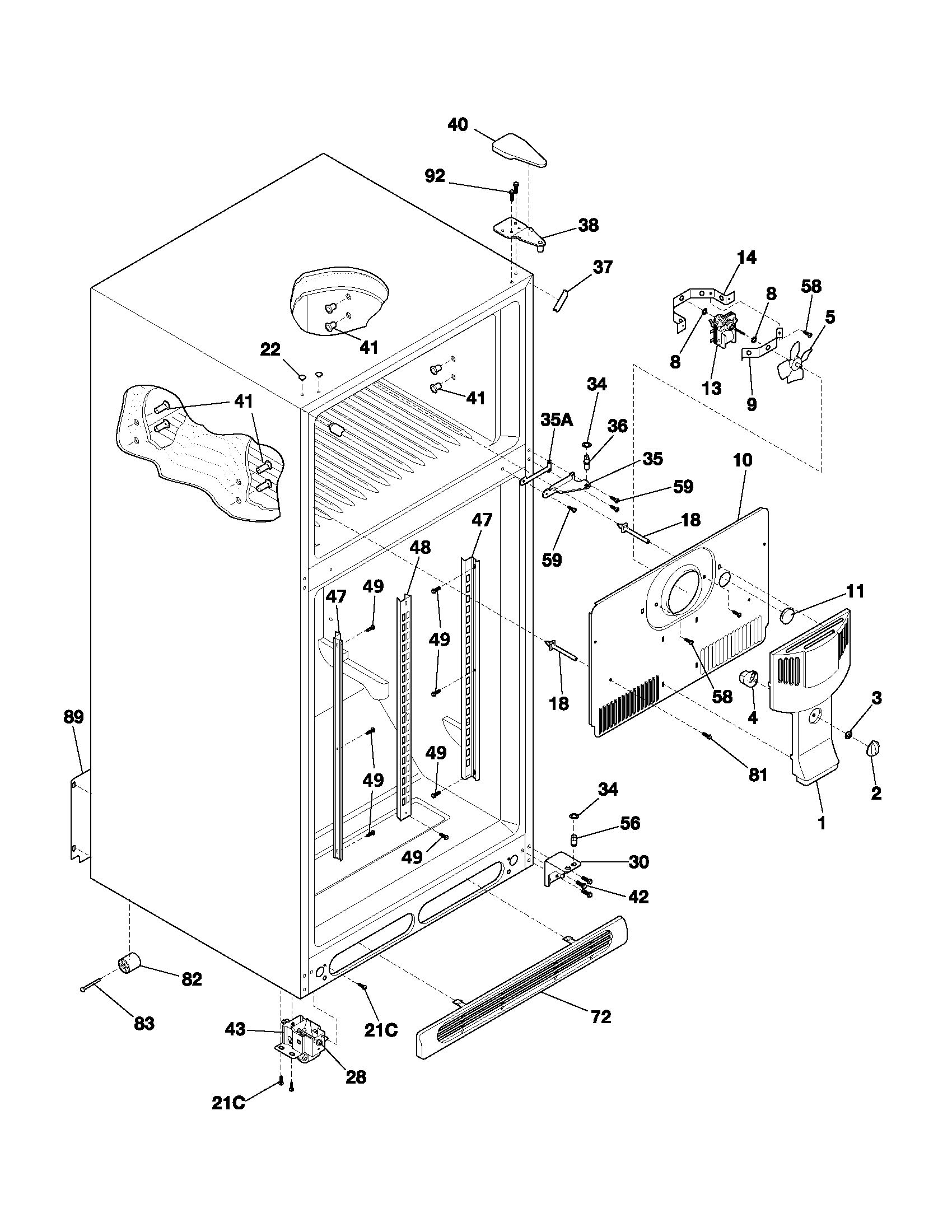

Cabinet diagram

Evaporator motor

Part #240369701

Replaced by #5303918549

?
Manufacturer substitution
This part replaces 240369701. Substitute parts can look different from the original.
BEST SELLER
$71.31 |
8% OFF Phone Price : $77.31
In Stock
Refrigerator Door Bin (replaces 240338104) 240338101
#48

Door diagram

Refrigerator door bin (replaces 240338104)

Part #240338101

BEST SELLER
$49.71 |
11% OFF Phone Price : $55.71
In Stock
Refrigerator Water Valve 240380301
#55

Ice maker diagram

Refrigerator water valve

Part #240380301

Replaced by #242252603

?
Manufacturer substitution
This part replaces 240380301. Substitute parts can look different from the original.
BEST SELLER
$51.04 |
11% OFF Phone Price : $57.04
In Stock
Water Inlet Valve 240519601
#55

Ice maker diagram

Water inlet valve

Part #240519601

Replaced by #242252603

?
Manufacturer substitution
This part replaces 240519601. Substitute parts can look different from the original.
BEST SELLER
$51.04 |
11% OFF Phone Price : $57.04
In Stock
Washer 240311301
#34

Cabinet diagram

Washer

Part #240311301

Replaced by #240311303

?
Manufacturer substitution
This part replaces 240311301. Substitute parts can look different from the original.
BEST SELLER
$8.27 |
11% OFF Phone Price : $9.27
In Stock
Refrigerator Evaporator 5303918250
#15

System diagram

Refrigerator evaporator

Part #5303918250

Replaced by #5303918274

?
Manufacturer substitution
This part replaces 5303918250. Substitute parts can look different from the original.
BEST SELLER
$300.95 |
$12.00 OFF Phone Price : $312.95
In Stock
