Dynasty
Gas Grill

Model # DKC48 Official Dynasty gas grill

Here are the diagrams and repair parts for Official Dynasty DKC48 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Box Assy, Sm 70001353
#27

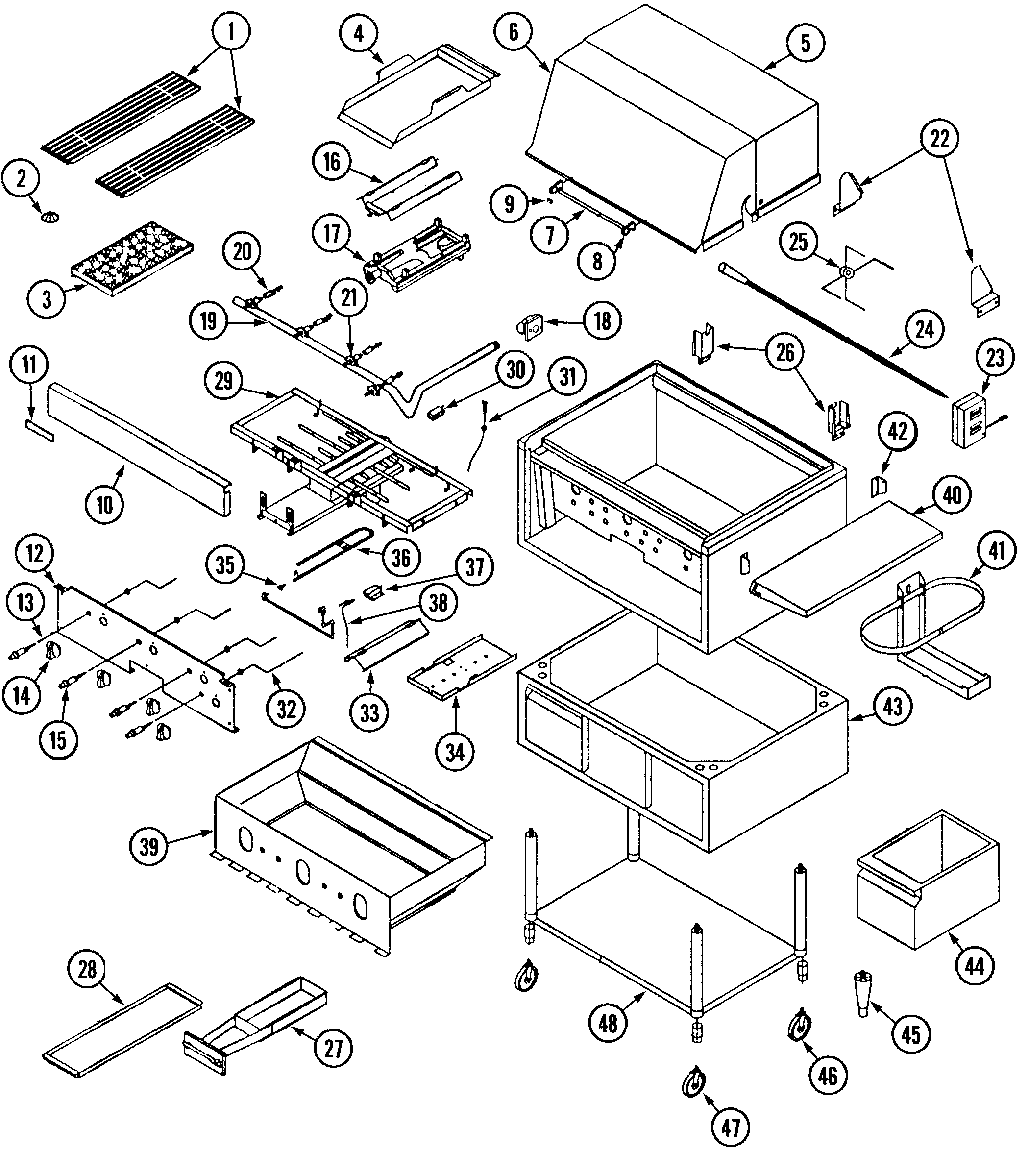

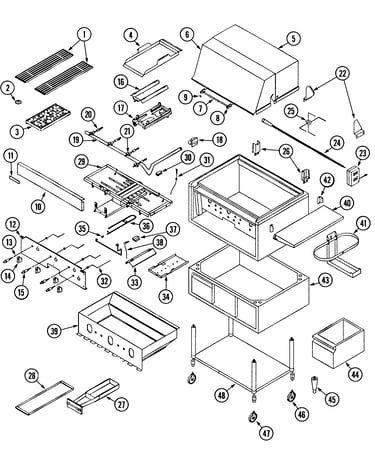

Body diagram

Box assy, sm

Part #70001353

The manufacturer no longer makes this part, and there's no substitute part

Smoker Hood 70001366
#37

Body diagram

Smoker hood

Part #70001366

The manufacturer no longer makes this part, and there's no substitute part

Frame Assembly 70001358
#29C

Body diagram

Frame assembly

Part #70001358

The manufacturer no longer makes this part, and there's no substitute part

Shelf 70001381
#47A

Body diagram

Shelf

Part #70001381

The manufacturer no longer makes this part, and there's no substitute part

Firebox Assembly 70001368
#39A

Body diagram

Firebox assembly

Part #70001368

The manufacturer no longer makes this part, and there's no substitute part

Igniter, Smo 70001367
#38

Body diagram

Igniter, smo

Part #70001367

The manufacturer no longer makes this part, and there's no substitute part

Igniter Wire 70001327
Igniter wire

Part #70001327

The manufacturer no longer makes this part, and there's no substitute part

Panel 70001320
#10B

Body diagram

Panel

Part #70001320

The manufacturer no longer makes this part, and there's no substitute part

Rear Hood 70001310
#5B

Body diagram

Rear hood

Part #70001310

The manufacturer no longer makes this part, and there's no substitute part

Shelf 70001380
#47

Body diagram

Shelf

Part #70001380

The manufacturer no longer makes this part, and there's no substitute part
