Samsung
Washer

Model # WF45R6300AW/US-00 Official Samsung washer

Here are the diagrams and repair parts for Official Samsung WF45R6300AW-US-00 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

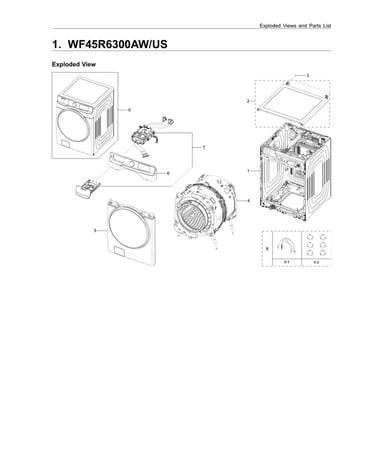

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Refrigerator Screw (replaces 6002-000231, 6002-000494) 6002-000213
#1

Control panel parts diagram

Refrigerator screw (replaces 6002-000231, 6002-000494)

Part #6002-000213

BEST SELLER
This item is not returnable
$2.26
In Stock
Clamper Hood DC65-00008B
#2-2-3

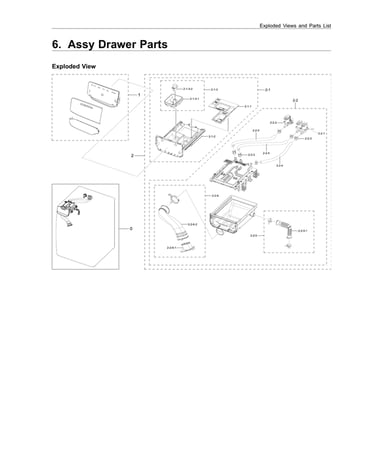

Drawer parts diagram

Clamper hood

Part #DC65-00008B

This item is not returnable
$3.76 |
21% OFF Phone Price : $4.76
In Stock
Appliance Wire Harness Retainer 6502-000127
#7

Small parts diagram

Appliance wire harness retainer

Part #6502-000127

$8.66 |
10% OFF Phone Price : $9.66
In Stock
Assy Cover Filter DC97-21478C
#4

Front parts diagram

Assy cover filter

Part #DC97-21478C

The manufacturer no longer makes this part, and there's no substitute part

Assy Wire Harness-main DC93-00819A
#8-2

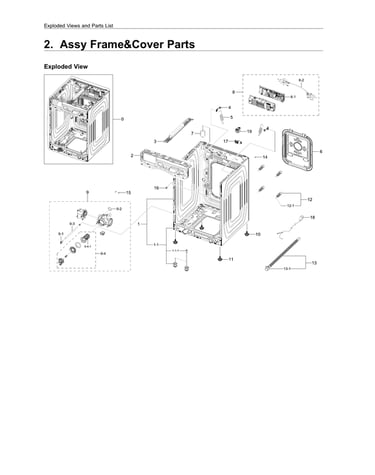

Frame & cover parts diagram

Assy wire harness-main

Part #DC93-00819A

The manufacturer no longer makes this part, and there's no substitute part

Bracket Nut (6) DC61-00201A
#9-5-1

Tub & frame parts diagram

Bracket nut (6)

Part #DC61-00201A

The manufacturer no longer makes this part, and there's no substitute part

Assy Case Filter DC97-21477A
#3

Front parts diagram

Assy case filter

Part #DC97-21477A

The manufacturer no longer makes this part, and there's no substitute part

Assy Semi Tub Front DC97-21466A
#9-5

Tub & frame parts diagram

Assy semi tub front

Part #DC97-21466A

The manufacturer no longer makes this part, and there's no substitute part

Weight Balancer (2) DC67-00999A
#3

Tub & frame parts diagram

Weight balancer (2)

Part #DC67-00999A

The manufacturer no longer makes this part, and there's no substitute part

Guide Wire DC61-04867A
#3

Frame & cover parts diagram

Guide wire

Part #DC61-04867A

The manufacturer no longer makes this part, and there's no substitute part
